COM Express® Reference Carrier HMI Type 1

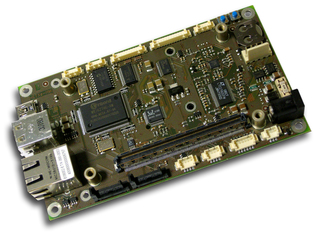

The COMe Reference Carrier Human Machine Interface (HMI) Type 1 is designed to allow embedded application developers to get up and run quickly with Kontrons COM Express® mini modules, giving them a head start on their system design.
Simply select a COM Express® mini size COMe-mSP1 module, then Plug & Go. The dimensions of the COMe Ref. Carrier HMI T1 is pretty small, just 120 mm x 70 mm.
This ready to use baseboard is a flexible design platform for various applications for example POS/POI and industrial automation.
Power Supply | Power supply 12V, SmartBattery, 2 cells Li-Ion Single power supply +12V |
Hard Disk | 2x SerialATA |
Ethernet | 1x 10/100/1000 MBit LAN; RJ45 connector |
Serial | 1x COM1 (RS232) 1x COM2 (RS485) 1x CAN |
PCI Express / PCI support | 1x Expansion PCI Express Card 34/54 slot |
I/O Features | Extension: 1x microSD Slot (depending on nanoETXexpress module) |
USB | 2x USB 2.0 (USB 1,3) 2x USB internal on pin header (USB 0,2) 1x USB client (USB port 7) |
Graphics | 1x LVDS/JILI FFC 40 connector CRT internal (depending on nanoETXexpress module) |
Audio Controller | Realtek ALC888 HD-Audio, AudioConnectorBoard required for S/PDIF IN/OUT and Stereo jacks |
Dimensions (H x W x D) | 120 mm x 70 mm (4,7" x 2,8") |
Temperature | Operation: 0° to 60°C Storage: -30° to 85°C * Ask about extended temperature ranges |
Supported Modules | COM Express® COM.0 Pin out Type 1 compatible COM |
Humidity | Operation: 10% to 90% Storage: 5% to 95% (non condensing) |
