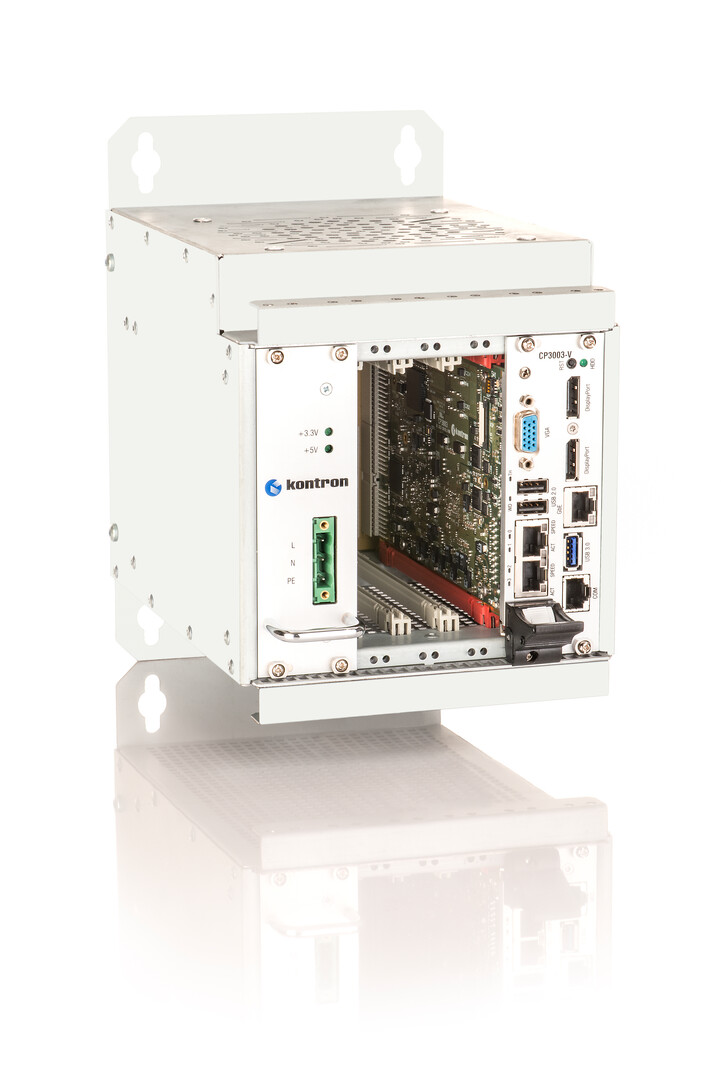

The CP-POCKET corresponds to a compact Box-PC in terms of size and price range, but offers the openness, flexibility and modularity of CompactPCI at only limited extra cost:
FLEXIBILITY: Just plug another I/O board where needed.
VARIABILITY: Upgrade to another CPU for higher performance.
SUPPLIER-INDEPENDENCY: For special needs, select any market-available component.
Its modular form factor is the ideal choice for any industrial application, when additional hardware flexibility is needed.
CP-POCKET is available in both an AC and a DC standard version. Each with a 75 watt power supply and a 4-slot CompactPCI backplane. The power supply provides the 5 and 3.3 volt for the CPCI boards inside the system.

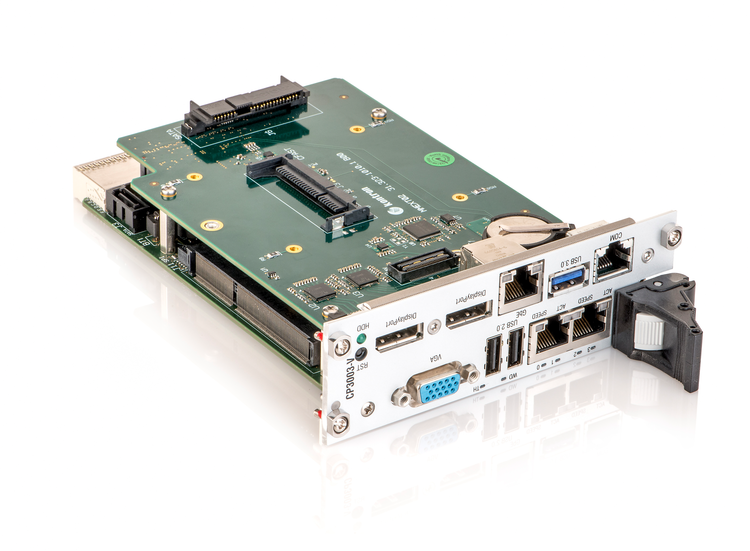

Three performance levels are available: Variants with CP305, equipped with a 1.6 GHz Intel® Atom™ N270 CPU, variants with CP307-V, 1.86 GHz Intel® Celeron® M 440, and variants with CP3003-V, 1.0 GHz Intel® Celeron® 807UE (32nm technology).
In case an alternative selection out of the wide choice of Kontron’s 3U CPU blades is requested, the CP-ASM4-POCKET chassis is also available as an open platform.
CP-Pocket is equipped with a cable strain-relief and a fan. Proposal of fanless variants (for CP305) on request.
Also available with Intel® Celeron® 807UE 32nm technology !
Depth | 210 mm |
19" Rack Mounting | Wall mount |
Backplanes | 4 slot |
Rear I/O | no |
Drives | HDD optional |
Characteristics | Integrated CP305 or CP307-V |
Power Supply | 75 Watt AC or DC |
Cooling | yes |
Housing | 28 HP /4U |
Datasheet CP-POCKET
[ cp-pocket_20170801_datasheet.pdf, 761.36 KB, Aug.31.2017 ]
CP3003-V Datasheet
[ datasheet_cp3003-v.pdf, 1.08 MB, Aug.31.2017 ]

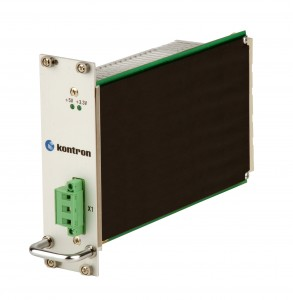

AC Power supply
[ cp3-sve-m76ac_manual_power-supply.pdf, 222.01 KB, Sep.11.2017 ]
Backplane
[ cp3-bp4-m_manual_backplane.pdf, 206.14 KB, Sep.11.2017 ]

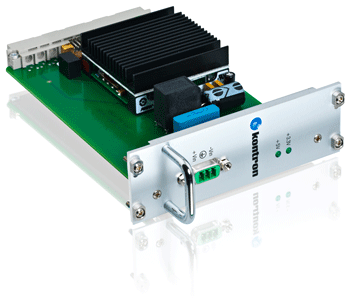

DC Power Supply
[ 24139_pd16_01_sk-man-cpsu-cp3_m75dc-24.pdf, 552.18 KB, Sep.11.2017 ]
CP3003-SA CP3003-V Introduction Manual
[ 1052-6929_20_sk-man-cp3003-sa_cp3003-v_introduction.pdf, 271.28 KB, Sep.11.2017 ]
CP3003-SA CP3003-V User Manual
[ 1052-6929_20_sk-man-cp3003-sa_cp3003-v.pdf, 2.23 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
