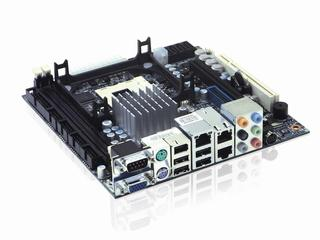

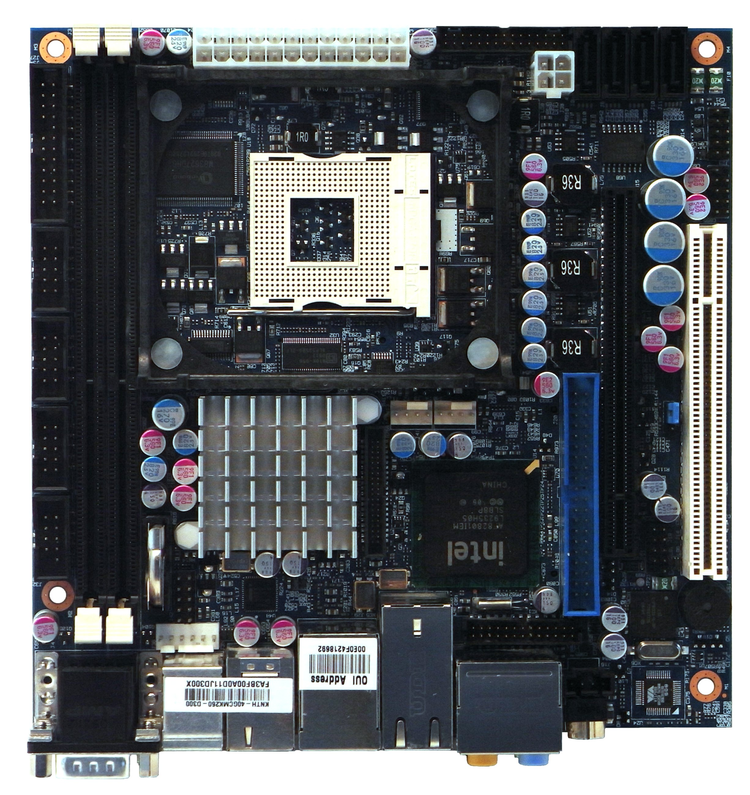

KTGM45/mITX This product is legacy
Embedded Mini-ITX motherboard with 45nm Intel® Core™2 Quad & Intel® Core™2 Duo support up to T9400 processor
Specifications
- Intel® Core™2 Quad & Intel® Core™2 Duo support incl. T9400
- Long term available embedded Mini-ITX Motherboard
- Intel® GM45 + ICH9M-E Embedded Chipset
- Intel® GMA 4500 MHD graphics
- Flat panel support via ADD2-cards (DVI, LVDS)
- 3 x Intel® Gigabit Ethernet, one with Intel® AMT 4.0 support
- Up to 8 GB DDR3, 2 pcs. DIMM 240 pin
- 4x SATA150/SATA300 w. RAID 0/1, HD Audio, 12x USB 2.0
- PCI-Express 16x
With the Intel Mobile 82GM45 Graphics and Memory Controller Hub and the Intel I/O Controller Hub (Intel ICH9M-E ) KTGM45/mITX offer a low chipset TDP (14.5 watts) for energy-efficient embedded designs.
Based on the Mobile Intel® GM45 chipset, the Kontron KTGM45/mITX embedded motherboard with long-term availability offer an ideal performance-per-watt ratio and the very latest interface technology, like second generation PCI Express x16, without neglecting embedded designers' needs: They still carry, for example, 4 serial interfaces alongside the 12 USB 2.0 interfaces. The embedded motherboards also offer more PCB layers than conventional motherboards, in order to achieve excellent signal qualities and optimize electromagnetic compatibility. Kontron’s new embedded motherboard also support Intel Active Management Technology (Intel AMT 4.0) for remote management and easy maintenance resulting in higher system availability and lower total costs.
Features

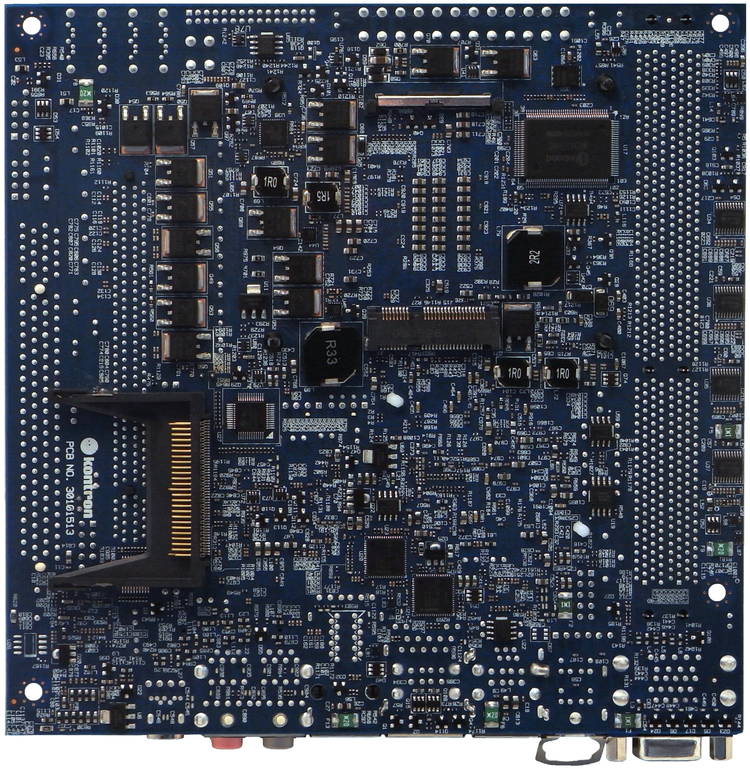

| Form Factor | Mini-ITX |
| Dimensions (H x W x D) | 6.7” x 6.7” (17,0 cm x 17,0 cm |
| CPU | Supports: Intel® Celeron 575, single core 2.00GHz, 31W Intel® Celeron T3100, Dual Ccore 1.90GHz, 31W Intel® Core 2 Duo P8400, 2.26GHz, dual Core, 25W Intel® Core 2 Duo T9400, 2.53GHz, dual Core, 35W |
| Chipset | Intel® GM45 ICH9M-E |
| Main Memory | up to 8 GB DDR3 DIMM-240 (max 2x 4GB) |
| Front Side Bus | 667/800/1066Mhz |
| Graphics Controller | Intel® GMA4500 support DVMT 5.0 |
| Graphics | CRT (up to 2048x1536) output and SDVO digital output for DVI, Dual Channel LVDS (1920x1080) & HDMI PCI-Express x 16/SDVO, SVideo/TV (optional) |
| Ethernet Controller | Intel® Boazman-LM WG82567LM Intel® Hartwell 82574L |
| Ethernet | 3x Intel® Gigabit Ethernet (1x AMT 5.0 support) (810352-4500 has only 1 x LAN) |
| Hard Disk | 4x SATAII 150/300 w. RAID 0,1 support |
| Parallel Port | 1x ATA100 (2.54 mm connector) Thru LPT connector |
| Flash Onboard | CompactFlash Type I/II (810350-4500 only) |
| PCI | 1x PCI |
| PCI Express / PCI support | 1x PCIe x16/SDVO for external graphics card or ADD2 cards |
| Mini-PCI | 1x mini-PCI Express |
| USB | 12x port USB 2.0 (8x internal and 4x external) |
| IEEE 1394 Firewire | 2x IEEE1394 (1x Internal and 1x External) (810350-4500 and 810351-4500 only) |
| Serial | 4x RS232C serial ports with FIFO |

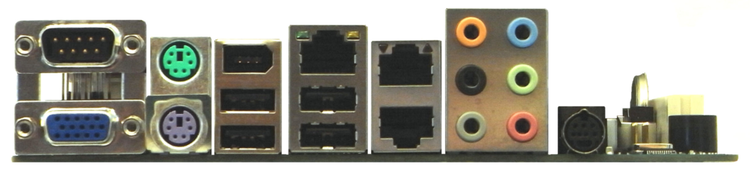

| Rear I/O |
| Audio Controller | VIA 1708B 7.1 channel HD audio |
| Keyboard | internal PS/2 Mouse/Keyboard connector |
| Special Features | Software interface to monitor hardware values including HDD S.M.A.R.T. Watchdog On board Lithium battery and external battery input |
| BIOS | AMI |
| Power Management | ACPI 3.0 |
| Operation Temperature | 0 - 60°C (32°F - 140°F) |
| Operating System | Win CE 6.0, WinXPe; WES7 Linux VxWorks |
| Compliance | EN55022 EN61000-4-2(ESD) |
Downloads
Datasheets
KTGM45/mITX Datasheet
[ datasheet-ktgm45-mitx.pdf, 499.07 KB, Aug.31.2017 ]
Manuals
KTD-N0793 KTGM45 Users Guide
[ ktd-n0793-o-ktgm45-users-guide.pdf, 5.11 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Mechanical Drawings
KTGM45/mITX 3D Drawing in PDF
[ ktgm45-mitx_asm.pdf, 5.43 MB, Nov.27.2013 ]
KTGM45 IO Bracket
[ 1044-0821-ktgm45-io-bracket.pdf, 131.9 KB, Nov.27.2013 ]
KTGM45-ITX 3D Drawing STP rev. 02-02-2010
[ ktgm45-itx-3d-drawing.zip, 4.49 MB, Nov.27.2013 ]
KTGM45/mITX Mechanical Drawings (both Mils and mm) in PDF
[ ktgm45mitx-2d-drawings-in-pdf.zip, 1.77 MB, Nov.27.2013 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
Accessories
|
ADD2-LVDS-DUAL-Internal
820950 |
|
ADD2 card for extra LVDS support for Motherboards. | more |
|
ADD2-LVDS-Internal
820953 |
|
ADD2 card for extra LVDS support for Motherboards. | more |
|
ADD2-CRT-Internal
820954 |
|
Low profile ADD2 card with internal CRT pin row output | more |
|
ADD2-DVI-DUAL-Internal
820951 |
|
PCI-Express based DVI graphic expansion card for motherboards. | more |
|
ADD2-DVI-DUAL-Internal-External 820952 |
|
PCI-Express based DVI graphic expansion card for motherboards. | |
|
ADD2-DVI-DUAL-Internal-C01
820955 |
|
PCI-Express based DVI graphic expansion card for motherboards. | more |
|
KT-PCIe-DVI-HDMI-I
820977 |
|
Low profile DVI/HDMI module for Intel® GM45, Q45 or G41 chipset based system | more |
|

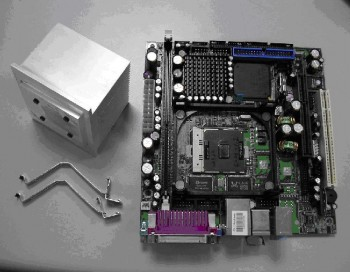

Socket478 Passive Cooler (27mm) for PGA Pentium-M
823133 |
|
Socket478 Passive Cooler (heatsink 27mm) for 886LCD-M & 986LCD-M Family Embedded Motherboards. | more |
|
Socket478 Passive Cooler (60mm) for PGA Pentium-M
823137 |
|
Socket478 Passive Cooler (heatsink 60mm) for 886LCD-M & 986LCD-M Family Embedded Motherboards. | more |
|

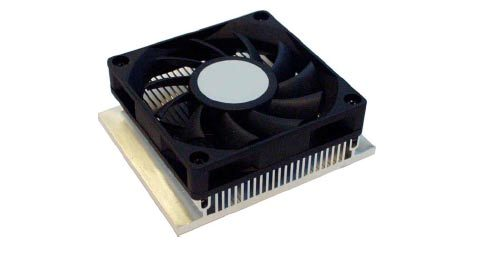

Socket478 Low Profile Cooler
