COMe Eval Carrier QorIQ™ This product is legacy

COM Express® Eval Carrier for Kontron's QorIQ™ Power Architecture® COM Designs
Specifications
  • Flexible interfaces by adapter cards
  • High performance Ethernet interfaces (XAUI)
  • COM Express® basic and compact compliant

Eval Carrier for QorIQ based Com Express® COM
Configurable with additional adapter cards

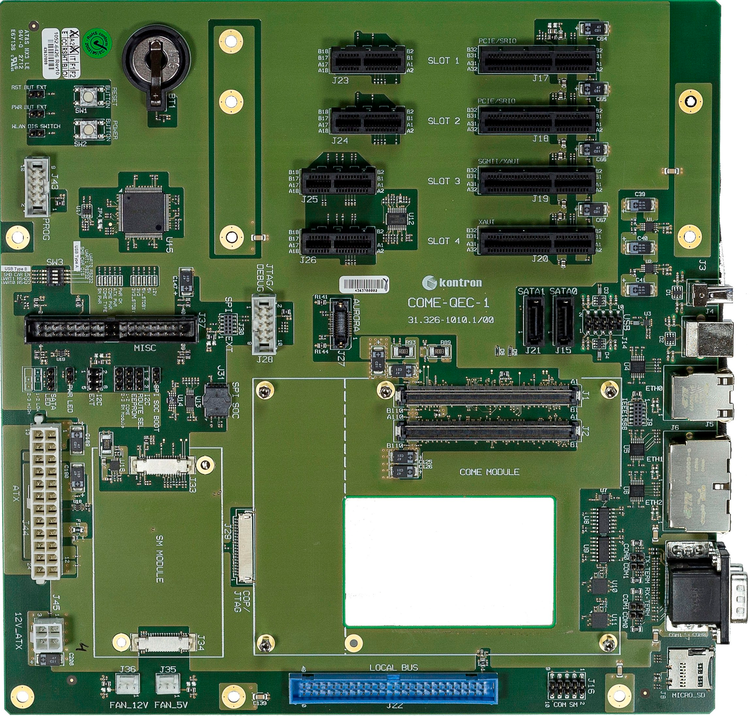

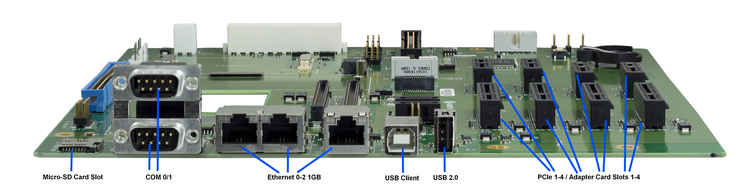

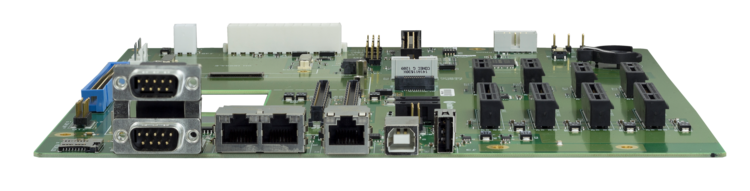

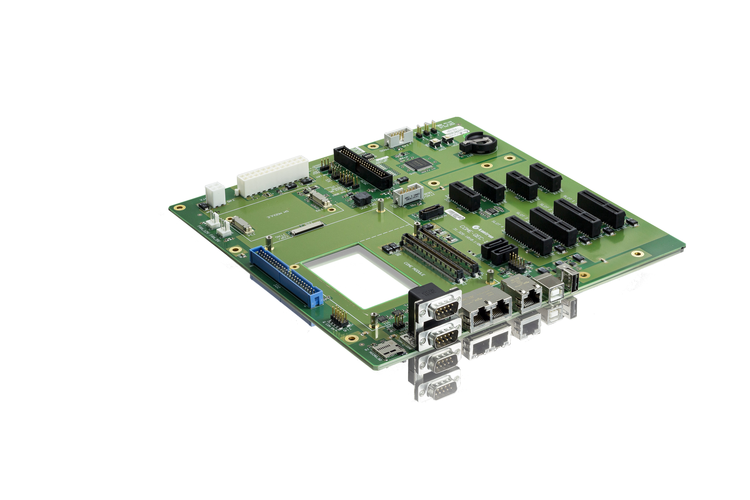

The COM Express® Evaluation Carrier QorIQ™ is specially designed for Kontron Computer-on-Modules with COM Express® QorIQ™ pin-out. The 4 PCI Express slots are connected to the SERDES Interfaces provided by the dedicated COMs and can be equipped with different adapter cards. Start your research and development with this fast and flexible solution for express evaluation purposes for Freescale™ QorIQ™ Power Architecture®.

Features

Dimensions (H x W x D) 244 mm × 244 mm
(9,6" × 9,6")
Form Factor Micro-ATX form factor
Ethernet 1x RJ45 Ethernet connectors
optional 3x RJ45 Ethernet connectors
Graphics --
Hard Disk 2x SATA standard interface
PCI Express / PCI support 2x PCIe x1/x4 GenI/GenII
see SERDES
Power Supply ATX power supply 24 + 4 pin
Serial 2x UART on DSUB-9 (RS232 or RS485)
1x UART (TX/RX) on pin header
Temperature 0°C to +50°C
USB 1x USB 2.0 Type A
2x USB 2.0 pin header
2x USB sideband connector (PCIe slot 0+1, see SERDES)
1x USB client
Supported Modules Com Express® basic (95x125mm) and Com Express® compact (95x95 mm) with Kontron QorIQ™ pin-out
I/O Features see SERDES:
2x MDC/MDIO (for 1G/10G ETH PHY confi guration)sideband connector (PCIe slot 2)
1x MDC/MDIO (for 10G ETH PHY confi guration) sideband connector (PCIe slot 3)
BIOS SPI/LPC Firmware HUB socket for external BIOS
SERDES Adapter card (68100-0000-01-0):
Card-edge connector with SRIO on PEX[0:3] 1x 1 FCI Densi-Shield interface

Adapter card (68100-0000-02-0):
Card-edge connector with 4x SGMII on PEX[0:3] 4x 1GbE with 1000Base-T interface - RJ45 connector

Adapter card (68100-0000-03-0):
Card-edge connector with XAUI on PEX[0:3] 10GbE SFP+ interface
Additional Aurora High Speed Debug Connector
JTAG on pin header
2x fan connector (5V/12V)

Downloads

技术参数

QorIQ Computer-on-Modules Portfolio 候选发布版本(RC)
[ datasheet-com-express-qoriq_web.pdf, 2.37 MB, Aug.31.2017 ]

参考手册

Manual for COMe Eval Carrier QorIQ 候选发布版本(RC)
[ come-qec-1_manual.pdf, 3.6 MB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section

Accessories

ADA-Eval-QorIQ-SRIO
68100-0000-01-0
SRIO Adapter card 4x 5 Gbaud for COMe-QorIQ™ Evaluation Carrier more
ADA-Eval-QorIQ-SGMII
68100-0000-02-0
SGMII Adapter card 4x 10/100/1000Base-T for COME-QorIQ™ Evaluation Carrier more
ADA-Eval-QorIQ-XAUI
68100-0000-03-0
SFP+ XAUI Adapter card 10GBase-R for COME-QorIQ™ Evaluation Carrier more
