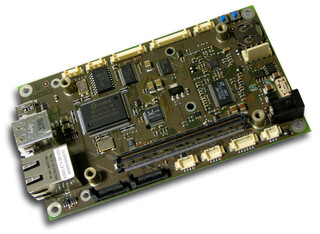

nanoETXexpress-HMI开发板,兼容COM Express™ Type 1标准
nanoETXexpress人机界面(HMI)开发板可让嵌入式应用开发人员快速搭载一个基于nanoETXexpress模块的开发平台。
只需选择合适的nanoETXexpress模块,插入开发板即可使用。开发板尺寸小巧,仅为120 mm x 70 mm。
可立即使用的开发板是灵活定制设计的理想平台,适用于多种行业应用如POS/POI以及工业自动化领域。
Power Supply | Power supply 12V, SmartBattery, 2 cells Li-Ion Single power supply +12V |
Hard Disk | 2x SerialATA |
Ethernet | 1x 10/100/1000 MBit LAN; RJ45 connector |
Serial | 1x COM1 (RS232) 1x COM2 (RS485) 1x CAN |
PCI Express / PCI support | 1x Expansion PCI Express Card 34/54 slot |
I/O Features | Extension: 1x microSD Slot (depending on nanoETXexpress module) |
USB | 2x USB 2.0 (USB 1,3) 2x USB internal on pin header (USB 0,2) 1x USB client (USB port 7) |
Graphics | 1x LVDS/JILI FFC 40 connector CRT internal (depending on nanoETXexpress module) |
Audio Controller | Realtek ALC888 HD-Audio, AudioConnectorBoard required for S/PDIF IN/OUT and Stereo jacks |
Dimensions (H x W x D) | 120 mm x 70 mm (4,7" x 2,8") |
Temperature | Operation: 0° to 60°C Storage: -30° to 85°C * Ask about extended temperature ranges |
Supported Modules | COM Express® COM.0 Pin out Type 1 compatible COM |
Humidity | Operation: 10% to 90% Storage: 5% to 95% (non condensing) |
Starterkits and Evaluation Boards for COM Express®, Datasheet
Datasheet Starterkits and Evaluation Boards for COM Express®.
[ come_starterkits_20170710_datasheet.pdf, 6.88 MB, Aug.31.2017 ]
nanoETXexpress-HMI Baseboard (ePDAnano), Manual
[ adacm111.pdf, 1.23 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
CAN Driver - WinCE 6.0
[ web_cus_siodinetxmbb_100_p01_softwareaddon.zip, 217.17 KB, Jul.03.2018 ]
Realtek HD Audio Driver - Vista&Win7 32bit
Realtek ALC88x HD Audio Driver for Windows Vista & 7 x86
[ realtek_hdaudio_vistawin7_x86_r2-55.exe, 41.74 MB, Apr.20.2023 ]
Realtek HD Audio Driver - WinXP
Realtek ALC88x HD Audio Driver for WindowsXP
[ realtek_hdaudio_winxp_r2-55.exe, 31.87 MB, Apr.20.2023 ]
Realtek HD Audio Driver - Vista&Win7 64bit
Realtek ALC88x HD Audio Driver for Windows Vista & 7 x64
[ realtek_hdaudio_vistawin7_x64_r2-55.exe, 44.99 MB, Apr.20.2023 ]
MCP2515 CAN Developer's Kit
[ netxmbb_can_devkit.zip, 8.3 MB, Nov.27.2013 ]
COM Express® Design Guide by PICMG, Rev. 2.0
PICMG Guidelines for designing COM Express® Carrier Boards, Rev. 2.0
[ picmg_comdg_2-0-released-2013-12-06.pdf, 3.27 MB, Apr.20.2023 ]
Whitepaper COM Express COM.0 Rev. 2.0
COM Express COM.0 Rev. 2.0 addresses the new functionalities that Intel®, AMD and other manufacturers are integrating in their upcoming processor families. Rev 2.0 adds two new pin-outs that make space for possible future technologies.
[ whitepaper_com-express-com-0-rev--2-0_en.pdf, 2.32 MB, Apr.20.2023 ]
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
HSP COMe-mSP1 thread
34001-0000-99-0 |
Heatspreader 11mm for COMe-mSP1, threaded mounting holes | more | |
HSP COMe-mSP1 slim thread
34001-0000-99-2 |
Slimline heatspreader 6.5mm for COMe-mSP1, threaded mounting holes | more | |
HSP COMe-mSP1 through 34001-0000-99-1 |
Heatspreader 11mm for COMe-mSP1, through holes | ||
HSK COMe-mSP1 slim passive thread 34001-0000-99-0C01 |
Passive cooling solution with slimline HSP for COMe-mSP1, threaded mounting holes | ||

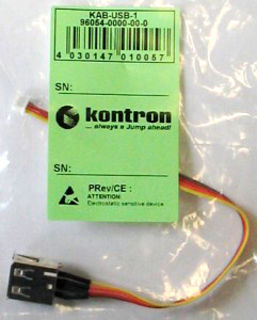

KAB-USB-1
96054-0000-00-0 |
KAB-USB-1, 4pin header USB接口 MOPS PC/104 & EPIC 适配线缆 | more | |

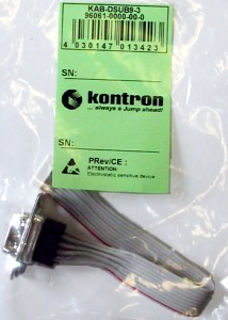

KAB-DSUB9-3
96061-0000-00-0 |
KAB-DSUB9-3, DSUB9 10 pin 槽线的阳插头,为MOPS, EPIC 以及 JRex-CE 板提供额外的 COM3 或 COM4 | more | |

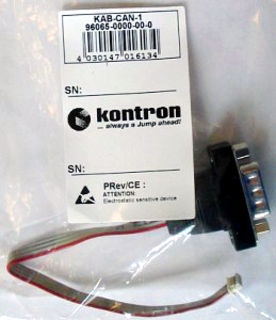

KAB-CAN-1
96065-0000-00-0 |
KAB-CAN-1, 标准 MOPS/520 CAN总线 DSUB 连接线缆 | more | |
KAB-JILI30-TSLD01
62518 |
JILI30 cable for PrimeView WVGA Panel or compatible; Display Cable for Hyline PM070WI4 | more | |
KAB-ADAPT-LVDS
61032 |
Evaluation Board to adapt LVDS flatpanels via JILI cable. | more | |
COMe-mSP1-HMI HDA Adapter
34110-0000-00-0 |
HD Audio Adapter for COMe- Reference Carrier HMI Board, Analog line IN/OUT, S/PDIF IN/OUT optical. | more |
