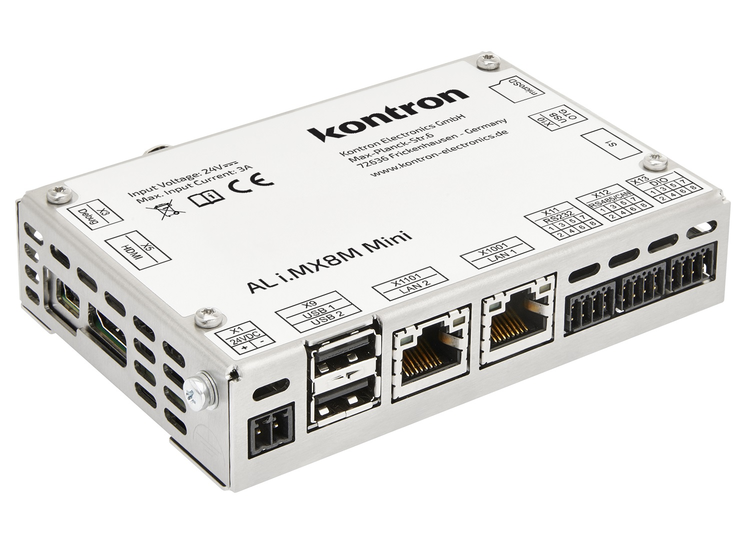

AL i.MX8M Mini

Compact, fanless Box-PC

Specifications

Memory: LPDDR4-RAM, NOR-Flash, eMMC, 1x microSD Card Slot, nv Memory
Communication: Ethernet, USB, RS232, RS485, CAN, DIO
Operating system: Embedded Linux

Features

CPU	i.MX8M Mini 4x Arm® Cortex®-A53 @1.6 GHz, 1x Arm® Cortex®-M4 @400 MHz, 2D GPU and 3D GPU

LPDDR4-RAM

4 GByte (optional 1 GByte, 2 GByte)

NOR-FLASH

2 MByte

eMMC	32 GByte (optional 4 GByte up to 64 GByte)

SD CARD

1x microSD Card Slot

NV MEMORY

8 kB (64 kb) EERAM

Ethernet

1x 1 Gbit/s, 1x 10/100 Mbit/s

USB	2x 2.0 Host, 1x 2.0 OTG

Serial

1x RS232, 1x RS485

CAN	1x CAN 2.0 B

DIO	4x DIO (24 V up to 800 mA)

Power Supply

24 V DC ±20 %

Power Consumption

Linux running <3 W

Form Factor

Stainless steel 111 x 25 x 76 mm for mounting on 35mm DIN rail acc. EN 60715

Cooling

fanless, passive

Temperature

Range: 0 °C ... +55 °C, ambient, non condensing

Protection Class

IP20

Approvals

Bootloader

U-Boot

Operating System

Embedded Linux (Yocto Distribution)

RTC	5 ppm accuracy

RTC BUFFERING

CR1220

Audio

1x Buzzer

Security

HAB Secure Boot, TrustZone, True RNG, RSA up to 4096,
AES-128/192/256, 3DES, ARC4, MD-5, SHA up to 256, ECC, Secure JTAG
