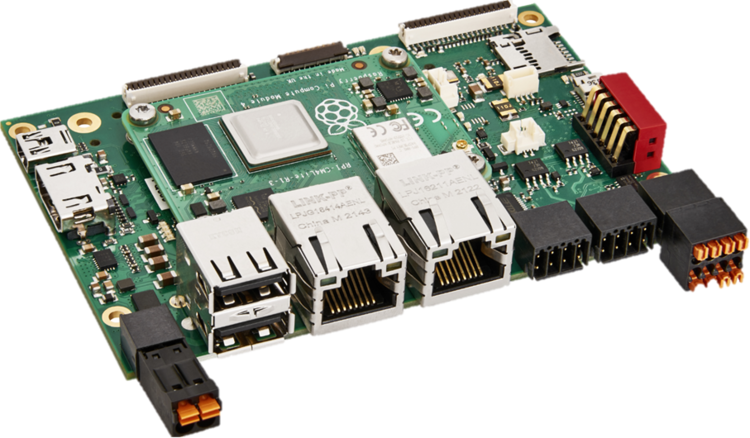

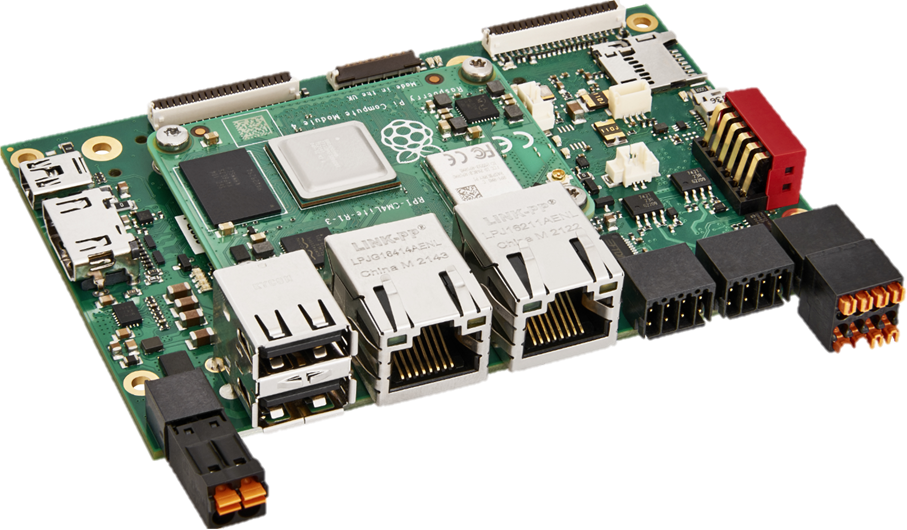

Baseboard BL Pi-Tron CM4

Raspberry Pi Compute Module 4: your performance boost

Mouseover Zoom loading...

Specifications

Broadcom BCM2711, 4x Arm® Cortex®-A72 @1,5 GHz
LPDDR4-RAM up to 8 GByte, eMMC* compute module CM4 8 G Byte, 16 GByte, 32 GByte
EEPROM 32 kbit
Operating System Raspbian Linux (not preinstalled)

*When using eMMC memory, booting from SD card is not possible

Features

CPU	Broadcom BCM2711, 4x Arm® Cortex®-A72, 64-bit SoC @1,5 GHz, H.265 (HEVC) bis zu 4Kp60 decode, H.264 bis zu 1080p decode, 1080p30 encode OpenGL ES 3.1, Vulkan 1.0

LPDDR4-RAM

2 GByte optional 1 GByte, 4 GByte, 8 GByte

eMMC	16 GByte optional Lite/8 GByte/32 GByte (lite: without eMMC only with microSD Card)

EEPROM

4 kB

SD CARD

CM4 Lite: 1x microSD Card Slot for Operating System, CM4 8/16/32 GByte: 1x microSD Card Slot for data
(When using eMMC memory, booting from SD card is not possible.)

Ethernet

1x 1x Gbit’s, 1x 10/100 Mbit/s

USB	1x 2.0 Host, 1x 2.0 OTG: only to program eMMC

I/Os	28x GPIO, supports up to 5x UART, 5x I²C, 5x SPI, 2x PWM, 1x SDIO (4 Bit), M.2 B-KEY 3042 (PCIe 1-lane Host, Gen 2 (5 Gbps))

DIO	4x DIO (24 V/up to 800 mA)

Serial

1x RS232, 1x RS485 (Modbus-capable)

CAN	1x CAN 2.0B/FD

WLAN/Bluetooth

Optional 2.4 GHz/5.0 GHz IEEE 802.11b/g/n/ac wireless BT 5.0, BLE

Touch

via I²C or USB

Camera Interface

1x CSI 2-lane (MIPI Rpi-CSI0 22 pol.)

Power Supply

4 V DC ±20 %

Power Consumption

3.4 W...9.6 W

Temperature range

0 °C ... +55 °C without condensation

Operating System

Raspbian Linux (not preinstalled)

Form Factor

105.5 x 69.6 mm (4.3”)

EXTERNAL RTC

1x on Baseboard

RTC BUFFERING

CR2032

Debug

1x Console

Approvals
