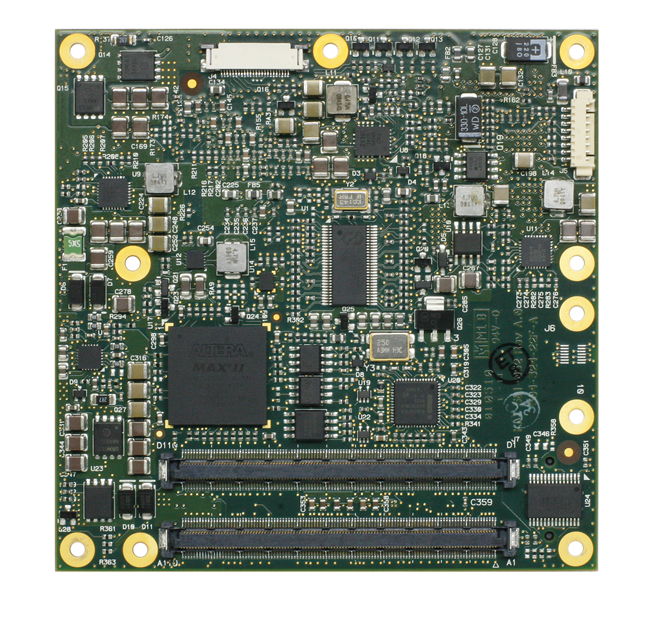

COM Express® compact Type 2
with Intel® Atom™ D500/N400 Series
Specifications
- Intel® Atom™ D500/N400 Series
- Up to 2x2GB DDR2/DDR3 SODIMM dual channel
- COMe-cPV2 with DDR2 memory
- COMe-cPV2 XT with DDR3 memory and rated for Industrial Temperature Grade

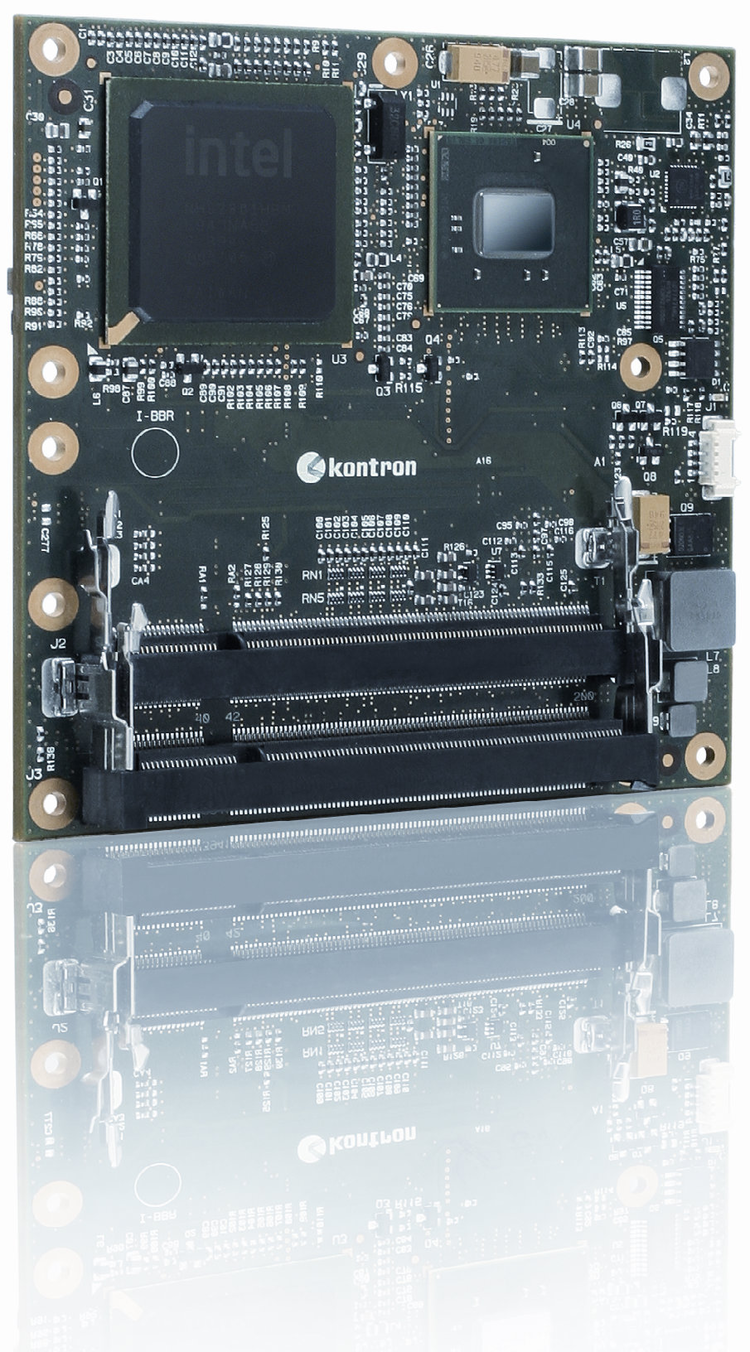

The Kontron COMe-cPV2 is a COM Express® compact, Pin-out Type 2 Computer-on-Module with the second-generation Intel® Atom™ processor. With Intel’s highly integrated two-chip design, dual-core option, and cost-efficient processors, COMe-cPV2 modules accelerate the development of ultra-low-power embedded appliances. The COMe-cPV2 also is a drop-in replacement for Intel® Pentium® M based designs.
The Kontron COMe-cPV2 XT that boasts a rugged design rated for the extended temperature range of -40 to +85 °C. With the up to 4 GByte DDR3 system memory and high-performance Dual-Core Intel® Atom™ processor D525@ 1.80GHz, the Kontron COMe-cPV2 XT is a best-fit drop-in replacement for designs previously based on Intel® Pentium® M processors. OEMs benefit from a seamless migration path to energy efficient upgrades and extended usage models, thus increasing the long-term availability and investment security of their applications.
Features
| Compliance | COM Express® compact, Pin-out Type 2 |
| Dimensions (H x W x D) | 95 x 95 mm |
| CPU | Intel® Atom™ D525 (2x1.80GHz, 13W, DDR3) Intel® Atom™ D510 (2x1.66GHz, 13W, DDR2) Intel® Atom™ D410 (1x1.66GHz, 10W, DDR2) Intel® Atom™ N450 (1x1.66GHz, 5.5W, DDR2) |
| Chipset | Intel® ICH8M (82801HBM) |
| Main Memory | 2x DDR2-800 SO-DIMM up to 2x2GB 2x DDR3-800 SO-DIMM up to 2x2GB (D525 only) |
| Graphics Controller | Intel® GMA3150 |
| Ethernet Controller | Intel® 82567LM |
| Ethernet | 10/100/1000 Mbit Ethernet |
| Hard Disk | 3x SATA 3Gb/s 1x PATA |
| Flash Onboard | - |
| PCI Express / PCI support | 5x PCIe x1 1x PCI |
| Panel signal | DDI1: - DDI2: - DDI3: - VGA: Yes LVDS: Single Channel 18bit |
| USB | 8x USB 2.0 |
| Serial | - |
| Audio | Intel® High Definition Audio |
| Common Features | SPI, LPC, SMB, I²C, Watchdog, RTC, MARS |
| BIOS | AMI CORE8 |
| Humidity | 93% relative Humidity at 40°C, non-condensing (according to IEC 60068-2-78) |
| Options | - |
| Power Management | ACPI 1.0b/3.0 |
| Power Supply | 5V - 18V Wide Range, Single Supply Power |
| Special Features | - |
| Operating System | Windows® 8, Windows® 7, WES7, WEC7, Windows® XP, XPe, Windows® CE, Linux |
| Temperature | Commercial temperature: # 0°C to +60°C operating, -30°C to +85°C non-operating Industrial temperature: # -40°C to +85°C operating, -40°C to +85°C non-operating |
| Supported Modules | 36007-xxxx-xx-x: COMe-cPV2, commercial temperature 36009-xxxx-xx-x: COMe-cPV2XT, industrial temperature |
Downloads
技术参数
Datasheet COMe-cPV2
[ datasheet_come-cpv2.pdf, 1.55 MB, Aug.31.2017 ]
Datasheet COMe-cPV2XT
[ datasheet_come-cpv2xt.pdf, 778.89 KB, Aug.31.2017 ]
参考手册
microETXexpress-PV Manual (v1.4)
[ uetxe-pv_ug_v1-4.pdf, 2.99 MB, Sep.11.2017 ]
microETXexpress-PV-XT Manual (v1.0)
[ uetxe-pv-xt_ug_v1-0.pdf, 3.31 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
白皮书
Whitepaper COM Express COM.0 Rev. 2.0
COM Express COM.0 Rev. 2.0 addresses the new functionalities that Intel®, AMD and other manufacturers are integrating in their upcoming processor families. Rev 2.0 adds two new pin-outs that make space for possible future technologies.
[ whitepaper_com-express-com-0-rev--2-0_en.pdf, 2.32 MB, Apr.20.2023 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
Accessories
|

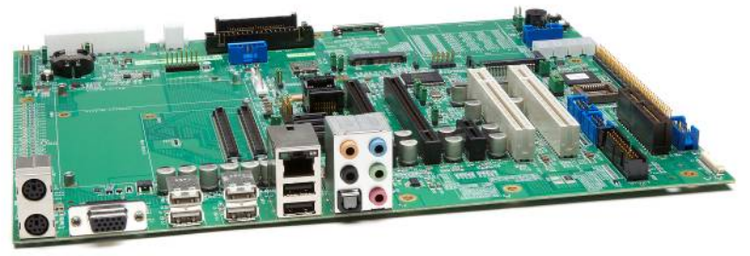

COMe Eval Carrier T2
38104-0000-00-1 |
|
COM Express® Evaluation Carrier Type 2 | more |
|

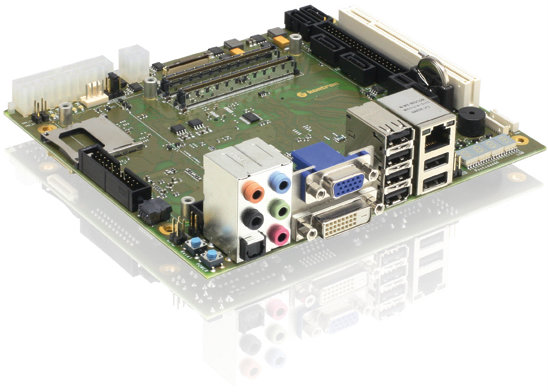

COMe Ref. Carrier T2
38102-0000-00-1 |
|
COM Express® Reference Carrier Type 2 | more |
|
HSP COMe-cPV2 thread 36007-0000-99-0 |
Heatspreader for COMe-cPV2, threaded mounting holes | ||
|
HSP COMe-cPV2 through 36007-0000-99-1 |
Heatspreader for COMe-cPV2, through holes | ||
|
HSK COMe-cPV2 active thread
36007-0000-99-0C01 |
Active cooling solution for COMe-cPV2, threaded mounting holes | more | |
|
HSK COMe-cPV2 passive thread
36007-0000-99-0C02 |
Passive cooling solution for COMe-cPV2, threaded mounting holes | more | |
|
COMe Mount Kit 5mm 1set 38017-0000-00-5 |
COM Express® Mounting Kit 5mm 1set for threaded HSP and Cooling Solutions | ||
|
COMe Mount Kit 5mm 100sets 38017-0100-00-5 |
COM Express® Mounting Kit 5mm 100 sets | ||
|
COMe Mount KIT 8mm 1set 38017-0000-00-0 |
COM Express® Mounting Kit 8mm 1set for threaded HSP and Cooling Solutions | ||
|
COMe Mount Kit 8mm 100sets 38017-0100-00-0 |
COM Express® Mounting Kit 8mm 100sets | ||
|
DDR2-667 SODIMM 1GB x16
97011-1024-67-8 |
DDR2 SDRAM, 200pin, Speed = 333MHz / DDR2-667 / PC2-5300, validated for Pineview | more | |
|
DDR3-1600 SODIMM 1GB E2 97015-1024-16-2 |
DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3-1600 / PC3-12800, industrial temperature -40°C to +85°C |
