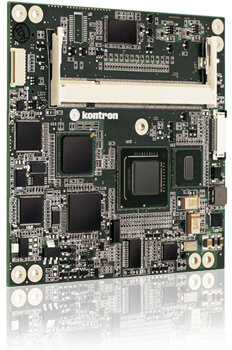

COMe-cSP2 This product is legacy

基于Intel® Atom&trade Z5XX 系列处理器，兼容COM Express™ 规范第2类定义，配备SDVO图形芯片的小型嵌入式模块

Specifications

Intel® Atom™ Z5XX 系列处理器频率最高可达 1.6 GHz 及 Intel® 系统控制器Hub US15W
支持 2GB DDR2 400/533 内存
PCI Express 以及 PCI
SDVO 支持HDMI, DVI, 18/24-bit LVDS (单通道或双通道)
兼容COM Express™ 规范第2类定义

Download Datasheet

基于Intel® Atom&trade Z5XX 系列处理器，兼容COM Express™ 规范第2类定义，配备SDVO图形芯片的小型嵌入式模块

控创 microETXexpress®-SP 计算机模块把 COM Express™ 规范延伸到了全新的小尺寸规格 (95 x 95 mm) ，使用广为应用的COM Express™ 第2类连接器。使得基于Intel® Atom™ 处理器 (可达 1.6GHz) 以及Intel® 系统控制器Hub US15W的低能耗，高端的图形应用设备可基于经过检验的工业标准进行开发，保证了产品的稳固性。

控创microETXexpress®-SP提供PCI以及SDVO图形支持。通过PEG输出, SDVO 可对 VGA 及 DVI 显示器、SDTV 以及 HDTV 电视输出、TV tuner 输入提供附加信号，极大地简化了系统的图形设计。该功能使该 95 x 95 mm 计算机模块适用于测试及测量领域的小型移动设备以及需减少能耗的多媒体设备应用。microETXexpress®-SP还包括一下功能：千兆以太网, Serial ATA, 单通道LVDS以及USB 2.0。

所有microETXexpress®-SP 系列模块均兼容COM Express™ 标准，便于整合并确保产品性能可轻松扩展。

microETXexpress作为PICMG® COM Express™规范的扩展规范已提上日程，关于microETXexpress®规范的更多信息敬请访问：www.comexpress-extension.com

Features

CPU	Intel® Atom™ processor Z510 (1.1GHz) and Z530 (1.6GHz)

Chipset

Intel® System Controller Hub US15W

Cache

32KB Instruction Cache + 24KB L1 Cache, 256/512KB L2 Cache

Main Memory

Up to 2 GB 1x DDR2 SO-DIMM 400/533

Hard Disk

Up to 2x SATA, 1x PATA

USB	8 x USB 2.0 (1 x USB client)

PCI Express / PCI support

2 to 5 PCIe x1 are supported

Ethernet

10/100/1000 Mbit Intel® 82574L

Audio Controller

Intel® High Definition Audio

Graphics Controller

Integrated Intel® Graphics, Intel® GMA 500, HDTV/HD capable, Decoder for MPEG2 (HD) / H.264

Resolution

Resolution LVDS: Single Channel LVDS 18/24 bit WXGA 1366 x 768

Special Features

1 SDIO port (shared with GPIO)

Operating System

Windows® XP, Windows® XP Embedded, Windows® CE, Linux, VxWorks and others

Compliance

Fully COM Express™ Pin-out Type 2 compatible

Dimensions (H x W x D)

95 mm x 95 mm

Power Consumption

typ. Idle ~ 9 W @12V

Temperature

Operation: 0° to 60°C
Storage: -30° to 85°C
*Ask about extended temperature ranges

PCI	1 x PCI (PCIe to PCI bridge for PCI Bus); (11-0 version w/o PCI)

Power Supply

8,5 V – 18 V Wide Range Power Supply

Graphics Memory

256 MB

Humidity

93% relative Humidity at 40°C, non-condensing
(according to IEC 60068-2-78)

Downloads

技术参数

Datasheet COMe-cSP2 候选发布版本(RC)
[ datasheet_come-csp2.pdf, 774.13 KB, Aug.31.2017 ]

参考手册

User's Guide
[ eep1m120.pdf, 2.31 MB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

白皮书

COM Express® Design Guide by PICMG, Rev. 2.0
PICMG Guidelines for designing COM Express® Carrier Boards, Rev. 2.0
[ picmg_comdg_2-0-released-2013-12-06.pdf, 3.27 MB, Apr.20.2023 ]

Case Study: UL Certified COMs Deliver Quality
[ wp_ul_2007.pdf, 137.82 KB, Jun.26.2020 ]

Technology Paper about COM Express® Concept
Technology Paper about COM Express® Concept - COM Express® - One Concept, Ever Smaller.
[ com_expr_6seiter_11_2011_en_web.pdf, 2.91 MB, Nov.26.2020 ]

Whitepaper COM Express COM.0 Rev. 2.0
COM Express COM.0 Rev. 2.0 addresses the new functionalities that Intel®, AMD and other manufacturers are integrating in their upcoming processor families. Rev 2.0 adds two new pin-outs that make space for possible future technologies.
[ whitepaper_com-express-com-0-rev--2-0_en.pdf, 2.32 MB, Apr.20.2023 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section

Variants

COMe-cSP2 Z510 noPCI 36003-0000-11-0	COM Express® compact pin-out type 2 Computer-on-Module with Intel® Atom™ Z510 1.10GHz, US15W SCH, 1x DDR2 SO-DIMM socket, without PCI Bridge	more
COMe-cSP2 Z510 36003-0000-11-1	COM Express® compact pin-out type 2 Computer-on-Module with Intel® Atom™ Z510 1.10GHz, US15W SCH, 1x DDR2 SO-DIMM socket	more
COMe-cSP2 Z530 36003-0000-16-1	COM Express® compact pin-out type 2 Computer-on-Module with Intel® Atom™ Z530 1.60GHz, US15W SCH, 1x DDR2 SO-DIMM socket	more
COMe-cSP2 Z510 US 36003-0000-11-4	COM Express® compact pin-out type 2 Computer-on-Module with Intel® Atom™ Z510 1.10GHz, US15W SCH, 1x DDR2 SO-DIMM socket, US Version	more
COMe-cSP2 Z530 US 36003-0000-16-4	COM Express® compact pin-out type 2 Computer-on-Module with Intel® Atom™ Z530 1.60GHz, US15W SCH, 1x DDR2 SO-DIMM socket, US Version	more

Accessories

HSP COMe-cSP2 thread 36003-0000-99-0	Heatspreader for COMe-cSP2, threaded mounting holes	more
DDR2-800 SODIMM 1GB Double 97011-1024-08-0	DDR2 SDRAM, 200pin, Speed = 400MHz / DDR2-800 / PC2-6400	more
HSP COMe-cSP2 through 36003-0000-99-1	Heatspreader for COMe-cSP2, through holes	more
DDR2 SODIMM/512MB/-667 97011-5120-06-0	DDR2 SODIMM/512MB/DDR2-667	more
HSK COMe-cSP2 passive thread 36003-0000-99-0C02	Passive cooling solution for COMe-cSP2, threaded mounting holes	more
512MB 64x64 200pin DDR2 SODIMM 97011-5120-00-8
1GB 128x64 200pin DDR2 SODIMM 97011-1024-00-8		more
1GB 128x64 200pin DDR2 SODIMM E2 97011-1024-00-9		more
DDR2-SODIMM-2GB Double 97011-2048-08-0	DDR2 SO-DIMM memory module with 2GB	more
DDR2-SDRAM-SODIMM 1024MB E1 97011-1024-00-1	DDR2-SDRAM-SODIMM 1024MB E1	more
DDR2-SDRAM-SODIMM 2048MB E1 97011-2048-00-1	DDR2-SDRAM-SODIMM 2048MB E1	more
COMe Mount Kit 5mm 1set 38017-0000-00-5	COM Express® Mounting Kit 5mm 1set for threaded HSP and Cooling Solutions
COMe Mount KIT 8mm 1set 38017-0000-00-0	COM Express® Mounting Kit 8mm 1set for threaded HSP and Cooling Solutions
COMe Mount Kit 8mm 100sets 38017-0100-00-0	COM Express® Mounting Kit 8mm 100sets
DDR2-533+ SODIMM 512MB 97011-5120-00-4	DDR2-533+ SODIMM 512MB validated for Menlow	more
DDR2-533+ SODIMM 1GB 97011-1024-00-4	DDR2-533+ SODIMM 1GB validated for Menlow	more
DDR2-533+ SODIMM 2GB 97011-2048-00-4	DDR2-533+ SODIMM 2GB validated for Menlow	more
