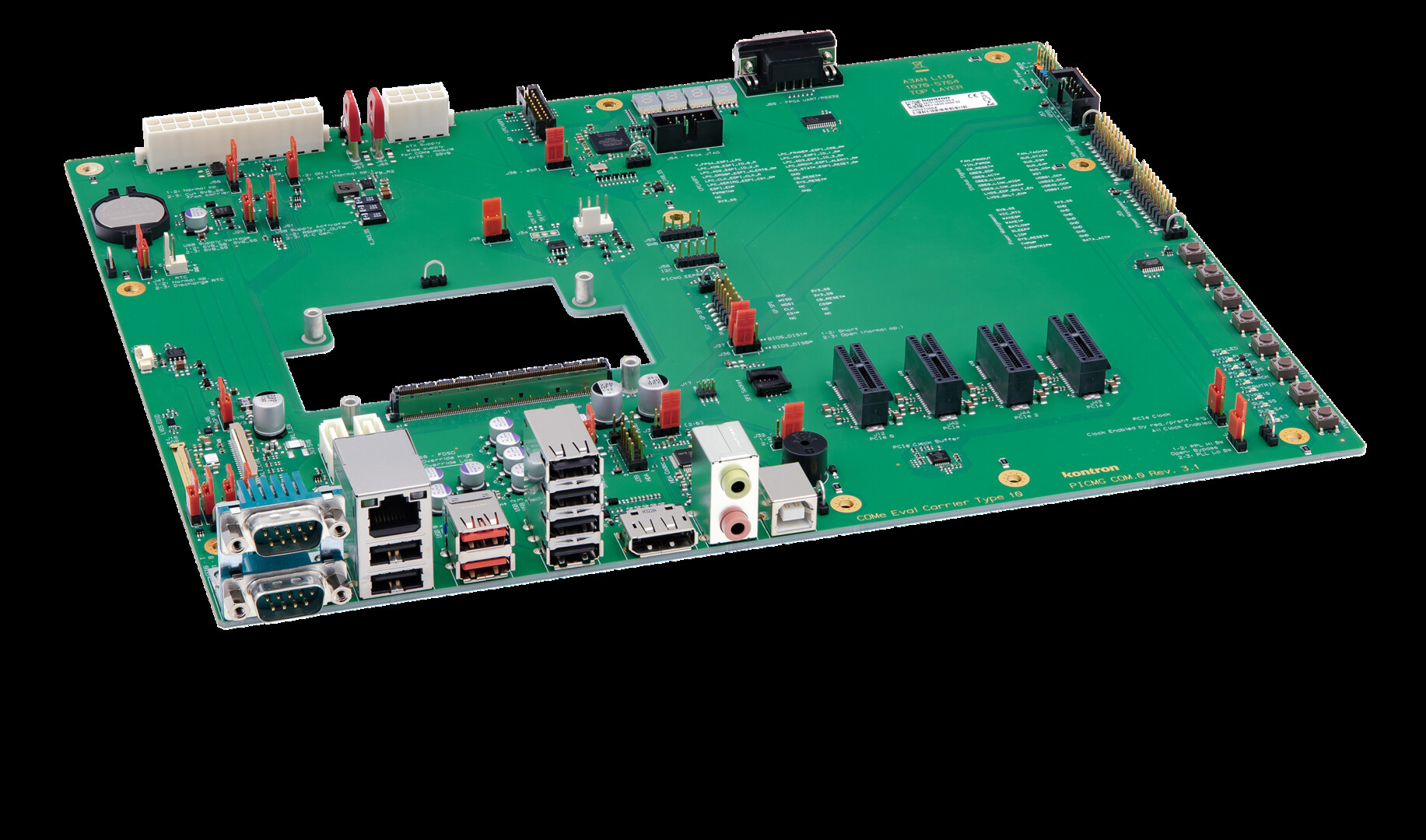

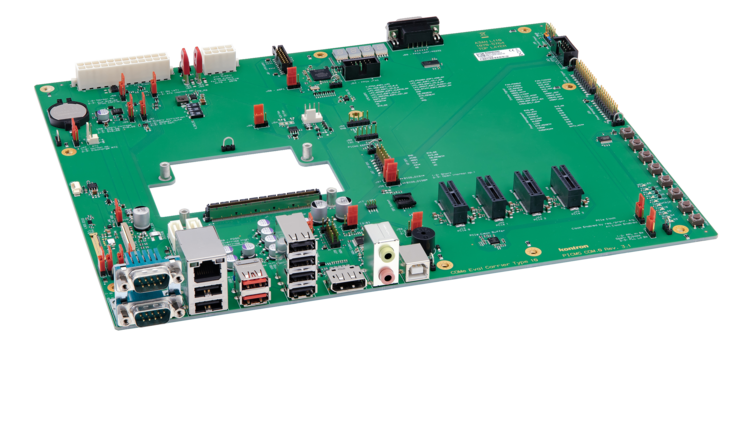

COMe Eval Carrier3 T10
COM Express® Evaluation Carrier Type 10
Specifications
Coming soon- COM Express® Rev. 3.1, Pin-out Type 10
- ATX Form Factor (305mm x 244mm)
- GbE support up to 2.5Gbit
- 4x PCIe Gen4 x1 lanes
- Full support for Type 10 featureset
The Evaluation carrier board for COM Express® mini COMs is designed to allow embedded application developers to get up and running quickly on the COM Express® mini modular platform, giving them a head start on the total system design. Simply select a Kontron COM Express® mini CPU module, then Plug & Go.
The COM Express® Evaluation Carrier Type 10 is designed for COM Express® mini COMs, offering interfaces for PCI Express, Gigabit Ethernet, SATA, USB 3.2 Gen1/USB 2.0, LVDS (eDP optionally), DisplayPort and more. With a complete array of connectors brought out on this carrier board, it serves as a reference design for other more customized variations.
Downloads
Solution Brief
Intel Solution Brief: Computer-on-Module Flexibility at the Edge
Kontron COM Express® and COM-HPC® modules with 13th Gen Intel® Core™ mobile processors deliver powerful performance, AI, and graphics with portfolio flexibility for industrial-grade deployments.
[ 18933-1-intel-rpl-p-kontron-solution-brief-v4.pdf, 1.67 MB, Mar.03.2023 ]
技术参数
Datasheet COMe Eval-Carrier T10 Gen3
[ come-eval-carrier3-t10_datasheet.pdf, 432.58 KB, Jun.25.2024 ]
