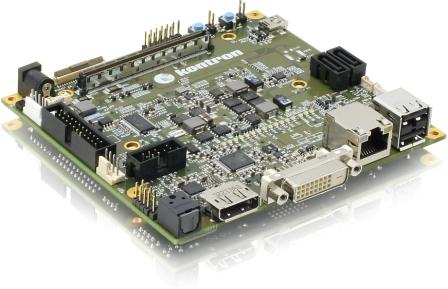

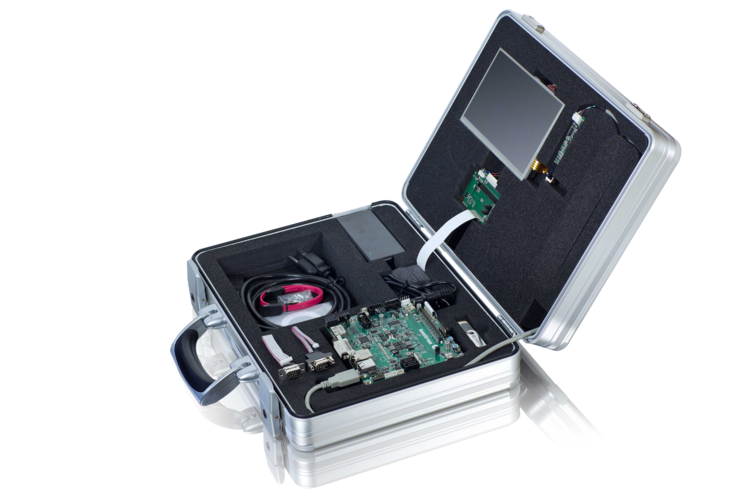

COMe Ref.Carrier-i T10 This product is legacy
COM Express® Reference Carrier Type 10 for industrial temperature
Specifications
- COM Express® Rev. 2.0, Pin-out Type 10
- nano-ITX Form Factor (120mm x 120mm)
- SDVO-DVI, DP++ and LVDS
- Industrial Temperature grade
The Kontron COM Express® Reference Carrier board pin-out Type 10 for COM Express® mini form factor Computer-on-Modules – Choose your Computer-on-Module - Plug & Go!
This COM Express® Reference Carrier board is specifically designed for environmental testing where the solution is subjected to the extended temperature range (E2) -40°C to +85°C. It is especially for applications based on Kontron COMe-mTTi10 Computer-on-Modules.
The Reference Carrier board also offers three different display interfaces for high graphic scalability: LVDS, Display Port and DVI.
This COM Express® Reference Carrier board is specifically designed for environmental testing where the solution is subjected to the extended temperature range (E2) -40°C to +85°C. It is especially for applications based on Kontron COMe-mTTi10 Computer-on-Modules.
The Reference Carrier board also offers three different display interfaces for high graphic scalability: LVDS, Display Port and DVI.
Features
| Compliance | COM Express® Rev. 2.0 Pin-out Type 10 |
| Dimensions (H x W x D) | 120 x 120 mm (nano-ITX) |
| Supported Modules | COM Express® mini with pin-out Type 10 or 1 |
| Graphics | 1x LVDS/JILI FFC40 connector 1x DVI-D (requires SDVO Support from Module) 1x DP++ |
| Hard Disk | 2x SATA 1x micro-SD |
| USB | 2x USB 2.0 2x USB 2.0 on pin-header 1x USB client |
| PCI Express / PCI support | 2x miniPCIe (with USB and SIM card support) |
| Audio | Conexant AD1882AJCIZ S/PDIF out, TOSLINK Front Panel Audio connector |
| Ethernet | 1x 10/100/1000 MBit LAN RJ45 connector |
| Serial | 1x UART on pin-header (from module) 1x CAN (requires CAN support from module) |
| Special Features | 1x PWM Fan from COM SPI Boot Power Connector for external HDD |
| Common Features | Feature Connector Diagnostic LED PWR/RST Buttons |
| Options | - |
| Power Supply | Single Power supply 5.5V - 20V Onboard ATX control including Standby 7.2V Smart Battery support |
| Temperature | Operation: -40° to 85°C Storage: -40° to 85°C |
| Humidity | 93% relative Humidity at 40°C, non-condensing (according to IEC 60068-2-78) |
Downloads
技术参数
Datasheet COM Express® Reference Carrier-i Type 10
候选发布版本(RC)
[ datasheet_com-express-reference-carrier-i-type-10.pdf, 372.1 KB, Aug.31.2017 ]
参考手册
User's Guide
[ adapm110.pdf, 1.39 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
白皮书
Whitepaper COM Express COM.0 Rev. 2.0
COM Express COM.0 Rev. 2.0 addresses the new functionalities that Intel®, AMD and other manufacturers are integrating in their upcoming processor families. Rev 2.0 adds two new pin-outs that make space for possible future technologies.
[ whitepaper_com-express-com-0-rev--2-0_en.pdf, 2.32 MB, Apr.20.2023 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
Accessories
|
COMe Mount KIT 8mm 1set 38017-0000-00-0 |
COM Express® Mounting Kit 8mm 1set for threaded HSP and Cooling Solutions | ||
|
COMe Mount Kit 8mm 100sets 38017-0100-00-0 |
COM Express® Mounting Kit 8mm 100sets | ||
|
ADA-LVDS-DVI 18Bit 9-5000-0352 |
18bit LVDS (JILI) to DVI-D, including the flatfoil cable | ||
|
ADA-LVDS-DVI 24Bit 9-5000-0353 |
24bit LVDS (JILI) to DVI-D, including the flatfoil cable | ||
|
KAB-ADAPT-DP-HDMI 96084-0000-00-0 |
Displayport to HDMI Adapter | ||
|
KAB-ADAPT-DP-VGA 96083-0000-00-0 |
Displayport to VGA Adapter | ||
|
KAB-ADAPT-DP-DVI 96082-0000-00-0 |
Displayport to DVI Adapter |
