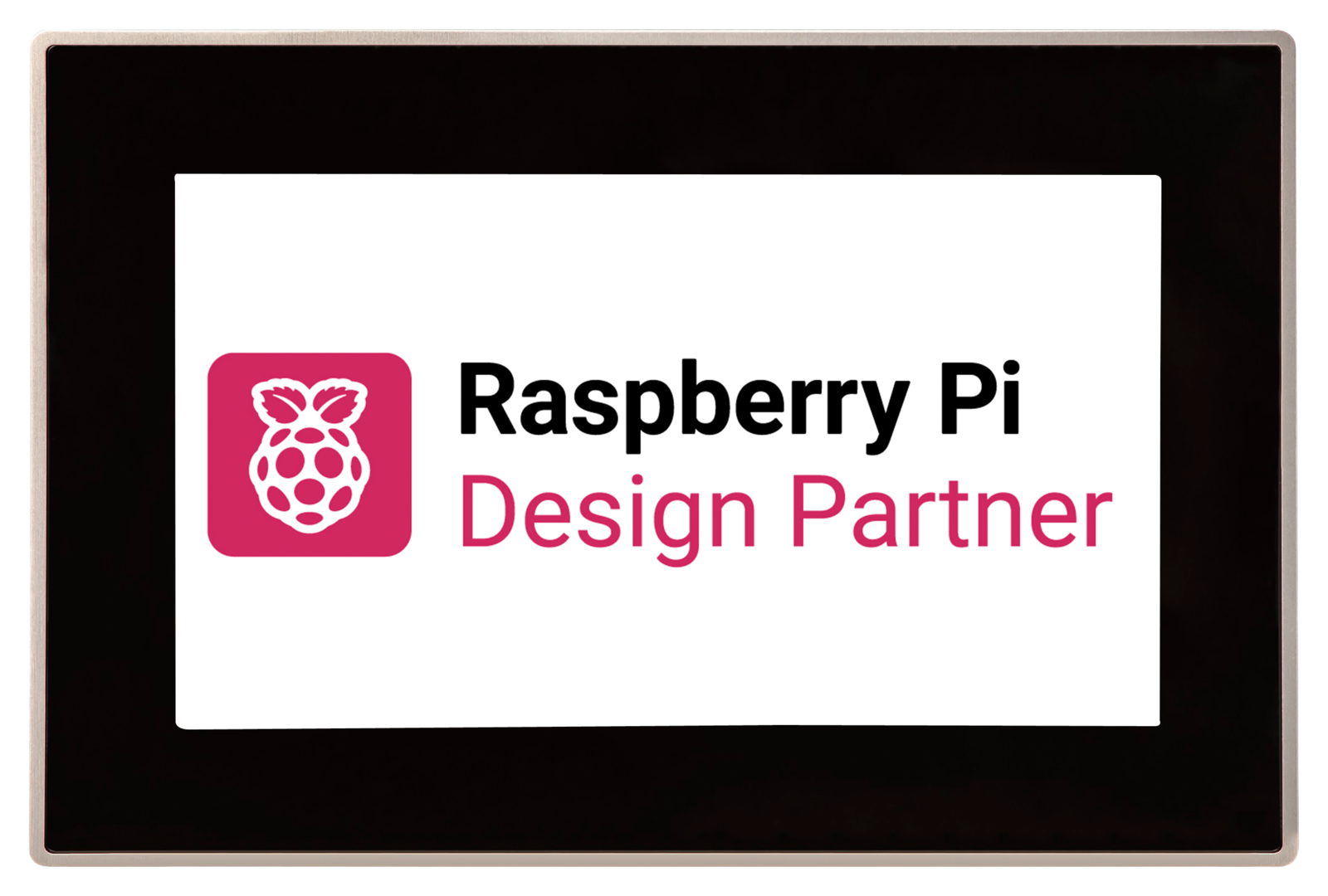

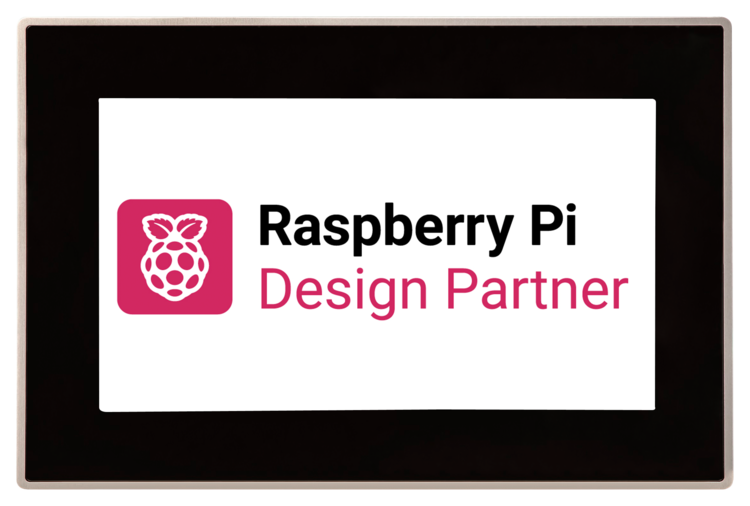

Display-Line DL 7“ Pi-Tron CM4
7“ Touch Display based on the Compute Modul 4
Specifications
- PCAP Multitouch-Panel
- 7“ IPS-Display, 1024 x 600 Pixel
- Front frame aluminium, protection class front IP65
- Broadcom BCM2711
- Available from Q2 - 2024
Touch-Panel for almost every assembly situation suitable
Features
| Function | FRONT: Aluminium front frame DISPLAY: 7“ IPS, 1024 x 600 Pixel 450 cd/m² TOUCH: PCAP Multitouch |
| Power Supply | 24V DC ±20 % |
| Power Consumption | Linux running 7.2 - 13.4 W |
| RTC BUFFERING | CR2032 |
| Debug | 1x Console |
| Dimensions (W x H x D) | Alu-Front: 200.1 x 131.9 x 46.5 mm |
| Temperature range | 0 °C...+55 °C |
| Protection Class | Front IP65, back IP20 |
| CPU | Broadcom BCM2711, 4x Arm® Cortex®-A72 @1.5 GHz, 3D Video Engine |
| LPDDR4 | 2 GByte (Options: 1 GByte, 4 GByte, 8 GByte) |
| eMMC | Compute Module CM4: 16 GByte (Options: CM4: lite/8 GByte/32 GByte, (lite: without eMMC only with microSD Card)) |
| SD CARD | CM4 Lite: 1x microSD Card Slot for Operating System, CM4 8 GByte, 16 GByte, 32 GByte: 1x micro SD Card Slot for data |
| EEPROM | 4 kB (32kb) |
| Ethernet | 1x Gbit/s, 1x 10/100 Mbits/s |
| USB | 2x 2.0 Host, 1x 2.0 OTG: only to programm eMMC |
| WLAN/Bluetooth | optional 2.4 GHz/5.0 GHz IEEE 802.11 b/g/n/ ac wireless BT 5.0, BLE |
| Serial | 1x RS232, 1x RS485 |
| CAN | 1x CAN 2.0B/FD |
| DIO | 4x DIO (24V/up to 800mA) |
| LCD INTERFACE | 1x HDMI 2.0 (up to 4Kp60 - HDMI0) |
| Operating System | Raspian Linux |
| RTC | ± 1ppm accuracy |
