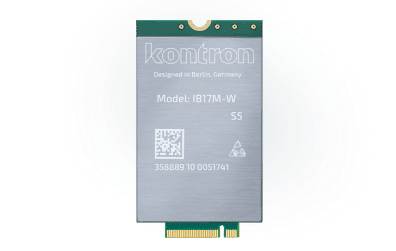

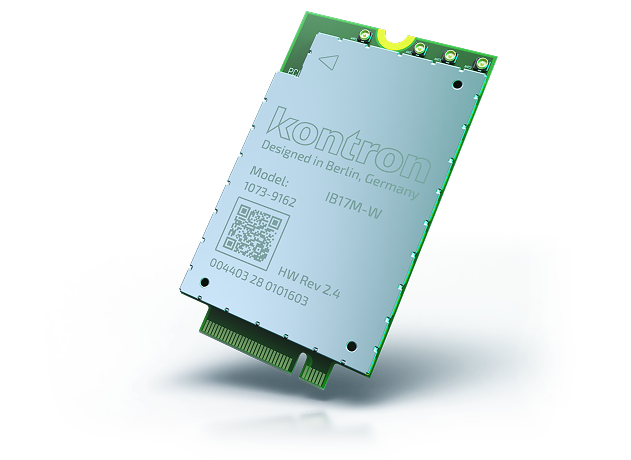

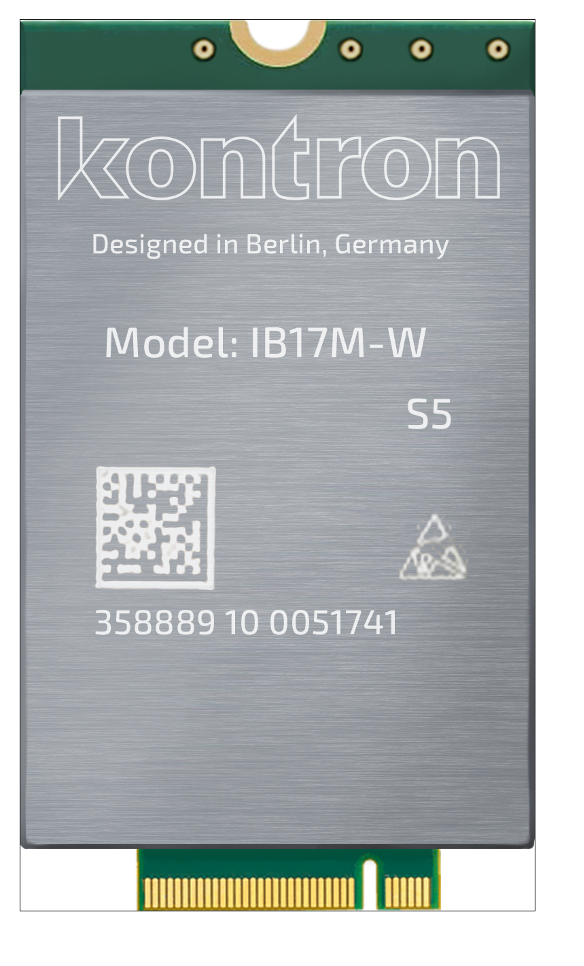

IB17M-W
Broadband 5G rel.17 M.2.
Specifications
- 5G Rel.17 Mobile Broadband
- Top cellular bandwidth: 4.95 Gbps
- Standard M.2 FF (3052 KeyB)
- USB 3.1 / PCIE
The IB17M-W 5G Broadband Modem is Kontron’s latest high-performance M.2 5G data card, designed for applications requiring ultra-fast data speeds and low latency. Built on 3GPP Release 17, it ensures seamless compatibility with a wide range of applications while offering a single worldwide variant for global connectivity. Delivering ultra-low latency and high-speed 5G throughput, it enables real-time responsiveness for mission-critical applications, IoT, and industrial automation. With seamless broadband coverage, it keeps you reliably connected across different regions. As a Western-produced, future-proof 5G solution, the IB17M-W ensures long-term performance and stability, making it an ideal choice for cutting-edge connectivity needs.
Features
| Dimensions (W x H x D) | 30x52x2.25 mm |
| Supply Voltage | 3.3 V dc |
| Connector | 4 Cellular antenna connectors |
| Interface | 2 SIM interfaces |
| GNSS | Cost effective Integrated GNSS |
| USB | USB 3.1 Gen 2 or PCIE |
| Operating Temperature | -40°C to +85°C |
| 5G Sub-6GHz SA | DL 200MHz, 4x4 MIMO, 256QAM, 4.95Gbps UL 100MHz, 2x2 MIMO, 256QAM, 550Mbps |
| 5G Sub-6GHz NSA | DL LTE 40MHz + NR 160MHz (2CC) UL LTE 20MHz + NR 100MHz |
| 4G | DL/UL Cat 20/13, 2.0Gbps/200Mbps |
| Software Support | Latest windows and Linux driver support. |
Downloads
技术参数
IB17M-W Preliminary Datasheet
[ m-2-module_ib17m-w_preliminary_datasheet.pdf, 215.39 KB, Mar.10.2025 ]
参考手册
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
