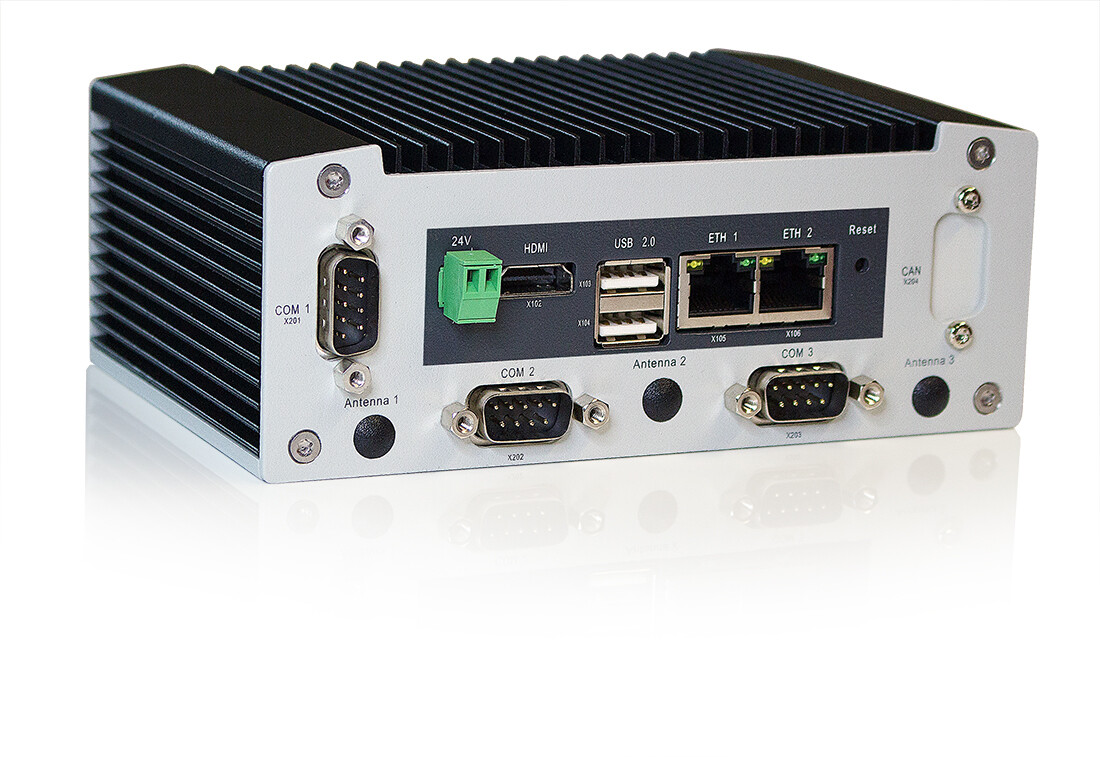

KBox A-201 This product is legacy
Compact fanless Industrial Computer Platform based on Intel® Quark™ X1011
Specifications
- Forever Young - modular approach
- „Wartungsfrei“ concept
- IoT ready - simply connected
- Broad range of interfaces
- Intel® Quark™ X1011 processor
- 24V DC
The KBox A-201, based on Kontron's SMARC-sXQU, is the latest Industrial Computer Platform of Kontron's KBox family.
The “wartungsfrei” design of the KBox A-201 includes a fanless, battery free and soldered memory (memory down) conception, which makes the KBox to the ideal all-lockable Industrial Computer Platform for the industrial environment.
Based on the Intel® Quark™ X1011 technology and the “wartungsfrei” concept , Kontron's IoT ready KBox A-201 increases the flexibility, serviceability and cost efficiency for various applications, such as industrial automation, communication or transportation, guaranteeing permanent operation.
Due to its compact design and several mounting options such as DIN RAIL, desktop or cabinet mounting you can install the KBox A-201 nearly everywhere. Also important for use in harsh environments is an extended temperature range (-40°C to 55°C) and shock resistance up to 15G.
Features
| CPU | Intel® Quark™ SoC X1011 |
| Chipset | Integrated |
| BIOS | Intel® Quark EDKII UEFI FW |
| Capacity | 1 GByte |
| Ethernet | 1x GBit Ethernet LAN, 1x Fast Ethernet, IEEE1588 support |
| Serial | 2x RS232 (3-wire) |
| USB | 2x USB 2.0 |
| Mini-PCI | 1x full size miniPCIe socket |
| Input Voltage | 24 V DC |
| Mounting | DIN RAIL, Desktop, Cabinet |
| Dimensions (H x W x D) | 150 x 57 x 95 mm (5.91” x 2.24” x 3.74”) |
| Weight | 1 kg (2.20 lbs) |
| Cooling | Fanless |
| Operation Temperature | -40 °C to +55 °C (-40 °F to 131 °F) |
| Vibration | acc. IEC 60068-2-6, 10 - 50 Hz, 2G |
| Humidity rel. | 93 % @ at 40 °C non-condensing |
| Shock | acc. IEC 60068-2-27, half-sine, 15g, 11 ms |
| Certifications | UL / CE |
Downloads
技术参数
datatsheet_KBox A-201
[ datasheet_kbox-a-201.pdf, 719.19 KB, Aug.31.2017 ]
参考手册
KBox A-20x Manual
Rev. 1.2, 12. March 2018
[ kbox-a-20x_user_guide_v1-2_en_12-03-2018.pdf, 2.14 MB, Apr.20.2023 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
白皮书
Wartungsfrei [restrictions apply]
发布说明
IoT Standards Enable Interoperability
By Kenton Williston, Roving Reporter (Intel Contractor), Intel® Internet of Things Alliance
Three industry experts are talking about how developers can solve lacks of standards which make it difficult to connect.
[ iot-standards-enable-interoperability.pdf, 178.4 KB, Jun.30.2014 ]
测试报告
UL: Certificate of compliance
UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07 - Information Technology Equipment - Safety - Part 1: General Requirements
[ kbox-a20x-ul-e147705-20151123.pdf, 178.43 KB, Jan.21.2016 ]
