SMARTCASE™ S501 New

Chassis Kit Solution for K3921-N & K3921-H mSTX

Mouseover Zoom loading...

Specifications

Ultra-Compact Design
36 x 147 x 165 mm
Front & Rear USB

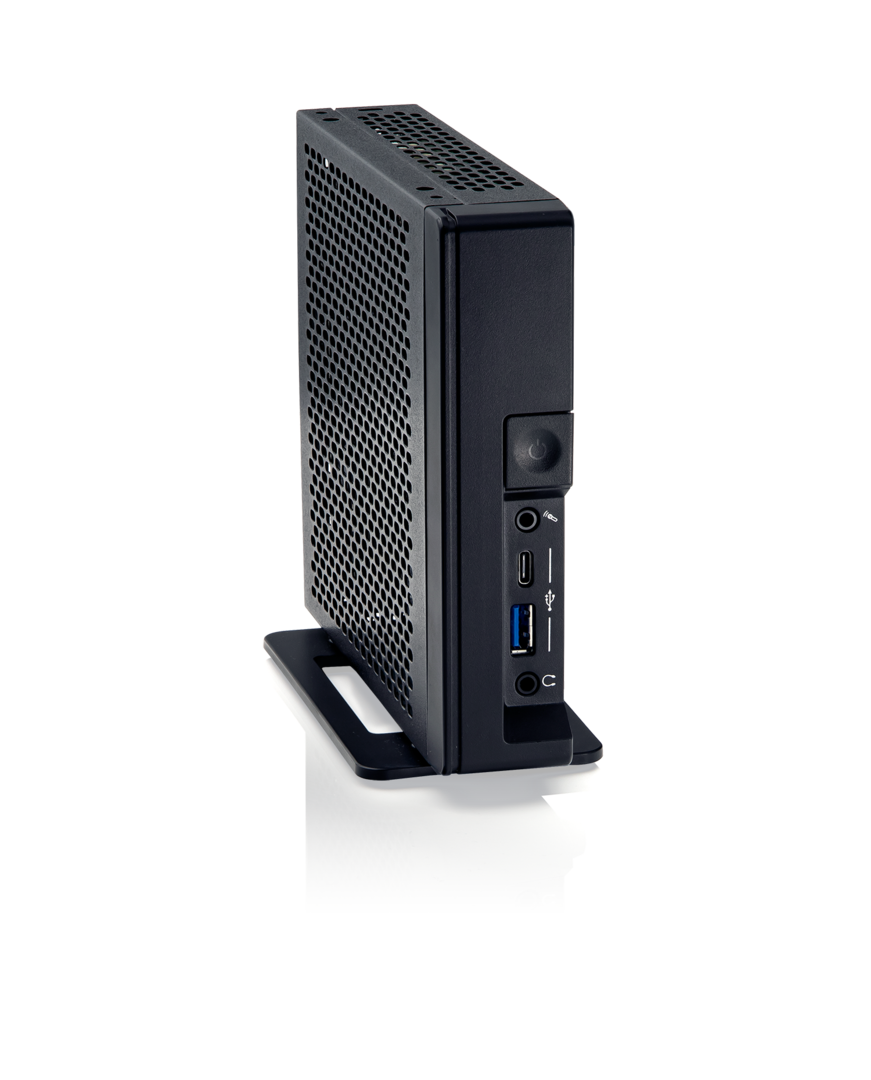

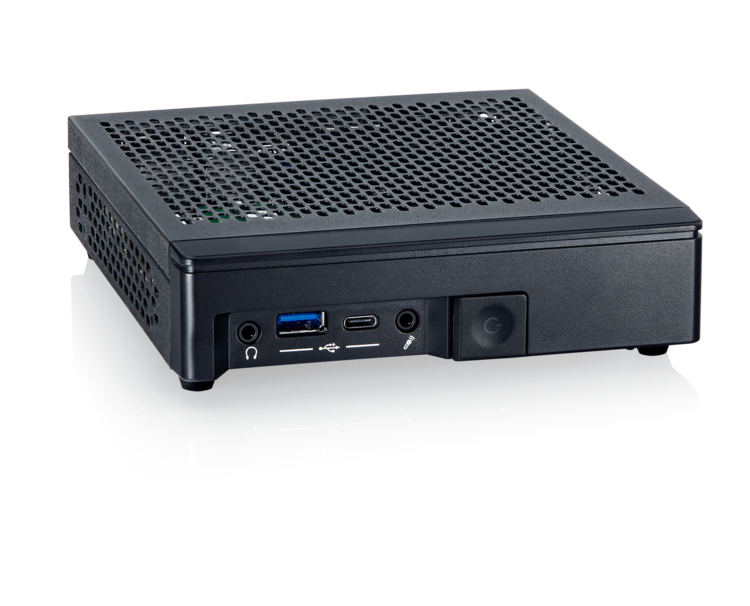

Horizontal or Vertical Operation
VESA- and Wall Mount Option

Download Datasheet

The tiny SMARTCASE™ S501 chassis is designed for the industrial mini-STX motherboards K3921-N and K3921-H supporting the Intel® Core™ i3 processors & Intel® processors N (Alder Lake N) series. With a housing volume of only 0.87 litres and lots of connectivity and power inside, the S501 fits perfectly for digital signage-, KIOSK-, POS/POI applications and many others. A comprehensive set of best matched accessories is also available. The SMARTCASE™ S501 can be used in horizontal and vertical mode and is fully validated and certified.

Downloads

技术参数

Datasheet SMARTCASE™ S501
[ smartcase_s501_en_data-sheet_kontron.pdf, 1.49 MB, Mar.26.2024 ]

参考手册

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

白皮书

Modules and Motherboards WP [restrictions apply]

Tech Spec Sheet

Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 7.28 MB, Nov.21.2024 ]

Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 6.05 MB, Apr.15.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Accessories

DP 20P M to HDMI Adapter F5000-A007		DP 20P M to HDMI Adapter, up to 4k @ 60 Hz
Slim passive cooler mSTX ADL-N 10W F5000-C024		Slim passive cooler mSTX ADL-N 10W
Slim Active Heatsink mSTX/mITX ADL-N 15W F5000-C026		Slim Active Heatsink mSTX/mITX ADL-N 15W
COM Cable short w/o bracket S26361-F5000-K007		w/o slot bracket, length = 120mm; new 2mm pitch internal connector
COM Cable "long" S26361-F5000-K010	$COM Cable \$	with fullsize slot bracket
Chassis Intrusion Kit S26361-F5000-K017		Improved system security through “Chassis Intrusion Supervision” option
AC Adapter S26361-F5000-P006		19V / 3.42A, 65W - w/o power cord
WLAN Kit for SMARTCASE™ S511 S26361-F5000-W005		left (grey)/right (black) Antenna (incl. cable) to be fitted into mSTX chassis
Wall mount bracket for SMARTCASE™ S501 & S511 S26361-F5000-X001		2 x Brackets per chassis incl. screws
VESA kit for SMARTCASE™ S501 & S511 S26361-F5000-X002		"E-Line bracket" for D3714-R (SC-S511)
DC in holder for SMARTCASE™ S501 & S511 S26361-F5000-X003		Holder incl. screws
