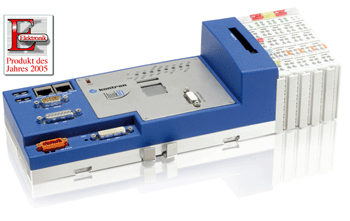

ThinkIO-P This product is legacy
ThinkIO-Premium DIN Rail PC, 可支持1.4 GHz Intel® Pentium® M处理器
Specifications
- 可支持达1.4GHz 被动散热, 1GB SDRAM, 内置2 GB Flash 外置 CF 插槽
- EMC B级设计
- 宽温可选: 处理器最高1.0 GHz 范围: -40°C...+70°C
- 保留内存 RTC, 看门狗, 2个数字输入/输出, RUN/STOP 开关, reset, LED指示
- 2个10/100 Base-TX, 2个USB 2.0, 1个RS232以及1个DVI-I
- Modular-I/O 可选
- Profibus-DP, CANopen 或 DeviceNet 可选
- 大小 / mm (宽 x 高 x 深): 224 mm x 100 mm x 70 mm
- 支持嵌入式实时Linux, Windows XP embedded
- IEC 61131-3, 可视化，Web服务器
强固设计适用于严酷环境
基于Intel® Pentium® M的强大的计算和图形能力，以及灵活性的连接，ThinkIO-P可满足众多应用领域需求。
例如，在复杂的控制任务、复杂显示、通讯及运动控制功能，甚至恶劣环境下都可照常运行。宽温版本可适合火车、船舶或工业领域的应用，支持需要温度0°C...+55°C 以外的环境
例如，在复杂的控制任务、复杂显示、通讯及运动控制功能，甚至恶劣环境下都可照常运行。宽温版本可适合火车、船舶或工业领域的应用，支持需要温度0°C...+55°C 以外的环境
Features
| Mounting | DIN Rail |
| Weight | ~ 1.100 g |
| CPU | Intel® Celeron® M 600 MHz to Intel® Pentium® M 1.4 GHz |
| DRAM | 256 MByte standard, up to 1 GByte max. |
| Flash | 128/512 MByte/2 GByte onboard standard, external CF socket |
| NVRAM | 1 MByte standard, battery backed |
| I/O Standard | 2x LAN 10/100, 2x USB 2.0, RS232, DIV-I, 2x digital in, 2x digital out, watchdog relay out, RUN/STOP switch, reset, RTC |
| Dimensions (H x W x D) | 100 mm x 236 mm x 65* mm (* from upper edge of DIN 35 rail) |
| Power Supply | 24 V DC(-25%/+30%) / typ. 600 MHz: 17 W, 1.4 GHz: 24 W, 1 GHz: 16 W |
| Options | WAGO-I/O System, Profibus-DP Master/Slave, CANopen Master/ Slave, DeviceNet Master/Slave (DeviceNet only with BSPs) |
| Cooling | passive, no fan |
| Protection Class | IP 20 |
| Humidity rel. | 93% RH at 40°C, non-condensing |
| Operating System | Embedded real-time Linux 2.4/RTAI distribution independent (preinstalled), Embedded Linux 2.6 distribution independent, Windows XP embedded, IEC 61131-3 SoftPLC CoDeSys on Linux 2.4/RTAI |
| Standard | Emission: EN55022/B, EN61000-6-3, DNV SfC/B, FCC part 15/B, / Immission: EN55024, EN61000-6-2 / Electrical Safety: EN60950-1 / Temperature Cold: IEC60068-2-1 / Temperature Dry Heat: IEC60068-2-2 / DIN 35 Rail: EN50022 |
| Operation Temperature | 0°C to +55°C, extended temperature (Intel® Celeron® M 1 GHz): -40°C to +70°C max. |
Downloads
技术参数
ThinkIO-P Datasheet
ThinkIO-P Datasheet
[ thinkio-p_datasheet.pdf, 220.94 KB, Aug.31.2017 ]
参考手册
ThinkIO-P Manual - Quick Start Guide
[ thinkio-p_quick_start_guide.pdf, 396.76 KB, Sep.11.2017 ]
ThinkIO-P Manual - Installation Guide
[ thinkio-p_installation_guide.pdf, 605.57 KB, Sep.11.2017 ]
ThinkIO-P Manual - Hardware Reference Guide
[ thinkio-p_hardware_referenceguide.pdf, 5.42 MB, Sep.11.2017 ]
ThinkIO-P Manual - Programming Assistance Guide Fieldbusses
[ thinkio-p_programming_assistance_guide_fieldbusses.pdf, 212.39 KB, Sep.11.2017 ]
ThinkIO-P Manual - Programming Assistance Guide Codesys
[ thinkio-p_programming_assistance_guide_codesys.pdf, 1.29 MB, Sep.11.2017 ]
ThinkIO-P Manual - Programming Assistance Guide Windows XP Embedded
[ thinkio-p_programming_assistance_guide_win_xpe.pdf, 857.19 KB, Jun.26.2020 ]
ThinkIO Surge Filter Holdup Module
24V surge filter and holdup module for all ThinkIOs.
>10ms hold up time acc. IEC61131-2/severity level PS2and EN50155/S2.
[ 1036-0458_10_sk-man-tio-surge-holdup-ug.pdf, 193.72 KB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
BIOS
BIOS
[restrictions apply]
[ thinkio-p_ix0108.zip, 3.04 MB, Nov.27.2013 ]
驱动程序
Windows XP Embedded Board Support Package
[restrictions apply]
[ thinkiop_r12_wxpe.zip, 10.2 MB, Jul.03.2018 ]
Windows XP Embedded Readme
[restrictions apply]
[ readme_thinkio-p_r12_wxpe.txt, 6.58 KB, Jul.03.2018 ]
Windows XP Embedded Errata
[restrictions apply]
[ errata_thinkio-p_r12_wxpe.rtf, 1.84 MB, Jul.03.2018 ]
技术信息
ESD Protection Guidelines
[ 29789_02_sk-man-esd_protection.pdf, 134.59 KB, Nov.27.2013 ]
应用说明
Howto compile Qtopia 4.4 for the Linux BSP
[ readme_qtopia_core_appnote.pdf-3, 71.11 KB, Nov.27.2013 ]
Linux
Linux BSP for ThinkIO-Duo and ThinkIO-P with Realtime Kernel (R12)
[restrictions apply]
This Kontron BSP is designed to get customers started immediately with application development instead of first getting involved with BSP integration or hardware bring-up issues. Support of board specific devices and interfaces has been added to the BSP to achieve the full benefit of the functions provided by the hardware. Supports booting from local devices as well as network booting and provides convenient remote update mechanisms.
MD5SUM: 2ab6fa136d60af4129506deb40a43398
[ lin26-bsp-osadl-r12-tar.bz2, 732.46 MB, Apr.20.2023 ]
Windows CE
Readme Windows CE 6.0 Board Support Package
候选发布版本(RC)
[ readme_wce60-bsp-thinkio-p_r10.txt, 6.92 KB, Nov.27.2013 ]
Windows CE 6.0 Board Support Package
候选发布版本(RC) [restrictions apply]
[ wce60-bsp-thinkio-p_r10.zip, 4.13 MB, Nov.27.2013 ]
Windows CE 5.0 Board Support Package
[restrictions apply]
[ thinkiop_bsp_i0200_wce50.zip-2, 3.98 MB, Nov.27.2013 ]
Readme Windows CE 5.0 Board Support Package
[ readme_thinkiop_bsp_i0200_wce50.txt-2, 6.93 KB, Nov.27.2013 ]
