VX3908 New

10G/40G/50G Ethernet L2/L3 Network Switch

Specifications

VITA65 OpenVPX L2/L3 switch for harsh environments
Line Rate sustained for all packet size
Dual 50G Ethernet uplinks
Air-cooled builds

Download Datasheet

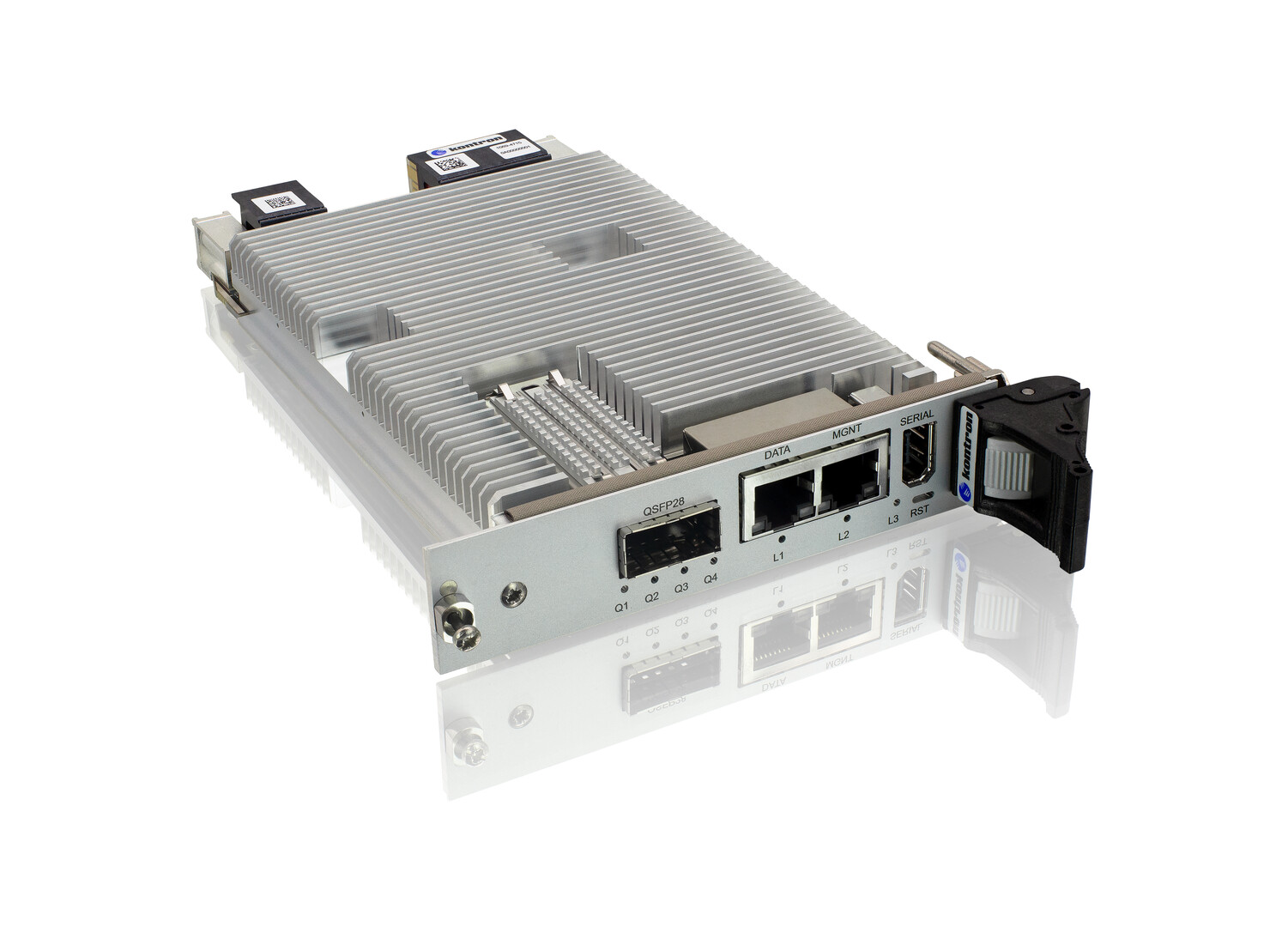

Kontron's VX3908 is a robust, fully managed layer 2&3 switch with 1/10/40/50 Gigabit Ethernet capabilities. Engineered for durability in harsh environments, it offers outstanding bandwidth and communication safety, ideal for long-term programs.

Aligned with VITA65 OpenVPX profile, it supports up to 12x 10GBASE-KR ports on the VPX backplane, with additional configurations enabling aggregated 10GbE ports forming higher bandwidth outputs.

With extensive management capabilities via SNMP, command line interfaces, and IPMI v1.5, it allows for comprehensive monitoring and remote configuration. Its feature set encompasses IPv4/IPv6 forwarding, routing, VLANs, QoS, spanning tree protocols, and Ethernet bridging and routing protocols.

The VX3908's enhanced features include egress ACLs, intelligent health management via IPMC, and an additional powerful CPU from QorIQ® LayerScape family, ensuring high performance for management systems and future scalability.

Features

Ethernet

1/10/40/50 Gigabit Ethernet

GbE Switch Features

Up to 12x 10GBASE-KR ports can be supported on the VPX backplane (standard configuration will offer 6x 10GBASE-KR + 1x 1000BASE-T ports).

CPU	ARM LS1020A QorIQ® LayerScape

Standard

OpenVPX VITA65

Form Factor

VPX

Cooling

Air-Cooled (0°C to 55°C)

IPMI	VITA 46.11

Frontpanel

1x QSFP28 cage, 2x RJ45 connectors (with management port) and 1x Serial Line
