3.5"-SBC-WLU

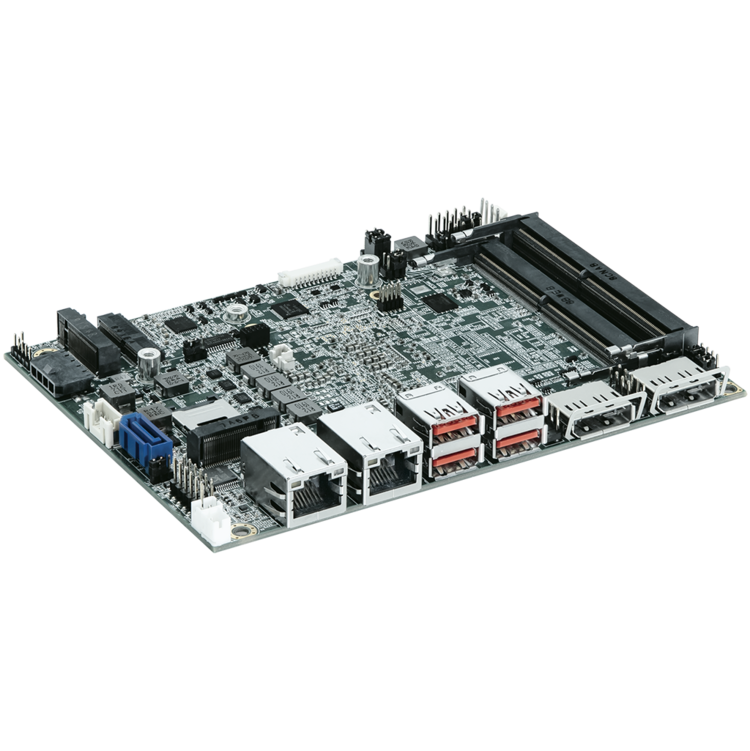

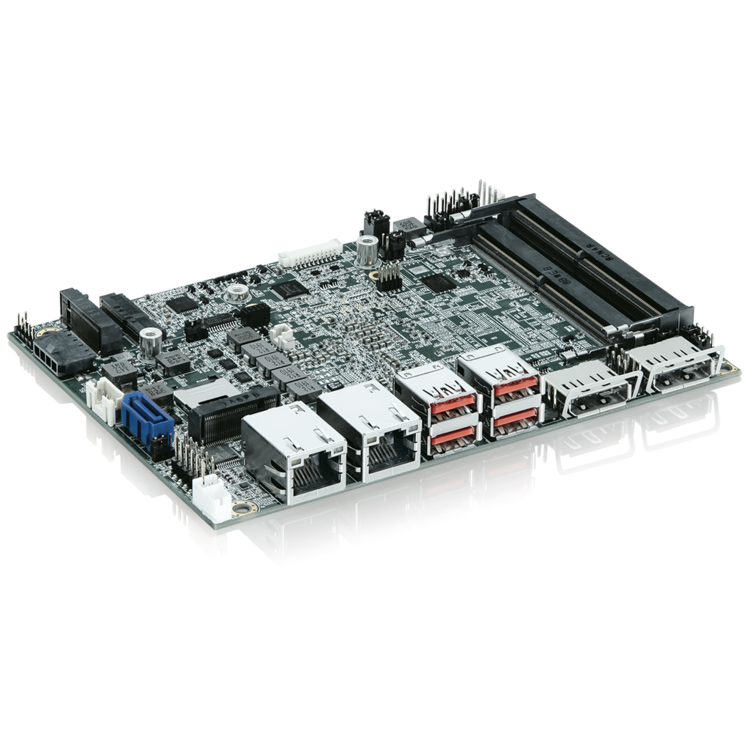

3.5" Single Board Computer with 8th Generation Intel® Core™ U-Series Processors
Mouseover Zoom loading...
Specifications
- 1x LVDS, 2x DP++ for triple display support
- 2x GbE LAN for Ethernet
- 4x USB 3.2 Gen 2, 4x USB 2.0, 2x RS232/422/485 for USB & serial device connection
- 8x DIO for device / signal control
- 1x SATA 3.0, 1x M.2 Key B, 1x M.2 Key E, 1x M.2 Key M for storage & expansion
More Connected Platform for IoT Applications
3.5”-SBC-WLU is a 3.5" single board computer based on 8th Generation Intel® Core™ U-Series processors. Besides computing / graphics performance enhancement, the board supports many new-generation interfaces, including (1) faster DDR4 memory sockets; (2) HDMI- / DVI-output-supported DP++ ports; (3) high-speed SATA 3.0 drive socket; and (4) highly-integrated M.2 expansion slots.
Most importantly, 3.5”-SBC-WLU supports Intel® Wireless-AC via new Intel's new CNVi interface integrated in the M.2 Key E socket, which can deliver up to 12x faster Wi-Fi speeds depending on the model that is installed when compared to legacy Wi-Fi devices. It is a more connected embedded computing platform ideal for IoT wireless applications.
Features
| Processor | Intel® Core™ i7-8665UE (Quad Core, 8M Cache, 1.7 / 4.4 GHz, FCBGA1528, 15 W TDP) Intel® Core™ i5-8365UE (Quad Core, 6M Cache, 1.6 / 4.1 GHz, FCBGA1528, 15 W TDP) Intel® Core™ i3-8145UE (Dual Core, 4M Cache, 2.2 / 3.9 GHz, FCBGA1528, 15 W TDP) Intel® Celeron® 4305UE (Dual Core, 2M Cache, 2.00 GHz, FCBGA1528, 15 W TDP) |
| Main Memory | 2x DDR4 2400 1.2 V SO-DIMM up to 64 GByte (Core™ i models) 2x DDR4 2133 1.2 V SO-DIMM up to 64 GByte (Celeron® models) |
| Graphics Controller | Intel® UHD Graphics 620 (Core™ i models) Intel® UHD Graphics 610 (Celeron® models) |
| Display | 1x LVDS (24-bit, 2-ch, 1920 x 1200 @ 60 Hz) 2x DP++ (4096 x 2304 @ 60 Hz, on rear) Triple Display |
| Audio Controller | Realtek ALC888S |
| Audio | 1x Speaker-out (Stereo, 3 W) 1x Line-in (by header) 1x Line-out (by header) 1x Mic-in (by header) |
| Ethernet | 2x GbE LAN (RJ45 on rear, Intel® I219-LM, Intel® I210-AT) |
| USB | 4x USB 3.2 Gen 2 (Type A on rear) 4x USB 2.0 (by header) |
| Serial | 2x RS232/422/485 (by header) |
| SATA | 1x SATA 3.0 |
| Expansion | 1x M.2 Key B (Type 2242, w/ PCIe x1 / USB 2.0 / USB 3.2 / UIM) 1x M.2 Key E (Type 2230, w/ PCIe x1 / USB 2.0 / CNVi) 1x M.2 Key M (Type 2280 / 2242, w/ PCIe x4 / SATA 3.0) 1x SIM Card Holder (Micro type) |
| Input Voltage | DC 12 V |
| Power connector | 1x4-pin pitch 3.0 mm Wafer |
| BIOS | AMI uEFI BIOS w/ 256 Mb SPI Flash |
| Watchdog | Programmable WDT to generate system reset event |
| Cooling | 1x Wafer for Smart Fan |
| Operating System | Windows 10, Linux |
| Form Factor | ECX (146 mm x 105 mm / 5.75" x 4.13") |
| Operating Temperature | 0 °C ~ 60 °C / 32 °F ~ 140 °F |
| Humidity | 0 % ~ 95 % |
| Compliance | CE Class B, FCC Class B |
Downloads
Datasheets
3.5"-SBC-WLU Datasheet
Revision 20240902, September 2, 2024
[ kontron-3d5-sbc-wlu-datasheet-20240902.pdf, 3.12 MB, Sep.02.2024 ]
Manuals
3.5"-SBC-WLU User Guide
Revision 2.1, September 2, 2024
[ kontron-3d5-sbc-wlu-user-guide-rev-2d1-2024-09-02.pdf, 1.77 MB, Sep.02.2024 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Quick Reference Guide
3.5"-SBC-WLU Quick Installation Guide
Revision 2, February 26, 2020
[ kontron-3d5-sbc-wlu-qig-20200226.pdf, 456.14 KB, Feb.26.2020 ]
Tech Spec Sheet
Tech Specs SBC
(Release Candidate)
Revision 20241014, October 14, 2024
[ 3d5-sbc-tech-spec-sheet-20241014.pdf, 19.83 MB, Nov.04.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Variants
|
3.5"-SBC-WLU-0-i5-8365UE 43015-0000-16-4 |
|
Intel® Core™ i5-8365UE | |
|
3.5"-SBC-WLU-1-i3-8145UE 43015-0000-22-2 |
|
Intel® Core™ i3-8145UE | |
|
3.5"-SBC-WLU-2-i7-8665UE 43015-0000-17-4 |
|
Intel® Core™ i7-8665UE | |
|
3.5"-SBC-WLU-3-4305UE 43015-0000-20-2 |
|
Intel® Celeron® 4305UE |
Accessories
|
Heatsink - Cooling Solution 1067-5535 |
|
Heatsink with Fan, 15W tdp | |
|
DC Jack Cable 1064-2433 |
|
2.5 DC Jack with 2 mm Nut and 0.5 mm Washer to1x4P 3.0 pitch, L=300 mm | |
|
COM_Port Cable 1064-2427 |
|
D-SUB 9P (male) to 1x10P 1.25 pitch, L=350 mm | |
|
DIO Cable 1065-3137 |
|
D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm | |
|
2 Ports USB 2.0 Cable 1064-2429 |
|
USB (female) ×2 to 2×5P 2.54 pitch, L=250 mm | |
|
SATA Cable with Lock 1064-2431 |
|
SATA Cable with Lock, 1X7P (1.27 pitch), L=460 mm | |
|
SATA Power Cable 1064-2430 |
|
SATA Power Cable, SATA 1x15P Pitch:1.27mm to PH 2.0 HSG 1x4P 2.0pitch, L=460mm | |
|
Audio Cable 1064-2432 |
|
2x6P 2.54 pitch to ear phone jack x3 3.5 pitch, L=350 mm |
