886LCD-M/mITX This product is legacy

Embedded Pentium-M mini-ITX Motherboard with 3xGbE LAN

Specifications

Intel® Pentium® M and Intel® Celeron® M Processors (mPGA478 socket)
Front Side Bus 400 MHz
Intel® 855GME + Intel® 6300ESB Embedded Chipset
Intel® Extreme Graphics 2 Controller
Flat Panel Display Support
Dual independent Display Support (incl. 2x LCD)
Standard AGP slot for easy graphics expansion
Up to 1GB PC2700/DDR333 SDRAM (incl. ECC)
3x 10/100/1000 Mbps Ethernet
4x USB 2.0, 4x RS232C
2x ATA100 and 2x SATA150 IDE Controller
On board RAID 0/1 support with SATA harddisk
AC-97/DD5.1 compliant audio output & on board stereo amplifier.
Unique API software support for control, setting and monitoring of onboard functions
Size: 170 x 170 mm (6.7" x 6.7")

Download Datasheet

LVDS, LAN, 4x USB and 4x COM, 1x AGP/DVO, 1x PCI

886LCD-M/mITX Embedded Motherboard is the most cost effective Pentium-M solution with many Embedded Motherboard features.

Downloads

Datasheets

886LCD-M/mITX datasheet
[ 886lcd-m-family.pdf, 155.55 KB, Aug.31.2017 ]

Manuals

KTD-00474 888LCD-M Family User Manual
886LCD-M Series User Manual
[ ktd-00474-u-886lcd-m-family-user-manual.pdf, 1.13 MB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

BIOS

KTD-00664 BIOS tools Package User Manual
[ ktd-00664-k-bios-tools-package-user-manual.pdf, 65.87 KB, Nov.27.2013 ]

886LCD-M BIOS v. 3.7
June 30th 2008 the included BF is updated.
[ 886lcd-m_bios3-7.zip, 882.92 KB, Apr.20.2023 ]

BIOS Tools Package v6.5
(Included BF.exe updated 09-03-2011)
[ bios-tools-package-v6-5.zip, 2.5 MB, Apr.20.2023 ]

886LCD-M BIOS version 50
[ 886lcd-m_bios5-0.zip, 859.76 KB, Apr.20.2023 ]

Board Support Packages

KTD-00702 886LCD-M XPE Support Application Note
[ ktd-00702-0_886lcd-m_xpe_support_application_note.pdf-2, 118.7 KB, Nov.27.2013 ]

886LCD-M WinCE.Net 5.0 BSP V.1.1
[ 886lcd-m_wince-net_5-0_bsp_ver1-1.zip, 1.48 MB, Apr.20.2023 ]

Windows XP Embedded
[ windowsxpembedded.zip, 31.47 MB, Nov.27.2013 ]

Chipset Drivers

Chipset Drivers
[ chipset.zip, 2.1 MB, Jul.03.2018 ]

Ethernet Drivers

Novell server (OS 6.x, 5.x, 4.x)
[ novell_server_os_6-x_5-x_4-x.zip, 57.79 KB, Apr.20.2023 ]

Ndis2
[ ndis2.zip, 9.93 KB, Jul.03.2018 ]

Linux
[ linuxrtl8169bin-sourcedrivers.zip, 110.94 KB, Jul.03.2018 ]

Windows NT4
[ nt4.zip-3, 111.15 KB, Jul.03.2018 ]

odi
[ odi.zip, 12.89 KB, Jul.03.2018 ]

Realtek LAN Drivers v. 5.713 - W2K - WinXP
[ realtek-lan-driver-xp-w2k-v-5-713.zip, 0 B, Apr.20.2023 ]

Sound Drivers

Windows NT4 v. a376
[ a376_winnt4.zip, 7.94 MB, Jul.03.2018 ]

Windows wdm v.a376-W2K, XP and W98
[ a376_winall.zip, 17.77 MB, Jul.03.2018 ]

Linux_realtek-linux-audiopack-3.3-4
[ linux_realtek-linux-audiopack-3-3-4.zip, 3.81 MB, Apr.20.2023 ]

Video Drivers

886LCD-M Graphic Driver WinXP-W2K
[ 886lcd-mgraphicdriverwinxp-w2k.zip, 6.28 MB, Nov.27.2013 ]

886LCD-M Graphic Driver Win9x
[ 886lcd-mgraphicdriverwin9x.zip, 7.35 MB, Nov.27.2013 ]

886LCD-M Graphic Driver winNT4
[ 886lcd-mgraphicdriverwinnt4.zip, 6.88 MB, Nov.27.2013 ]

886LCD-M Graphic Driver WinXP-W2k CH7301 support
[ 886lcd-m_graphic_driver_winxp-w2k_ch7301_support.zip, 6.09 MB, Nov.27.2013 ]

Tools

SpeedSwitch for XP ( 0.6MB)
Setup and monitor CPU speed.
[ sswitchxp14.zip, 657.68 KB, Nov.27.2013 ]

DMI Viewer for Windows
[ dmi_viewer.zip, 97.35 KB, Nov.27.2013 ]

DMI Setup Utility Package for DOS & Win
[ dmiwin.zip, 349.73 KB, Apr.29.2014 ]

startdrv.reg for API in Admin Rights
[ startdrv.zip, 280 B, Nov.27.2013 ]

KTD-00769 KT-API-V2 User Manual
[ ktd-00769-e-kt-api-v2-user-manual.pdf, 117.36 KB, Nov.27.2013 ]

Cable Specifications

PN 821007 Cable Ribbon HDD 550mm
[ 821007-cable-ribbon-hdd-550mm.pdf, 179.84 KB, Oct.26.2023 ]

PN 821016 Cable COM2 200mm 2.54
[ 821016-cable-com2-200mm-2-54.pdf, 184.86 KB, Apr.20.2023 ]

PN 1027-2631 Cable LVDS JAE FI-S20 w PT
[ 1027-2631-cable-lvds-jae-fi-s20-w-pt.pdf, 366.8 KB, Oct.26.2023 ]

PN 1035-7636 Cable LVDS STM P240420
[ 1035-7636-cable-lvds-stm-p240420.pdf, 368.02 KB, Oct.26.2023 ]

KTD-00623 Cable 886LCD-M std FDD A Specification
FDD A Cable kit for standard FDD connected via parallel port on 886LCD-M family
[ ktd-00623-b_cable_886lcd-m_std_fdd_a_specification.pdf, 110.9 KB, Nov.27.2013 ]

KTD-00622 Cable 886LCD-M std FDD A & B Specification
FDD A and B Cable specification for standard FDD connected via parallel port on 886LCD-M family
[ ktd-00622-a_cable_886lcd-m_std_fdd_a__b_specification.pdf, 161.08 KB, Oct.26.2023 ]

KTD-00613 Cable for Samsung LTM170EH-L01 Specification
[ ktd-00613-0_cable_for_samsung_ltm170eh-l01_specification.pdf, 78.45 KB, Oct.26.2023 ]

KTD-00598-0 LGPhilips LM170E01 to 886LCD-M family
[ ktd-00598-0_lgphilips_lm170e01_to_886lcd-m_family.pdf, 22.57 KB, Oct.26.2023 ]

PN 1021-8971 Cable LVDS DF14-20S
[ 1021-8971-cable-lvds-df14-20s.pdf, 324.24 KB, Oct.26.2023 ]

KTD-00586 Samsung LTM170E5-L03 to 886LCD-M family
[ ktd-00586-0_samsung_ltm170e5-l03_to_886lcd-m_family.pdf, 68.61 KB, Oct.26.2023 ]

KTD-00627 Cable for Samsung LTA460W2-L01 Specification
[ ktd-00627-b_cable_for_samsung_lta460w2-l01_specification.pdf, 154.4 KB, Nov.27.2013 ]

KTD-00628 Cable for Samsung LTA460H2-L02 Specification
[ ktd-00628-b_cable_for_samsung_lta460h2-l02_specification.pdf, 153.9 KB, Nov.27.2013 ]

KTD-00649 Cable for Samsung LTA320W2-L01 Specification
[ ktd-00649-0cableforsamsunglta320w2-l01specification.pdf, 154.56 KB, Nov.27.2013 ]

KTD-00653 Cable for Samsung LTM170E8-L02 Specification
[ ktd-00653-acableforsamsungltm170e8-l02specification.pdf, 32.18 KB, Nov.27.2013 ]

KTD-00698 82xxxx Cable kit Samsung LTB230W1-L02
[ ktd-00698-a_82xxxx_cable_kit_samsung_ltb230w1-l02.pdf, 258.33 KB, Nov.27.2013 ]

KTD-00697 820972 Cable kit Samsung LTM201U1-L01
[ ktd-00697-a_820972_cable_kit_samsung_ltm201u1-l01.pdf, 243.65 KB, Nov.27.2013 ]

KTD-00701 820973 LDI Dual Sharp LQ201U1LW01
[ ktd-00701-b_820973_ldi_dual_sharp_lq201u1lw01.pdf, 249.32 KB, Nov.27.2013 ]

PN 821156 Cable LVDS Open-End 2000mm
[ 821156-cable-lvds-open-end-2000mm.pdf, 279 KB, Oct.26.2023 ]

PN 821013 Cable Single HDD 500mm
[ 821013-cable-single-hdd-500mm.pdf, 211.1 KB, Oct.26.2023 ]

PN 821520 Cable for LG.Philips LM150X8
[ 821520-cable-for-lg-philips-lm150x8.pdf, 253.36 KB, Apr.20.2023 ]

PN 821401 Bracket Dual USB Cable
[ 821401-bracket-dual-usb-cable.pdf, 240.34 KB, Oct.26.2023 ]

PN 821017 Cable COM2 100mm 2.54
[ 821017-cable-com2-100mm-2-54.pdf, 140.44 KB, Apr.20.2023 ]

PN 821515 Open End LVDS Cable 572mm
[ 821515-open-end-lvds-cable-572mm.pdf, 257.34 KB, Oct.26.2023 ]

PN 821042 Cable Front Panel Open-End
[ 821042-cable-front-panel-open-end.pdf, 164.37 KB, Oct.26.2023 ]

PN 821155 Cable LVDS Open-End 1080mm
[ 821155-cable-lvds-open-end-1080mm.pdf, 270.68 KB, Oct.26.2023 ]

PN 820971 LDI Evaluation Kit
[ ktd-00694-l-820971-ldi-evaluation-kit.pdf, 393.36 KB, Nov.27.2013 ]

PN 1027-3591 Cable LVDS 2x40p conn 405 mm w PT
[ 1027-3591-cable-lvds-2x40p-conn-405-mm-w-pt.pdf, 278.96 KB, Oct.26.2023 ]

PN 821018 Cable HDD UDMA-100
[ 821018-cable-hdd-udma-100.pdf, 169.82 KB, Oct.26.2023 ]

PN 821035 Cable SATA 500mm
[ 821035-cable-sata-500mm.pdf, 172.8 KB, Oct.26.2023 ]

PN 821036 Cable COM2 100mm Bracket
[ 821036-cable-com2-100mm-bracket.pdf, 178.78 KB, Oct.26.2023 ]

PN 821038 Cable COM x2 Bracket 300mm
[ 821038-cable-com-x2-bracket-300mm.pdf, 195.68 KB, Oct.26.2023 ]

PN 821041 Cable Feature Open-End
[ 821041-cable-feature-open-end.pdf, 152.19 KB, Oct.26.2023 ]

PN 821043 Cable Audio Open-End
[ 821043-cable-audio-open-end.pdf, 155.87 KB, Oct.26.2023 ]

PN 821518 Cable LVDS JAE FI-S20S Std18b
[ 821518-cable-lvds-jae-fi-s20s-std18b.pdf, 365.24 KB, Oct.26.2023 ]

Technical Info

KTD-00643 RoHS - ECN
[ ktd-00643-0_rohs_-_ecn.pdf, 47.26 KB, Nov.27.2013 ]

KT Conformance RoHS
[ kt_conformance_rohs.pdf, 65.77 KB, Jun.26.2020 ]

Application Notes

KTD-00688 886LCD-M Family Power Characteristics
[ ktd-00688-0886lcd-m_family_power_characteristics.pdf, 284 KB, Nov.27.2013 ]

KTD-00702 886LCD-M family XPE Support Application Note
[ ktd-00702-0_886lcd-m_xpe_support_application_note.pdf, 108.95 KB, Nov.27.2013 ]

KTD-00584 List of supported displays - 886LCD-M
[ ktd-00584-h_886lcd-m_family_supported_displays_list.pdf, 304.02 KB, Nov.27.2013 ]

KTD-00572 Info Header Description
Describes the information available in the Info Header (located in BIOS).
[ ktd-00572-cintegratedinfoheaderapplicationnote.pdf, 220.64 KB, Nov.27.2013 ]

KTD-00620 BIOS defaults
[ ktd-00620-cbiosdefaultsapplicationnote.pdf, 43.08 KB, Nov.27.2013 ]

KTD-00641_886LCD-M_Linux_Suse9.2_Support
[ linuxsuse9-2_support.pdf, 52.32 KB, Apr.20.2023 ]

KTD-00644 886LCD-M Family Board Update - ECN
[ ktd-00644-a_886lcd-m_family_board_update_-_ecn.pdf, 23.99 KB, Nov.27.2013 ]

KTD-00668 Remote Access via COM Port
[ ktd-00668-aremoteaccessviacomport.pdf, 51.87 KB, Nov.27.2013 ]

KTD-00655 886LCD-M/mITX, DRAM installation guide
[ ktd-00655-0_886lcd-m_mitx_dram_installation_guide.pdf, 90.22 KB, Nov.27.2013 ]

KTD-00776 KT-LVDS-40p Display - Cable List Application Note
[ ktd-00776-c-kt-lvds-40p-display-cable-list-application-note.pdf, 223.74 KB, Nov.27.2013 ]

Mechanical Drawings

KTD-00578 IO Plate for mITX
IO Plate Specification (Drawing) for mITX format of the RoHS compliant MB's.
[ io-plateformitx.pdf, 198.14 KB, Nov.27.2013 ]

886LCD-M/mITX Drawing (Inches)
[ 886lcd-m_mitx_drawings_inches.pdf, 1.86 MB, Nov.27.2013 ]

886LCD-M/mITX Drawing (Metric)
[ 886lcd-m_mitx_drawings_metric.pdf, 1.89 MB, Nov.27.2013 ]

RAID Drivers

886LCD-M RAID driver Win2k-XP-2k3
RAID Driver Installed via USB Floppy (port 2 only) Please note that not all types of USB drives are supported.
[ 886lcd-mraidwin2k-xp-2k3.zip, 174.61 KB, Jul.03.2018 ]

886LCD-M RAID Software Application XP W2K
(Intels iata51_enu.exe)
[ raid_software_application.zip, 4.37 MB, Jul.03.2018 ]

KTD-00651 886 - 986LCD-M RAID Installation
[ ktd-00651-c-886-986lcd-m-raid-installation.pdf, 77.37 KB, Jul.03.2018 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Variants

886LCD-M/mITX, 1 x10/100 Mb LAN, no CF 810187-4500		Low cost 1x10/100Mbit LAN, no Compact Flash, Socket mPGA478 version	more
886LCD-M/mITX(BGA) 810196-4500		Low power Intel Mobile Celeron 800MHz BGA CPU on board, Passive Cooling Embedded Mini-ITX	more

Accessories

Socket478 Active Cooler (30mm) for 886LCD-M and 98 823132	Socket478 Active Cooler low profile (30mm) for Pentium-M, Celeron-M, Core Duo, Core 2 Duo, Core Solo for 886LCD-M and 986LCD-M families of Motherboards	more
Socket478 Passive Cooler (27mm) for PGA Pentium-M 823133	Socket478 Passive Cooler (heatsink 27mm) for 886LCD-M & 986LCD-M Family Embedded Motherboards.	more
Accessory Kit for 886LCD-M Family 826585	1x UDMA100 IDE cable, 1x DMA33 IDE cable, 1x SATA cable, 1x Serial port cable, 1x Feature Conn. Open-End, 1x Front Panel Conn. Open-End, 1x Audio Conn. Open-End, 1x LVDS Conn. Open-End, 1x Driver CD	more
ADD-LVDS 820935	ADD card for extra LVDS support for Motherboards.	more
ADD-DVI-I/CRT 820942	Low profile ADD DVI card with additional internal CRT out	more
PCI Riser - Flex - 2slot with arbiter 820982	2-slot PCI Riser card, approved for Kontron Embedded Mini-ITX series	more
DC-DC Supply 10-25Vin 150W 820153	DC 10 - 25V to ATX power supply for 786LCD/mITX, 886LCD-M, 986LCD-M and KT690/mITX series Embedded Motherboard	more
DC-DC Supply 12Vin 120W w. Cable Kit 820152	DC12V to ATX power supply for 786LCD/mITX, 886LCD-M, 986LCD-M and KT690/mITX series Embedded Motherboard	more

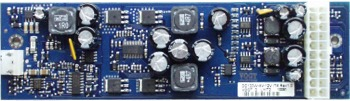

DC/DC 100W Power supply, inclusive ATX-cable 820151	DC12V to ATX power supply for 786LCD/mITX and 886LCD-M series Embedded Motherboard	more
