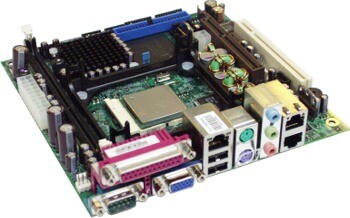

886LCD/mITX This product is legacy

Embedded Pentium4 Mini-ITX Motherboard with 3 GbE LAN - Not recommended for new designs

Specifications

Intel® Pentium® 4 and Intel® Celeron® Processors (mPGA478 socket)
Front Side Bus 400/533 MHz
Intel® 852GME + Intel® 6300ESB Embedded Chipset
Intel® Extreme Graphics 2 Controller
Flat Panel Display Support
Dual independent Display Support (incl. 2x LCD)
Up to 1GB PC2700/DDR333 SDRAM (incl. ECC)
3x 10/100/1000 Mbps Ethernet
4x USB 2.0, 4x RS232C
2x ATA100 and 2x SATA150 IDE Controller
On board RAID 0/1 support with SATA harddisk
AC-97/DD5.1 compliant audio output & on board stereo amplifier.
Size: 170 x 170 mm (6.7" x 6.7")

Download Datasheet

Pentium4, LVDS, LAN, 4x USB and 4x COM, 1x AGP/DVO, 1x PCI

886LCD/mITX Embedded Motherboard is the highest performance Mini-ITX motherboard in Kontron's mini-ITX series. The board is ideal for CPU intensive applications.

Downloads

Datasheets

886LCD/mITX Datasheet
[ 886lcd_mitx.pdf, 342.98 KB, Aug.31.2017 ]

Manuals

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

BIOS

KTD-00664 BIOS tools Package User Manual
[ ktd-00664-k-bios-tools-package-user-manual.pdf, 65.87 KB, Nov.27.2013 ]

886LCD-mITX BIOS v19 (0.5MB)
[ 886lcd-mitx_bios_v19.zip, 505.47 KB, Nov.27.2013 ]

BIOS Tools Package v6.5
(Included BF.exe updated 09-03-2011)
[ bios-tools-package-v6-5.zip, 2.5 MB, Apr.20.2023 ]

Sound Drivers

Windows NT4 v. a376
[ a376_winnt4.zip, 7.94 MB, Jul.03.2018 ]

Video Drivers

886LCD-M Graphic Driver winNT4
[ 886lcd-mgraphicdriverwinnt4.zip, 6.88 MB, Nov.27.2013 ]

Cable Specifications

KTD-00604 821514 Cable for Sharp LQ121S1LG41 Specification
[ ktd-00604-b_821514_cable_for_sharp_lq121s1lg41_specification.pdf, 77.17 KB, Oct.26.2023 ]

KTD-00649 Cable for Samsung LTA320W2-L01 Specification
[ ktd-00649-0cableforsamsunglta320w2-l01specification.pdf, 154.56 KB, Nov.27.2013 ]

KTD-00653 Cable for Samsung LTM170E8-L02 Specification
[ ktd-00653-acableforsamsungltm170e8-l02specification.pdf, 32.18 KB, Nov.27.2013 ]

KTD-00628 Cable for Samsung LTA460H2-L02 Specification
[ ktd-00628-b_cable_for_samsung_lta460h2-l02_specification.pdf, 153.9 KB, Nov.27.2013 ]

KTD-00627 Cable for Samsung LTA460W2-L01 Specification
[ ktd-00627-b_cable_for_samsung_lta460w2-l01_specification.pdf, 154.4 KB, Nov.27.2013 ]

KTD-00586 Samsung LTM170E5-L03 to 886LCD-M family
[ ktd-00586-0_samsung_ltm170e5-l03_to_886lcd-m_family.pdf, 68.61 KB, Oct.26.2023 ]

PN 1021-8971 Cable LVDS DF14-20S
[ 1021-8971-cable-lvds-df14-20s.pdf, 324.24 KB, Oct.26.2023 ]

KTD-00598-0 LGPhilips LM170E01 to 886LCD-M family
[ ktd-00598-0_lgphilips_lm170e01_to_886lcd-m_family.pdf, 22.57 KB, Oct.26.2023 ]

KTD-00613 Cable for Samsung LTM170EH-L01 Specification
[ ktd-00613-0_cable_for_samsung_ltm170eh-l01_specification.pdf, 78.45 KB, Oct.26.2023 ]

KTD-00622 Cable 886LCD-M std FDD A & B Specification
FDD A and B Cable specification for standard FDD connected via parallel port on 886LCD-M family
[ ktd-00622-a_cable_886lcd-m_std_fdd_a__b_specification.pdf, 161.08 KB, Oct.26.2023 ]

KTD-00623 Cable 886LCD-M std FDD A Specification
FDD A Cable kit for standard FDD connected via parallel port on 886LCD-M family
[ ktd-00623-b_cable_886lcd-m_std_fdd_a_specification.pdf, 110.9 KB, Nov.27.2013 ]

KTD-00698 82xxxx Cable kit Samsung LTB230W1-L02
[ ktd-00698-a_82xxxx_cable_kit_samsung_ltb230w1-l02.pdf, 258.33 KB, Nov.27.2013 ]

Technical Info

KTD-00643 RoHS - ECN
[ ktd-00643-0_rohs_-_ecn.pdf, 47.26 KB, Nov.27.2013 ]

KT Conformance RoHS
[ kt_conformance_rohs.pdf, 65.77 KB, Jun.26.2020 ]

Application Notes

Motherboard Accessories Overview Table
ATX to Mini-ITX motherboard accessories comparison table including CPU cooler, ADD cards, DC-DC converter, backplane and memory.
[ accessorytable23-01-20072.pdf, 133.84 KB, Mar.05.2021 ]

KTD-00584 List of supported displays - 886LCD-M
[ ktd-00584-h_886lcd-m_family_supported_displays_list.pdf, 304.02 KB, Nov.27.2013 ]

KTD-00620 BIOS defaults
[ ktd-00620-cbiosdefaultsapplicationnote.pdf, 43.08 KB, Nov.27.2013 ]

KTD-00686 886LCD/mITX Power Supply Characteristics
[ ktd-00686-0886lcd-mitx_power_characteristics.pdf, 44.63 KB, Nov.27.2013 ]

KTD-00668 Remote Access via COM Port
[ ktd-00668-aremoteaccessviacomport.pdf, 51.87 KB, Nov.27.2013 ]

Catalogues

Embedded Motherboard Folder
[ embedded_motherboards_folder.pdf, 610.9 KB, Jun.20.2023 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Accessories

Socket 478 Pentium4 cooler 823130	High quality Pentium4/Celeron CPU cooler	more
Accessory Kit for 886LCD-M Family 826585	1x UDMA100 IDE cable, 1x DMA33 IDE cable, 1x SATA cable, 1x Serial port cable, 1x Feature Conn. Open-End, 1x Front Panel Conn. Open-End, 1x Audio Conn. Open-End, 1x LVDS Conn. Open-End, 1x Driver CD	more

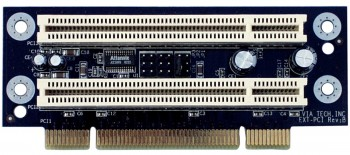

PCI Riser - Flex - 2slot with arbiter 820982	2-slot PCI Riser card, approved for Kontron Embedded Mini-ITX series	more
