986LCD-M/mITX (BGA) This product is legacy
Embedded Mini-ITX motherboard including Intel® Celeron M ULV 1.06GHz processor and passive cooler.
Specifications
- Intel® Celeron M ULV 1.06GHz Processor (mBGA479)
- Front Side Bus 533 MHz
- Intel® 945GM + Intel® ICH7R Chipset
- Intel® GMA950 graphic controller on board
- Flat Panel Display Support
- Dual independent Display Support (incl. 2x LCD)
- 1x 16x PCI-Express /SDVO external graphic card socket
- 3GB DDR2 memory support (2+1)
- 3x 10/100/1000 Mbps Ethernet
- 8x USB 2.0, 4x RS232C, 2x IEEE1394
- 1x ATA100 and 4x SATA150/300 IDE Controller
- 1x Compact Flash socket
- 1x mini PCI-Express socket for easy expansion of i.e. wireless LAN
- On board RAID 0/1/5/10 support with SATA harddisk
- 7.1ch HDA / AC-97compliant audio output
- Size: 170 x 170 mm (6.7" x 6.7")
Most featured and highest performing Mini-ITX in the market based on BGA Celeron M 1.06GHz CPU
986LCD-M/mITX BGA ULV Celeron M 1.06GHz. achives superior combination of data processing capability and low power consumption.
Features
| Form Factor | Mini-ITX |
| Dimensions (H x W x D) | "6.7" x "6.7">br> (170 mm x 170 mm) |
| CPU | Intel® Celeron M ULV 1.06GHz Intel® Celeron M LV 1.66GHz |
| Chipset | Intel® 945GM ICH7R |
| Main Memory | up to 3 GByte DDR2 240pin DIMM (max. 1x 2GB + 1x 1GB) |
| Front Side Bus | 533 MHz |
| Graphics Controller | Intel® GMA950 Controller with 2D/3D Graphics Engine HW assisted DVD/MPEG2 Decoding |
| Graphics | On board CRT, on board Dual Channel LVDS Dual Pipe for dual independent displays (incl. 2x LCD) Use ADD2-LVDS PCI-Express x 16/SDVO, Optional SVideo/TV |
| Ethernet Controller | Realtek RTL8111B |
| Ethernet | 3x 10/100/1000 Mbps |
| Hard Disk | 4x SATAII 150/300 w. RAID 0,1,5,10 support |
| Parallel Port | 1x ATA100 (2.54 mm connector) Thru LPT |
| Flash Onboard | CompactFlash Type I/II |
| PCI | 1x PCI |
| PCI Express / PCI support | 1x PCIe x16 / SDVO for external graphics card or ADD2 cards |
| Mini-PCI | 1x mini-PCIe |
| USB | 8x USB 2.0 (4x internal and 4x external) |
| IEEE 1394 Firewire | 2x IEEE 1394 1x Internal and 1x External |
| Serial | 4x RS232C serial ports with FIFO |
| Rear I/O |
| Audio Controller | Realtek ALC882 7.1 & 7.2 Channel HD Audio |
| Keyboard | Standard PS/2 mouse and keyboard (internal connection available) |
| Special Features | Hardware Monitor: Temperature, fan and voltages Software interface to monitor hardware values including HDD S.M.A.R.T. Watchdog On board Lithium battery and external battery input |
| BIOS | AMI |
| Power Management | ACPI 3.0 |
| Operation Temperature | 0 - 60°C (32°F - 140°F) |
| Operating System |
| Compliance | EN55022 EN61000-4-2(ESD) UL609501-1: 2003, First edition CSA C22.2 No.60950-1-03 First edition, April 1. 2003 ROHS |
Downloads
Datasheets
986LCD-M_mITX (BGA)
[ 986lcd-m-family.pdf, 1.03 MB, Aug.31.2017 ]
Manuals
KTD-00691 986LCD-M Family User Manual
[ ktd-n0837-b-986lcd-m-family-user-manual.pdf, 2.03 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Mechanical Drawings
ATX IO Bracket
Fits the Motherboards:
986LCD-M/mITX & /ATXP
[ 50100160iobracket986lcdmitxatxp15012007.pdf, 238.26 KB, Nov.27.2013 ]
986LCD-M/mITX Connector Placement (Inches)
[ connector_placement.pdf, 25.6 KB, Nov.27.2013 ]
986LCD-M/mITX Drawing (Metric)
[ 986lcd-m-mitx_drawing_metric.pdf, 1.36 MB, Nov.27.2013 ]
986LCD-M/mITX Drawing (Inches)
[ 986lcd-m-mitx_drawing_inches.pdf, 1.27 MB, Nov.27.2013 ]
823134 Passive Cooler Mechanical Drawing
[ 823134_passive_cooler_mech_draw.pdf, 229.97 KB, Nov.27.2013 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
Accessories
|

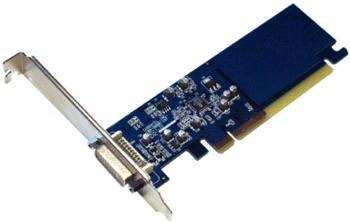

ADD2-DVI
820931 |
|
PCI-Express based DVI graphic expansion card for motherboards. | more |
|
ADD2-LVDS-DUAL-Internal
820950 |
|
ADD2 card for extra LVDS support for Motherboards. | more |
|
ADD2-LVDS-Internal
820953 |
|
ADD2 card for extra LVDS support for Motherboards. | more |
|
ADD2-DVI-DUAL-Internal
820951 |
|
PCI-Express based DVI graphic expansion card for motherboards. | more |
|
ADD2-DVI-DUAL-Internal-External 820952 |
|
PCI-Express based DVI graphic expansion card for motherboards. | |
|

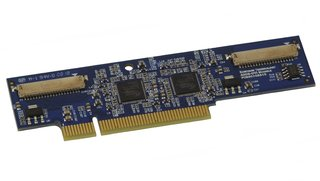

ADD2-DVI-DUAL-Internal-C01
820955 |
|
PCI-Express based DVI graphic expansion card for motherboards. | more |
|
ADD2-CRT-Internal
820954 |
|
Low profile ADD2 card with internal CRT pin row output | more |
|
ADD2-DVI-DUAL-Internal-150
820958 |
|
PCI-Express based DVI graphic expansion card for motherboards. | more |
|
PCI Riser - Flex - 2slot with arbiter
820982 |
|
2-slot PCI Riser card, approved for Kontron Embedded Mini-ITX series | more |
|
PCI-Express riser, Flex, 1slot
820983 |
|
This 1-slot PCIe Riser card is approved for Kontron Embedded Mini-ITX series supporting PCI Express 1.0 only | more |
|
Accessory Kit for 986LCD-M Family
826589 |
|
1x UDMA100 HDD cable, 1x HDD cable, 4x SATA cable, 3x COM cable, 1x LPT cable, 1x USB Bracket (Dual USB), 1x Feature Conn. Open-End, 1x Front Panel Conn. Open-End, 1x Audio Conn. Open-End, 1x LVDS Conn. Open-End, 1x IEEE1394 Bracket, 1x Driver CD | more |
|
COM port Cable, 100mm
821017 |
|
COM port Cable, 2.54mm, 100mm long | more |
|
COM port Cable, 200mm 821016 |
COM port cable, 2.54mm, 200mm long | ||
|
Cable HDD UDMA-100
821018 |
|
Cable HDD UDMA-100 | more |
|
Cable LPT 2mm 250mm
821026 |
|
Cable LPT, 2mm, 250mm long | more |
|
SATA Cable 500mm
821035 |
|
SATA Cable 500mm long | more |
|
Feature Open-End Cable
821041 |
Feature Open-End Cable | more | |
|
Front Panel Open-End Cable
821042 |
|
Front Panel Open-End Cable | more |
|
Audio Open-End Cable
821043 |
|
Audio Open-End Cable | more |
|
LVDS Open-End Cable
821515 |
LVDS Open-End Cable 540mm | more | |
|
LCD Cable for LG.Philips LM150X08 821520 |
LCD cable for LG.Philips LM150X08 | ||
|
LCD LVDS Cable for JAE FI-S20 1027-2631 |
LCD LVDS Cable for JAE FI-S20 w. pull tab (i.e. for Sharp LQ104S1LG21) | ||
|
LVDS 1:1 Cable 1027-3591 |
LVDS 1:1 cable, 2x 40 pin connector, 405mm | ||
|
IEEE1394 Bracket Dual 6-pole
821040 |
IEEE1394 Bracket Dual 6-pole | more | |
|
USB Bracket
821401 |
|
USB Bracket | more |
|
DC-DC Supply 10-32Vin 90W
820155 |
|
DC 10 - 32V to ATX power supply for 786LCD/mITX, 886LCD-M, 986LCD-M and KT690/mITX series Embedded Motherboard | more |
|
DC-DC Supply 10-25Vin 150W
820153 |
|
DC 10 - 25V to ATX power supply for 786LCD/mITX, 886LCD-M, 986LCD-M and KT690/mITX series Embedded Motherboard | more |
|
DC-DC Supply 12Vin 120W w. Cable Kit
820152 |
|
DC12V to ATX power supply for 786LCD/mITX, 886LCD-M, 986LCD-M and KT690/mITX series Embedded Motherboard | more |
|
LDI (Large Display Interface) Evaluation Kit
820971 |
|
LDI Evaluation Kit contains of: 820975 LDI module, 821521 Evaluation Cable Kit and 1027-3591 LVDS Cable 2x40p conn 405 mm | more |
