Cab-n-Connect™ A300
Cabin Wireless Access Point - 802.11be / Wi-Fi 7
Specifications
Coming soon- 802.11 a/b/g/n/ac/ax/be backwards compatibility
- Dedicated smart sensor for top-level security and performance
- Support for WPA3 security certifications
- DO-160G qualified hardware
- Two Quadrax circular connectors for retrofit applications

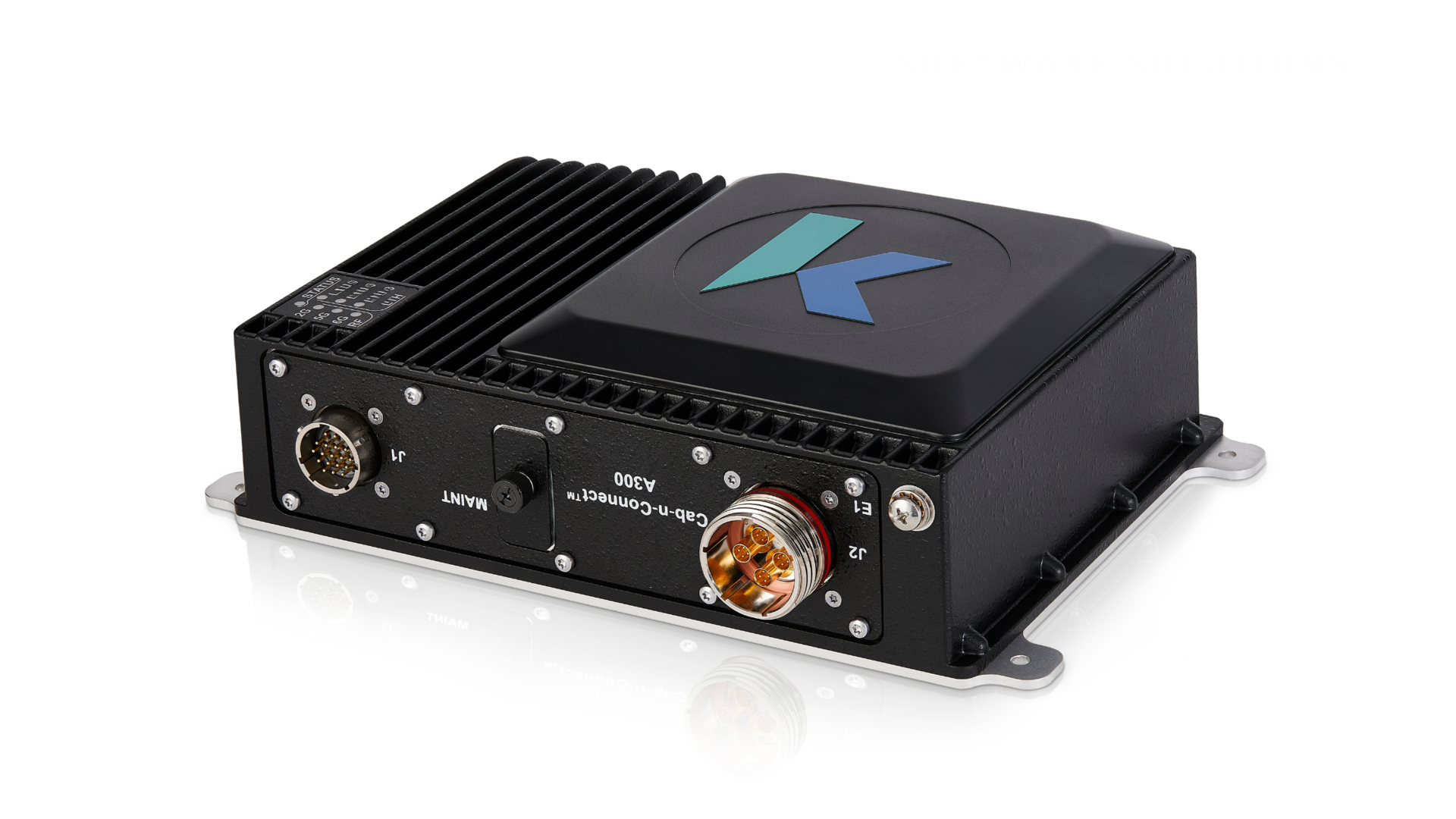

Cab-n-Connect™ A300
Kontron’s latest Cab-n-Connect A300 combines into a single enterprise-class solution, powerful 802.11be Wi-Fi 7 technology, advanced security and ML/AI management capabilities that allow customers to deploy high speed, highly secure Wi-Fi in the harshest aircraft environments. The solution is optimized for multi-platform video streaming and provides the highest level of efficiency and performance for dense, multi-client applications running onboard.
With aggregated data rates up to 4.8 Gbps in the 6 GHz band, concurrent 1.2 Gbps in the 5 GHz band and concurrent 573Mbps in the 2.4 GHz band, the latest Cab-n-Connect CWAP provides intelligent edge capabilities with the highest level of client services without compromising security monitoring. It has passive cooling (fanless) technology which prevents it from overheating and comes with worldwide operations support.
With increasing threats straining aircraft infrastructure, the Cab-n-Connect A300 was designed to tackle a multitude of ongoing challenges. The Cab-n-Connect A300 is the only avionics-certified CWAP that offers a dedicated, Tri-band sensor that continuously scans and detects security threats in real-time eliminating the risk of vulnerability or attacks, while also optimizing RF performance automatically. It delivers superior security services, with support for the Wi-Fi Alliance’s WPA3 security certifications, TPM for secure key storage and a stateful L2-L7 DPI firewall for context-based access security.
Additionally, Ace Flight ™ Connect Firmware provides ease of use and a rich feature set. It is built from best-in-class open-source router / firewall software and is further enhanced by Kontron’s integration of leading-edge security features.
The Cab-n-Connect A300 is engineered based on Kontron’s leading architecture and modular design approach. Benefits include:
- Kontron leverages state-of-the-art technology by effectively minimizing dimensions, weight, and power of its CWAP hardware while many enterprise WAPs are increasing in size and energy consumption.
- The software solution is meticulously optimized for the avionics sector, ensuring enhanced management over the solution’s entire lifecycle.
- This strategic design accelerates the product’s time to market and simplifies the upgrades for future technologies.
Downloads
Datasheets
Cab-n-Connect A300 CWAP datasheet
[ cab-n-connect-a300.pdf, 221.65 KB, Oct.16.2024 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
