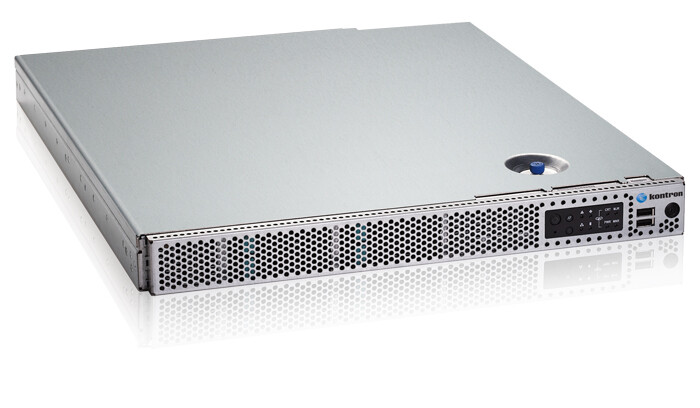

CG1200 Carrier Grade Server This product is legacy
1U Carrier Grade Dual Intel Xeon Rackmount Server
Specifications
- Support for one or two Intel® Xeon® processors E5‐2448L
- Up to 8 slot, 3 channel support of DDR3/LVDDR3 RDIMM/UDIMM; supports 128GB maximum (with 16GB DIMM)
- Optimized for Gen3 PCI-E IO card implementation with 1x PCI-e x16 riser (FH/ HL card3 - configuration dependent); Intel I/O module option
- NEBS GR63 and GR1089 NEBS level 3/ETSI compliant (DC)
- Up to four hot-swappable 2.5” SAS HDDs/SATA SSDs; integrated SAS/SATA interface with SW RAID 0/1/10
- Telco Alarm Manager (TAM) front panel LEDs and relays
- Dual redundant AC/DC hot-swappable power supplies
- Support for Intel® Server Management Software
- OS support: RedHat EL 6.2 (EM64T); SuSE SLES 11.2 (EM64T); Wind River Linux 3.0; Windows 2008 Server (EM64T)
Downloads
Datasheets
CG1200 1U Carrier Grade Server
[ cpbu_cg1200_ds.pdf, 959.63 KB, Aug.31.2017 ]
Manuals
CG1200 Installation and Maintenance Guide
This manual is for trained system technicians who are responsible for troubleshooting, upgrading, and maintaining this server. This document provides a brief overview of the features of the system followed by a list of accessories or other components you may need or want to purchase, instructions for how to add or replace components in the CG1200 server, and troubleshooting information.
[ cg1200__i-mguide_1_1.pdf, 13.21 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
BIOS
CG1200 Software Update Package (SUP04)
This update package includes the following system software updates: - System BIOS 02.02.0002 - ME Firmware 02.01.07.328 - BMC Firmware 1.20r5446 - FRUSDR 03 Please read the CG1200_SUP04_Update_Instructions.pdf carefully prior to updating the firmware on your system. IMPORTANT: Do not power off or reset the system while the update is in progress. Do not interrupt the BIOS POST during the first system reboot.
[ cg1200_sup04_bios02020002_bmc0120_frusdr03.zip, 23.32 MB, May.15.2014 ]
Technical Info
Baseboard Technical Product Specification
Provides board-specific information detailing the features, functionality, and high-level architecture of the Intel S2400EP Server Board.
[ s2400ep_tps_r2_0.pdf, 6.3 MB, May.15.2014 ]
System Technical Product Specification (TPS) Revision 1.0
Provides detailed information about the Kontron CG1200 Carrier Grade Server, including information about the chassis hardware, cables, connectors, system boards, power subsystem, and regulatory requirements.
[ cg1200_tps_1-0.pdf, 1.72 MB, Apr.20.2023 ]
Compatibility Matrix
Tested Memory List
[ cg1200_tml_rev3.pdf, 49.68 KB, May.17.2022 ]
Tested Hardware and Operating System List (THOL)
[ cg1200_thol_1-1.pdf, 308.14 KB, Apr.20.2023 ]
Ordering Guide
CG1200 Configuration Guide
CG1200 Systems and Spares Ordering Guide
[ cg1200_configguide_1_4.pdf, 1.11 MB, Jan.14.2023 ]
