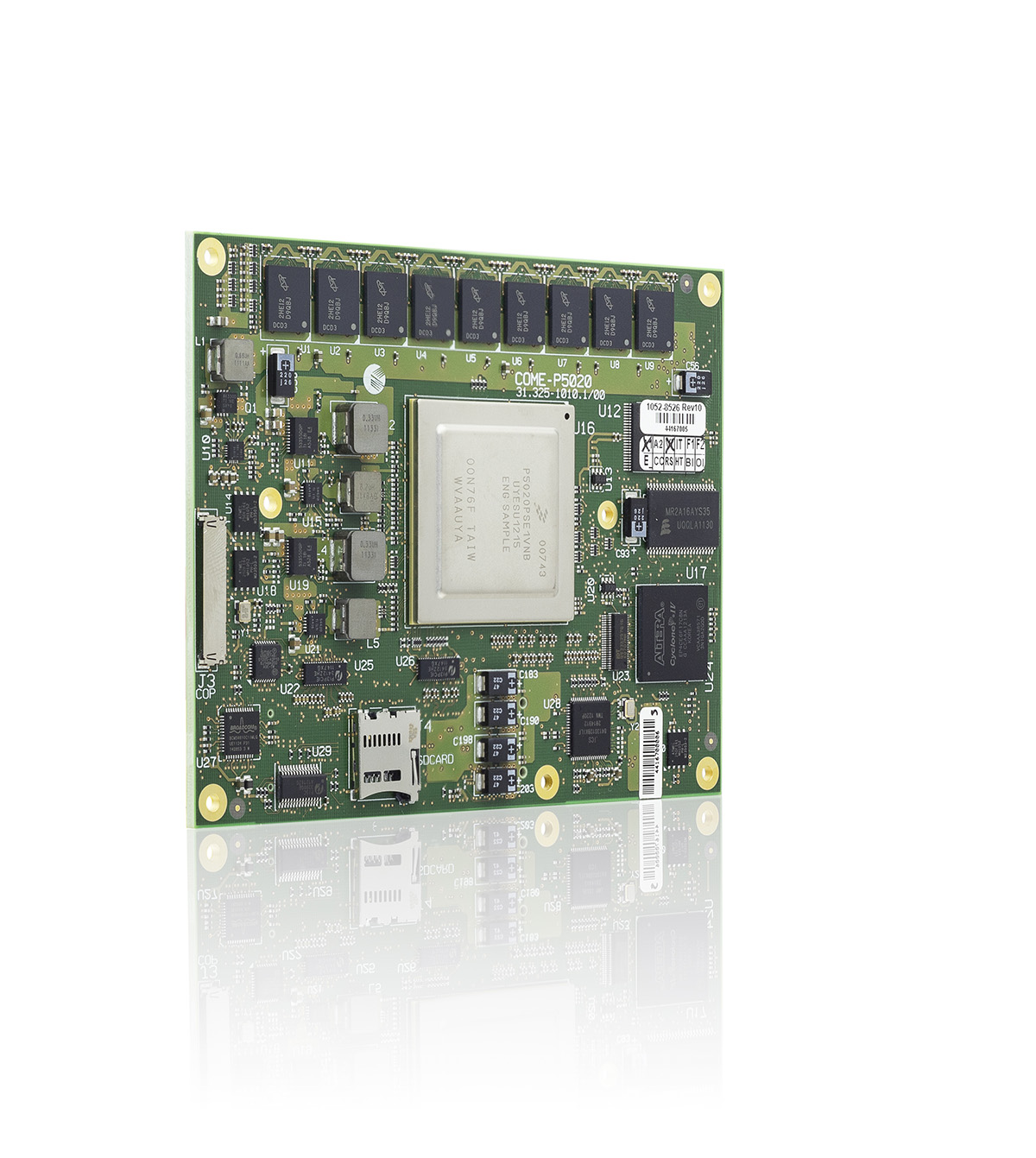

COMe-bP5020 This product is legacy

Freescale™ QorIQ™ P5020 Power Architecture COM with 10Gbit Ethernet and flexible interface support.

Specifications

Up to 2.0 GHz Dual Core e5500 Power Architecture
Flexible interface support by 18x SerDes lanes (PCIe, sRIO, GbE, XAUI, SATA)
High-performance datapath acceleration and network processing
COM Express® basic compliant (95 x 125mm)
Energy, Communication, Transportation, Defense

COM Express® basic Computer-on-Module with Freescale™ QorIQ™ P5020 Dual Core 2x1.5GHz, up to 8GB DDR3-1333 ECC memory down, up to 2GB onboard NAND Flash.

Features

CPU	Freescale™ QorIQ™ P5020 (P5010) e5500 Power Architecture®

Bus type

Processor Local Bus

Cache

32 KB L1 instruction cache and 32 KB L1 data cache for each core
512 KB L2 cache with ECC
2MB L3 cache shared

Compliance

Com Express® basic

CPU Clock

2x 2.0 GHz (P5010 2x 1.6 GHz)

Dimensions (H x W x D)

95x125 mm

Ethernet

1x 10/100/1000 Base-T
2x IEEE 1588 control
see SERDES

Flash Disk

64kbit I²C EEPROM
up to 2GB NAND Flash + 2MB NOR Flash
2nd 2MB SPI NOR Flash for boot recovery purposes
512kB MRAM

Hard Disk

MicroSD card slot/ bootable
2x SATA multiplexed with SERDES

Humidity rel.

93% relative Humidity at 40 °C, non-condensing
(acc. to IEC 60068-2-78)

Interface

12x GPIO
1x I²C
1x SDHC
2x MDIO (IEEE 802.3 clause 22)
SPI
5x IRQ
JTAG debug
Aurora debug

Main Memory

up to 8GB DDR3-1333 MHz ECC

Operating System

Linux; Wind River VxWorks 6.9.2

PCI Express / PCI support

see SERDES

Power Consumption

est. 30W/12V

Real Time Clock

Serial

4x UART (2x FourWire/ 4x TX/RX)
Serial Rapid I/O see SERDES

Temperature

0 °C to 60 °C

USB	5x USB 2.0 (one channel device capable)

USB Boot

tbd

Watchdog

Yes

SERDES

18x SERDES lanes configurable; pre-selected standard configurations:
2x PCIe x4 + 4x 1 GbE SGMII + 1x SATA
2x PCIe x4 + 4x 1 GbE SGMII + 1x XAUI
2x PCIe x4 + 1x XAUI + 1x SATA
2x sRIO x4 + 4x 1 GbE SGMII + 1x SATA

Downloads

Datasheets

QorIQ Computer-on-Modules Portfolio (Release Candidate)
[ datasheet-com-express-qoriq_web.pdf, 2.37 MB, Aug.31.2017 ]

COME-QEC-1 Quick Start Guide
[ 1054-1776_01_sk-man-come-qec-1.pdf, 3.6 MB, Jun.19.2020 ]

Manuals

User's Guide
[ come-bp5020-user-guide--v1-0.pdf, 5.85 MB, Apr.20.2023 ]

COMe-bP5020 Introduction Manual
[ 1053-4773_10_sk-man-come-bp5020_introduction.pdf, 1.65 MB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section

Variants

COMe-bP5020 2x1.5 4GB/1GB 68001-4010-15-2		COM Express® basic Computer-on-Module with Freescale™ QorIQ™ P5020 Dual Core 2x1.5GHz, 4GB DDR3-1333 ECC memory down, 1GB onboard NAND Flash	more
COMe-bP5020 2x1.5 8GB/1GB 68001-8010-15-2		COM Express® basic Computer-on-Module with Freescale™QorIQ™ P5020 Dual Core 2x1.5GHz, 8GB DDR3-1333 ECC memory down, 1GB onboard NAND Flash.	more
