COMe Eval Carrier T6
COM Express® Evaluation Carrier Type 6
This product is not recommended for new designs.
Specifications
- COM Express® Rev. 2.0, Pin-out Type 6
- ATX Form Factor (305mm x 244mm)
- VGA, LVDS, 2x DP, 1x DP on x16 PCIe
- USB 3.0, mPCIe, Express Card
Evaluation Board for COM Express® Pin-out Type 6 Computer-on-Modules
Features
| Compliance | COM Express® Rev. 2.0 Pin-out Type 6 |
| Dimensions (H x W x D) | 305 x 244 mm (ATX) |
| Supported Modules | COM Express® basic or compact with pin-out Type 6 |
| Graphics | 1x LVDS/JILI FFC 40 connector 1x VGA 2x DP++ (DDI2/DDI3) 1x PEG x16 for discrete Graphics |
| Hard Disk | 4x SATA 1x micro-SD |
| USB | 4x USB 3.0 2x USB 2.0 |
| PCI Express / PCI support | 1x PEG x16 slot 1x PCIe x16 (electrically x4) 2x PCIe x1 1x miniPCIe (with USB) 1x Express Card (with USB) |
| Audio | Realtek ALC888 HD-Audio S/PDIF in/out 7.1 audio jacks |
| Ethernet | 1x 10/100/1000 MBit RJ 45 connector |
| Serial | 2x UART on pin-header (from module) |
| Special Features | 1x PWM Fan from COM 2x FAN from Carrier HWM SPI and LPC boot |
| Common Features | Port80 POST Code Display Diagnostic LED PWR/RST Buttons |
| Options | Carrier EEPROM |
| Power Supply | ATX power supply 24+4pin |
| Temperature | Operation: 0° to 60°C Storage: -30° to 85°C |
| Humidity | 93% relative Humidity at 40°C, non-condensing (according to IEC 60068-2-78) |
Downloads
Datasheets
Starterkits and Evaluation Boards for COM Express®, Datasheet
Datasheet Starterkits and Evaluation Boards for COM Express®.
[ come_starterkits_20170710_datasheet.pdf, 6.88 MB, Aug.31.2017 ]
Manuals
User Guide COM Express Type 6 Evaluation Carrier Board (v1.1)
[ ug_comeevalt6_v1-1.pdf, 2.87 MB, Apr.20.2023 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
Variants
|
COMe Eval Carrier T6 38106-0000-00-0 |
COM Express® Evaluation Carrier Type 6 | ||
|

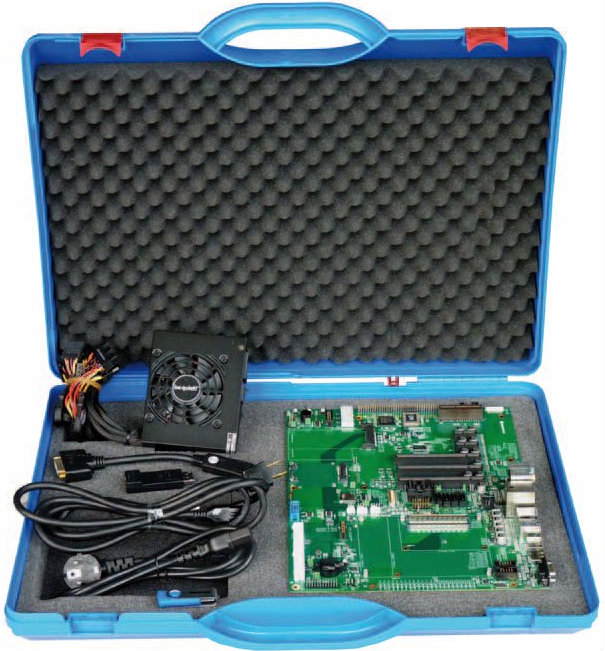

COMe Starterkit Eval T6
38106-0000-00-S |
|
Starterkit with COMe Evaluation Carrier T6 | more |
Accessories
|
COMe Mount Kit 5mm 1set 38017-0000-00-5 |
COM Express® Mounting Kit 5mm 1set for threaded HSP and Cooling Solutions | ||
|
COMe Mount Kit 5mm 100sets 38017-0100-00-5 |
COM Express® Mounting Kit 5mm 100 sets | ||
|
ADA-LVDS-DVI 18Bit 9-5000-0352 |
18bit LVDS (JILI) to DVI-D, including the flatfoil cable | ||
|
ADA-LVDS-DVI 24Bit 9-5000-0353 |
24bit LVDS (JILI) to DVI-D, including the flatfoil cable | ||
|
ADA-Type6-DP3 96007-0000-00-7 |
|
COM Express® Type 6 carrier board adapter for 3x DDI to 3x DisplayPort + 1x eDP | |
|
ADA-PCIe-DP 96007-0000-00-3 |
DisplayPort Slot Adapter for DDI1 (x16 PCIe Port to DP) on COMe Eval Carrier T6 | ||
|
KAB-ADAPT-DP-HDMI 96084-0000-00-0 |
Displayport to HDMI Adapter | ||
|
KAB-ADAPT-DP-VGA 96083-0000-00-0 |
Displayport to VGA Adapter | ||
|
KAB-ADAPT-DP-DVI 96082-0000-00-0 |
Displayport to DVI Adapter | ||
|
ADA-DP-LVDS 96006-0000-00-8 |
|
Converts DisplayPort to LVDS |
