COMe Ref.Carrier T6
COM Express® Reference Carrier Type 6
This product is not recommended for new designs.
Specifications
- COM Express® Rev. 2.0, Pin-out Type 6
- mini-ITX Form Factor (170mm x 170mm)
- DVI-I, DisplayPort, HDMI, LVDS
- SIM card support, Smart Battery, USB 3.0
Reference Carrier Board for COM Express® Pin-out Type 6 Computer-on-Modules
Kontron's Reference Carier Bord in mini-ITX form factor for future-oriented COMs with Pin-out Type 6. A small reference design for small and portable solutions with SIM card support for mobile communication, USB 3.0 and all Digitial Display Interfaces (DisplayPort, LVDS, DVI, HDMI).
Features
| Compliance | COM Express® Rev. 2.0 Pin-out Type 6 |
| Dimensions (H x W x D) | 170 x 170 mm (mini-ITX) |
| Supported Modules | COM Express® basic or compact with pin-out Type 6 |
| Graphics | 1x LVDS/JILI FFC 40 connector 1x DVI-I (VGA, DDI1) 1x DP++ (DDI2) 1x HDMI (DDI3) |
| Hard Disk | 3x SATA 1x eSATA |
| USB | 2x USB 3.0 4x USB 2.0 |
| PCI Express / PCI support | 1x PCI Express x4 1x miniPCIe (with USB and SIM card) 1x Express Card (with USB) |
| Audio | Realtek ALC886 HD-Audio S/PDIF in/out, Toslink 5.1 Audio jacks Front Panel Audio connector |
| Ethernet | 1x 10/100/1000 MBit RJ 45 connector |
| Serial | 2x UART on pin-header (from module) |
| Special Features | SIM Card 1x PWM Fan SPI boot |
| Common Features | Feature Connector Port80 POST Code Display Diagnostic LED PWR/RST Buttons |
| Options | Carrier EEPROM Compatibility to Type 10 modules |
| Power Supply | ATX power supply 20+8pin 8.5 - 20V Single Supply support 2x 10.8V Smart Battery support |
| Temperature | Operation: 0° to 60°C Storage: -30° to 85°C |
| Humidity | 93% relative Humidity at 40°C, non-condensing (according to IEC 60068-2-78) |
Downloads
Datasheets
Starterkits and Evaluation Boards for COM Express®, Datasheet
Datasheet Starterkits and Evaluation Boards for COM Express®.
[ come_starterkits_20170710_datasheet.pdf, 6.88 MB, Aug.31.2017 ]
Manuals
User Guide for COMe Ref. Carrier T6
[ adasm100.pdf, 1.08 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
Variants
|

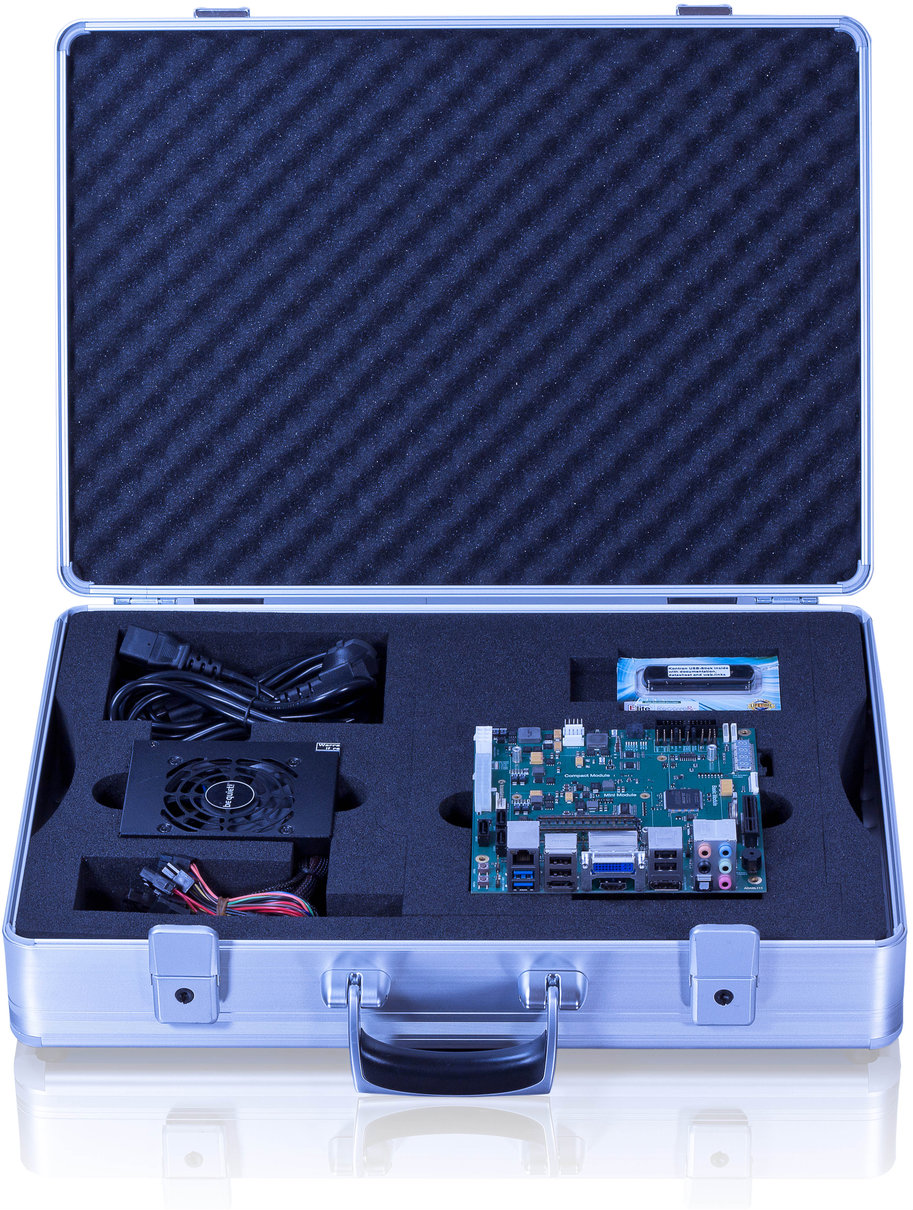

COMe Starterkit Ref. T6
38114-0000-00-S |
|
Starterkit with COMe Reference Carrier T6 | more |
Accessories
|
COMe Mount KIT 8mm 1set 38017-0000-00-0 |
COM Express® Mounting Kit 8mm 1set for threaded HSP and Cooling Solutions | ||
|
COMe Mount Kit 8mm 100sets 38017-0100-00-0 |
COM Express® Mounting Kit 8mm 100sets | ||
|
ADA-LVDS-DVI 18Bit 9-5000-0352 |
18bit LVDS (JILI) to DVI-D, including the flatfoil cable | ||
|
ADA-LVDS-DVI 24Bit 9-5000-0353 |
24bit LVDS (JILI) to DVI-D, including the flatfoil cable | ||
|
ADA-Type6-DP3 96007-0000-00-7 |
|
COM Express® Type 6 carrier board adapter for 3x DDI to 3x DisplayPort + 1x eDP | |
|
KAB-ADAPT-DP-HDMI 96084-0000-00-0 |
Displayport to HDMI Adapter | ||
|
KAB-ADAPT-DP-VGA 96083-0000-00-0 |
Displayport to VGA Adapter | ||
|
KAB-ADAPT-DP-DVI 96082-0000-00-0 |
Displayport to DVI Adapter | ||
|
ADA-DP-LVDS 96006-0000-00-8 |
|
Converts DisplayPort to LVDS |
