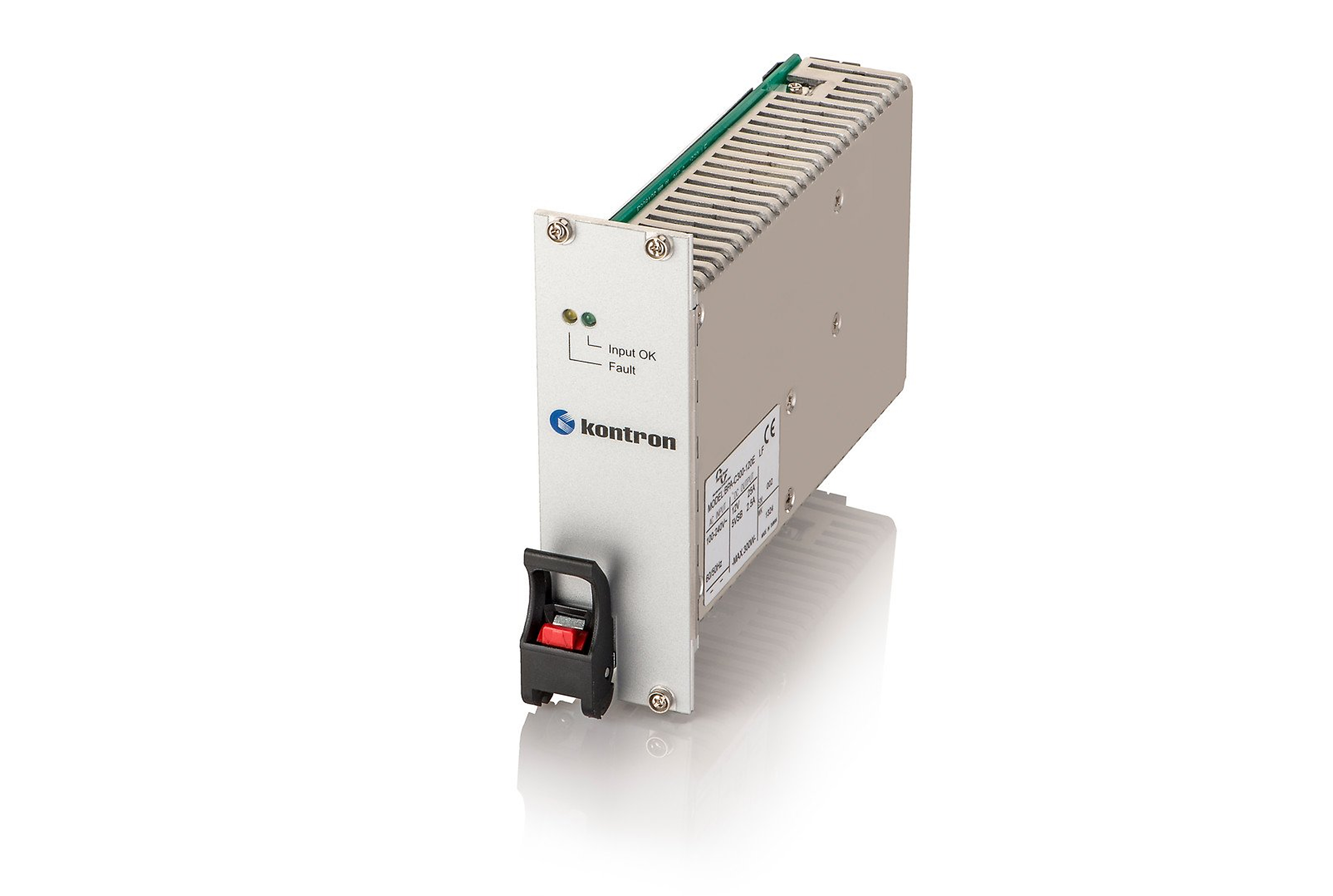

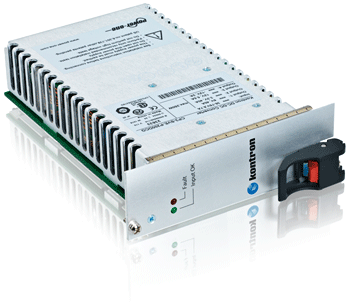

CP3-SVE-P200AC
Positronic47 AC Power Supply Unit for 3U
Mouseover Zoom loading...
Specifications
- 200W nominal Output at 200 LFM ( 250 Watt / 400 LFM )
- Operating at -40/+70°C, 50°C without derating
- Direct connection to Kontron backplanes
- All outputs short circuit protected
- Hot Swapable, current sharing, redundant
- EN60950, UL1950, CSA22.2 No.22
The power supply units are designed to provide a Kontron CompactPCI system with all the voltages needed for smooth system operation. Backed by numerous safety features and conforming to a multitude of immission/emission standards, they introduce a new dimension to regulated, switched-mode power distribution. The Pinout is specified in PICMG 2.11.
Downloads
Datasheets
CP3-SVE-P200AC Datasheet
[ cp3-sve-p200ac_datasheet.pdf, 599.64 KB, May.10.2021 ]
Manuals
Generic Power Supply Manual
[ 24139_cpci_psu_rev--1-0_2021-05-06_w2016.pdf, 2.04 MB, Apr.20.2023 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
