CP3003-V This product is legacy

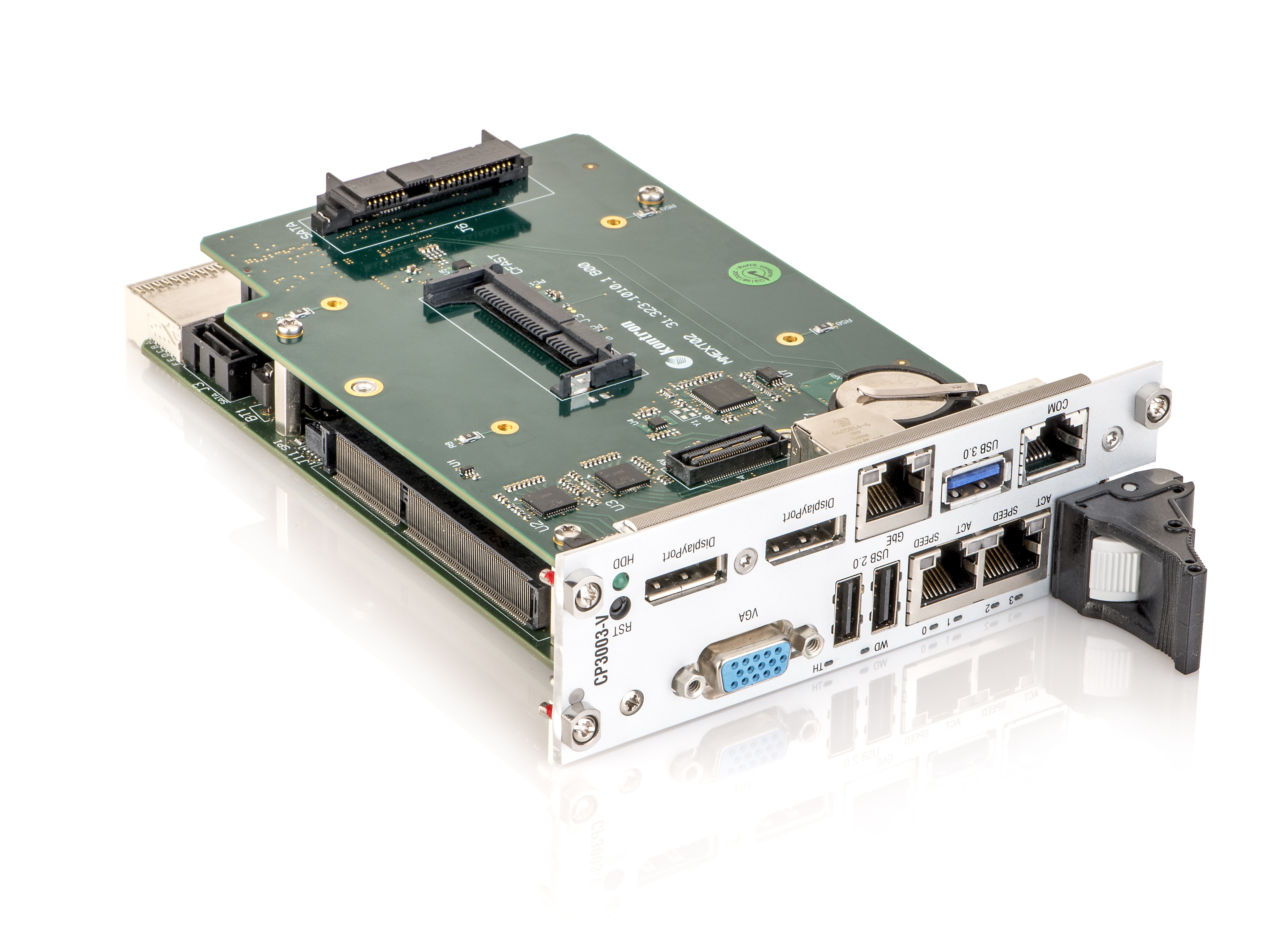

3U CompactPCI Intel® Celeron® Value Line CPU
Specifications
- Optimized price-performance ratio - based on Celeron 807UE CPU
- QM77 PCH with broad I/O connectivity
- Up to 4GB 1333 MHz DDR3 with ECC
- 3x Gigabit Ethernet with WOL support
- SATA 6Gb/s & USB 3.0 support
- PCI passive mode support
Optimized for reduced costs delivering maximum value
Optimized for reduced costs delivering maximum value, the CP3003-V combines the capabilities of an all-in-one industrial PC with the advantages of a robust 3U CompactPCI design.
The CP3003-V features the Intel® Celeron® 807UE processor (2nd Generation Core technology) combined with the Mobile Intel® QM77 Express PCH. Thereby the board offers an all-round package of up-to-date communication interfaces combined with solid graphics and processing performance all at a competitive price level.
Features
| Processor | Intel® Celeron® Processor (32nm technology): 807UE: Single-Core 1.0 GHz, 1MB cache |
| Main Memory | Up to 4GB 1333MHz DDR3 memory, with ECC, only 1x memory channel supported |
| Graphics | High performance 3D graphics controller integrated in the processor: - Support for up to 2x independent displays - Supports analog displays up to a resolution of 2048 x 1536 pixels with 32-bit color @ 75 Hz - Supports digital displays up to a resolution of 1920 x 1200 pixels @ 60 Hz - Dynamic Video Memory Technology (DVMT |
| Watchdog | FPGA-based, timeout ranging from 125ms to 4096s programmable in 16 steps, IRQ, reset, dual-stage configuration |
| USB | 2x USB 2.0 ports, 4-pin standard USB connectors 1x USB 3.0 port, 9-pin type-A connector |
| Ethernet | 3x RJ-45 with integrated LEDs (ACT, SPEED) |
| Serial | 1x 16C550-compatible serial port, RS232 signalling, RJ-45 |
| Ethernet | Three 1000BASE-T interfaces with WOL (Wake-on-LAN) support, Intel® 82574L Ethernet controller |
| Compliance | - CompactPCI® Core Specifi cation PICMG 2.0 Rev. 3.0 - CompactPCI® Hot Swap Specifi cation PICMG 2.1 Rev. 2.0 |
| EMI & Safety | Designed to meet or exceed: - Safety: UL 60950-1, CSA 22.2 No 60950, EN 60950-1, IEC 60950-1 - EMI/EMC: EN 55022 / EN 55024, EN 61000-6-3 / EN 61000-6-2 |
| Dimensions (H x W x D) | 100 x 160mm, 3U/8HP |
| Weight | 460 g |
| MTBF | 233,687 h acc. to MIL-HDBK-217 FN2, Ground Benign, controlled at 30°C |
Downloads
Datasheets
CP3003-V Datasheet
[ datasheet_cp3003-v.pdf, 1.08 MB, Aug.31.2017 ]
Manuals
CP3003-SA CP3003-V Introduction Manual
[ 1052-6929_20_sk-man-cp3003-sa_cp3003-v_introduction.pdf, 271.28 KB, Sep.11.2017 ]
CP3003-SA CP3003-V uEFI BIOS Manual
[ 1053-4014_20_sk-man-uefi-bios-cp3003-sa_cp3003-v.pdf, 192.95 KB, Sep.11.2017 ]
CP3003-SA CP3003-V User Manual
[ 1052-6929_20_sk-man-cp3003-sa_cp3003-v.pdf, 2.23 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
