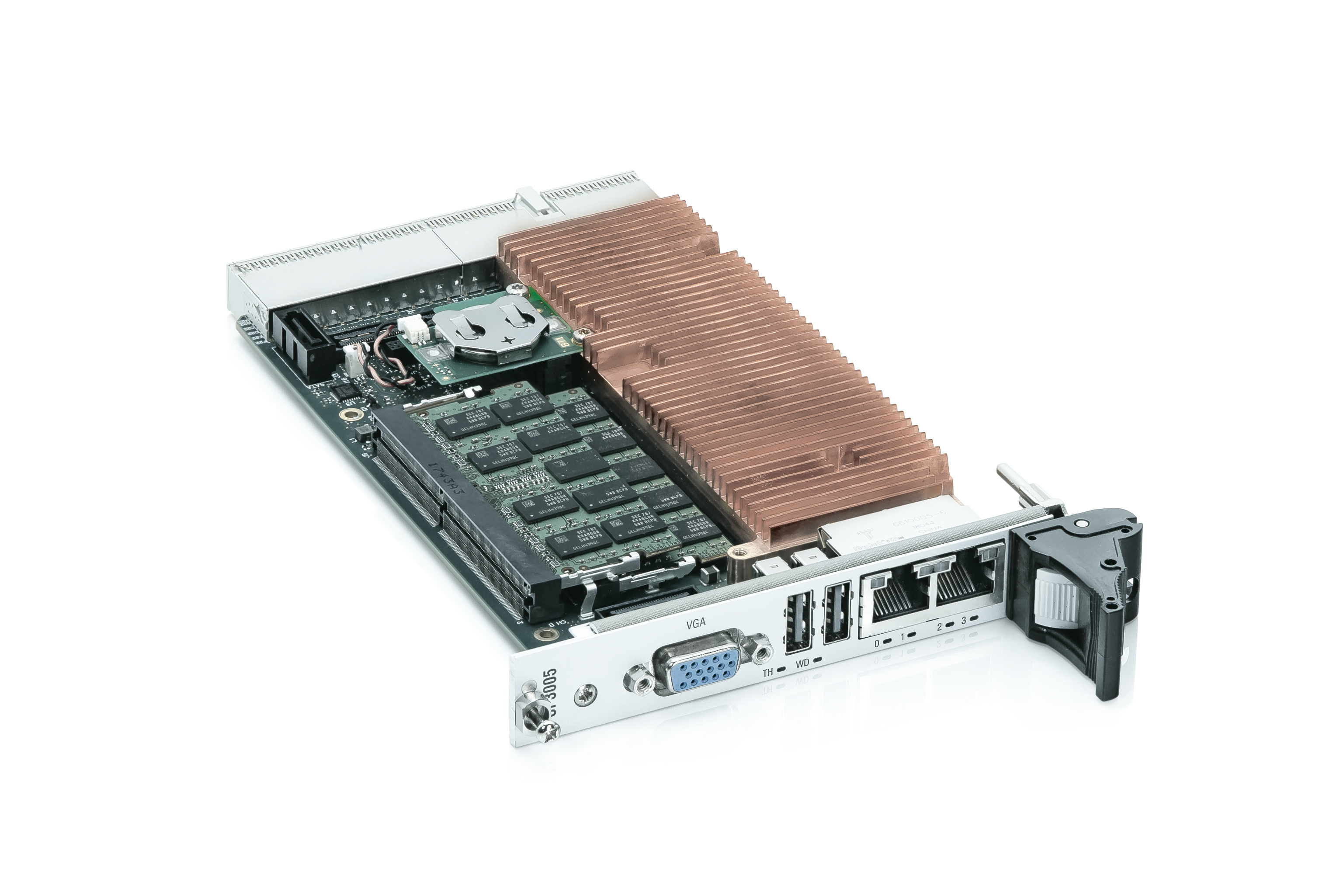

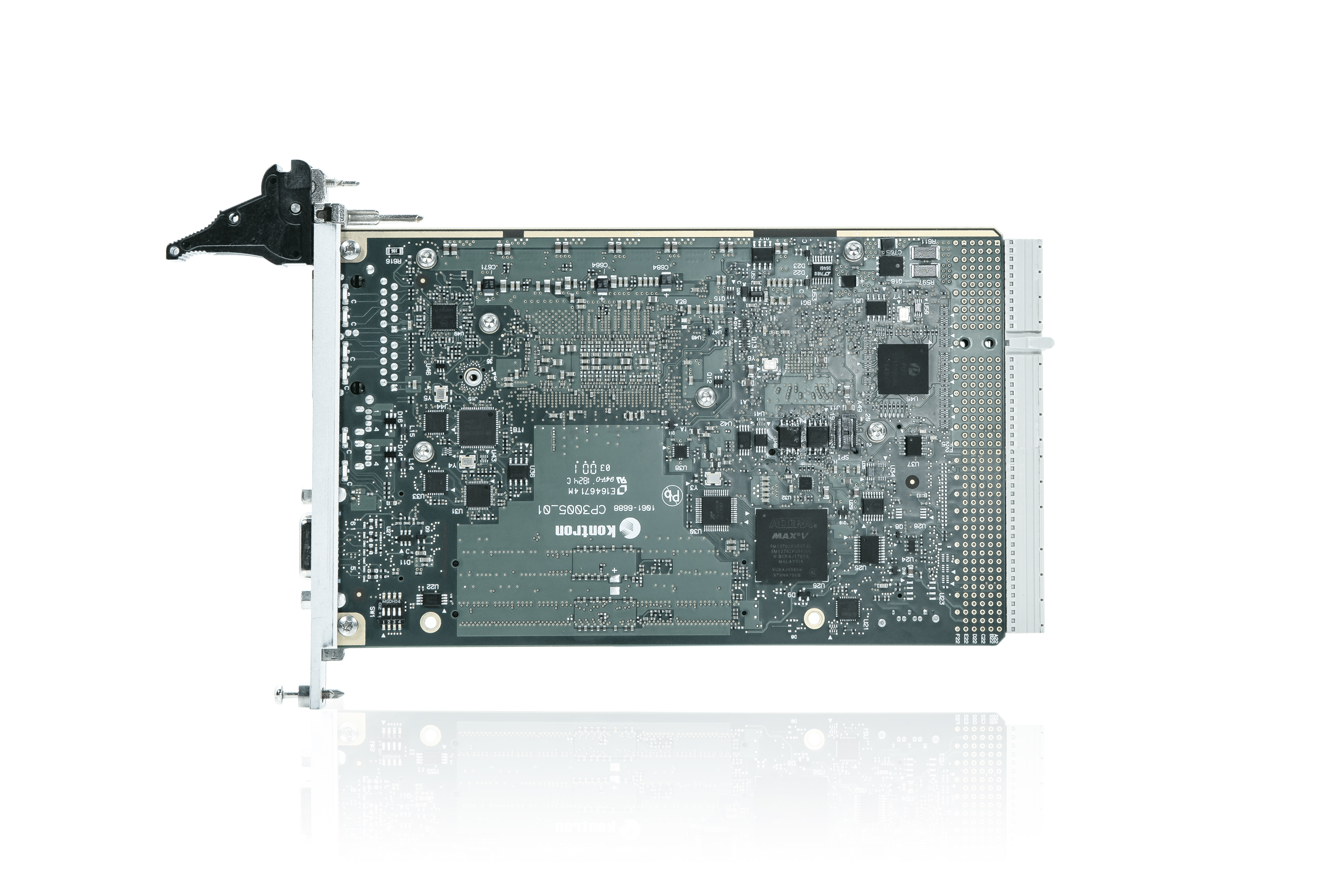

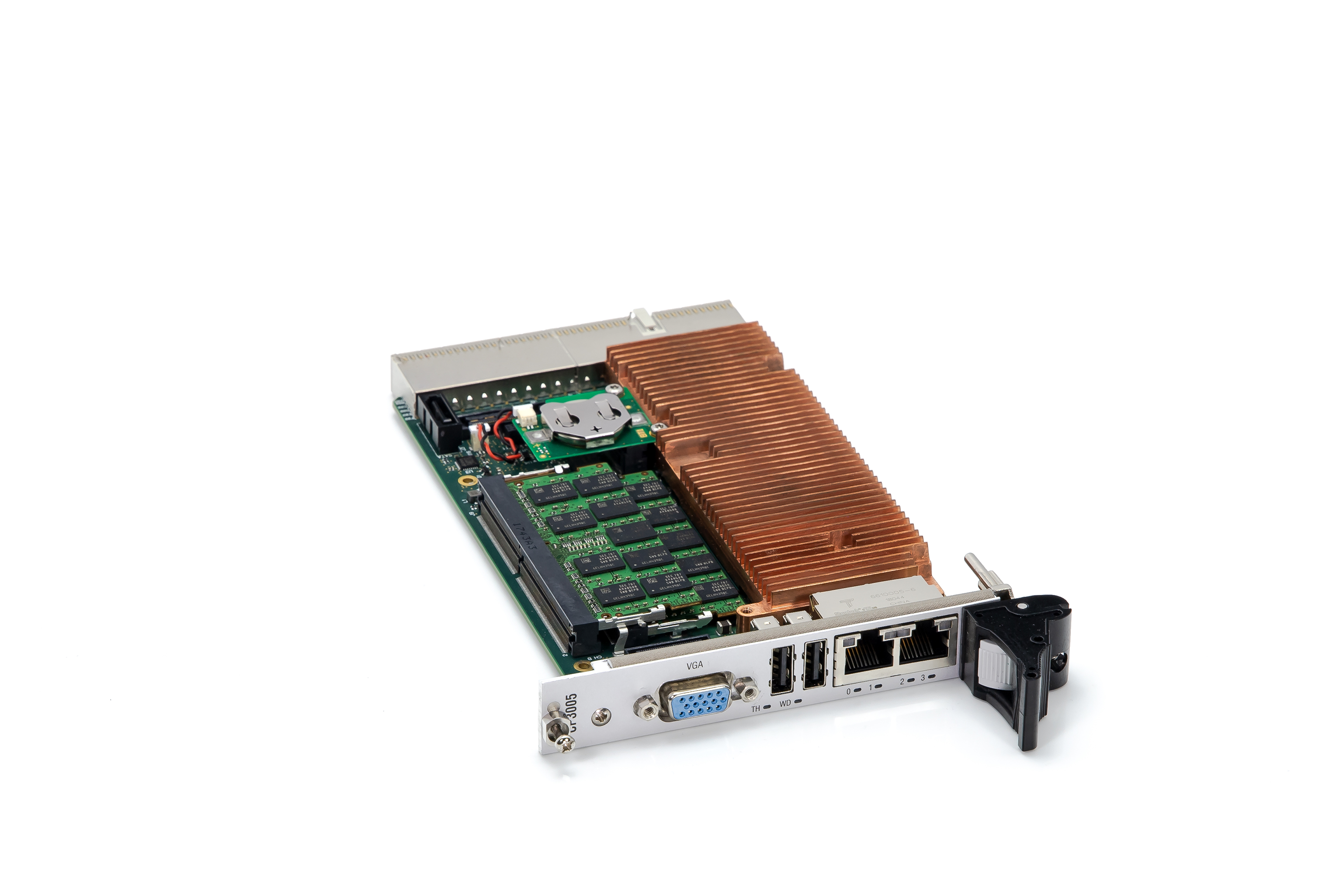

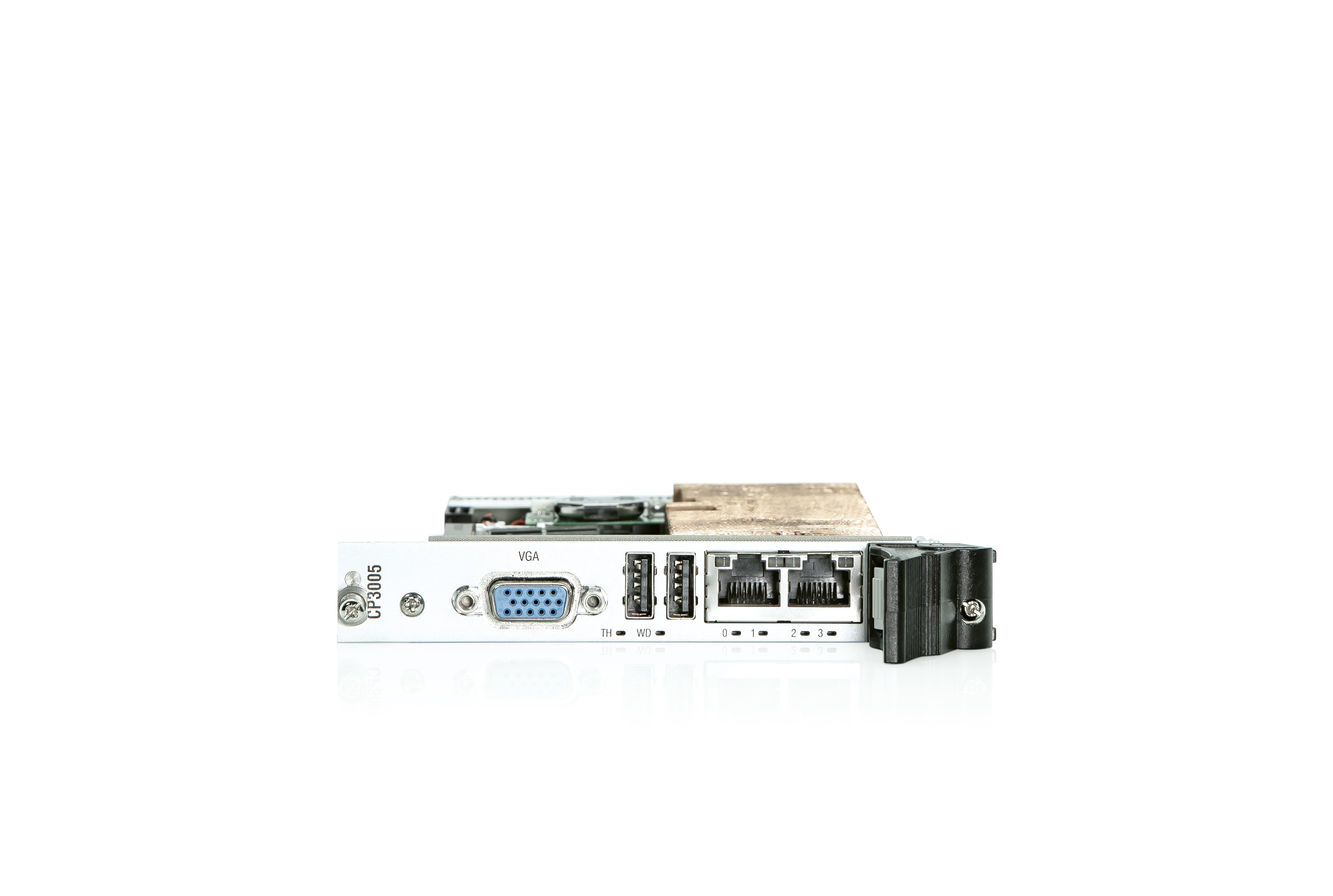

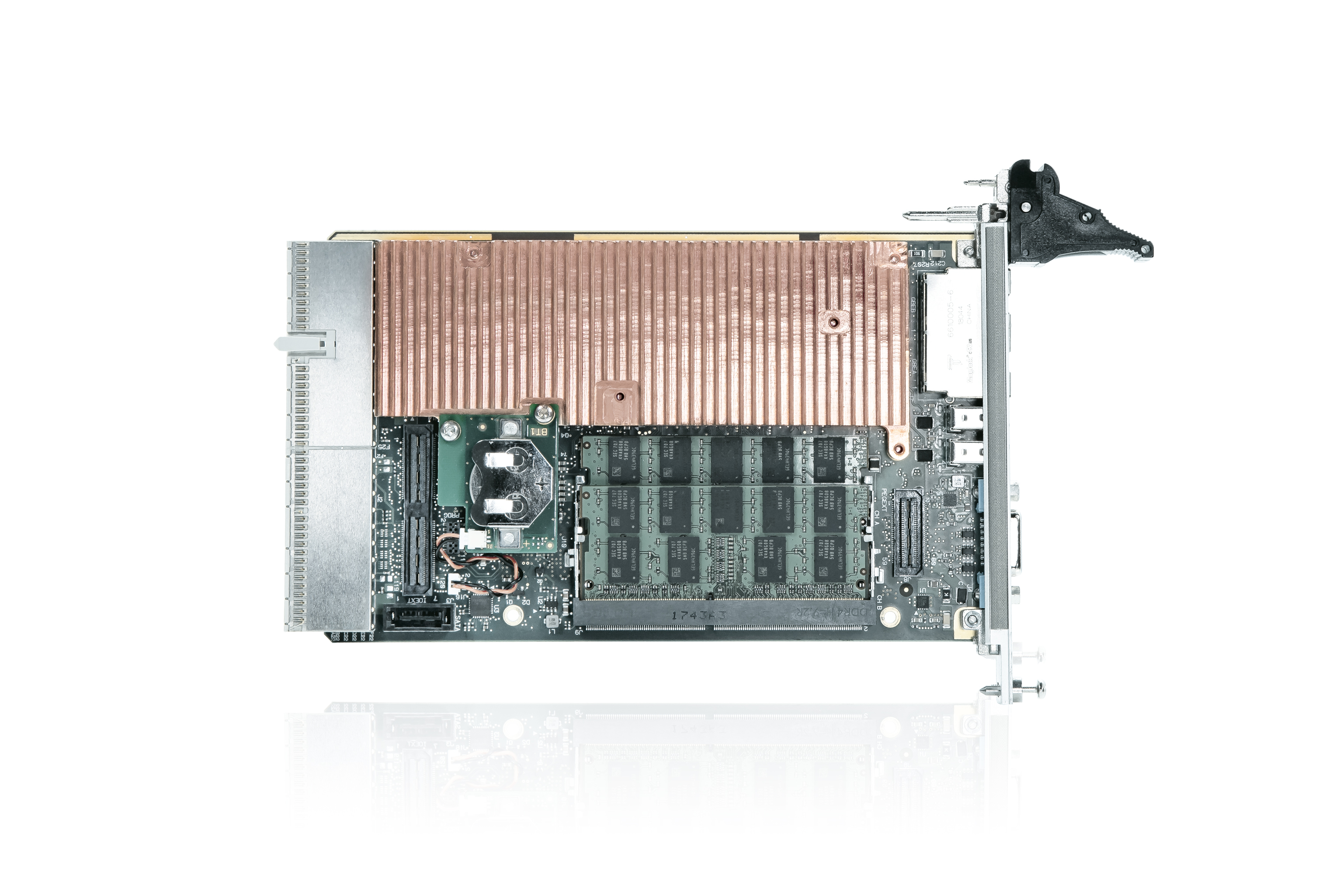

CP3005-SA
8th/9th Gen Intel® Core™ and Xeon® 3U CompactPCI CPU Board
Mouseover Zoom loading...
Specifications
- More performance-per-watt with up to 6 cores
- Long term programs: 10 years or more
- Expansions for I/O, storage, XMC, M.2 flash
- Rugged VITA47 EAC3, extended temperature
For Industrial Control, Defense, Oil&Gas, Mining, Transportation
Performance-per-watt
- Intel® Core™ i7, i5, i3 and Intel® Xeon® versions up to 6 cores
4K video experience
- Intel® UHD Graphics 630 | DirectX® 12 and OpenGL 4.5
Revolutionary flash capacities
- 30 – 512 GByte M.2 SATA flash even good for mass storage
- additional M.2 flash on 8HP extension up to 1 Terabyte
Memory bandwidth
- 32/16/8 GByte dual-channel up to 2666 DDR4 speeds | ECC option
Connectivity
- USB 3.0 | SATA 6Gbit/s | PCI Express® | 3x Gbit Ethernet/WOL
Variety of extensions
- Mezzanines for 2.5” HDD/SSD | XMC | second M.2 SATA module | Rear I/O backward compatible
Robustness
- Temperature option -40 °C up tp +70 °C | Designed for VITA47 EAC3
Security
- Hardware based encryption | TPM2.0
10 years lifetime or even more, and Kontron’s commitment to a rich CompactPCI portfolio, make CP3005-SA a safe investment with low total-cost-of-ownership.
Features
| Processor | 8th Generation Intel® processor (14nm technology): - Intel® Xeon® E-2176M, 6-Core, 2.7 GHz (base), 4.4 GHz (max), with ECC, 12 MByte Cache - Intel® Core™ i5-8400H, 4-Core, 2.5 GHz (base), 4.2 GHz (max), no ECC, 8 MByte Cache |
| Graphics | Intel® UHD Graphics P630 integrated - up to 3x independent graphics outputs - Supports DirectX® 12 and OpenGL 4.5 Maximum resolutions - VGA with a CRT monitor: tbd - VGA with a LCD monitor: tbd - DisplayPort: 4096 x 2304 pixels @ 60 Hz |
| Watchdog | FPGA-based, timeout ranging from 125ms to 4096s programmable in 16 steps, IRQ, reset, dual-stage confi guration |
| Ethernet | Intel® i210 and i219LM Ethernet controller: Up to three 1000BASE-T interfaces, two front/rear switchable with WOL (Wake-on-LAN), third available via 8HP extension CP3005-HDD |
| Main Memory | Up to 32 GByte dual channel DDR4 SDRAM at 2400 MT/s, via two SODIMM sockets, ECC support by Intel® Xeon® only |
Downloads
Datasheets
CP3005-SA-datasheet
[ cp3005-sa_20210115_datasheet.pdf, 801.25 KB, May.21.2024 ]
Manuals
CP3005-SA User Guide
Rev. 1.8, 2021-04-06
[ cp3005-sa-v_user-guide-rev-1-8_2021-04-06_w2016.pdf, 10.16 MB, Apr.20.2023 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
