CP3010-SA This product is legacy Not recommended for new designs

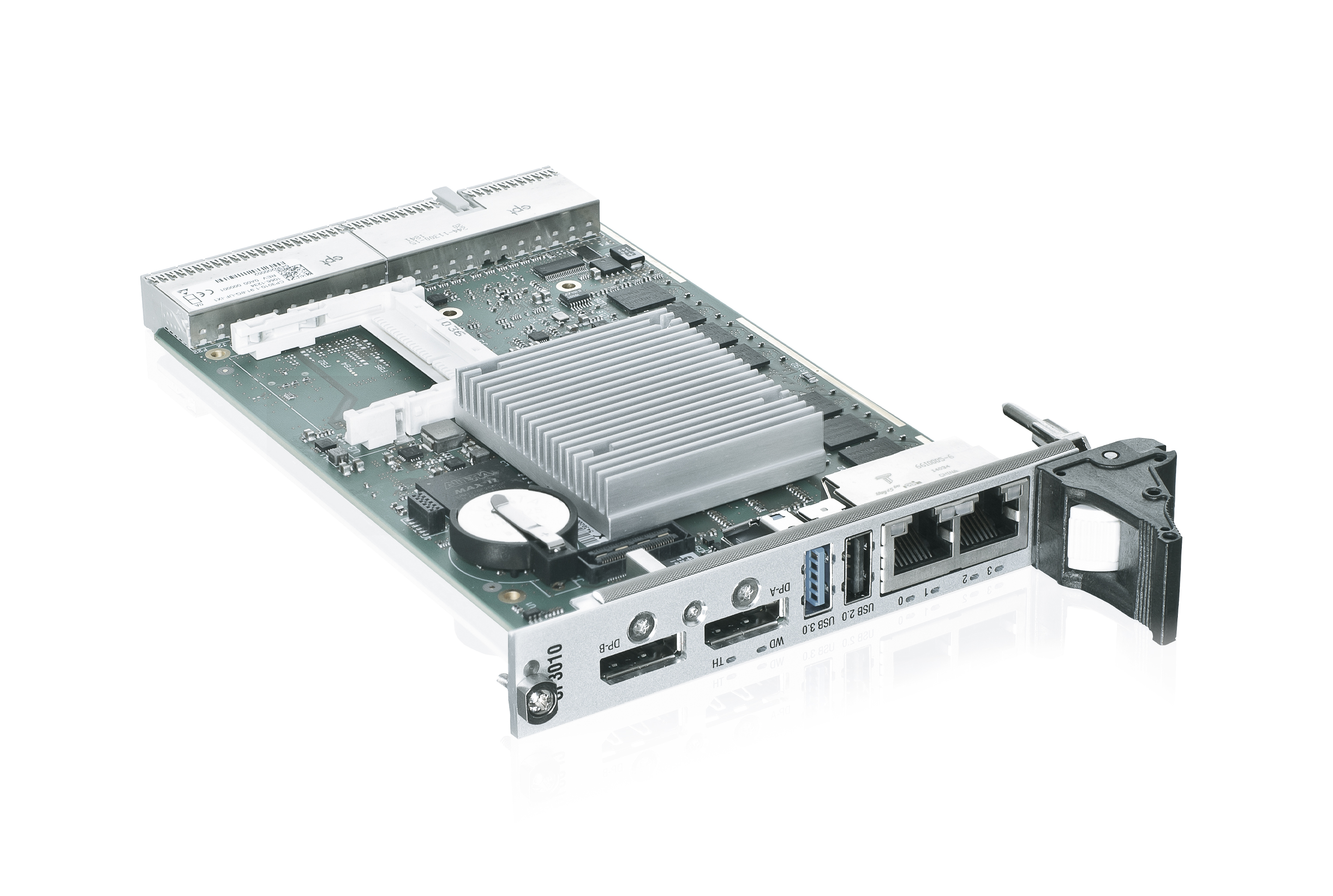

Intel® Atom™ 3U CompactPCI® CPU Board
Mouseover Zoom loading...
Specifications
- Intel® Atom™ E38xx processors, up to quad-core 1.91 GHz
- Up to 8 GB 1333 MHz soldered DDR3L memory
- Design optimized for the extended temp. range - fanless up to +85°C
- CFast or soldered SATA Flash as boot device
- Comprehensive I/O capabilities: DisplayPort, USB 3.0/2.0, Gigabit Ethernet, SATA, CAN, Audio ...
- Fully EN50155 compliant
The CP3010-SA Kontron's latest low-power 3U CompactPCI® CPU board supports the Intel® Atom™ processors E3826 and E3845 with a maximum of quad-core 1.91 GHz processing performance. Even though the board
design is based on Atom™ technology, performance levels of former Core™ 2 Duo platforms can be reached.
Further, the built-in graphics core now features Intel® HD Graphics Technology offering an outstanding increase in graphics performance compared to previous Atom™ designs.
Memory demanding applications can make use of up to 8GB soldered DDR3L running at 1333MHz. For onboard data storage the CP3010-SA offers a CFAST option or a soldered SATA Flash and a HDD/SSD option on the 8HP extension module.
Features
| Main Memory | Up to 8GB soldered DDR3L running at 1067/1333 MHz, dual channel w/o ECC |
| Ethernet | Up to three 1000BASE-T interfaces with WOL (Wake-on-LAN) support, two front/rear switchable, third available via 8HP extension, Intel® I210-IT Ethernet controller |
| Watchdog | FPGA-based, timeout ranging from 125ms to 4096s programmable in 16 steps, IRQ, reset, dual-stage confi guration |
| USB | 1x USB 3.0 port, 9-pin type-A connector 1x USB 2.0 port, 4-pin type-A connector |
| Ethernet | 2x RJ-45 with integrated LEDs (ACT, SPEED) |
| Compliance | - CompactPCI® Core Specifi cation PICMG 2.0 Rev. 3.0 - CompactPCI® Hot Swap Specifi cation PICMG 2.1 Rev. 2.0 Designed to meet or exceed: - Safety: UL 60950-1, CSA 22.2 No 60950, EN 60950-1, IEC 60950-1 - EMI/EMC: EN 55022 / EN 55024, EN 61000-6-3 / EN 61000-6-2 - Railway: EN50155 |
| Dimensions (H x W x D) | 3U 4HP/8HP CompactPCI®, 100 x 160 mm |
| Weight | 4HP: ca. 350 g |
| MTBF | MIL-HDBK-217 FN2, GB, GC - Ground Benign, Controlled: 316993 hours |
| Temperature | OPERATING TEMPERATURE 0 °C to +60 °C standard; -40 °C to +85 °C extended temperature E2 STORAGE TEMPERATURE -40 °C to +85 °C (without additional components) |
| Humidity | 93 % RH at 40 °C, non-condensing (acc. to IEC 60068-2-78) |
| Altitude | 2000 m |
