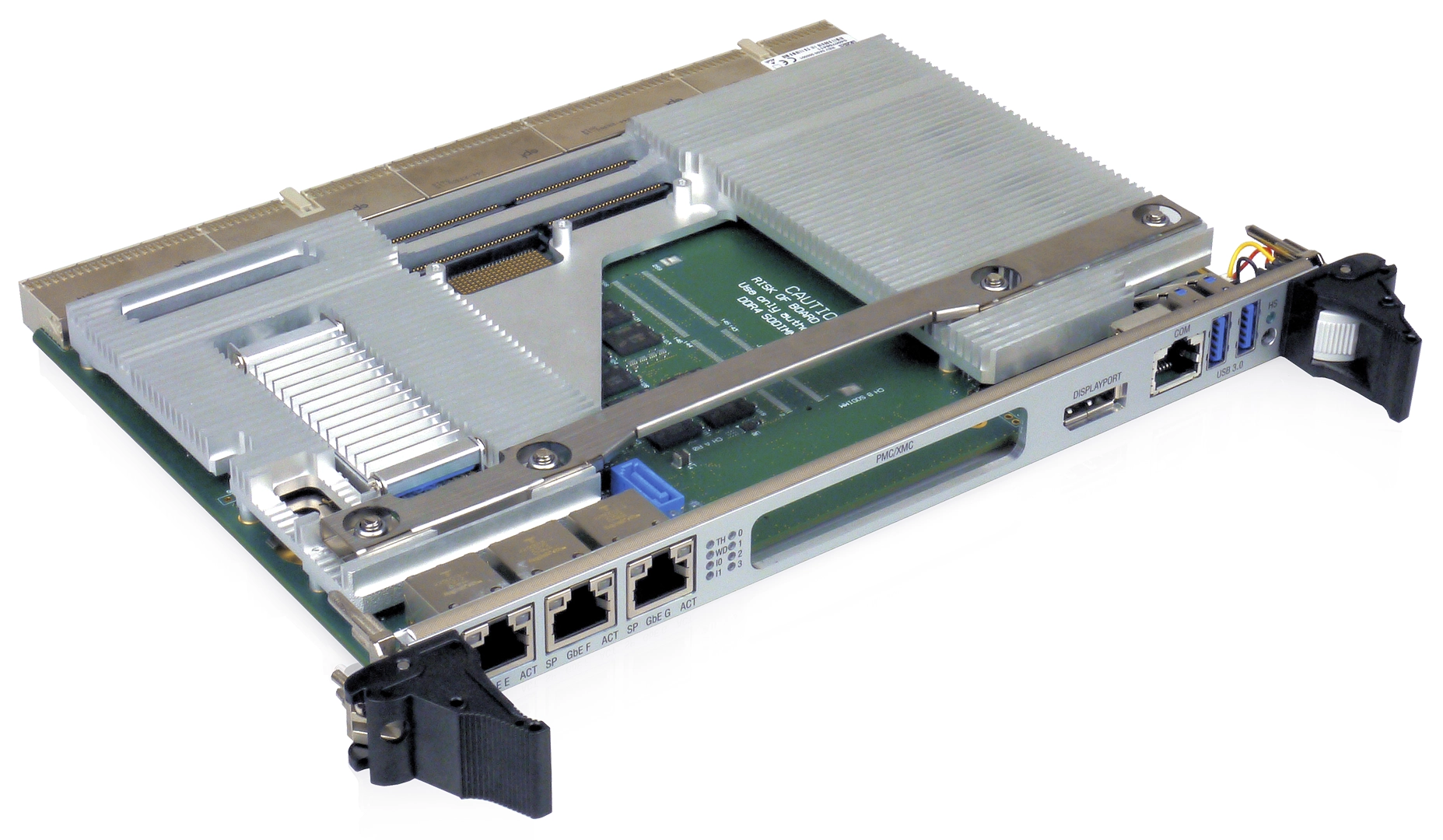

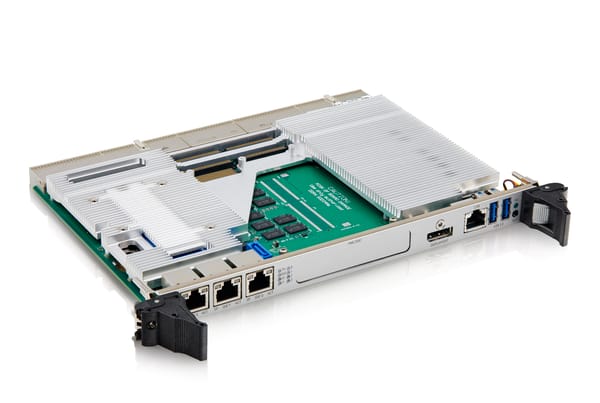

CP6007-RA New
VITA47 rugged CompactPCI® PICMG2.16 Blade
Mouseover Zoom loading...
Specifications
- For long term programs in harsh environments
- 11th Gen Intel® Xeon® 2.1GHz sixcore CPU
- Proven CPCI eco system
- European design and production
For Defense and Industrial outside facilities
The rugged air-cooled successor of CP6004-RA
General computing in harsh environments is a safe bet with the rugged/VITA47 qualified CP6007-RA. It provides up-to-date technology, and at the same time the hardware interfaces are widely backward compatible to earlier Kontron blades such as CP6004-RA.
Future-proof investment by virtualisation
CP6007 is well suited for advanced Multi-CPU server applications, built as virtual machines: A future proof investment.
Outstanding performance-per-watt
CP6007-RA is based on a sixcore Intel® Xeon® processor with 10nm technology, with outstanding performance-per-watt values. Its scalable power budget allows users to tailor the power dissipation to their requirements. 32GB soldered memory with ECC is provided.
Various extensions: storage, XMC, PMC, rear-I/O
CP6007-RA is prepared to operate with onboard industrial grade M.2 flash devices, NVMe or SATA, and with 2.5 inch SATA hard disks or SSDs to be placed onto a respective rear-I/O module or onto a separate HDD carrier KIT. CP6007-RA also features an XMC site according to XMC.3 supporting x8 PCI Express®, and alternatively a PMC site. Kontron's rear I/O module series is fully functional with CP6007-RA.
A safe choice
The well-established CompactPCI® eco system, combined with a long availability of Intel's processor family, and Kontron’s reliable technical support, make CP6007-RA a safe choice.
Downloads
Datasheets
Datasheet CP6007-RA
[ cp6007-ra_datasheet.pdf, 259.28 KB, Dec.13.2024 ]
Manuals
CP6007-SA-RA_User_Guide_v10_2023-08-25
[ cp6007-sa-ra_user_guide_v10_2023-08-25.pdf, 7.48 MB, Aug.25.2023 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
Accessories
|
CP-RIO6-001
|
|
4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005, CP6006 processor board | more |
|
CP-RIO6-A / CP-RIO6-A216
|
|
4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005, CP6006 & CP6016 card | more |
|
CP-RIO6-B / CP-RIO6-B216
|
|
4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005, CP6006 card | more |
|
CP-RIO6-M
|
|
4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005, CP6006 & CP6016 card | more |
