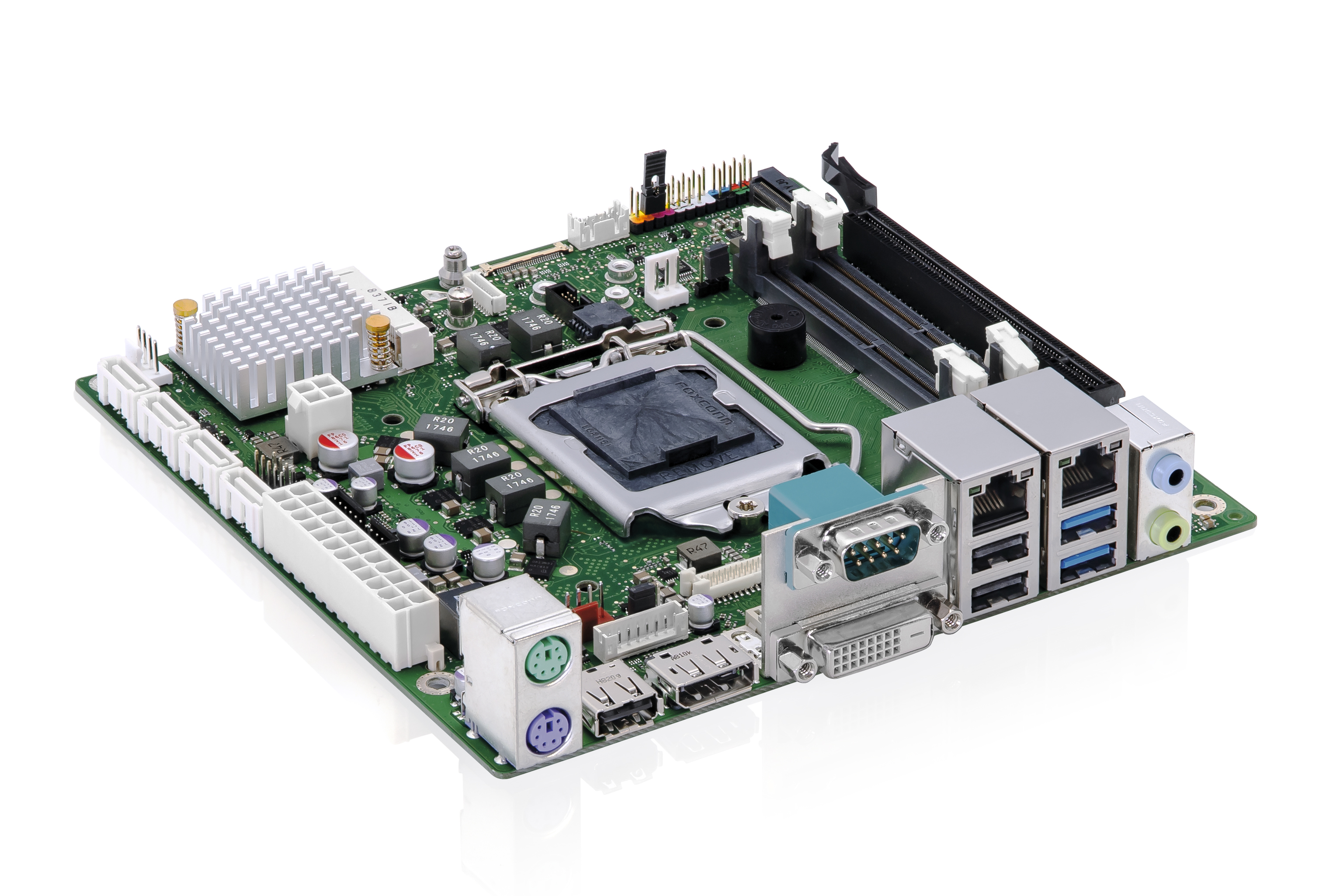

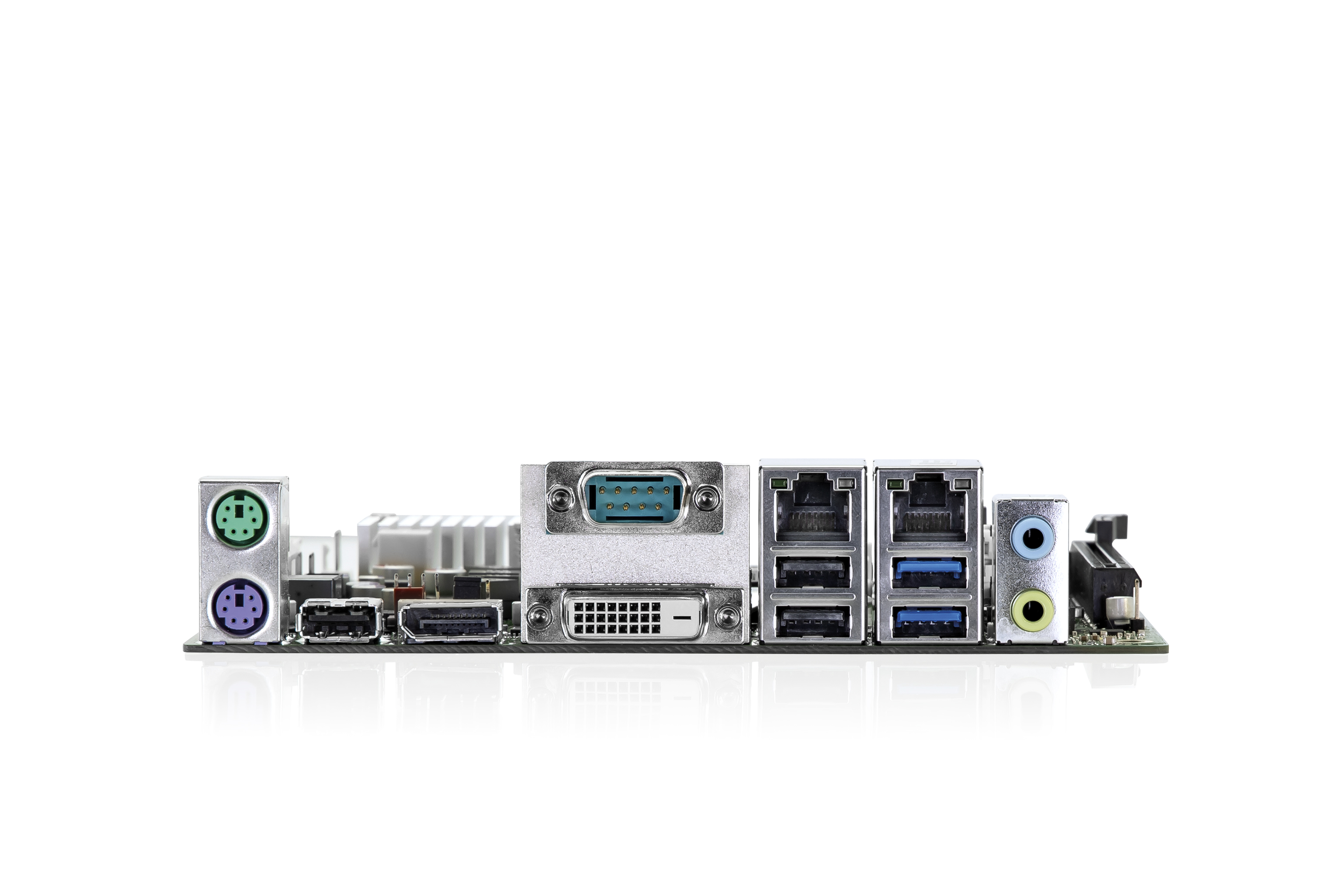

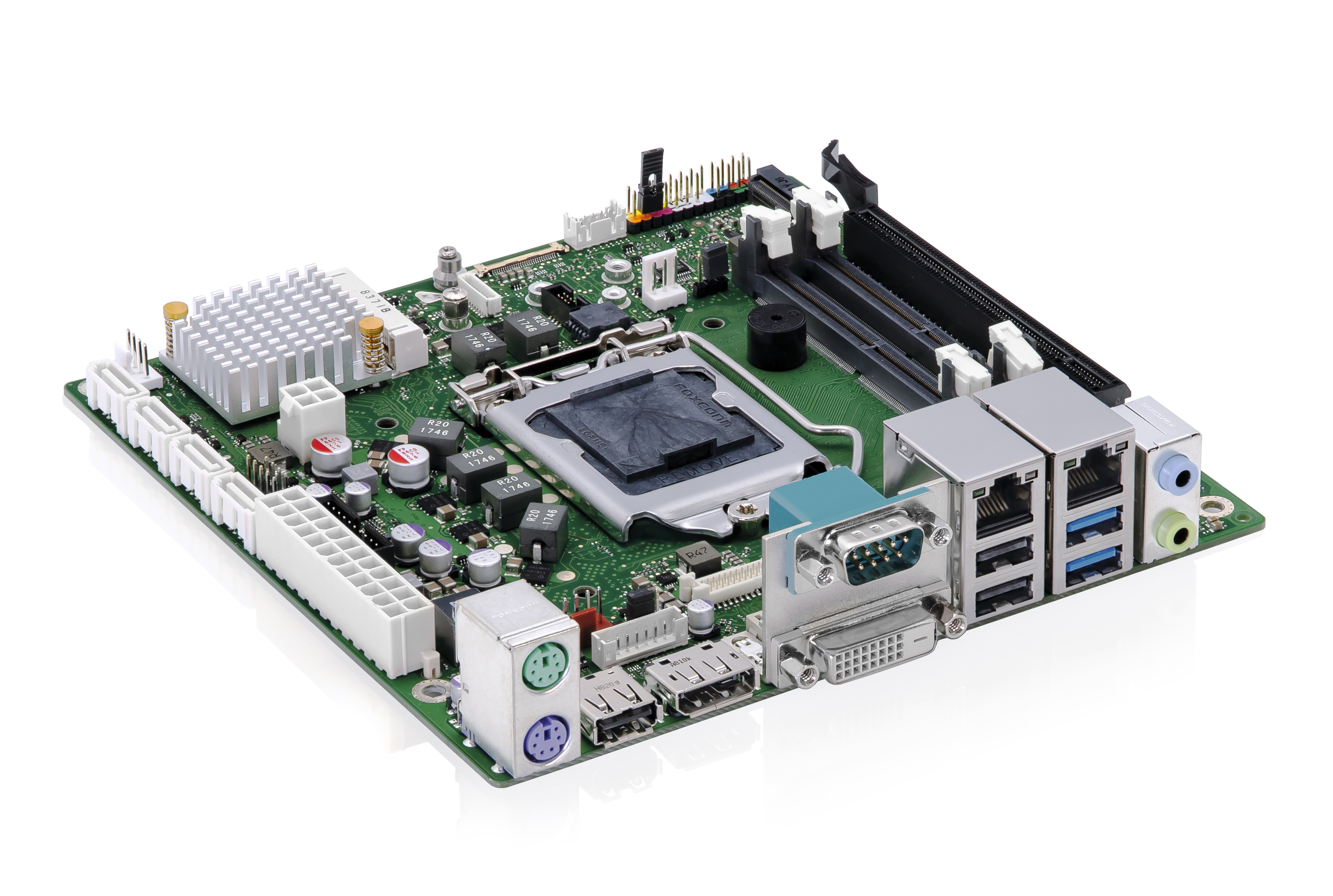

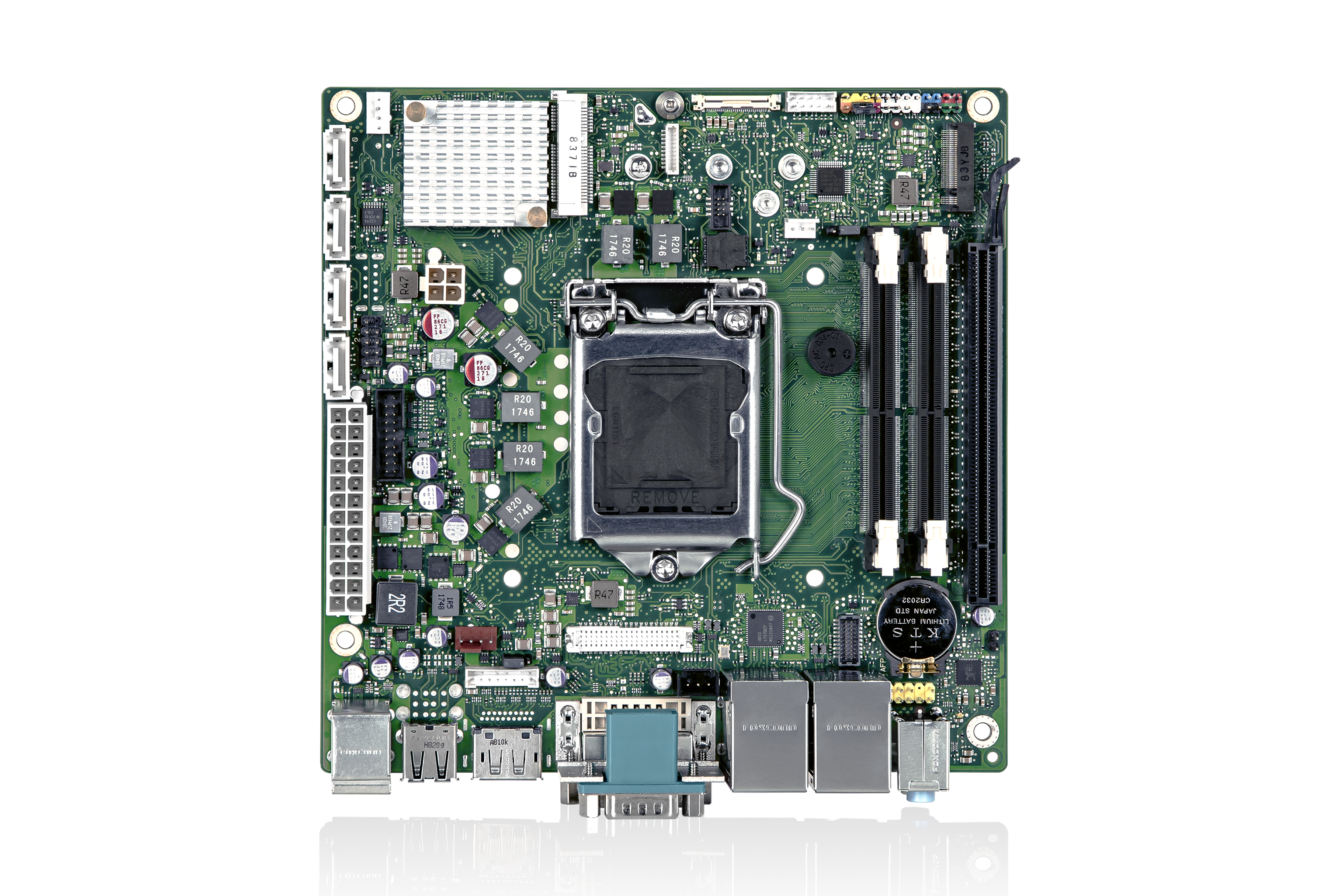

D3634-S mITX
Industrial Motherboard supporting the 8th/9th Gen Intel® Core™ i Processors
Mouseover Zoom loading...
Specifications
- cTDP – Easy & flexible reduction of CPU TDP
- Cost-effective iH310 Industrial Platform
- Dual channel LVDS & eDP
- M.2 SSD & Mini-PCIe Socket
- ATX PSU or Single 12 V Supply
The Motherboard D3634-S mITX is an extraordinary smart solution for industrial needs. It is equipped with the cost-optimized Intel® H310 Express Chipset. This motherboard supports the Intel® Core™ i9/i7/i5/i3 (8th/9th Gen) and the Intel® Pentium® / Intel® Celeron® processor series up to 95 W TDP. It also features 2x LAN and eDP and is designed and approved for enhanced operating temperature range up to 60 °C and for 24/7 continuous operation.
Benefits of Kontron motherboards:
- Highest quality through German engineering and production
- Strict lifecycle management and reliable product maintenance
- Comprehensive feature and tool set
- Excellent technical support
- Beneficial total-cost-of-ownership
Features
| Processor | Intel® 8th & 9th Gen. Core™ i9 / i7 / i5 / i3 Processor Series Intel® Pentium® / Intel Celeron® processor series |
| Chipset | Intel® H310 Chipset |
| Main Memory | 2x DDR4 2666 SO-DIMM up to 32GByte |
| Graphics Controller | Intel® UHD Graphics, DX12 |
| Display | 1x DP V1.2 1x DVI-D |
| Audio Controller | Realtek ALC671 |
| Audio | 5.1-channel, High Definition Audio Codec |
| Ethernet | Intel i219LM & i210AT with 10/100/1000 MBit/s |
| USB | 3x USB 2.0, 2x USB 2.0 (by header) 2x USB 3.1 Gen1, 2x USB 3.1 Gen1 (by header) |
| Serial | 1x RS232 1x RS232/422/485 (by header) |
| Available I/Os | 1x 8Bit GPIO (by header) |
| SATA | 4x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI |
| Expansion | 1x M.2 Key-M PCIe (2242/2260/2280; 2 lanes) 1x Mini PCIe (halfsize/fullsize) PCIe x16: 1x Gen3 |
| Power connector | ATX Power Supply (24+4 Pin) |
| Input Voltage | ATX (Multirail) or Single 12 V |
| BIOS | AMI Aptio 5.x (UEFI) BIOS |
| Watchdog | 3 Level HW Watchdog (BIOS POST / BIOS BOOT / OS) |
| Real Time Clock | integrated; CMOS Battery buffered |
| Cooling | 2x PWM fan (CPU/System) |
| Operating System | Windows 10 Linux-64 |
| Mechanical Dimensions | Mini-ITX (170 x 170 mm / 6.7" x 6.7") |
| Operation Temperature | 0°C-60°C |
| Humidity | 5%-85% |
| Certifications | cTÜVus acc. IEC62368-1, CE Class B Industrial Immunity, FCC-B verified |
Downloads
Driver Updates
BIOS Updates
Datasheets
Datasheet D3634-S mITX
[ d3634-smitx_en_data-sheet_kontron.pdf, 992.05 KB, Jan.12.2024 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
White Papers
Modules and Motherboards WP [restrictions apply]
Tech Spec Sheet
Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 6.05 MB, Apr.15.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Accessories
|

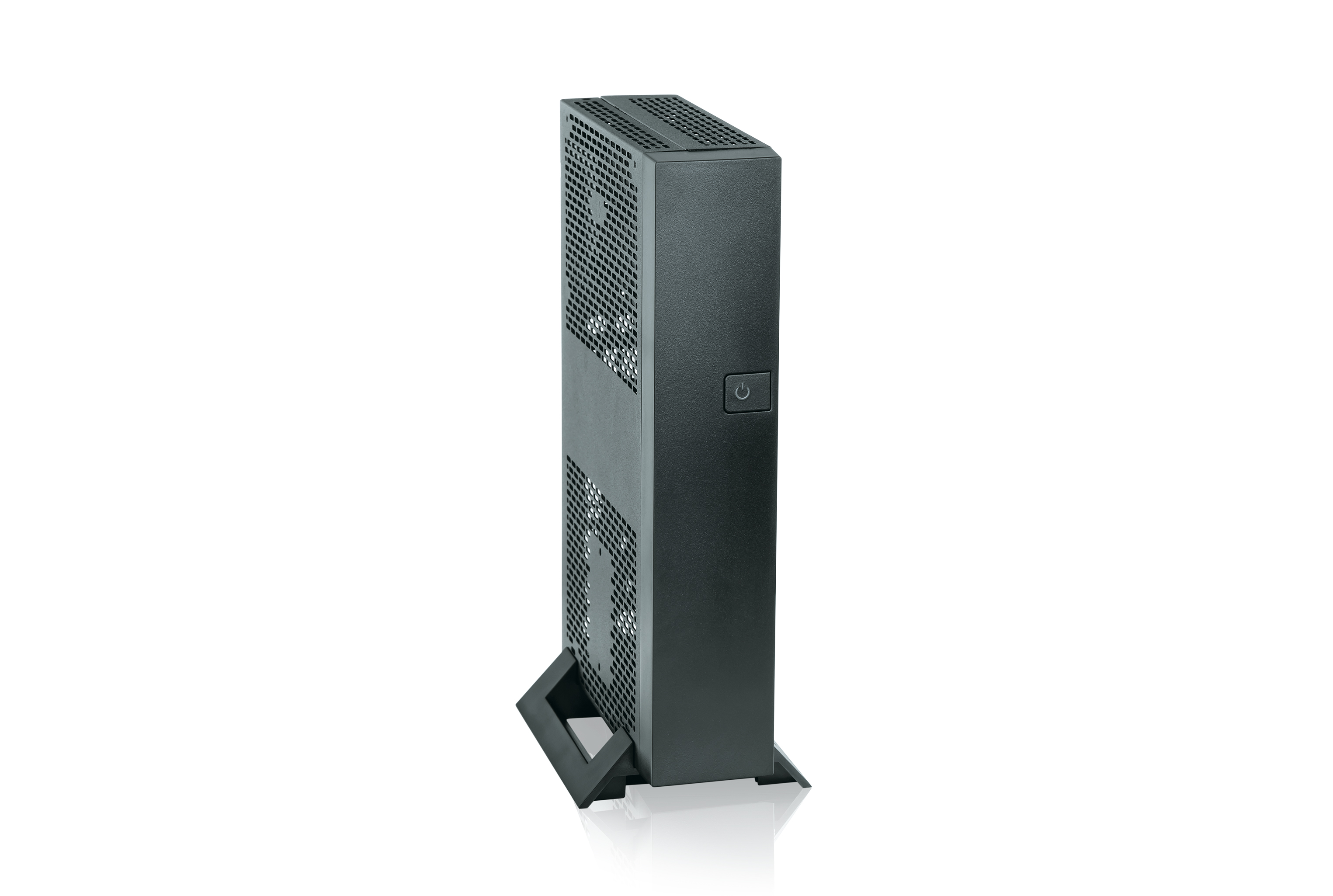

SMARTCASE™ S720 S26361-F5000-J003 |
|
IPC mini-ITX Chassis incl. illuminated power button, HDD cage w. 4 pin PWM fan, SATA and drive power cable, stands (horizon./vert.), wall mount, Chassis intrusion, lockable DC-In incl. specific EMC filter (12V/60W max.) non branded! | |
|

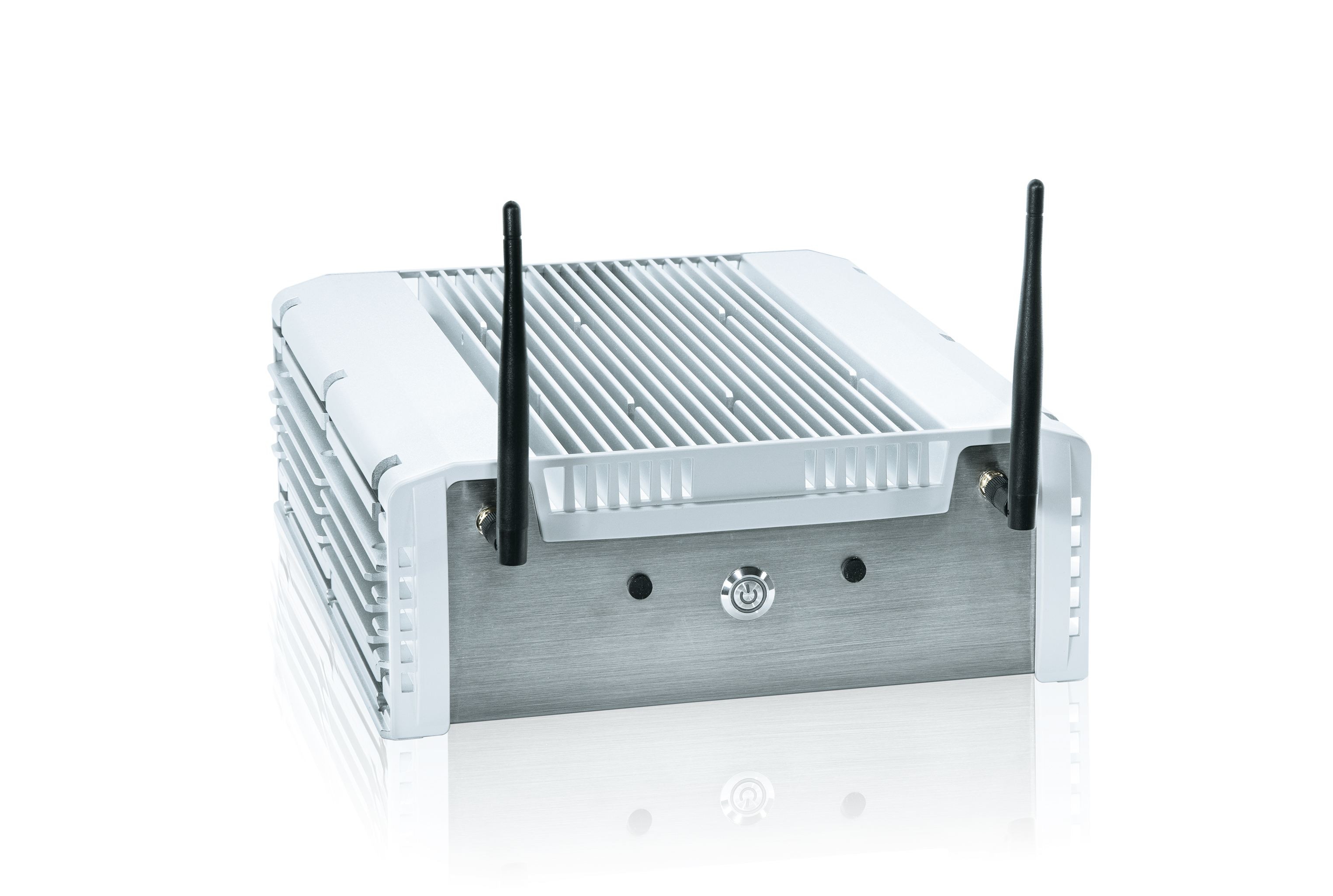

SMARTCASE™ I720 S26361-F5000-J007 |
|
||
|

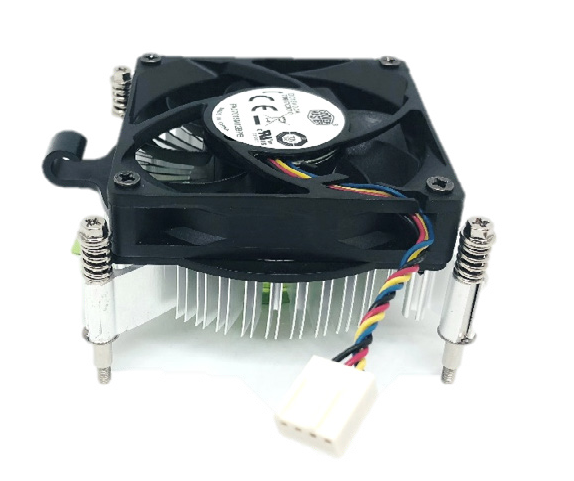

Active Cooler LGA1151 S26361-F5000-C011 |
|
Low-rise active cooler suitable for D363x-S and related SMARTCASE™ S720 chassis | |
|

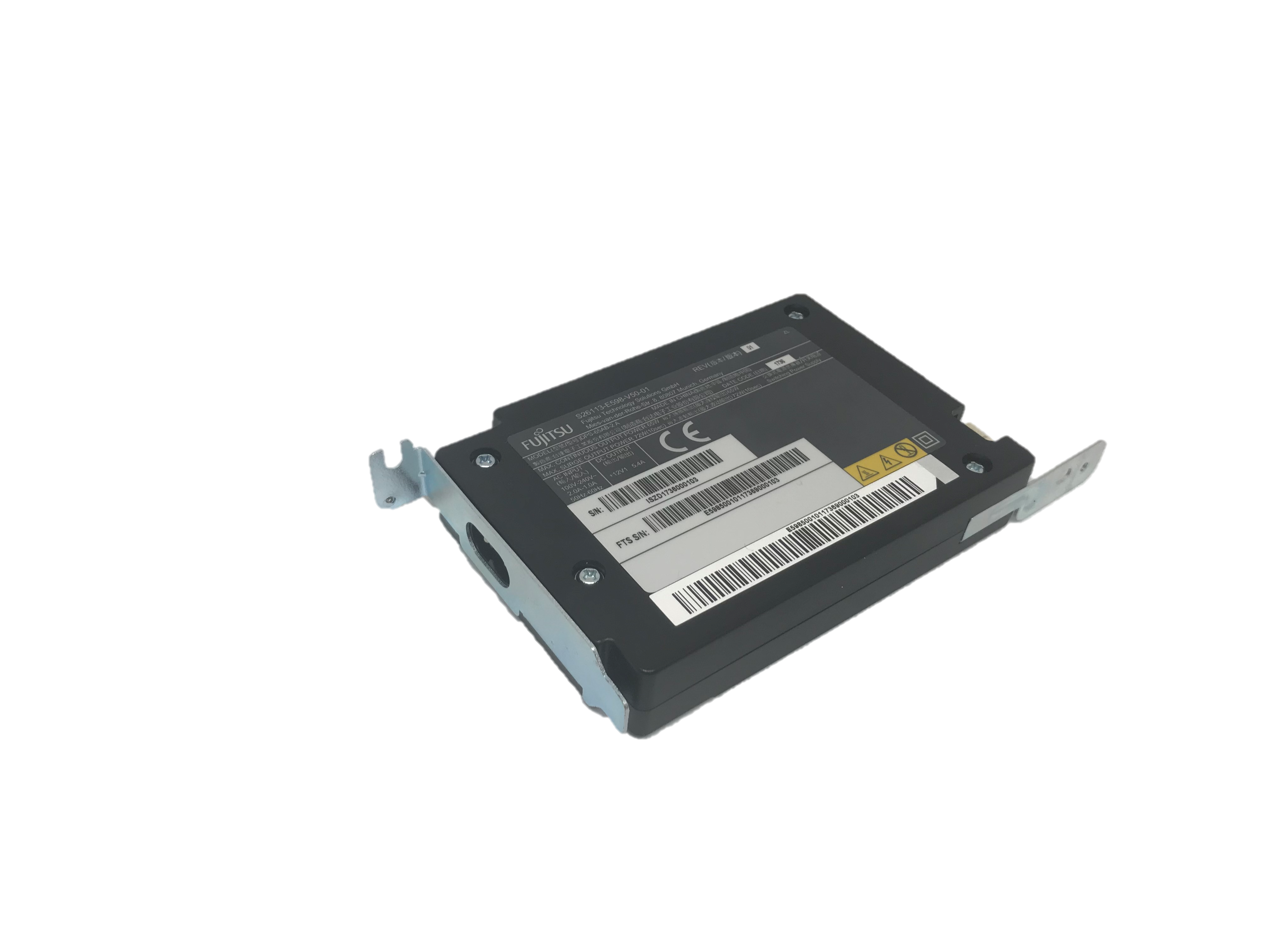

Internal PSU for chassis Kit S26361-F5000-P004 |
|
AC Adapter, 12V / 5.4A, 65W, low profile extension card format | |
|
COM Cable "long" S26361-F5000-K010 |
|
with fullsize slot bracket | |
|
Risercard S26361-F5000-R006 |
|
1 x PCIe x4 | |
|

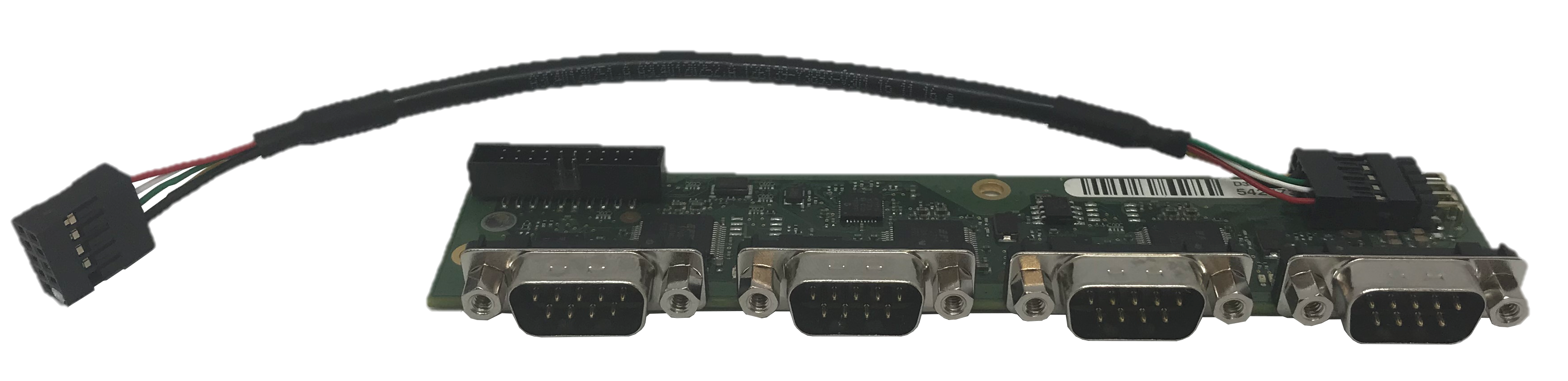

4 x COM Extension Board S26361-F5000-R010 |
|
provides 4x COM RS232 ports (incl. RS422/485- if application software is installed) | |
|

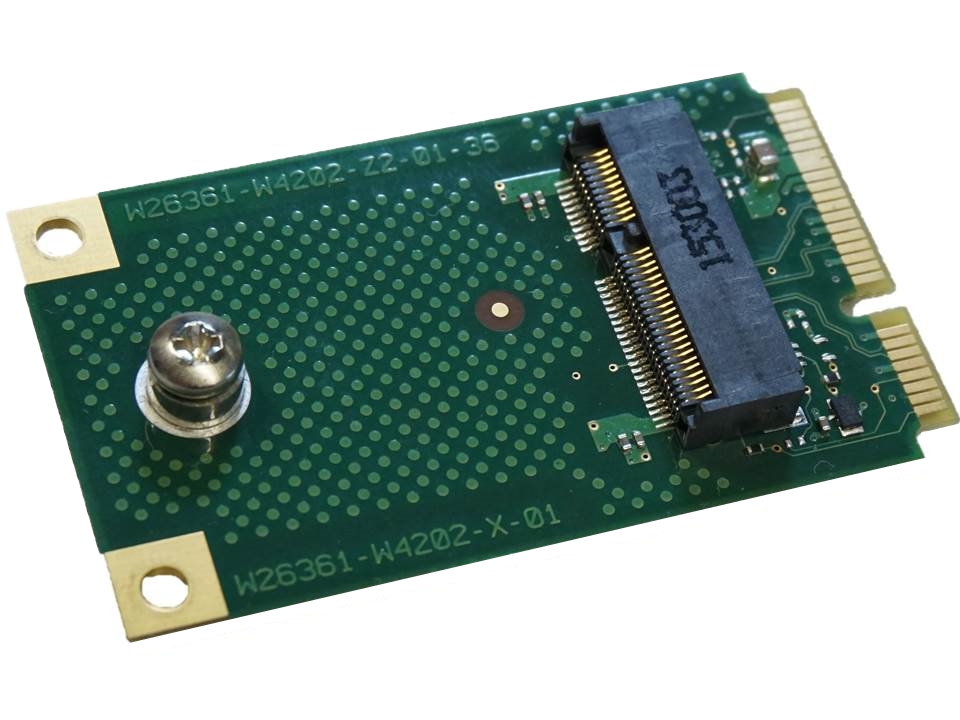

Mini-PCIe to M.2 2230 Converter for WLAN/BT S26361-F5000-M003 |
|
all Boards with fullsize Mini-PCIe socket | |
|
DP 20P M to HDMI Adapter F5000-A007 |
|
DP 20P M to HDMI Adapter, up to 4k @ 60 Hz |
