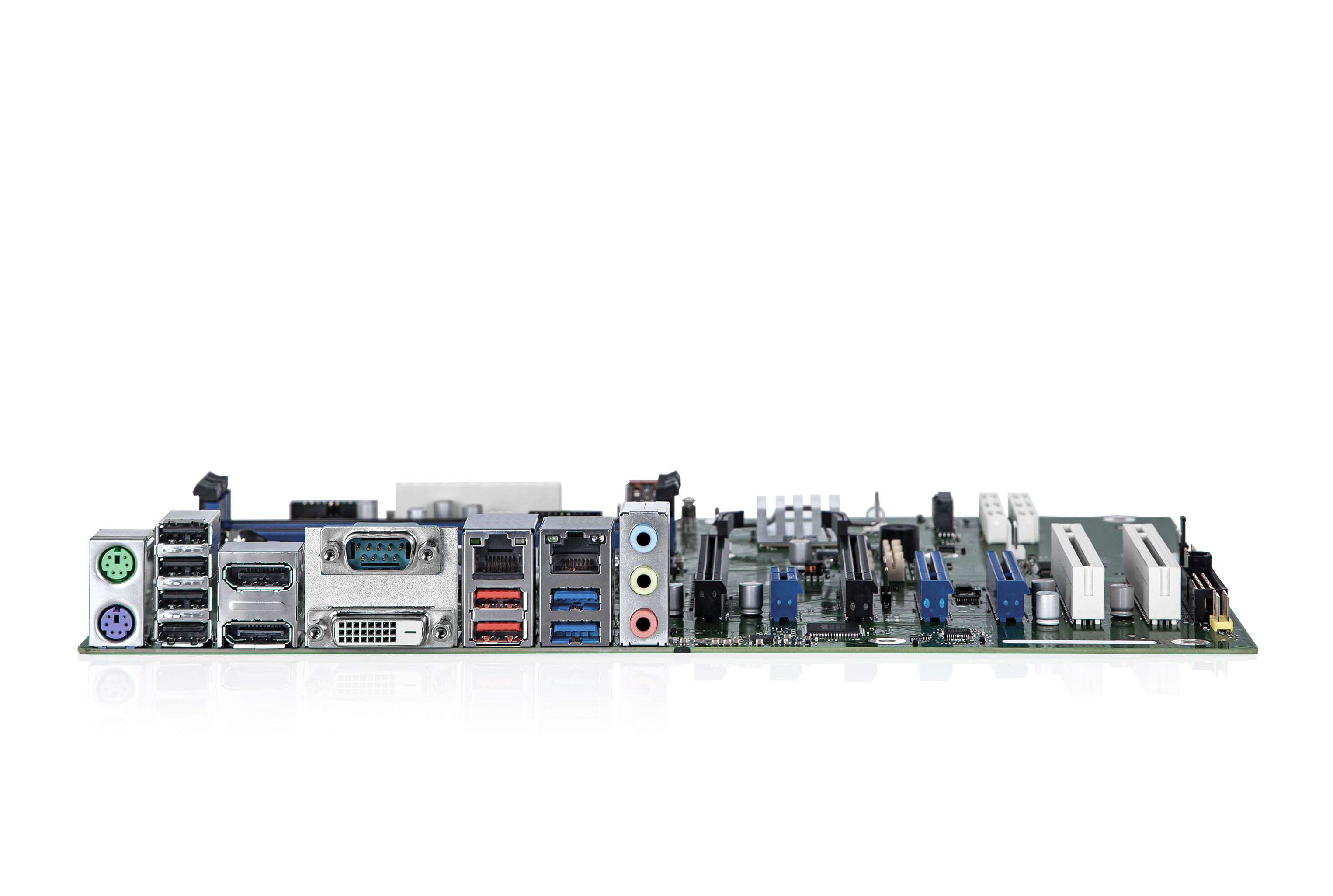

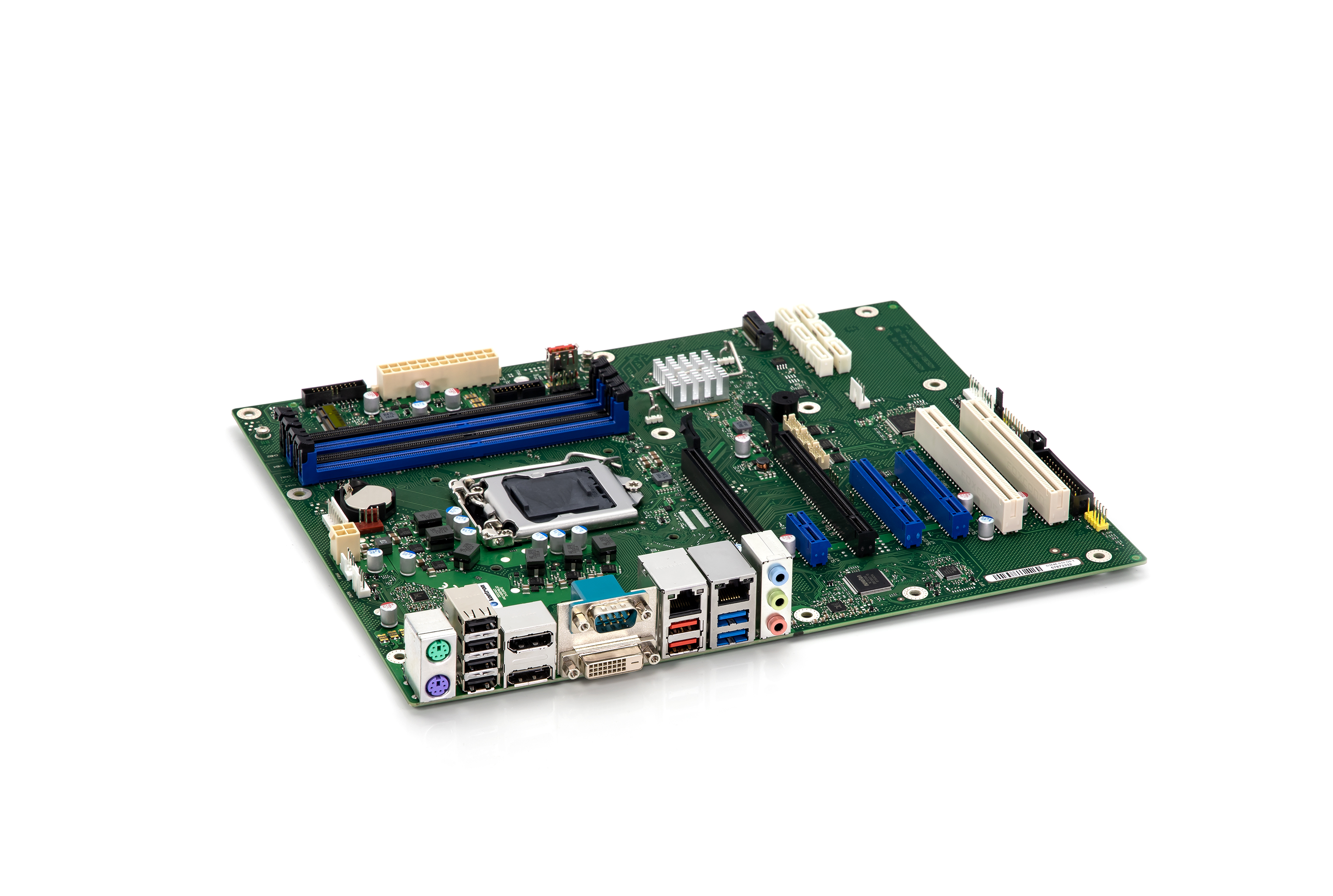

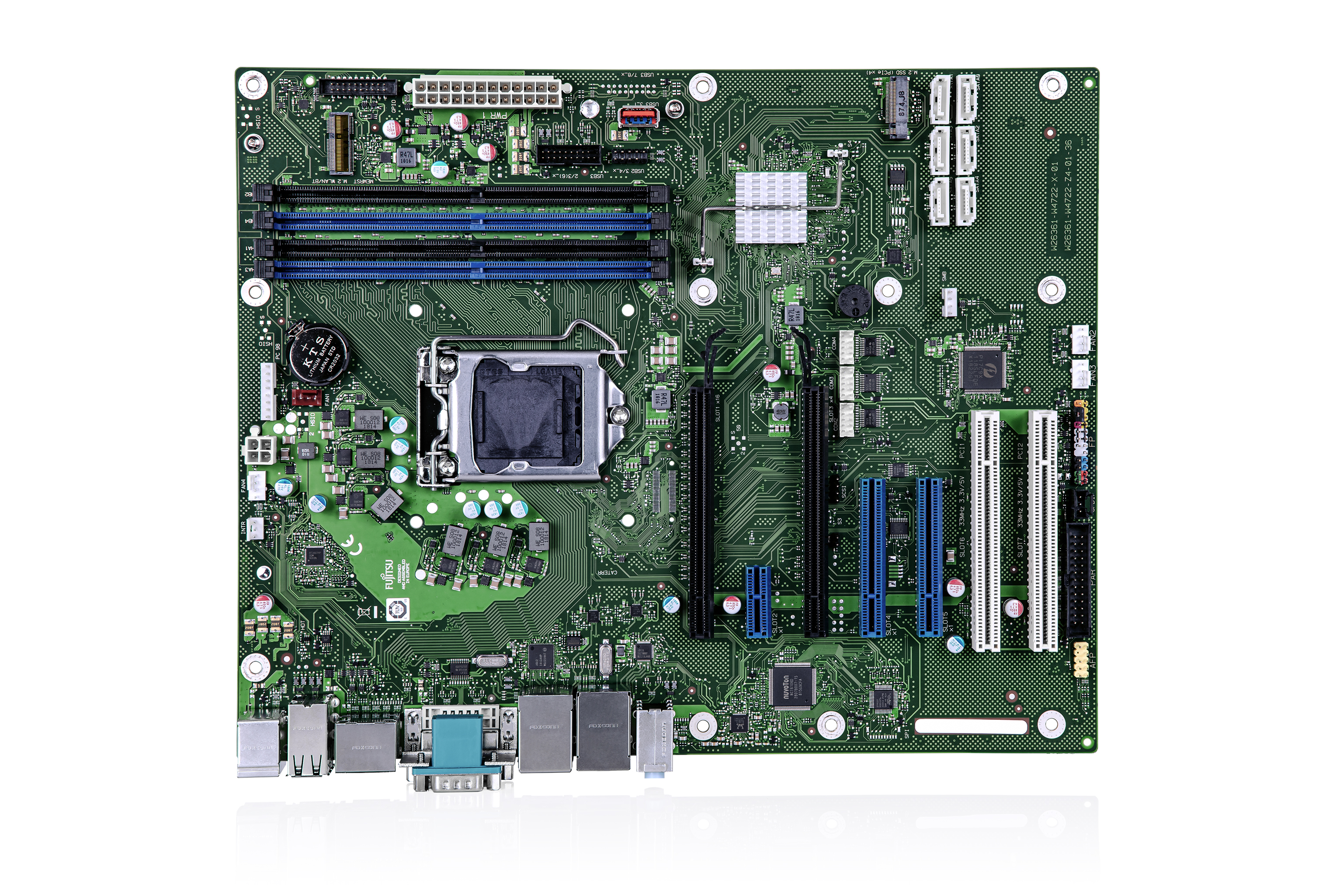

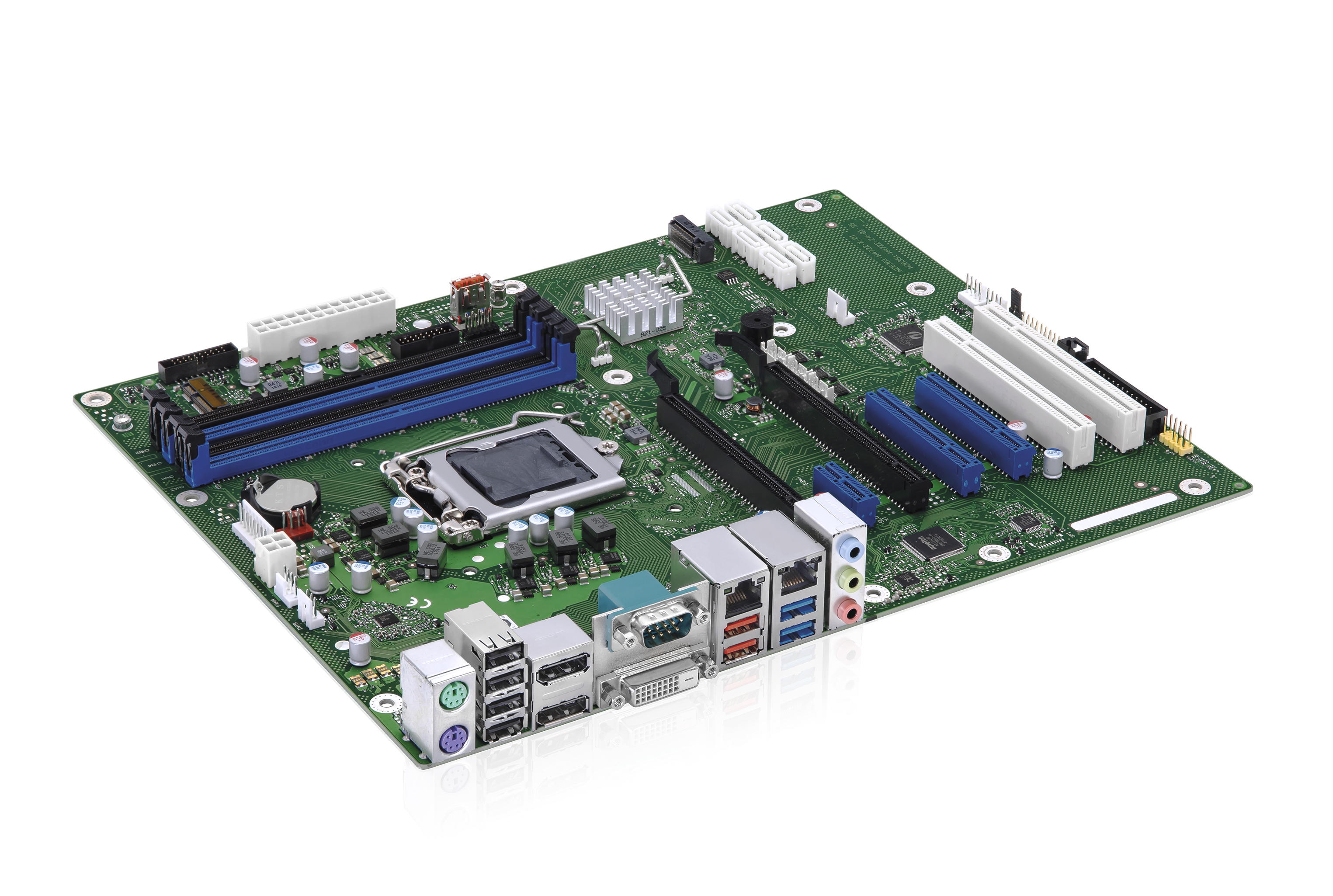

D3646-S ATX
Industrial Motherboard supporting the 8th/9th Gen Intel® Core™ i & Xeon® E-21xx/22xx Processors
Mouseover Zoom loading...
Specifications
- cTDP – Easy & flexible reduction of CPU TDP
- Dual LAN, 4x COM, GPIO & 2x PCI
- M.2 SSD & M.2 WLAN Slots onboard
- HW Watchdog
- Powerful USB 3.1 Gen2
Besides assured extended availability for a minimum of five years, the Motherboard D3646-S ATX of the Industrial Series provides support for highly performant Intel® Xeon® E-21xx/E-22xx processors, Intel® Core™ i9/i7/i5/i3 (8th/9th Gen) processors and Intel® Pentium®/Intel® Celeron® processors. It also offers latest Intel® AMT 12.0 and vPro manageability. It is particularly suitable for applications like workstations and entry-level servers, various medical applications and applications with high-performance needs.
Benefits of Kontron motherboards:
- Highest quality through German engineering and production
- Strict lifecycle management and reliable product maintenance
- Comprehensive feature and tool set
- Excellent technical support
- Beneficial total-cost-of-ownership
Features
| Processor | Intel® Xeon® E-21xx/E-22xx Prozessor Serie Intel® 8th & 9th Gen. Core™ i9 / i7 / i5 / i3 Prozessor Serie Intel® Pentium®/Intel® Celeron® Prozessor Serie |
| Chipset | Intel® C246 Chipsatz |
| Main Memory | 4x DDR4 2666/2400/2133 DIMM up to 64GByte; ECC support |
| Graphics Controller | Intel® UHD Graphics (depends on installed processor), DX12 |
| Display | 2x DisplayPort V1.2 1x DVI-D |
| Audio Controller | Realtek ALC671 |
| Audio | 5.1-channel, High Definition Audio Codec |
| Ethernet | Intel® i219LM & i210AT with 10/100/1000 MBit/s, iAMT 12.0/vPro Support |
| USB | 6x USB 2.0 4x USB 3.1 Gen1 2x USB 3.1 Gen2 1x USB 3.1 Gen2 stick socket |
| Serial | 1x RS232 (DB9 rear) + 3x by header |
| Available I/Os | 8 Bit GPIO (Input/Output); WLAN LED support, WLAN enable/disable support |
| SATA | 6x Serial ATA III 600 Interface (up to 6 GBit/s), NCQ, AHCI, RAID 0/1/5/10 |
| Expansion | 1x M.2 Key-M PCIe (2280) 1x M.2 Key-E (2230) PCIe x16: 1x 16 Lanes, Gen3/1x 4 Lanes, Gen3 PCIe x8: 2x 1 Lane, "open", Gen3 PCIe x1: 1x "open", Gen3 PCI: 2x |
| Power connector | ATX Power Supply (24+4 Pin) |
| Input Voltage | 3.3V / 5V / 12V supply voltage output; SMBus controller PCA9554A |
| BIOS | AMI Aptio 5.x (UEFI) BIOS |
| Watchdog | 3 Level HW Watchdog (BIOS POST / BIOS BOOT / OS) |
| Real Time Clock | integrated; CMOS Battery buffered |
| Cooling | 4x PWM fan (1 x CPU / 3 x System) |
| Operating System | MS Windows 10 Linux-64 |
| Mechanical Dimensions | ATX: 9.6” x 12” (243.8 x 304.8 mm) |
| Operating System | 0°C-60°C |
| Humidity | 5%-85% |
| Certifications | cTÜVus acc. IEC62368-1, CE Class B Industrial Immunity, FCC-B verified |
Downloads
Driver Updates
BIOS Updates
Datasheets
Datasheet D3646-S ATX
[ d3646-satx_en_data-sheet_kontron.pdf, 1.05 MB, Jan.12.2024 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
White Papers
Modules and Motherboards WP [restrictions apply]
Tech Spec Sheet
Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 6.05 MB, Apr.15.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Accessories
|
COM Cable "long" S26361-F5000-K010 |
|
with fullsize slot bracket | |
|
VGA Converter Card S26361-F5000-R009 |
|
full/half bracket tbd | |
|
4 x COM Extension Board S26361-F5000-R010 |
|
provides 4x COM RS232 ports (incl. RS422/485- if application software is installed) | |
|
Single M.2 Carrier Board S26361-F5000-M001 |
|
M.2 PCIe only | |
|
DP 20P M to HDMI Adapter F5000-A007 |
|
DP 20P M to HDMI Adapter, up to 4k @ 60 Hz |
