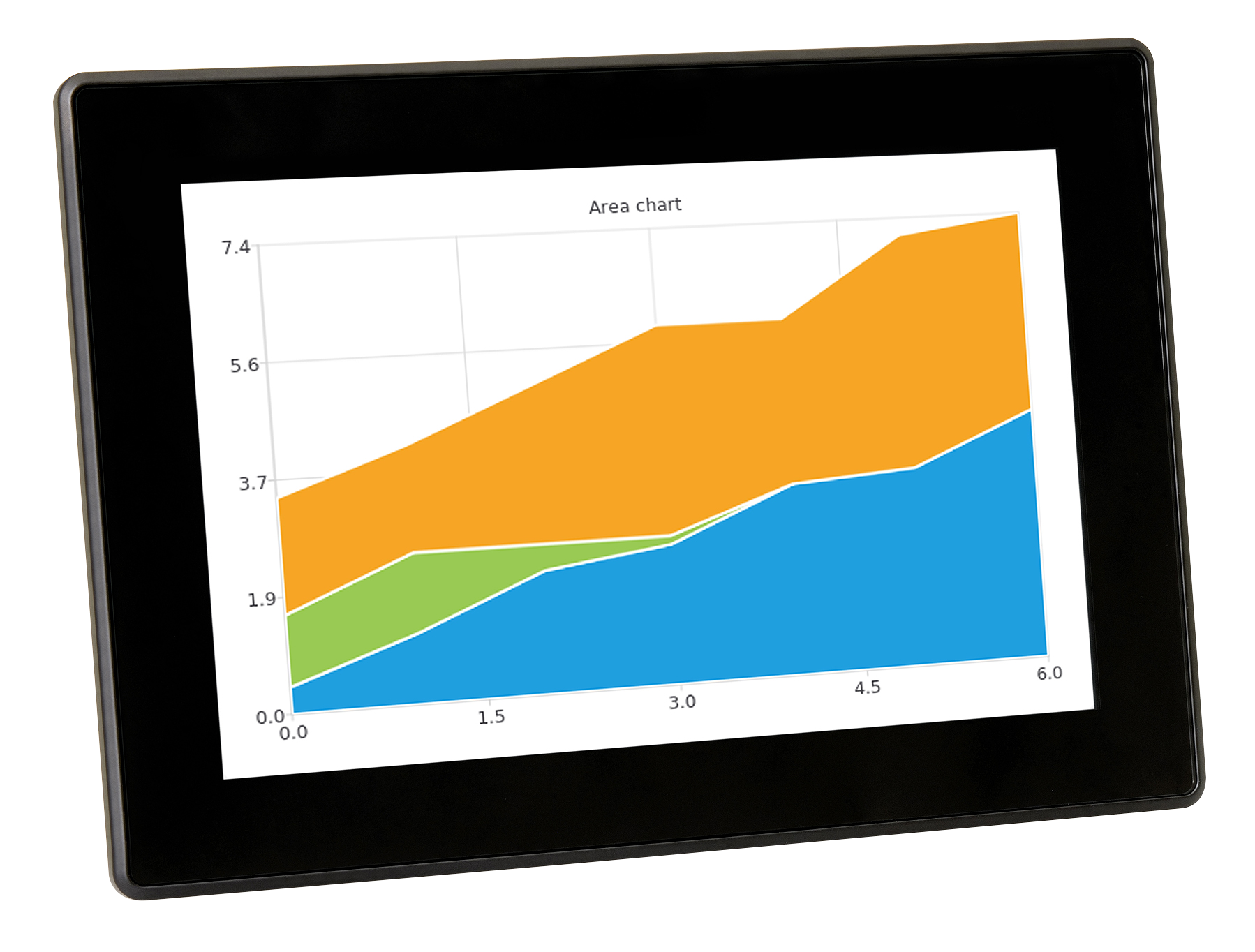

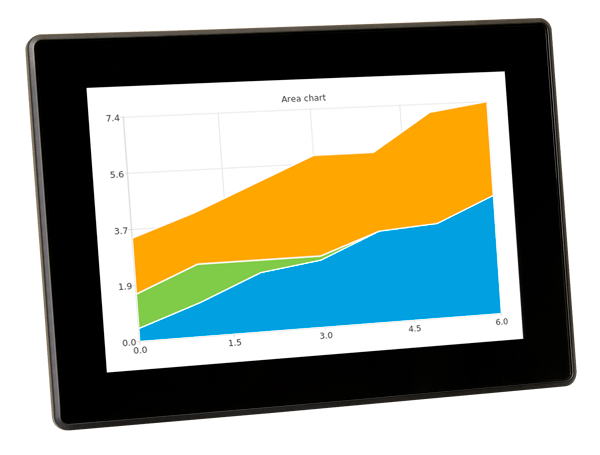

Display-Line DL 7“ i.MX8M Mini

High quality and modern 7" IPS touch display

Specifications

PCAP Multitouch-Panel
7“ IPS-Display, 1024 x 600 Pixel
Front frame aluminium, protection class front IP65
NXP i.MX8M Mini Processor

Touch-Panel for installation in switch cabinets and control consoles

Features

Function

FRONT: Aluminium front frame
DISPLAY: 7“ IPS, 1024 x 600 Pixel 450 cd/m²
TOUCH: PCAP Multitouch

Power Supply

24V DC ±20 %

Power Consumption

Linux running <6 W

RTC BUFFERING

CR1220

Debug

1x Console

Dimensions (W x H x D)

Alu front: 200.1 x 131.9 x 46.5 mm

Temperature range

0 °C...+55 °C

Protection Class

Front IP65, back IP20

CPU	NXP i.MX8M Mini 4x Arm® Cortex®-A53 @1,6 GHz, 1x Arm® Cortex®-M4 @400 MHz

LPDDR4

4 GByte (Options: 1 GByte, 2 GByte)

NOR-FLASH

2 MByte

eMMC	32 GByte (Options: 4 GByte up to 64 GByte)

SD CARD

1x microSD Card Slot

NV MEMORY

8 kB (64 kb) EERAM

Ethernet

1x Gbit/s, 1x 10/100 Mbits/s

USB	2x 2.0 Host, 1x 2.0 OTG

Serial

1x RS232, 1x RS485

CAN	1x CAN 2.0 B

DIO	4x DIO (24V/up to 800mA)

Bootloader

U-Boot

Operating System

Embedded Linux (Yocto Distribution)

RTC	5ppm accuracy
