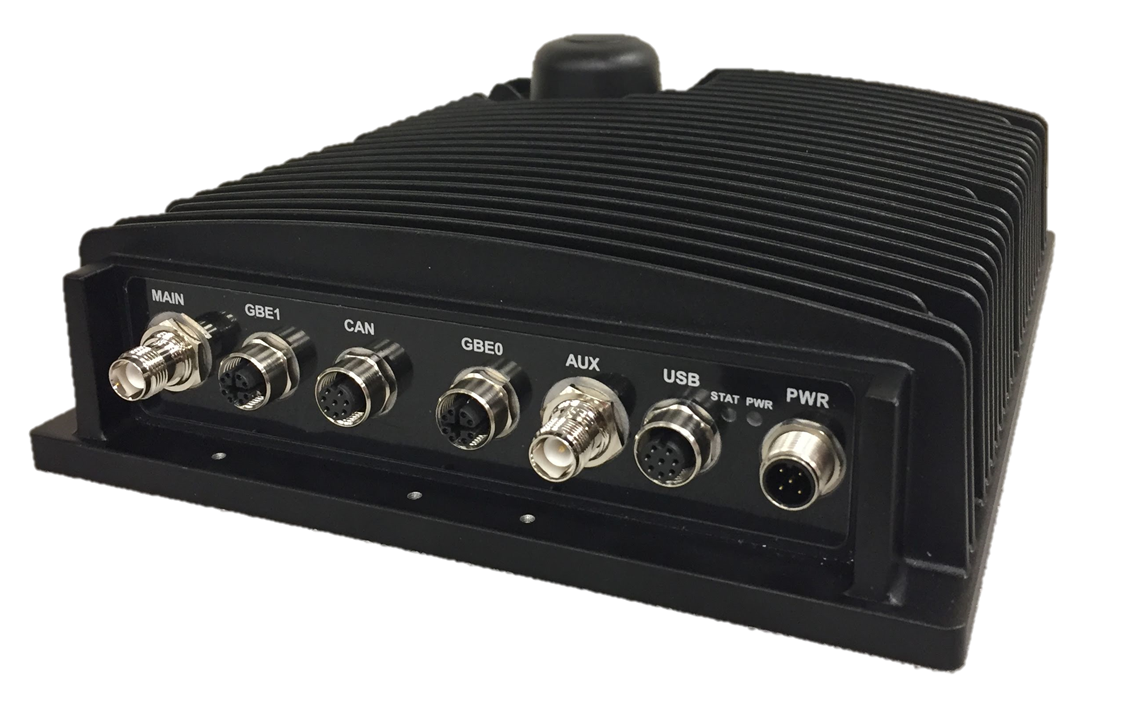

EvoTRAC-G103
Rugged Gateway | Cellular & WiFi
Specifications
- rugged, fanless, IP67, gateway computing platform for in-vehicle applications
- Intel® Atom™ E3845 processor and 64GB eMMC with storage expansion option
- dual GbE port and dual CANBus 2.0 A/B
- 802.11ac/bgn WiFi Access Point with integrated antenna
- 4G LTE+ with 2x RF connections and dual SIM
- 9-36 VDC vehicle power input with surge protection and filtering
Rugged Gateway | Cellular & WiFi
Kontron’s EvoTRAC-G103 Gateway leverages the Intel® Atom™ processor on Kontron’s hardened Type 6 COM Express® CPU module coupled with a ruggedized Carrier Board, all packaged in a natural convection, sealed IP67 enclosure to survive rigorous environmental conditions for on and off-road vehicle use. Featuring a compact COMe E3845 module, the EvoTRAC-G103 is designed to be a Gateway Platform for extreme rugged In-Vehicle applications. Mechanically compact, this small form-factor system integrates dual Gigabit Ethernet and dual CAN bus interface that supports 2.0 A and B, along with two USB 2.0 interface, and WiFi, 4G Advanced Pro+ for wireless connectivity.
The system includes 64GB eMMC for onboard storage, a WiFi and 4G LTE module for wireless connectivity and optional fixed storage capacity. Designed for rugged in-vehicle applications and environments, the EvoTRAC-G103 has been tested for use under extreme temperature (-40° C to +80° C) and other demanding environmental conditions (shock, vibration, humidity, salt fog). The conduction cooled, IP67 sealed chassis incorporates protection from water and dust ingress, as well as CISPR25 emissions and ISO 11452-2 susceptibility.
Features
| Processor | Intel Atom® Processor E3845 Quad Core @ 1.91 GHz |
| Main Memory | 4 GByte DRAM |
| Operating System | Linux Ubuntu 16.04 LTS installed; Windows OS supported (contact factory) |
| Ethernet | Two (2) Ethernet 10/1000/1000BT Port M12 X-coded female connector |
| USB | Two (2) USB 2.0, up to 1.5 A charging capability with built-in current protection M12 A-coded female connector |
| Weight | 4.7 lbs (2.13 kg) |
| Temperature | -40 °C to +80 °C operating; there may be some performance reduction in temperatures below -30 °C and above +70 °C |
| Vibration | 5 Hz to 2000 Hz, Random, 1hr each axis, 8.21 GRMS Power Spectrum Density |
| Shock | 40 g, 11 ms sawtooth |
| Dimensions (H x W x D) | 8.4” (213.36 mm) x 10.19” (258.82 mm) x 2.64” (67.05 mm) |
