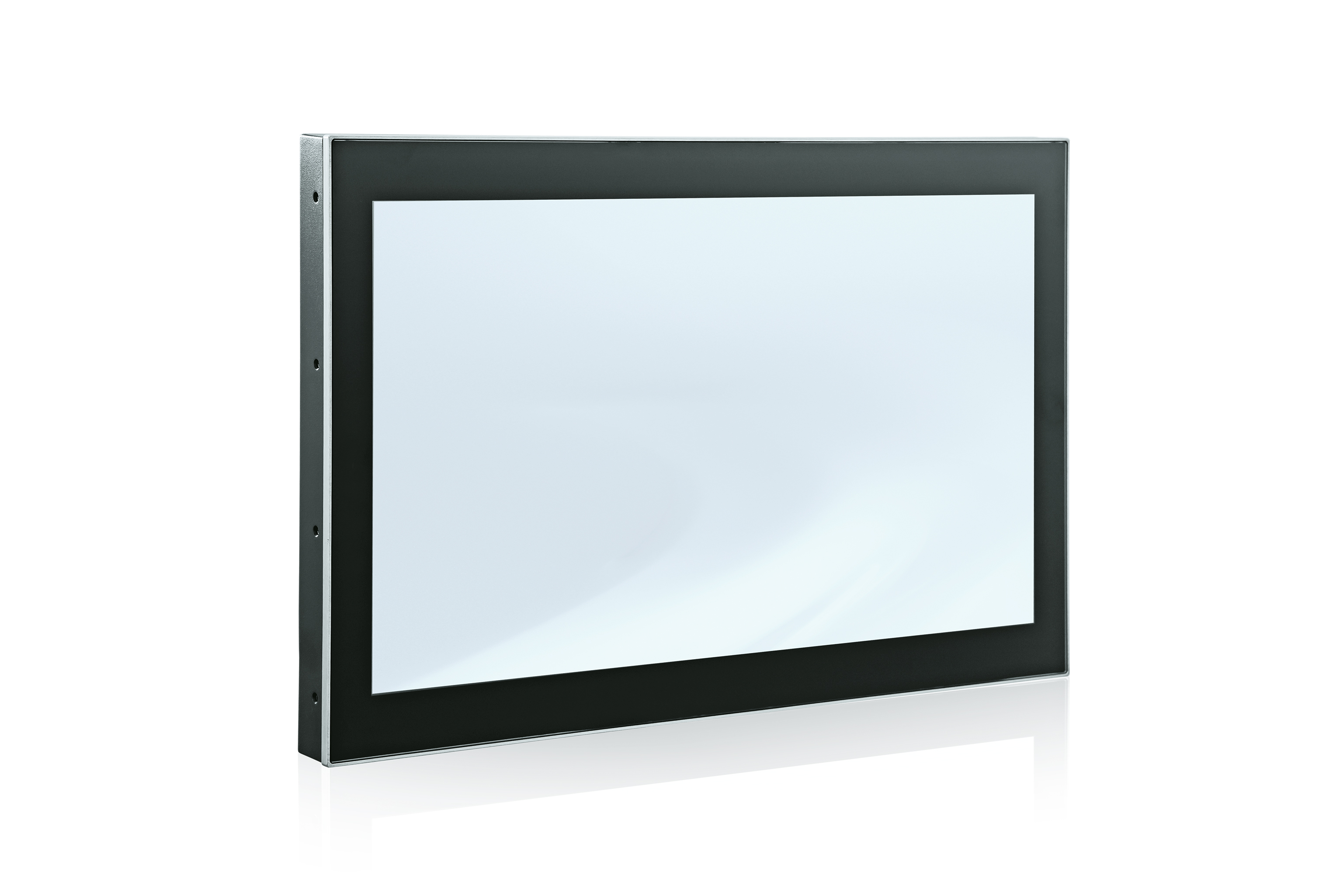

FlatClient ECO-APL

Industrial grade Panel PCs in regular or wide format

Mouseover Zoom loading...

Specifications

Display sizes in regular or wide format (7.0" - 23.8")
Front options: PCAP touch, resistive touch or protection glass
ECO version (Intel Atom® Quad Core™) and PRO version (Intel® Core™ / Celeron® ) available
Industrial grade - robust, reliable, versatile and maintenance-free

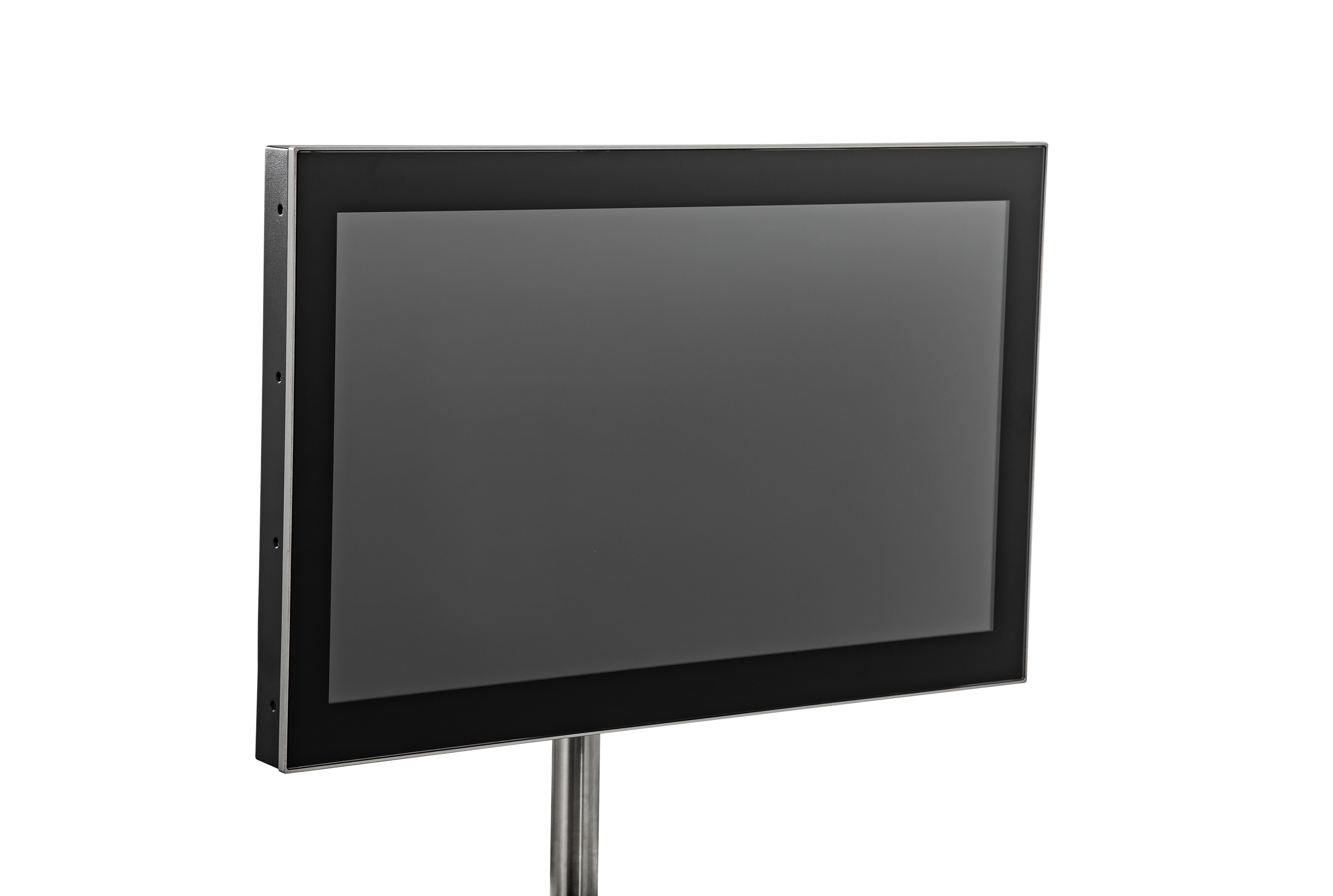

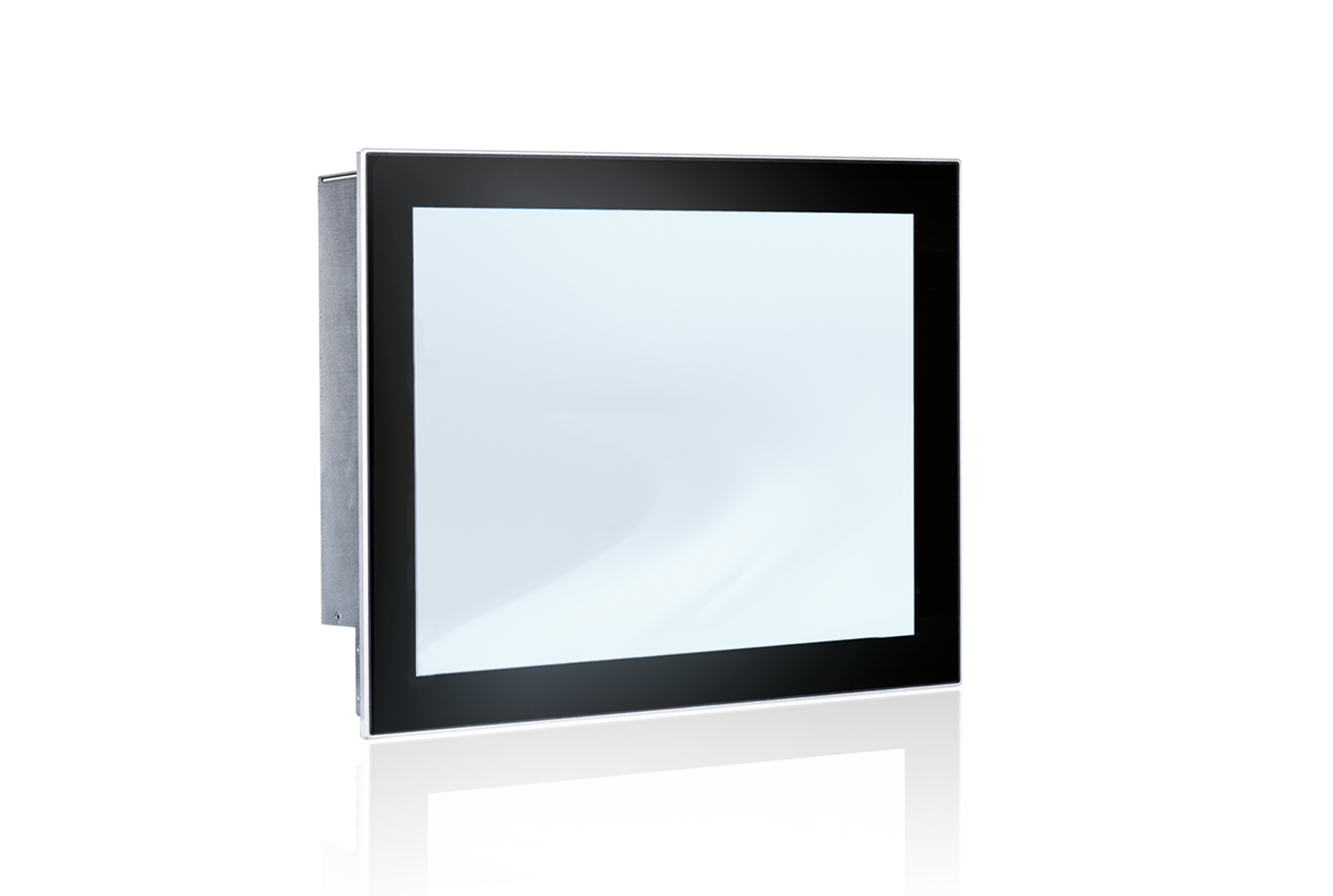

Flexible mounting options: Built-in version or stand-alone/VESA in a full metal housing

Download Datasheet

With its FlatClient industrial HMI series, available as ECO and PRO version, Kontron offers high flexibility with respect to the design.The HMI comes in a full metal housing either for VESA mounting (stand-alone version) or for direct integration into machines or consoles (built-in version). All models feature an easy-clean, anti-glare and scratch-proof IP65 protected front glass. The front options offer a choice between either PCAP touch, resistive touch, or protection glass. Both versions of the FlatClient are available in numerous versions and display sizes from 7.0” up to 23.8” in either widescreen aspect ratios of 16:9 or 16:10 and standard aspect ratios of 4:3 and 5:4.

Intuitive multi-touch access to real-time actionable data makes the FlatClient the perfect fit for SCADA and Manufacturing Execution Systems (MES), process visualization and other control applications. The thoroughly modular design can be easily customized for a broad variety of applications, thus making it suitable across all industries which require visualization and processing of data.

Features

Display

Projected capacitive touch (PCAP) /
Resistive touch (except 23.8”) / Protection glass

Touch Screen

Projected capacitive touch (PCAP) /
Resistive touch (except 23.8”)

Frontpanel

Projected capacitive touch (PCAP) /
Resistive touch (except 23.8”) / Protection glass

Mounting

Panel mount, VESA, stand-alone

Processor

Intel® Celeron® Quad Core™ J1900 Intel® Core™ ULT i5-4300U
Intel® ULT i5-6300U

RAM	4 GByte DDR3 SO-DIMM

I/O Standard

Intel® Core™ ULT i5-4300U:
3x GbE (2x Intel® I210, 1x Intel® I218-LM), 2x Display Port,
4x USB3.0
Intel® Core™ i5-6300U:
2x GbE (2x Intel® LAN), 1x DP, 1x HDMI, 4x USB 3.0

Wireless connectivity

RFID, WiFi

Power Supply

16-30 VDC

Certifications

CE, cULus (except 23.8”)

Altitude

up to 10.000ft (3.000 m)

Operation Temperature

0 °C to +50 °C

Protection Class

IP65 front, IP20 rear

Operating System

Windows7 incl. Embedded, Windows8.1 incl. Embedded,
Windows 10 IoT, Linux

Cooling

Fanless passive cooling
