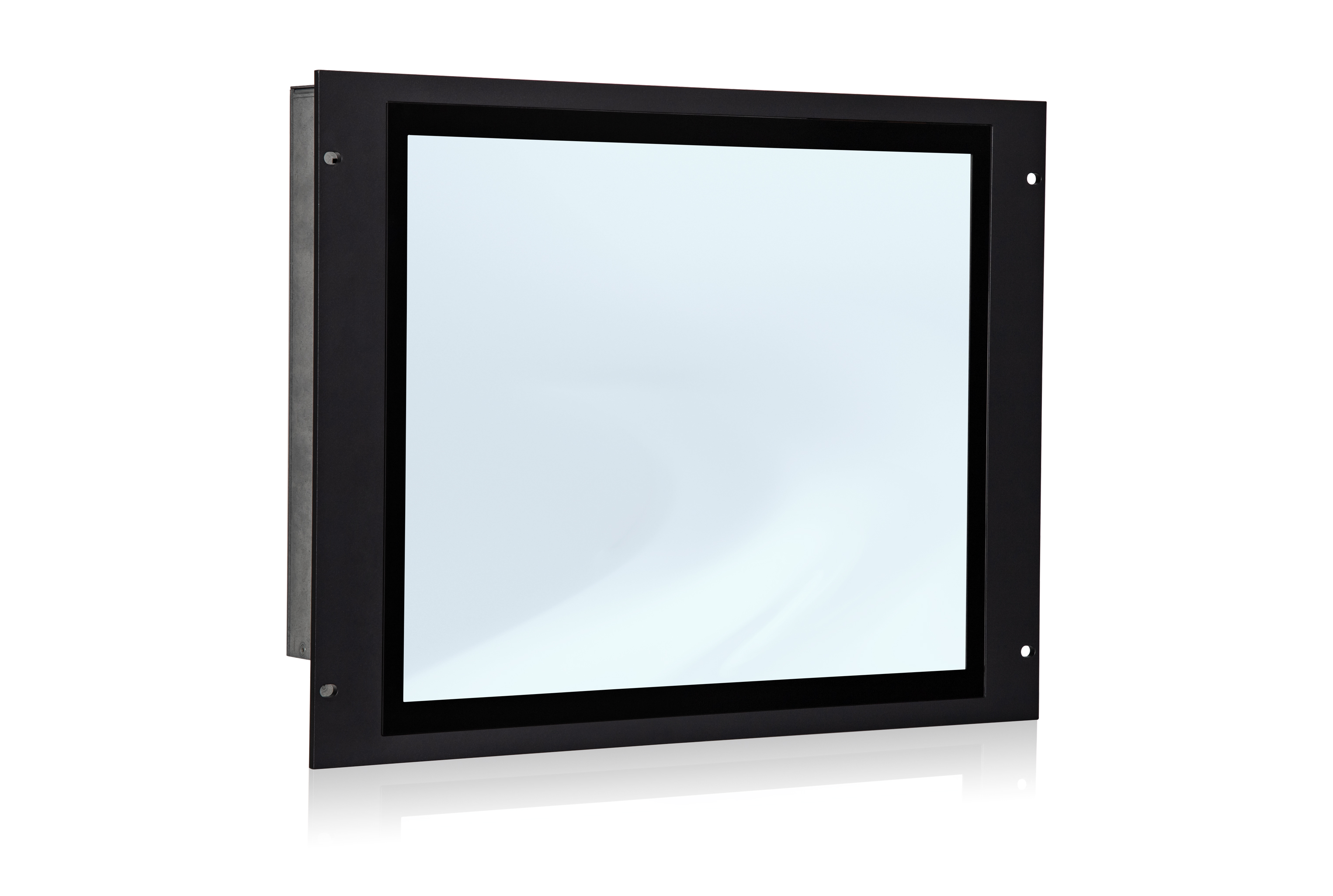

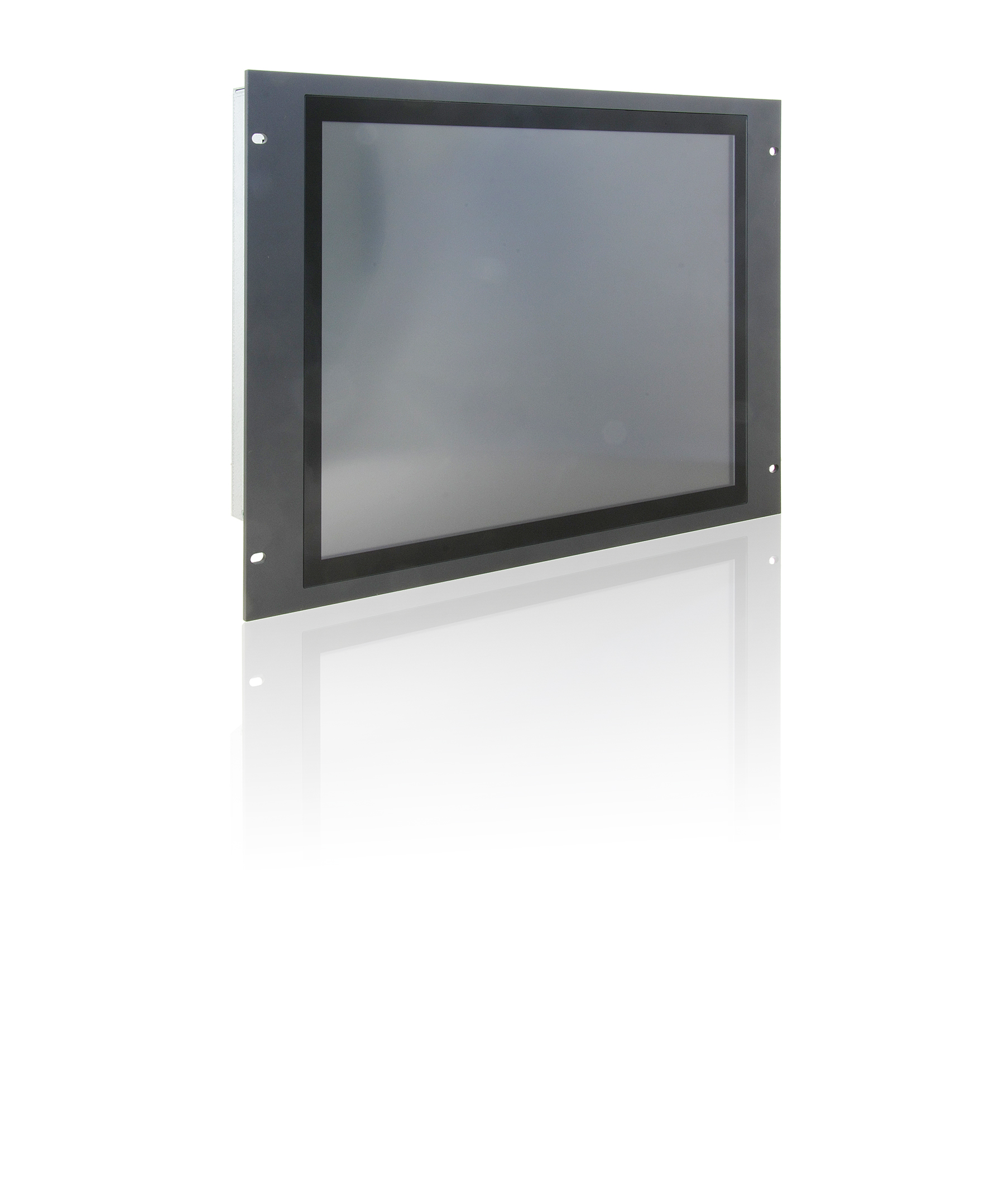

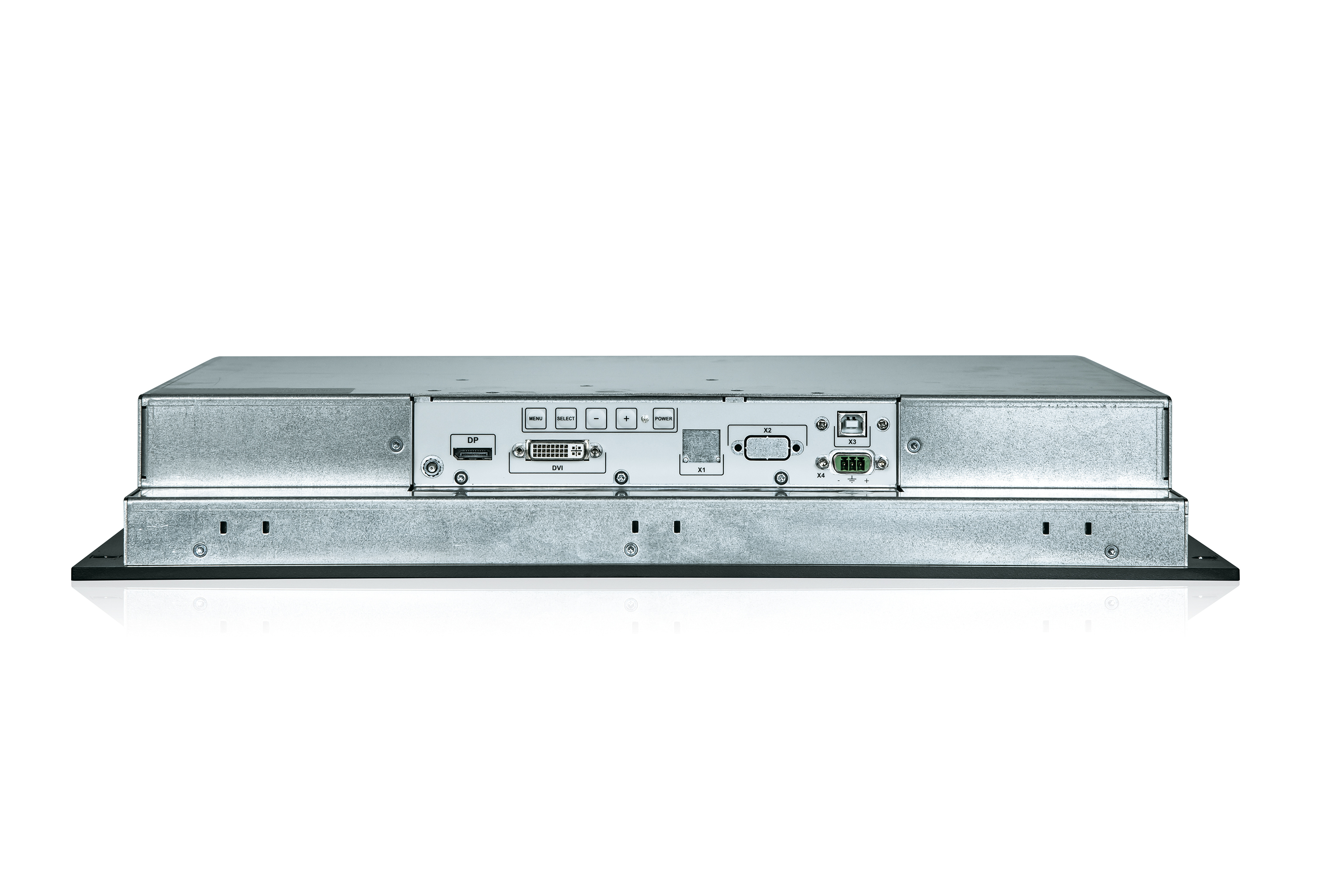

FlatClient RCK This product is legacy
Industrial Grade Panel PC for 19" Cabinets
Mouseover Zoom loading...
Specifications
- Display size 19.0” with slim bezel for 19” Rackmounting
- Front option: PCAP or protection glass
- ECO version (Intel Atom® Quad Core™) and PRO version (Intel® Core™ i5) available
- Industrial grade – robust and reliable
- Front IP65 protected
The Kontron FlatClient RCK Panel PC series offers brilliant screens with an anti-glare surface for best readability. Everything is packed in a robust metal housing flush with front surface including mounting points for 19” racks which allows quick and easy installation in a cabinet.
The FlatClient RCK is also available with projected capacitive touch (PCAP) which increases intuitive usability without keyboard or mouse.
Features
| Display | 19.0“ (others on request) |
| Resolution | 1280 x 1024 |
| Brightness | 350 cd |
| Touch Screen | Projected capacitive touch (PCAP) / Protection glass |
| Mounting | 19” rackmount |
| Processor | Intel® Celeron® Quad Core™ J1900 Intel® Pentium® Quad Core™ N4200 Intel® Core™ i5-4300U Intel® Core™ i5-6300U Intel® Core™ i5-7300U |
| RAM | 4 GByte DDR3 SO-DIMM Intel® Core™ i5-4300U: 4 GByte DDR3 SO-DIMM Intel® Core™ i5-6300U / Intel® Core™ i5-7300U: 4 GByte DDR4 SO-DIMM |
| Interface | Intel® Celeron® Quad Core™ J1900: 2x GbE, 1x HDMI, 1x VGA, 1x USB 3.0, 2x USB 2.0 Intel® Pentium® Quad Core™ N4200: 2x GbE, 1x HDMI, 1x DP, 4x USB 3.0 Intel® Core™ i5-4300U: 3x GbE, 2x Display Port, 4x USB 3.0 Intel® Core™ i5-6300U / Intel® Core™ i5-7300U: 2x GbE, 1x HDMI, 1x Display Port, 4x USB 3.0 |
| Power Supply | 16-30 VDC |
| EMC | EN55022 class B |
| Certifications | CE, cULus |
| Altitude | Up to 10.000 ft (3.000 m) |
| Shock | 15 G 11 ms duration (half sine) |
| Vibration | 10-500 Hz: 1G/3 axis |
| Operation Temperature | 0 °C to +50 °C |
| Protection Class | IP65 front, IP20 rear |
| Humidity | 10 % - 90 % @ 39 °C, non condensing |
| MTBF | > 50.000 h |
| Verified OS | Windows7 incl. Embedded, Windows8.1 incl. Embedded, Windows 10 IoT, Linux Intel® Core™ i5-7300U: Windows8.1 incl. Embedded, Windows 10 IoT, Linux all other CPUs: Windows7 incl. Embedded, Windows8.1 incl. Embedded, Windows 10 IoT, Linux |
| Cooling | Fanless passive cooling |
| Weight | 9,4 kg |
| Options | Other Intel® CPUs/Platforms on request 8 GByte RAM CF/SD Card Adapter SD Card Memory 4 GB, 16 GB, 32 GB, 64 GB mSATA SSD 32 GB, 64 GB, 128 GB, 256 GB, 512 GB 2x COM (RS232, RS422, RS485) Audio with amplifi er (2x 3 W) CF Card MEmory WiFi RFID |
| Options | Other Intel® CPUs/Platforms on request 8 GByte RAM 16 GByte RAM (i5-6300U, i5-7300U) CF/SD Card Adapter SD Card Memory 4 GB, 16 GB, 32 GB, 64 GB mSATA SSD 32 GB, 64 GB, 128 GB, 256 GB, 512 GB Intel® Core™ i5-6300U / Intel® Core™ i5-7300U: m.2 SSD 32 GB, 64 GB, 128 GB, 256 GB, 512 GB, 1024 GB (1 TB) 2x COM (RS232, RS422, RS485) Audio with amplifi er (2x 3 W) CF Card MEmory WiFi RFID |
