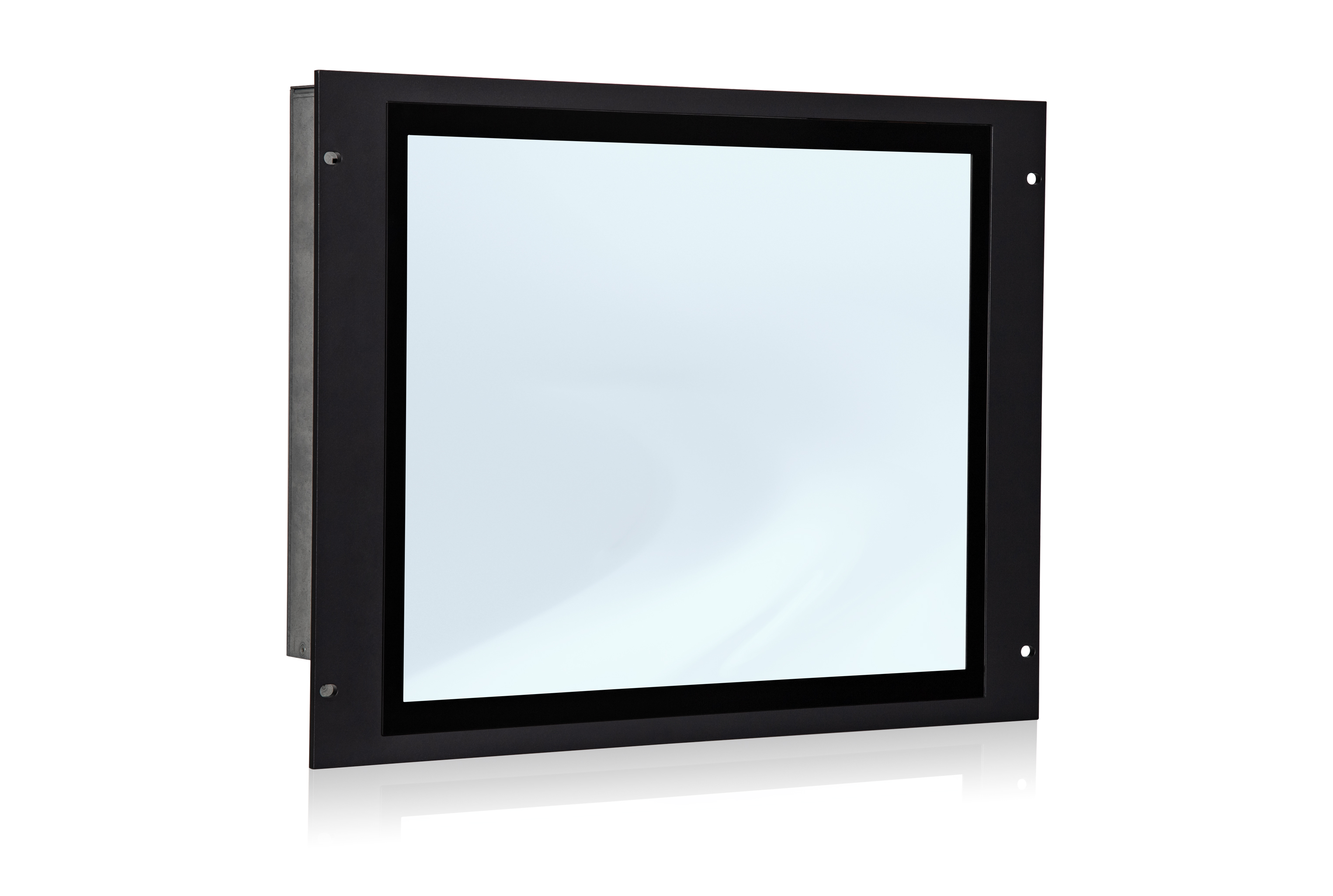

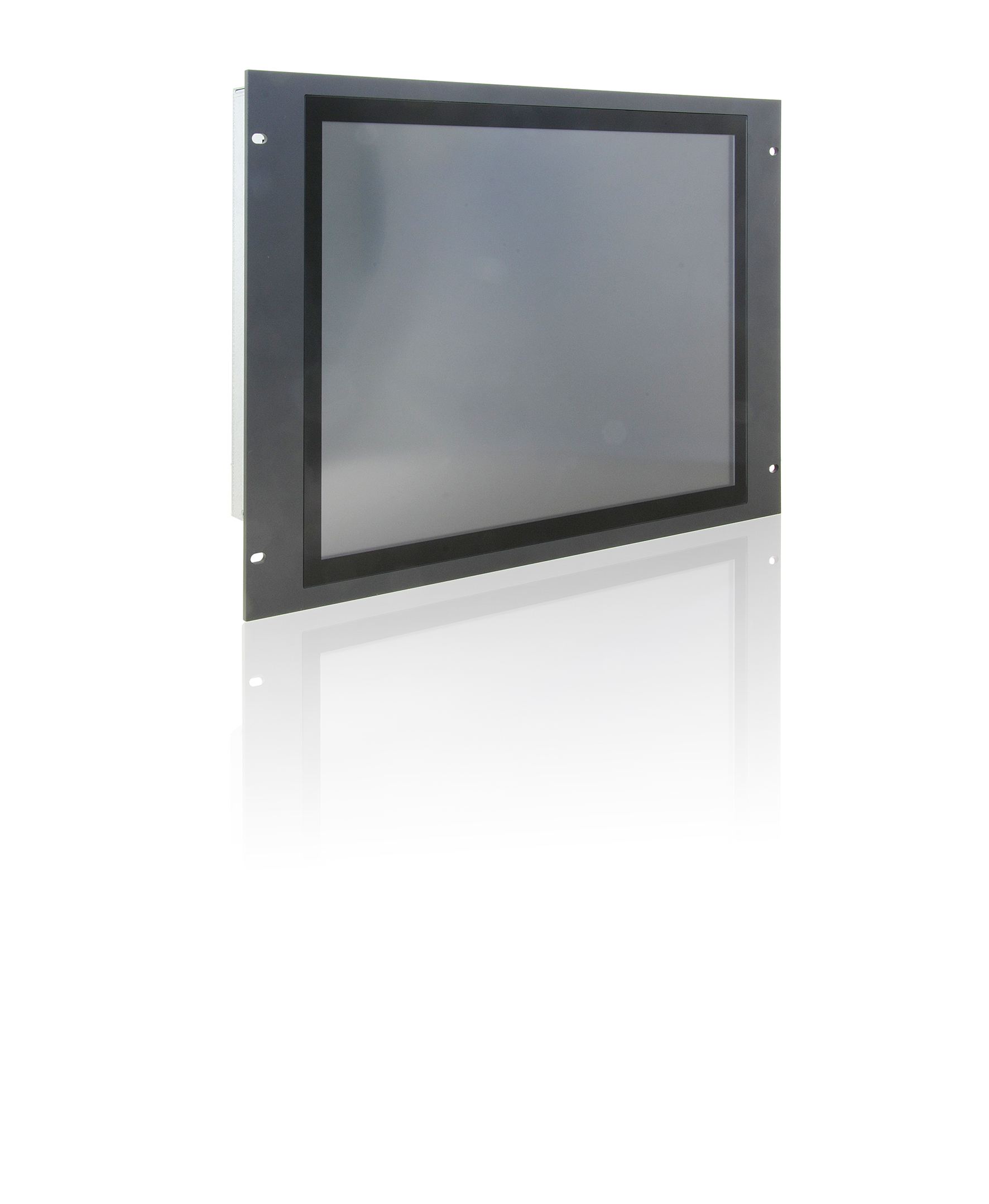

FlatView RCK
Industrial Grade Monitors for 19" Cabinets
This product is not recommended for new designs.
Last time buy: April 28th, 2023
Last time delivery: October 31st, 2023
Mouseover Zoom loading...
Specifications
- Display size 19.0” with slim bezel for 19” Rackmounting
- Front option: PCAP or protection glass
- Industrial grade – robust and reliable
- Front IP65 protected
The Kontron FlatView RCK monitor series offers brilliant screens with an anti-glare surface for best readability.
Everything is packed in a robust metal housing flush with front surface including mounting points for 19” racks which allows quick and easy installation in a cabinet. The FlatView RCK is also available with projected capacitive touch (PCAP) which increases intuitive usability without keyboard or mouse.
Features
| Display | 19.0“ (others on request) |
| Resolution | 1280 x 1024 |
| Brightness | 350 cd |
| Touch Screen | Projected capacitive touch (PCAP) / Protection glass |
| Mounting | 19” rackmount |

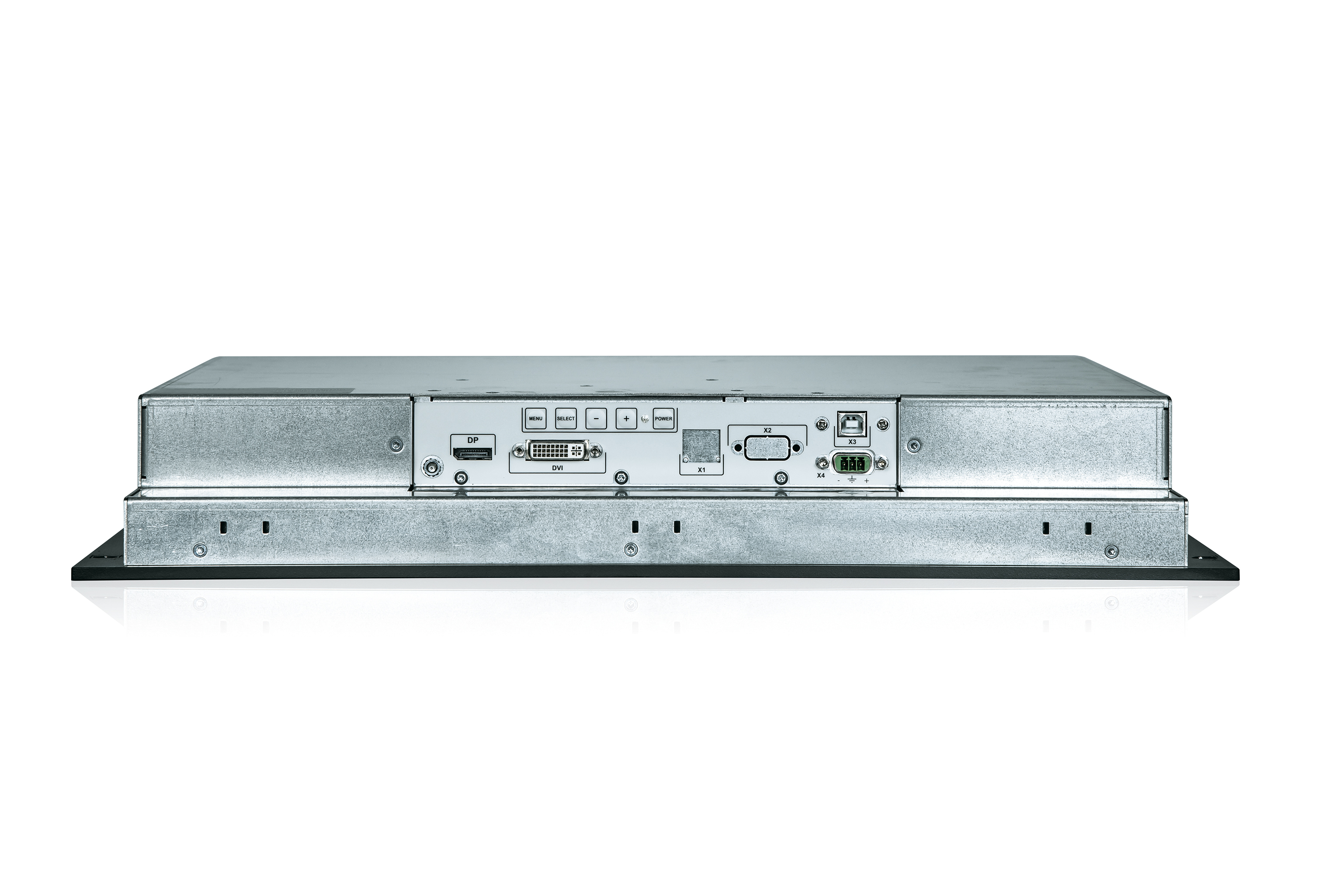

| Interface | 1x DVI-I, 1x DP 1.2, 1x USB2.0 (Client) |
| Power Supply | 16-30 VDC |
| EMC | EN55022 class B |
| Certifications | CE, cULus |
| Altitude | Up to 10.000 ft (3.000 m) |
| Shock | 15 G 11 ms duration (half sine) |
| Vibration | 10-500 Hz: 1G/3 axis |
| Operation Temperature | 0 °C to +50 °C |
| Protection Class | IP65 front, IP20 rear |
| Humidity | 10 % - 90 % @ 39 °C, non condensing |
| MTBF | > 50.000 h |
| Cooling | Fanless passive cooling |
| Weight | 9,4 kg |
Downloads
Datasheets
FlatView RCK_20180525
[ flatview-rck_datasheet.pdf, 2.04 MB, Oct.12.2022 ]
Manuals
FlatView, FlatView STS and FlatView RCK User Guide
Rev 2.7
Sept. 07, 2022
[ flatview_flatview-sts_flatview-rck_user-guide_rev-2-7_2022_08_12.pdf, 9.45 MB, Apr.20.2023 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
White Papers
Modules and Motherboards WP [restrictions apply]
Robotic-Assisted Surgery White Paper [restrictions apply]
Tech Spec Sheet
Tech Specs HMI
[ tech-specs_hmi.pdf, 1.6 MB, Oct.29.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
