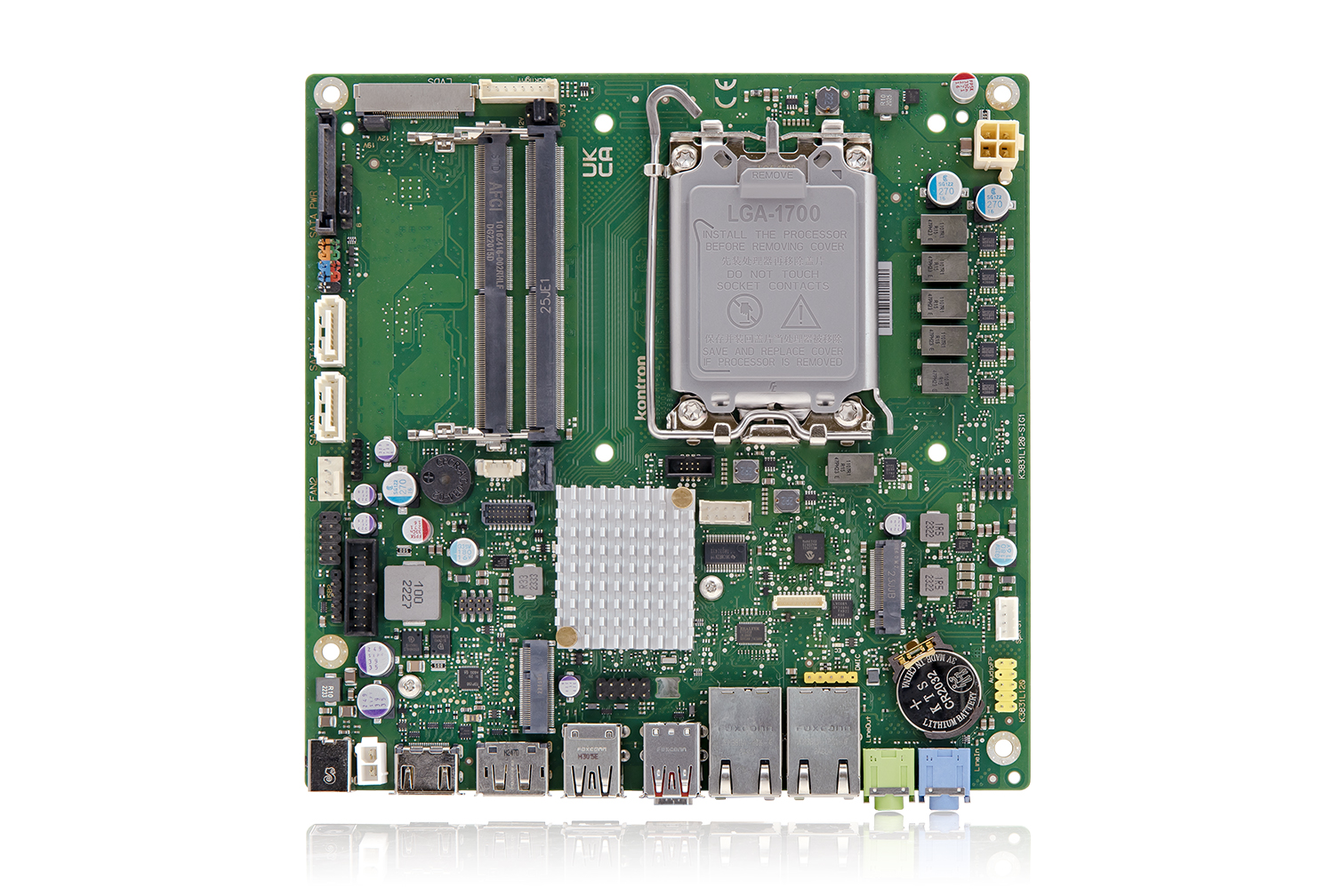

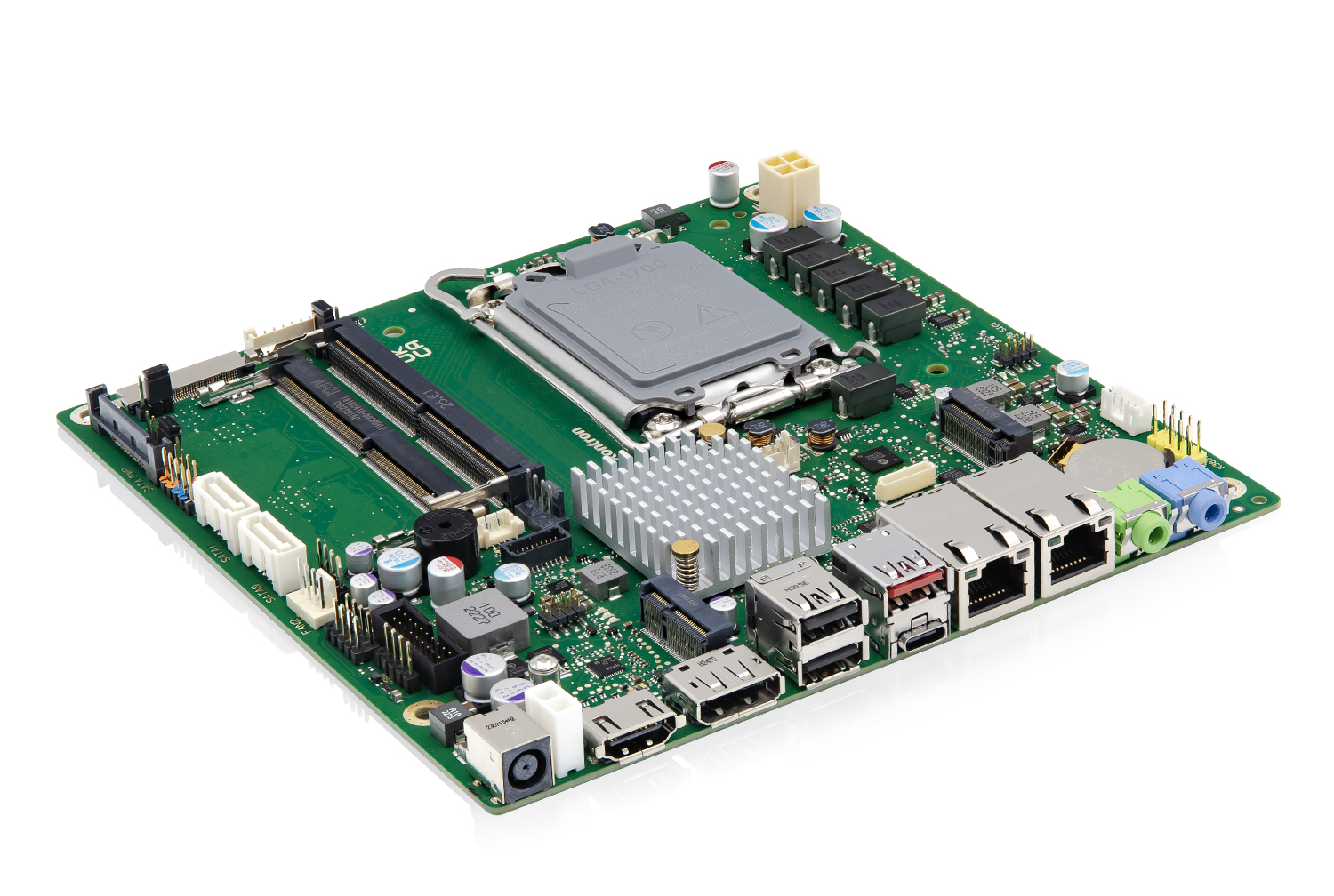

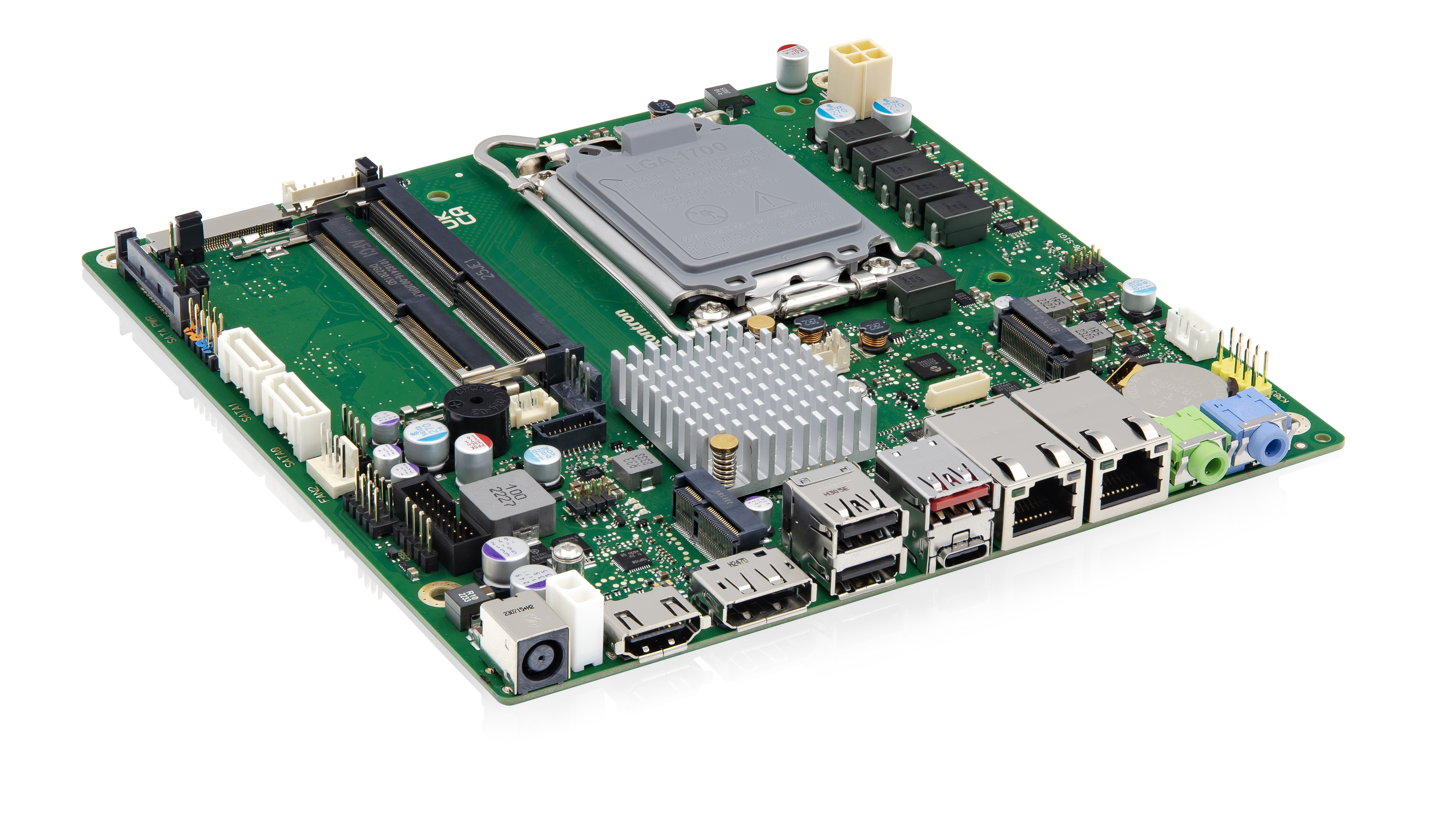

K3831-H Thin mITX New
Industrial Motherboard supporting Intel® Core™ Processors (12th/13th/14th Gen.)
Mouseover Zoom loading...
Specifications
- Latest DDR5 memory technology for best-in-class system performance
- Intel® UHD Graphics 7xx driven by Xe Architecture; DPP-, HDMI-, and LVDS- support
- Dual LAN 1GbE incl. Teaming
- M.2 Key-M Gen4 & Key-E; Powerful USB 3.2 Gen2
- 8-Bit GPIO
The industrial Motherboard K3831-H Thin mITX provides highest performance and functionality for demanding requirements on a small and ultra thin form factor. It supports the Intel® Core™ i3/i5/i7/i9 processor series (12th/13th/14th Gen.) as well as the Intel® Pentium® & Intel® Celeron® processor series. Despite the limited space on this motherboard, the K3831-H is equipped with connectors for HDMI V2.0b, Display Port V1.4a, Dual Channel LVDS, Dual GbE LAN and 9x USB (2.0, 3.2 Gen1 and 3.2 Gen2).
Benefits of Kontron motherboards:
- Highest quality through German engineering and production
- Strict lifecycle management and reliable product maintenance
- Comprehensive feature and tool set
- Excellent technical support
- Beneficial total-cost-of-ownership
Download CPU Compatibility List
Features
| Processor | Intel® Core™ i9 / i7 / i5 / i3 Processor Series (12th/13th/14th Gen.) Intel® Pentium®/Intel® Celeron® processor series |
| Chipset | Intel® H610 Chipset |
| Main Memory | 2x DDR5-5600 SODIMM Sockets up to 64 GByte, Dual Channel, non-ECC |
| Graphics Controller | Intel® UHD Graphics 7xx (depends on installed processor) |
| Display | 1x Display Port V1.4a 1x HDMI V2.0b Dual-Channel (24bit) LVDS |
| Audio Controller | Realtek ALC256 |
| Audio | High Definition Audio Codec, 2W@4Ohm stereo speaker support |
| Ethernet | Realtek RTL8111H with 10/100/1000 MBit/s Intel® i219LM with 10/100/1000 MBit/s LAN Teaming support |

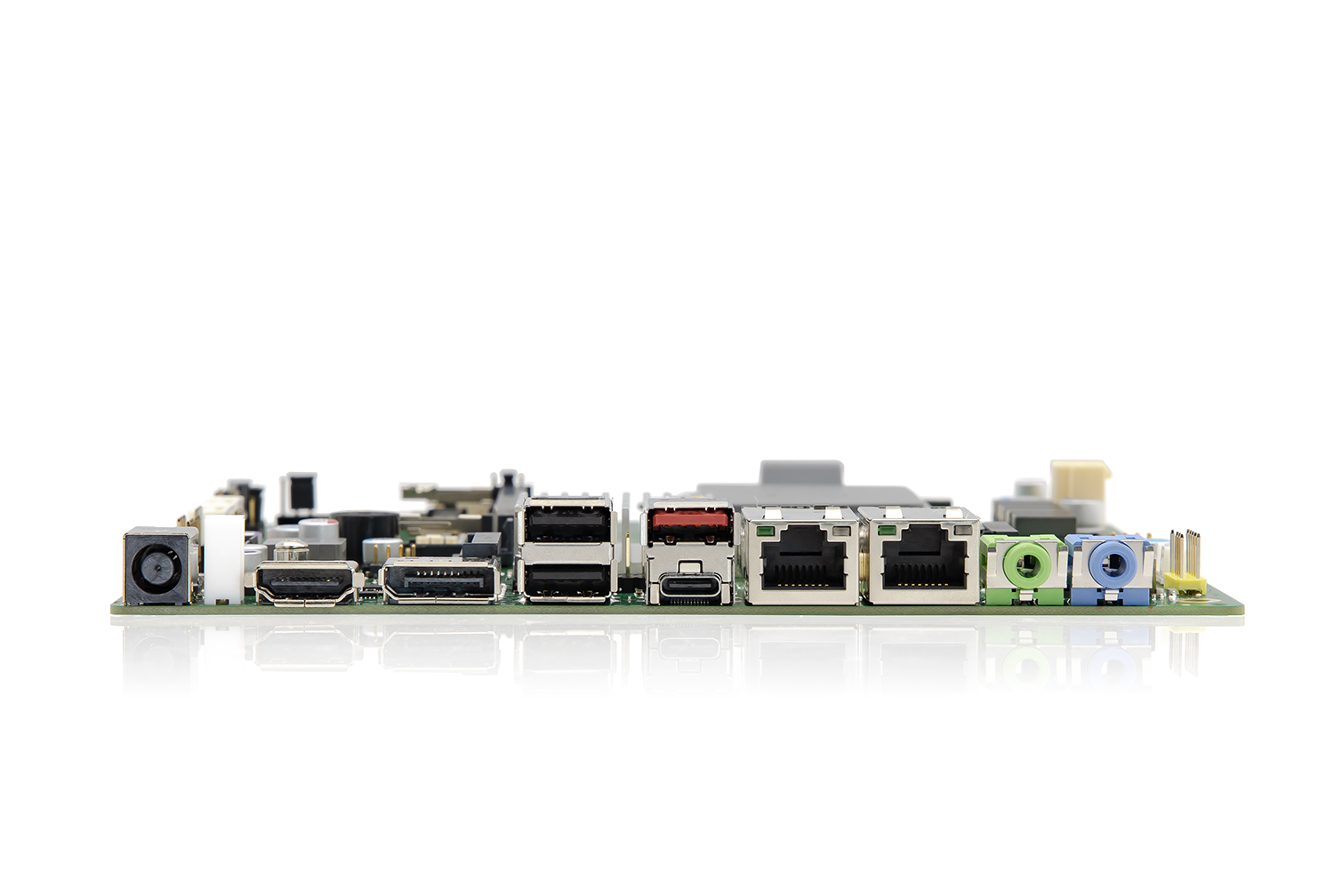

| USB | 2x USB 2.0 (rear I/O, Type-A) + 3x USB 2.0 (by header) 1x USB 3.2 Gen 2 (rear I/O, Type-A), 1x USB 3.2 Gen 2 (rear I/O, Type-C) 2x USB 3.2 Gen 1 (by header) |
| Serial | 1x RS232 (by header) |
| Available I/Os | 1x 8-bit GPIO (by header) |
| SATA | 2x SATA-600 |
| Expansion | 1x M.2 2242 (Key-M, Gen 4, PCIe/NVME SSD modules) 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, incl. CNVi support) |
| Power connector | Dual-Range DC Power Supply 12 V/19-24 V |
| Input Voltage | External DC-in: 19-24 V Internal DC-in: 12 V or 19-24 V |
| BIOS | AMI Aptio 5.x (UEFI) BIOS |
| Watchdog | BIOS POST-/BIOS BOOT-/OS-HW Watchdog |
| Real Time Clock | integrated |
| Cooling | 1x CPU-Fan (4Pin-Header, PWM) 1x System-Fan (4Pin-Header, PWM) |
| Operating System | MS Windows 10, MS Windows 11, MS Windows 10 IOT, Linux-64 |
| Mechanical Dimensions | Mini-ITX: 6.7“ x 6.7“ (170 x 170 mm) |
| Operating Temperature | 0 °C - 60 °C |
| Humidity | 5%-85% |
| Certifications | cTÜVus acc. IEC62368-1, CE Class B incl. Industrial Immunity, UKCA, FCC-B verified |
Downloads
Driver Updates
BIOS Updates
Datasheets
K3831-H Thin mITX
[ k3831-h-thin-mitx_data-sheet_en.pdf, 543.98 KB, Apr.15.2024 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
White Papers
Modules and Motherboards WP [restrictions apply]
Tech Spec Sheet
Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 7.28 MB, Nov.21.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Accessories
|
COM Cable short w/o bracket S26361-F5000-K007 |
|
w/o slot bracket, length = 120mm; new 2mm pitch internal connector | |
|
COM Cable "long" S26361-F5000-K010 |
|
with fullsize slot bracket | |
|
TPM Upgrade Module S26361-F5000-R012 |
|
TPM V2.0 (for CoffeeLake; SPI Interface) | |
|
DP 20P M to HDMI Adapter F5000-A007 |
|
DP 20P M to HDMI Adapter, up to 4k @ 60 Hz |
