K3836-Q/R mITX New
Industrial Motherboard supporting Intel® Core™ Processors (12th/13th/14th Gen)
Mouseover Zoom loading...
Specifications
- Latest DDR5 memory technology for best-in-class system performance
- Intel® UHD Graphics 7xx driven by Xe Architecture; DisplayPort™, eDP-, and LVDS- support
- Dual LAN 1GbE/2.5GbE incl. Teaming and TSN support
- M.2 Key-M & Key-E; Powerful USB 3.2 Gen2
- Combined ATX Standard PSU or Single 12V Supply

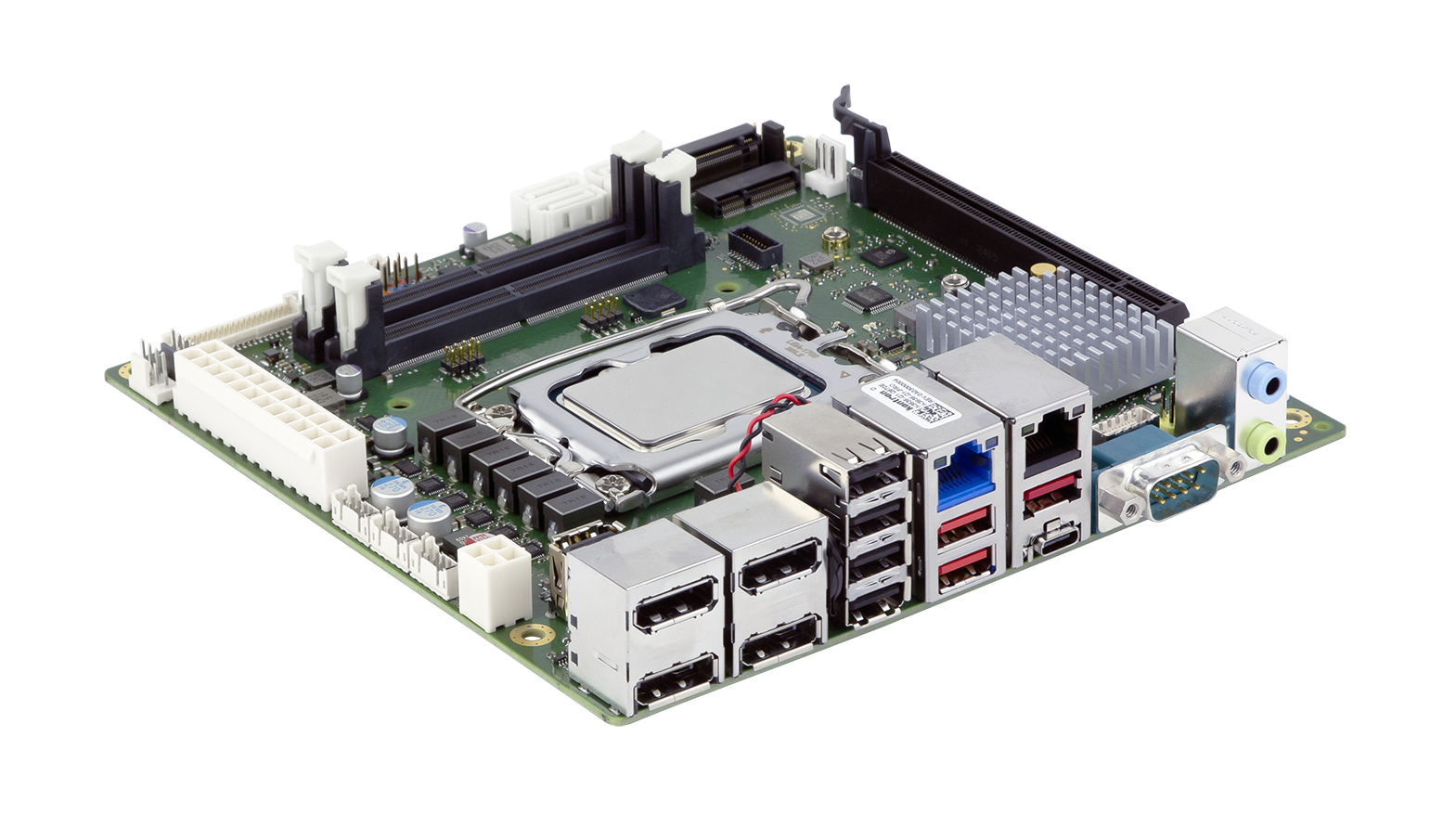

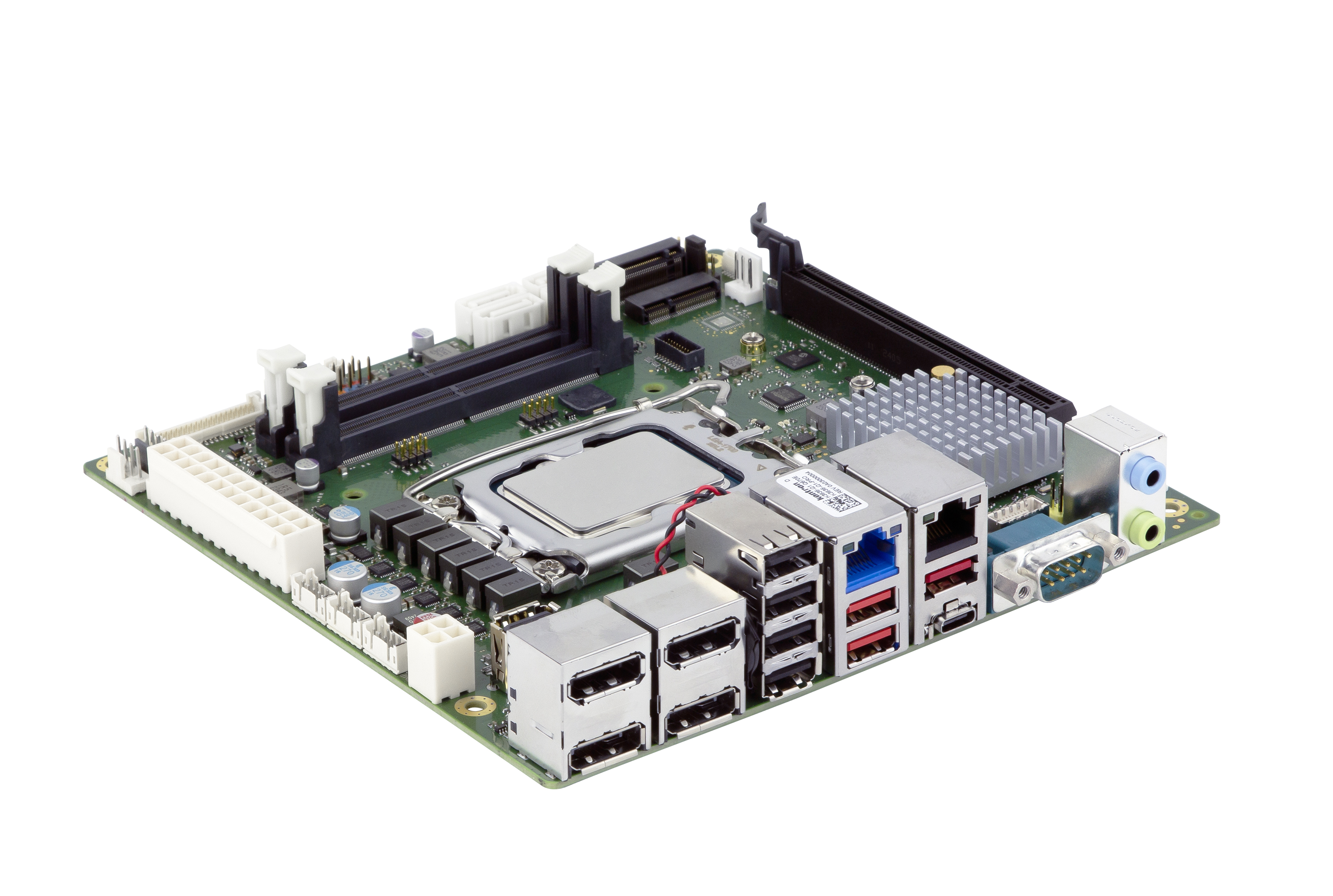

The K3836 mITX motherboard is the successor to the prosperous D3633-S. It combines the proven functionality of its popular forerunner with the latest Intel® Core™ processor generation and latest standards.
Developed and produced in Germany, this motherboard offers two configuration options: The K3836-R is equipped with the high-performance Intel® R680E chipset with ECC support for mission-critical applications. The K3836-Q has the equally powerful Q670 chipset onboard.
Unleash unparalleled connectivity with the K3836, featuring 2x Intel® LAN (1x 2.5 GbE), PCIe x16 Gen5, multiple USB ports, M.2 or Display Ports supporting graphics up to 8K resolutions and much more. It is particularly reliable thanks to 24/7 continuous operation at temperatures up to 60° C. Therefore, it can be used for various applications in the fields of industry, medicine, infotainment and more.
Benefits of Kontron motherboards:
- Highest quality through German engineering and production
- Strict lifecycle management and reliable product maintenance
- Comprehensive feature and tool set
- Excellent technical support
- Beneficial total-cost-of-ownership
Features
| Processor | Intel® Core™ processor series i9/i7/i5/i3 (12th/13th/14th Gen) Intel® Pentium®/Intel® Celeron® processor series |
| Chipset | K3836-Q: Intel® Q670 K3836-R: Intel® R680E |
| Main Memory | 2x DDR5-4800/5600 SODIMM Sockets, max. 96 Gbyte, Dual Channel unbuffered ECC supported by K3836-R with R680E |
| Graphics Controller | Intel® UHD Graphics 7xx driven by Xe Architecture |
| Display | 4x DisplayPort v1.4a up to 8K 1x embedded DisplayPort v1.4b @4K 1x Dual Channel LVDS (24bit) |
| Audio Controller | Realtek ALC256 |
| Audio | Stereo, High Definition Audio Codec |
| Ethernet | 1x Intel® i219LM with 10/100/1000 Mbit/s, iAMT features 1x Intel® i226LM with 10/100/1000/2500 Mbit/s |
| USB | 5x USB 3.2 Gen2 (2x Key-B header) 1x USB 3.2 Gen2 (Type-C) 6x USB 2.0 (2x by header) 1x USB 2.0 stick socket |

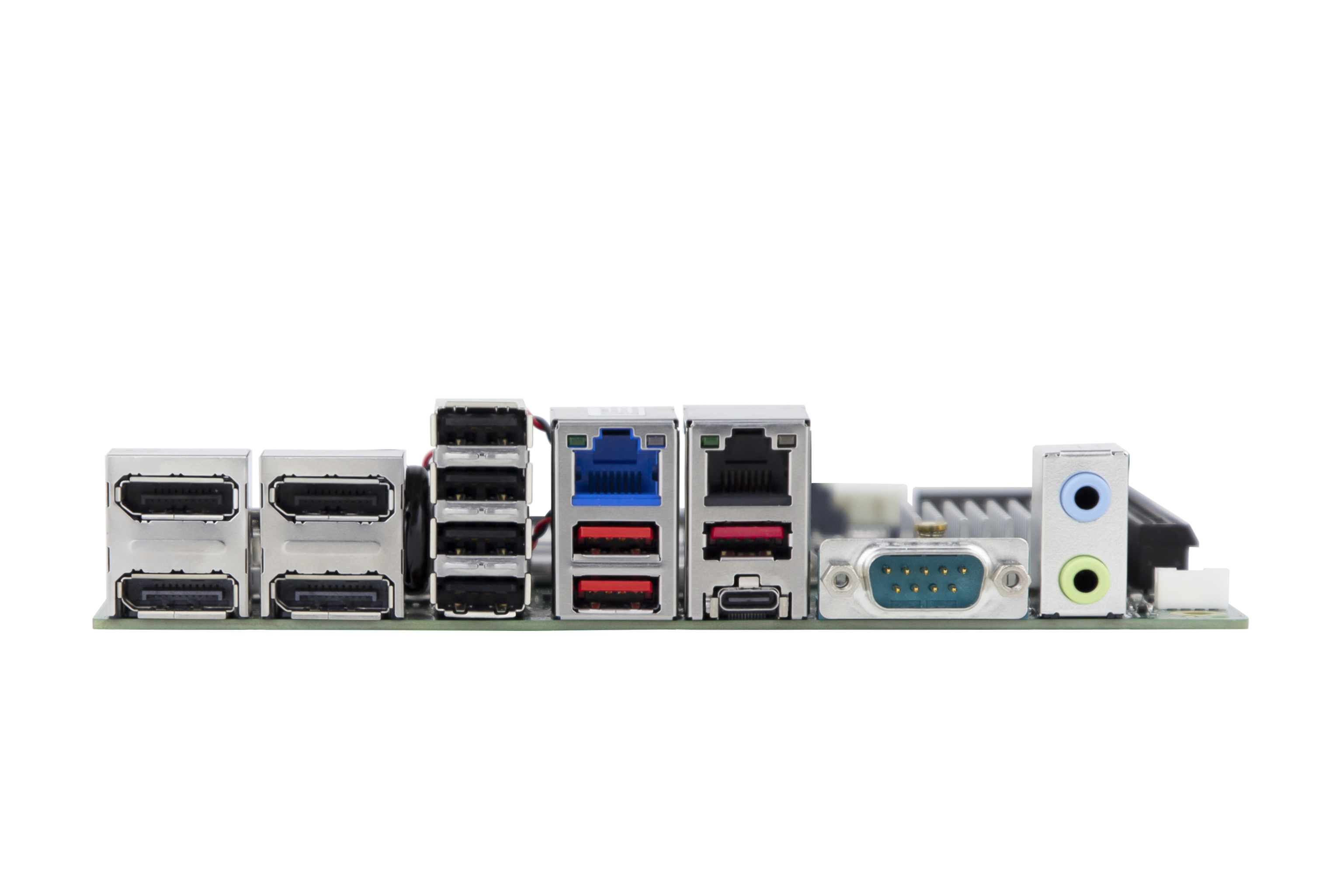

| Serial | 1x RS232/422/485 3x RS232 (1x rear I/O, 3x by headers) |
| Available I/Os | 8 Bit GPIO (Input/Output); WLAN LED support, WLAN enable/disable support |
| SATA | 4x SATA III 600 Interface (up to 6GBit/s), NCQ, AHCI |
| Expansion | 1x M.2 2242/2280 (Key-M, PCIe/NVME SSD modules) 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, PCIe + USB) PCIe x16: 1x 16 lanes, Gen5, Support for lane split (x16 or x8 + x8) |
| Power connector | 24-pin ATX socket plus 4-pin socket for CPU |
| Input Voltage | Dual supply option: Single 12 V PSU ("DC In") or Standard ATX Multirail PSU |
| BIOS | AMI Aptio 5.x (UEFI) BIOS |
| Watchdog | BIOS POST-/BIOS BOOT-/OS-HW Watchdog |
| Real Time Clock | integrated |
| Cooling | 2x PWM fan (CPU/System) |
| Operating System | MS Windows 10, MS Windows 11, MS Windows 10 IoT, Linux-64 No legacy OS support, no MBR installation (UEFI only) |

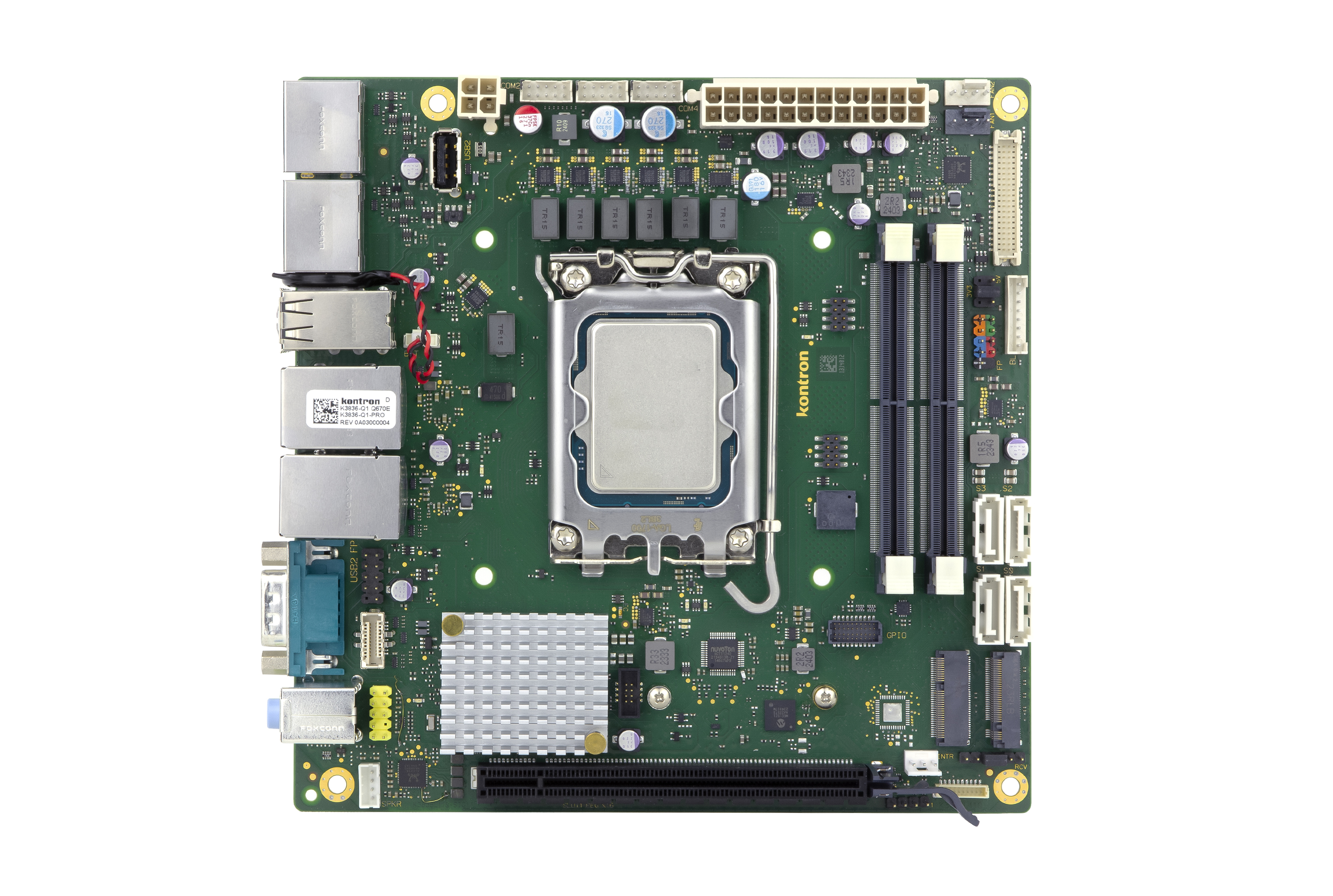

| Mechanical Dimensions | Mini-ITX: 6.7" x 6.7" (170 x 170 mm) |
| Operating Temperature | 0°C-60°C |
| Humidity | 5%-85% |
| Certifications | Planned: cTÜVus acc. IEC62368-1, CE Class B incl. Industrial Immunity, UKCA, FCC-B verified |
