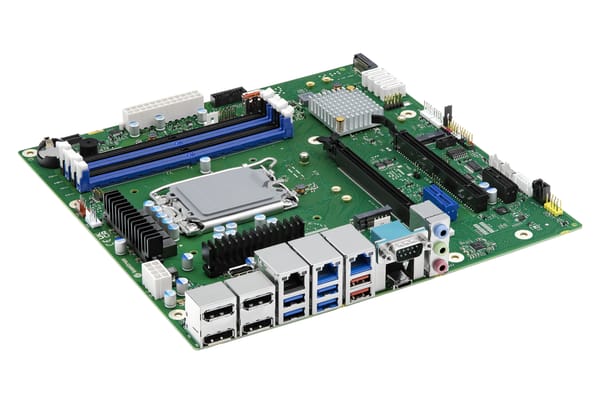

K3841-Q µATX
Industrial Motherboard supporting Intel® Core™ Processors (12th/13th/14th Gen.)
Mouseover Zoom loading...
Specifications
- Latest DDR5 memory technology for best-in-class system performance
- Intel® UHD Graphics 7xx driven by Xe Architecture
- Triple LAN 1GbE/2.5GbE incl. Teaming and TSN support
- Dual M.2 Key-M SSD & single M.2 Key-E WLAN sockets onboard
- Powerful USB 3.2 Gen 2/Type-C, 4x COM, GPIO
The industrial motherboard K3841-Q μATX is equipped with the highly performant Intel® Q670E Chipset and offers a multitude of supporting processors such as Intel® Core™ i9/i7/i5/i3 processors (12th/13th/14th Gen.) and the Intel® Pentium®/Intel® Celeron® processor series. Designed and approved for 24/7 continuous operation and an enhanced temperature range up to 60°C the K3841-Q μATX provides high functionality and fits perfect with special requirements of certain markets. It offers iAMT-based Out-of-Band Management features. Besides, K3841-Q provides TSN and Realtime support (TCC) for specific industrial applications.
Benefits of Kontron motherboards:
- Highest quality through German engineering and production
- Strict lifecycle management and reliable product maintenance
- Comprehensive feature and tool set
- Excellent technical support
- Beneficial total-cost-of-ownership
Download CPU Compatibility List
Features
| Processor | Intel® Core™ i9 / i7 / i5 / i3 Processor Series (12th/13th/14th Gen.) Intel® Pentium®/Intel® Celeron® processor series |
| Chipset | Intel® Q670E Chipset |
| Main Memory | 4x DDR5-4800 DIMM Sockets up to 128 Gbyte, Dual Channel, non-ECC |
| Graphics Controller | Intel® UHD Graphics 7xx (depends on installed processor) |
| Display | 4x DPP V1.4a |
| Audio Controller | Tempo Semiconductor 92HD91B |
| Audio | 5.1-channel; High Definition Audio Codec |
| Ethernet | 1x Intel® i219LM with 10/100/1000 MBit/s, iAMT features 2x Intel® i226LM with 10/100/1000/2500 MBit/s, TSN Support |
| USB | 2x USB 3.2 Gen 2 (rear I/O, Type-A) 1x USB 3.2 Gen 2 (rear I/O, Type-C) 4x USB 3.2 Gen1 (rear I/O, Type-A) 2x USB 3.2 Gen1 (by header) 2x USB 2.0 (by header) 1x USB 3.2 Gen2 (internal Type-A) 1x USB 2.0 (internal Type-A) |
| Serial | 1x RS232 (rear I/O), 3x RS232 (by header) |
| Available I/Os | 1x 8-Bit GPIO |
| SATA | 4x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI, RAID 0/1/5/10 |
| Expansion | 2x M.2 2230/2242/2280 (Key-M, PCIe/NVME SSD modules), incl. NVME RAID support 1x M.2 2230 ((Key-E, WLAN/Bluetooth modules, incl. CNVi support) PCIe x16: 1x 16 lanes, Gen5/1x 4 lanes, Gen4 PCIe x1: 1x Gen3, "open slot"/1x Gen4, "closed slot" |
| Power connector | ATX (Multirail) plus 8-pin socket (12 V for CPU) |
| Input Voltage | Multirail |
| BIOS | AMI Aptio 5.x (UEFI) BIOS |
| Watchdog | Recovery BIOS, System and BIOS Password, Boot Sequence Control, Serial/USB- Port Access Protection, Write Protection for Flash BIOS, EraseDisk (BIOS Feature), Trusted Platform Module (TPM) |
| Real Time Clock | integrated |
| Cooling | 4x PWM fan (CPU/3 x System) |
| Operating System | Windows 10 Windows 10 IoT Windows 11 Linux-64 |
| Mechanical Dimensions | µATX (243.8 x 243.8 mm / 9.6" x 9.6") |
| Operating Temperature | 0°C-60°C |
| Humidity | 5%-85% |
| Certifications | cTÜVus acc. IEC62368-1, CE Class B incl. Industrial Immunity, UKCA, FCC-B verified |
Downloads
Driver Updates
BIOS Updates
Datasheets
Datasheet K3841-Q µATX
[ k3841-q_datasheet.pdf, 922.76 KB, Nov.26.2024 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
White Papers
Modules and Motherboards WP [restrictions apply]
Tech Spec Sheet
Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 7.28 MB, Nov.21.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Accessories
|
COM Cable "long" S26361-F5000-K010 |
|
with fullsize slot bracket | |
|
Single M.2 Carrier Board S26361-F5000-M001 |
|
M.2 PCIe only | |
|
DP 20P M to HDMI Adapter F5000-A007 |
|
DP 20P M to HDMI Adapter, up to 4k @ 60 Hz | |
|
M.2 Dual SATA Module F5000-M004 |
|
M.2 Dual SATA Module |
