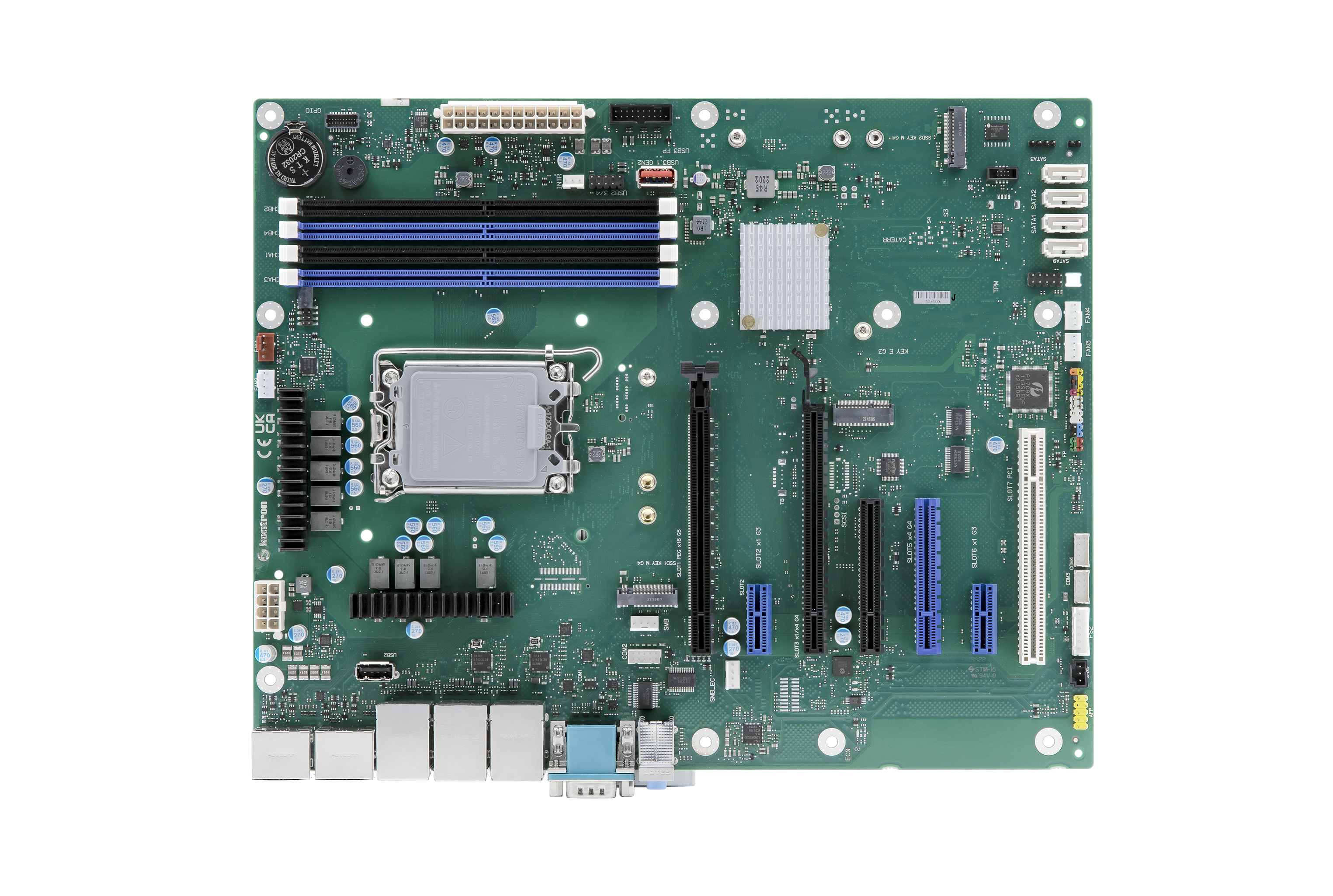

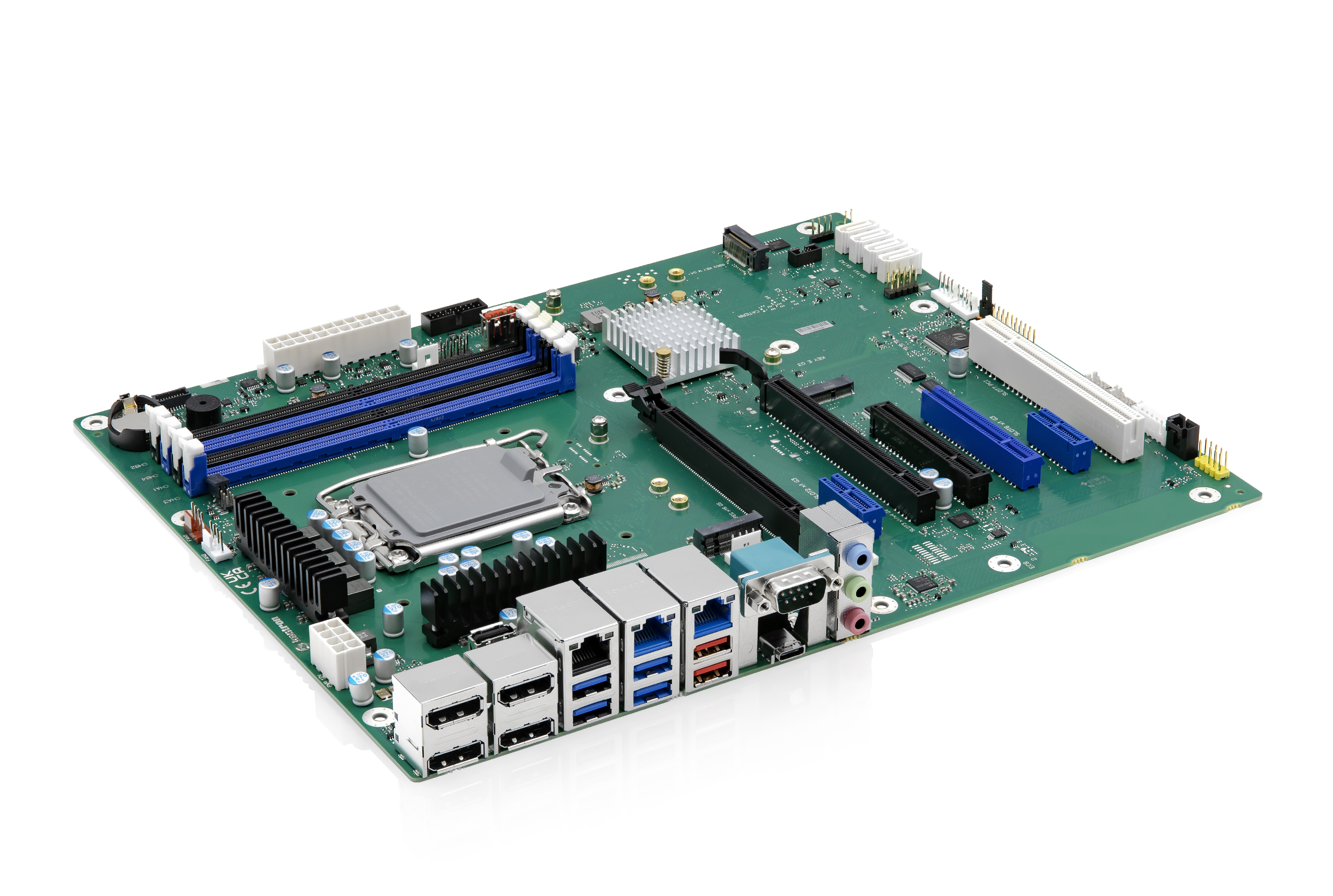

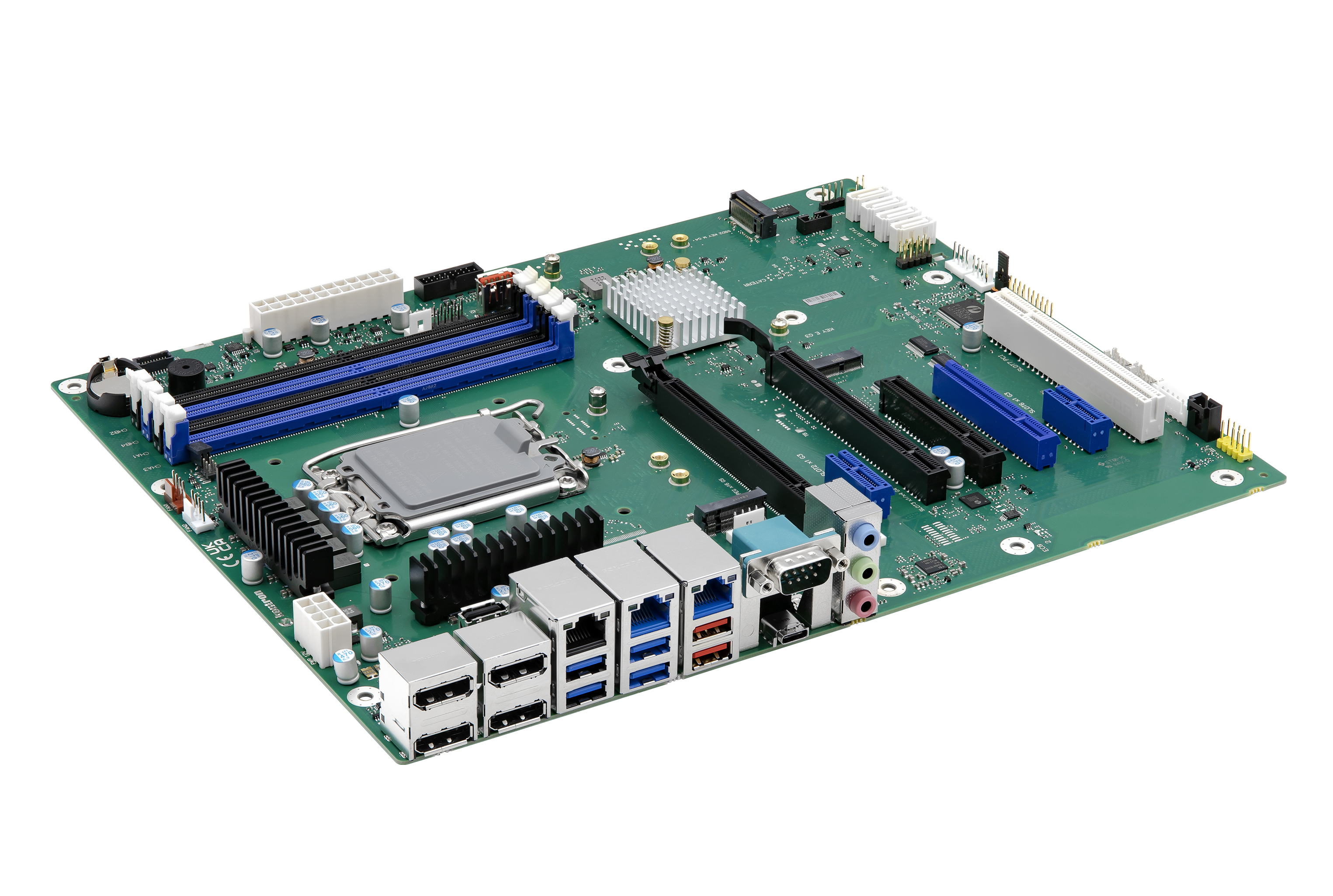

K3851-R ATX
Industrial Motherboard supporting Intel® Core™ Processors (12th/13th/14th Gen.)
Mouseover Zoom loading...
Specifications
- Latest DDR5 memory technology for best-in-class system performance
- Intel® UHD Graphics 7xx driven by Xe Architecture
- Triple LAN 1GbE/2.5GbE incl. Teaming and TSN support
- Dual M.2 Key-M SSD & single M.2 Key-E WLAN sockets onboard
- Powerful USB 3.2 Gen 2/Type-C, 4x COM, GPIO, PCI Slot
The Industrial Motherboard K3851-R ATX is equipped with the highly performant Intel® R680E Chipset and supports the Intel® Core™ i9/i7/i5/i3 processors (12th/13th/14th Gen.) as well as the processors of the Intel® Pentium® & Intel® Celeron® series. Designed and approved for 24/7 continuous operation and an enhanced temperature range up to 60 °C, the K3851-R ATX provides high functionality and fits perfect with special requirements of certain markets. It offers iAMT-based Out-of-Band Management features and supports new features like DDR5 or PCI Express Gen5 as well as TSN or Realtime (TCC). It is therefore particularly suitable for applications in the industrial automation market, such as control PCs in 19" rack format (e.g. for robotics), medical technology, high-performance workstations for CAD applications, video editing and displays, and many more.
Benefits of Kontron motherboards:
- Highest quality through German engineering and production
- Strict lifecycle management and reliable product maintenance
- Comprehensive feature and tool set
- Excellent technical support
- Beneficial total-cost-of-ownership
Download CPU Compatibility List
Features
| Processor | Intel® Core™ i9 / i7 / i5 / i3 Processor Series (12th/13th/14th Gen.) Intel® Pentium®/Intel® Celeron® processor series |
| Chipset | Intel® R680E Chipset |
| Main Memory | 4x DDR5-4800 DIMM Sockets up to 128 GByte, Dual Channel, ECC-support |
| Graphics Controller | Intel® UHD Graphics 7xx (depends on installed processor) |
| Display | 4x DPP V1.4a @8k Optional VGA-Ext. D3653 |
| Audio Controller | Tempo Semiconductor 92HD91B |
| Audio | 5.1-channel; High Definition Audio Codec |
| Ethernet | 1x Intel® i219LM with 10/100/1000 MBit/s, iAMT features 2x Intel® i226LM with 10/100/1000/2500 MBit/s, TSN Support |

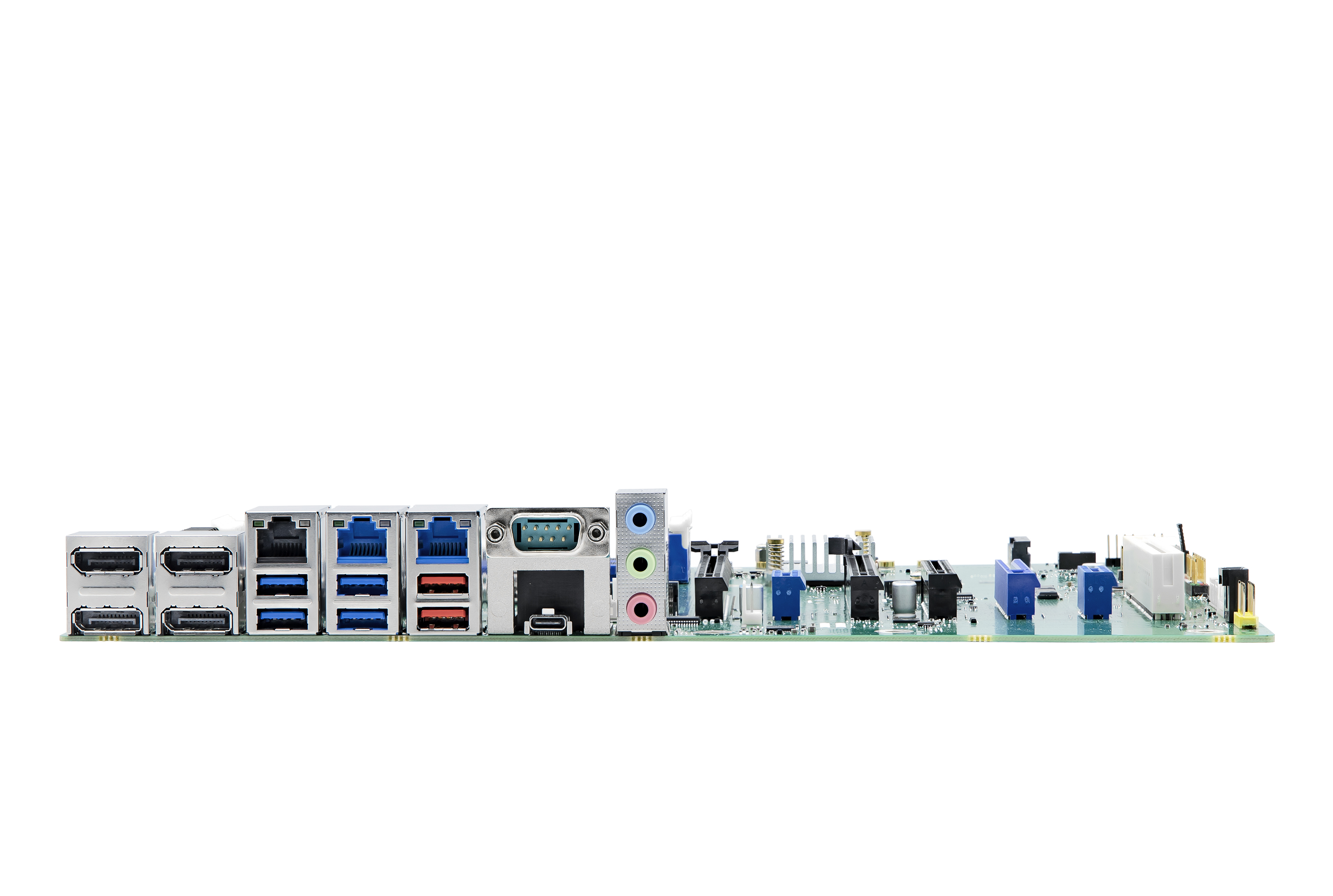

| USB | 2x USB 3.2 Gen 2 (rear I/O, Type-A), 1x USB 3.2 Gen 2 (rear I/O, Type-C with locking option), 4x USB 3.2 Gen1 (rear I/O, Type-A), 2x USB 3.2 Gen1 (by header), 2x USB 2.0 (by header), 1x USB 3.2 Gen2 (internal Type-A stick socket), 1x USB 2.0 (internal Type-A stick socket) |
| Serial | 1x RS232 (rear I/O), 3x RS232 (by header) |
| Available I/Os | 1x 8-Bit GPIO |
| SATA | 4x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI, RAID 0/1/5/10 |
| Expansion | 2x M.2 2230/2242/2280 (Key-M, PCIe/NVME SSD modules), incl. NVME RAID support 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, incl. CNVi support) PCIe x16: 1x 16 lanes, Gen5 / 1x 4 lanes, Gen4 PCIe x8: 1x 4 lanes, Gen4 ("open slot") / 1x 4 lanes, Gen3 ("closed slot") PCIe x1: 2x Gen3 ("open slots") PCI: 1x 32Bit slot |
| Power connector | ATX (Multirail) plus 8-pin socket (12 V for CPU) |
| Input Voltage | Multirail |
| BIOS | AMI Aptio 5.x (UEFI) BIOS |
| Watchdog | Recovery BIOS, System and BIOS Password, Boot Sequence Control, Serial/USB- Port Access Protection, Write Protection for Flash BIOS, EraseDisk (BIOS Feature), Trusted Platform Module (TPM |
| Real Time Clock | integrated |
| Cooling | 4x PWM fan (CPU/3 x System) |
| Operating System | Windows 10 Windows 10 IoT Windows 11 Linux-64 |
| Mechanical Dimensions | ATX (243.8 x 304.8 mm / 9.6" x 12") |
| Operating Temperature | 0°C-60°C |
| Humidity | 5%-85% |
| Certifications | cTÜVus acc. IEC62368-1, CE Class B incl. Industrial Immunity, UKCA, FCC-B verified |
Downloads
Driver Updates
BIOS Updates
Datasheets
Datasheet K3851-R ATX
[ k3851-r-atx_datasheet.pdf, 522.3 KB, Jul.09.2024 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
White Papers
Modules and Motherboards WP [restrictions apply]
Tech Spec Sheet
Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 6.05 MB, Apr.15.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Accessories
|

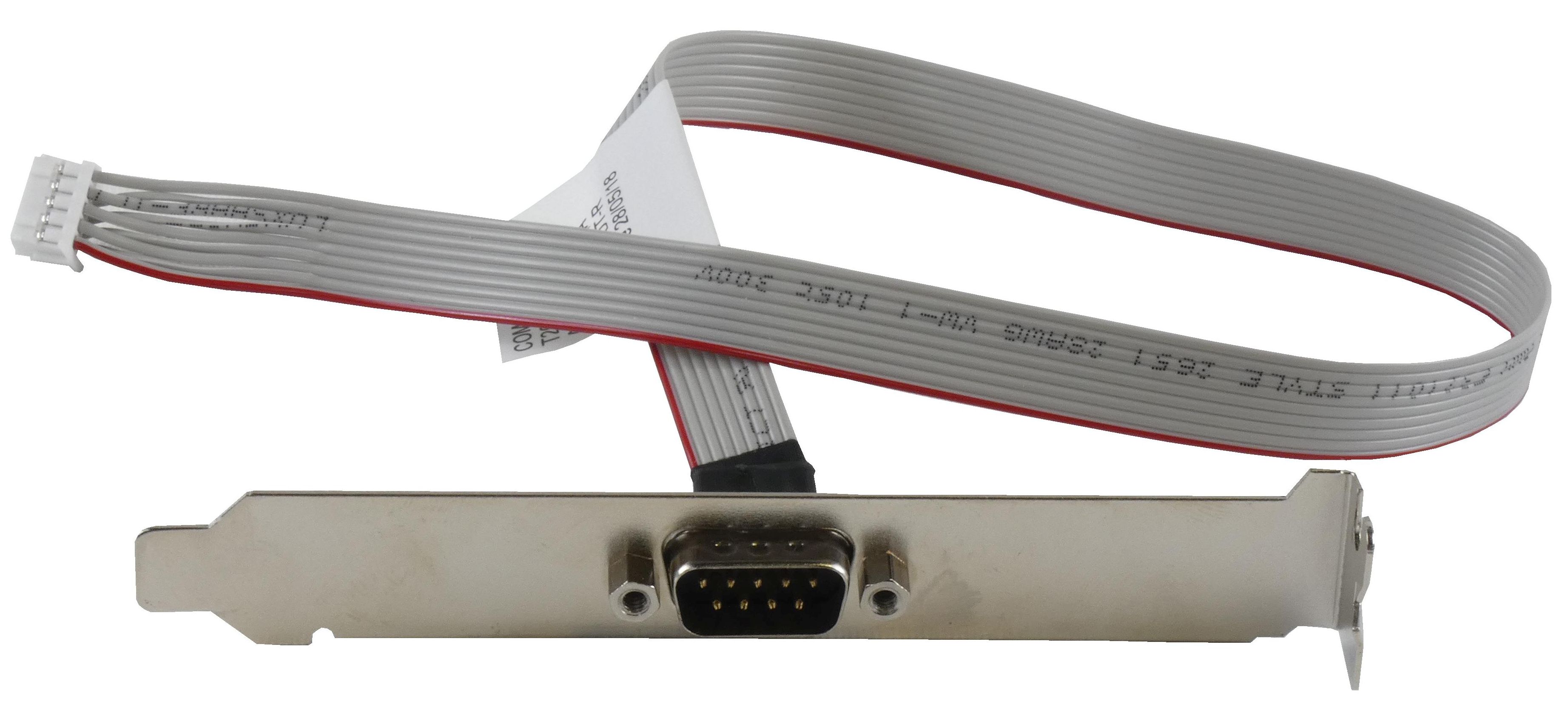

COM Cable "long" S26361-F5000-K010 |
|
with fullsize slot bracket | |
|

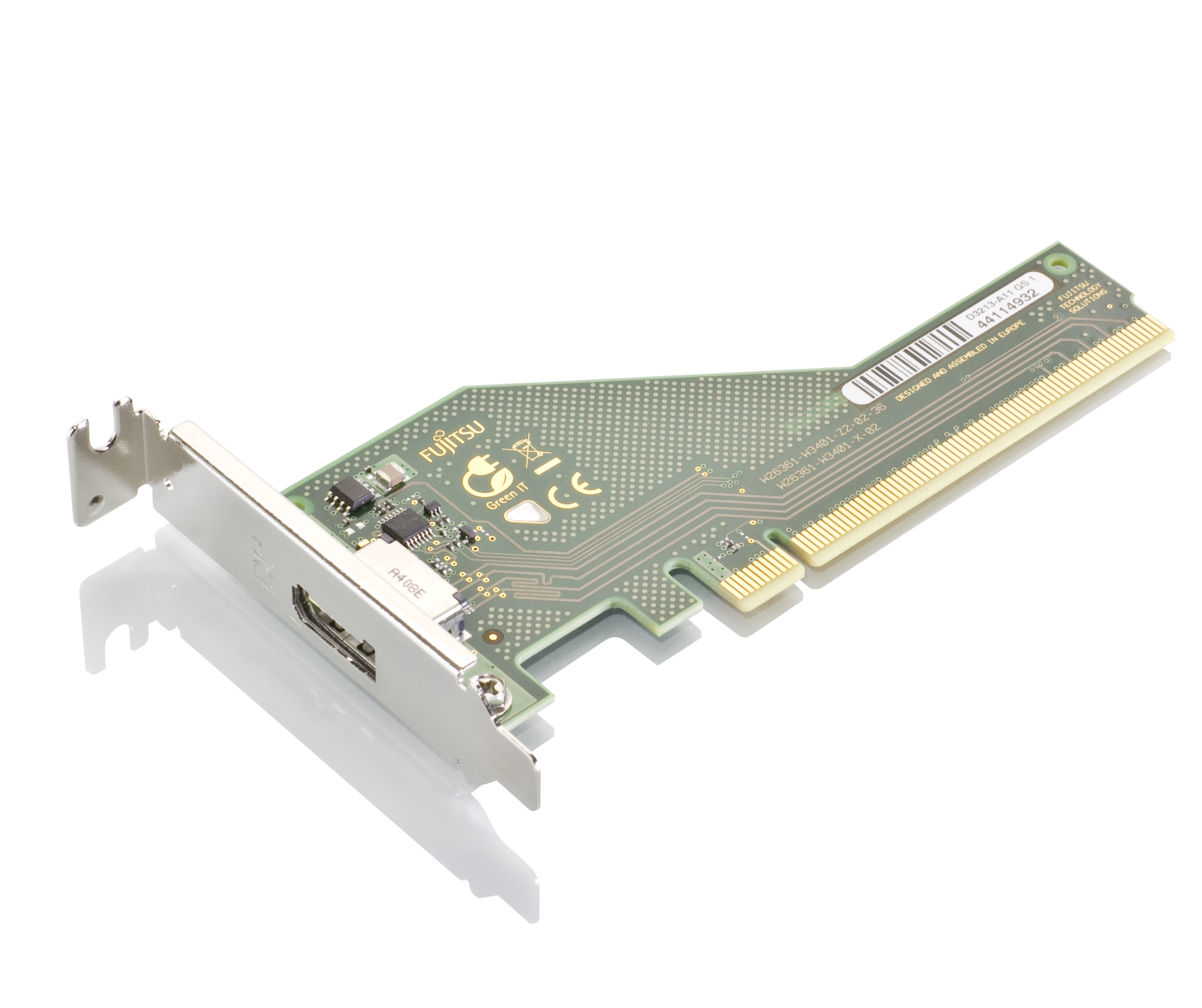

VGA Converter Card S26361-F5000-R009 |
|
full/half bracket tbd | |
|

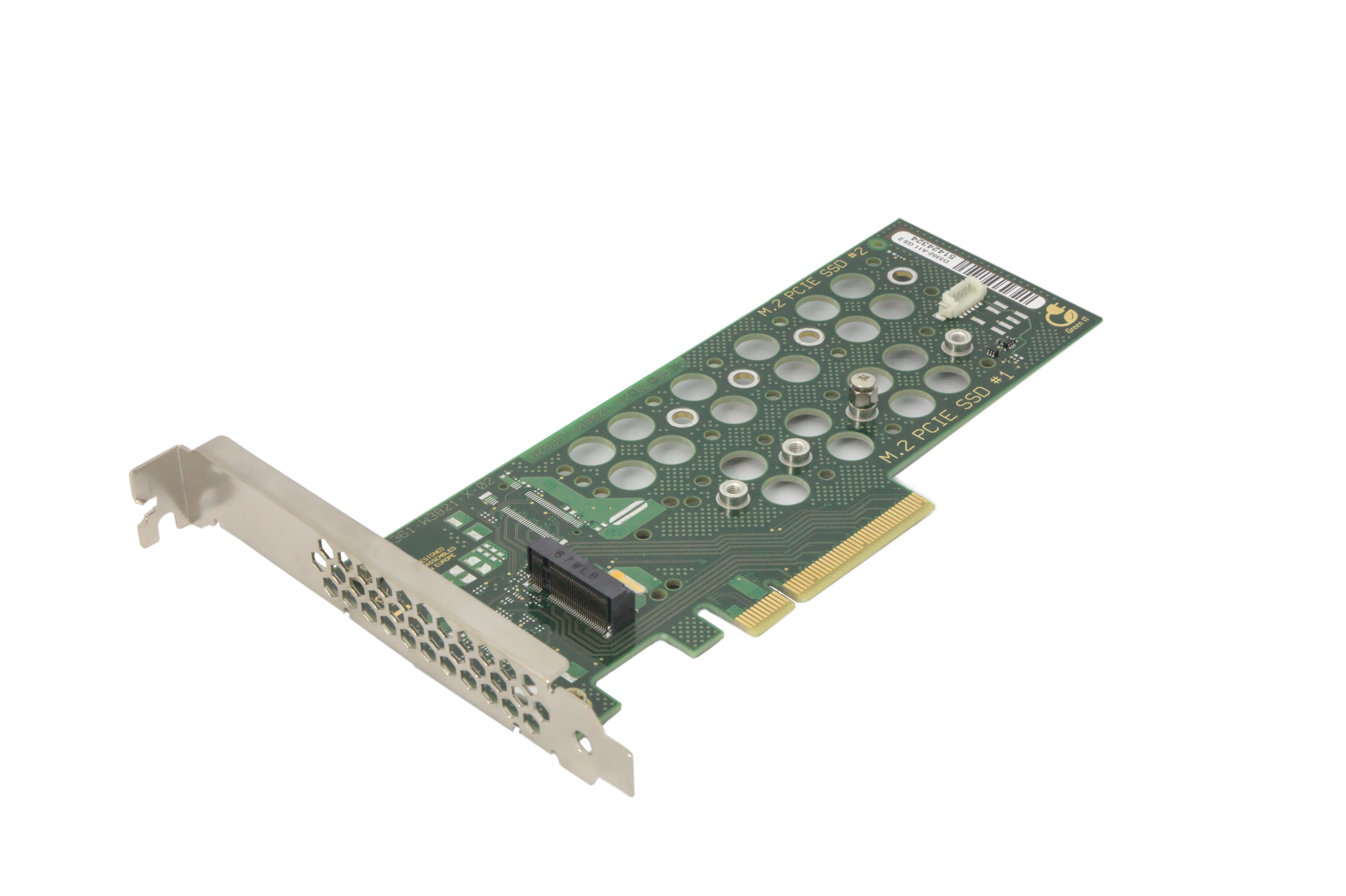

Single M.2 Carrier Board S26361-F5000-M001 |
|
M.2 PCIe only | |
|
DP 20P M to HDMI Adapter F5000-A007 |
|
DP 20P M to HDMI Adapter, up to 4k @ 60 Hz | |
|
M.2 Dual SATA Module F5000-M004 |
|
M.2 Dual SATA Module |
