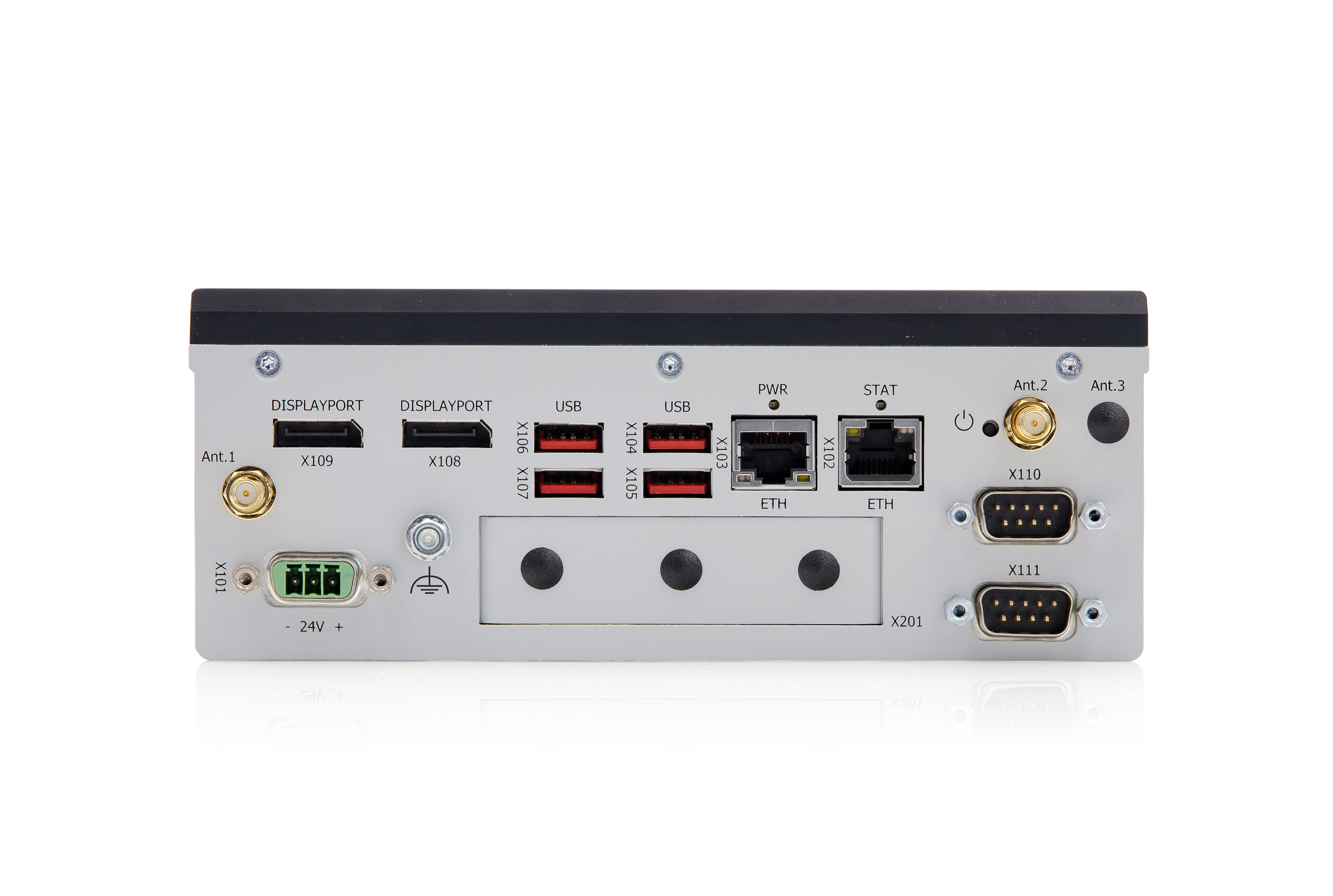

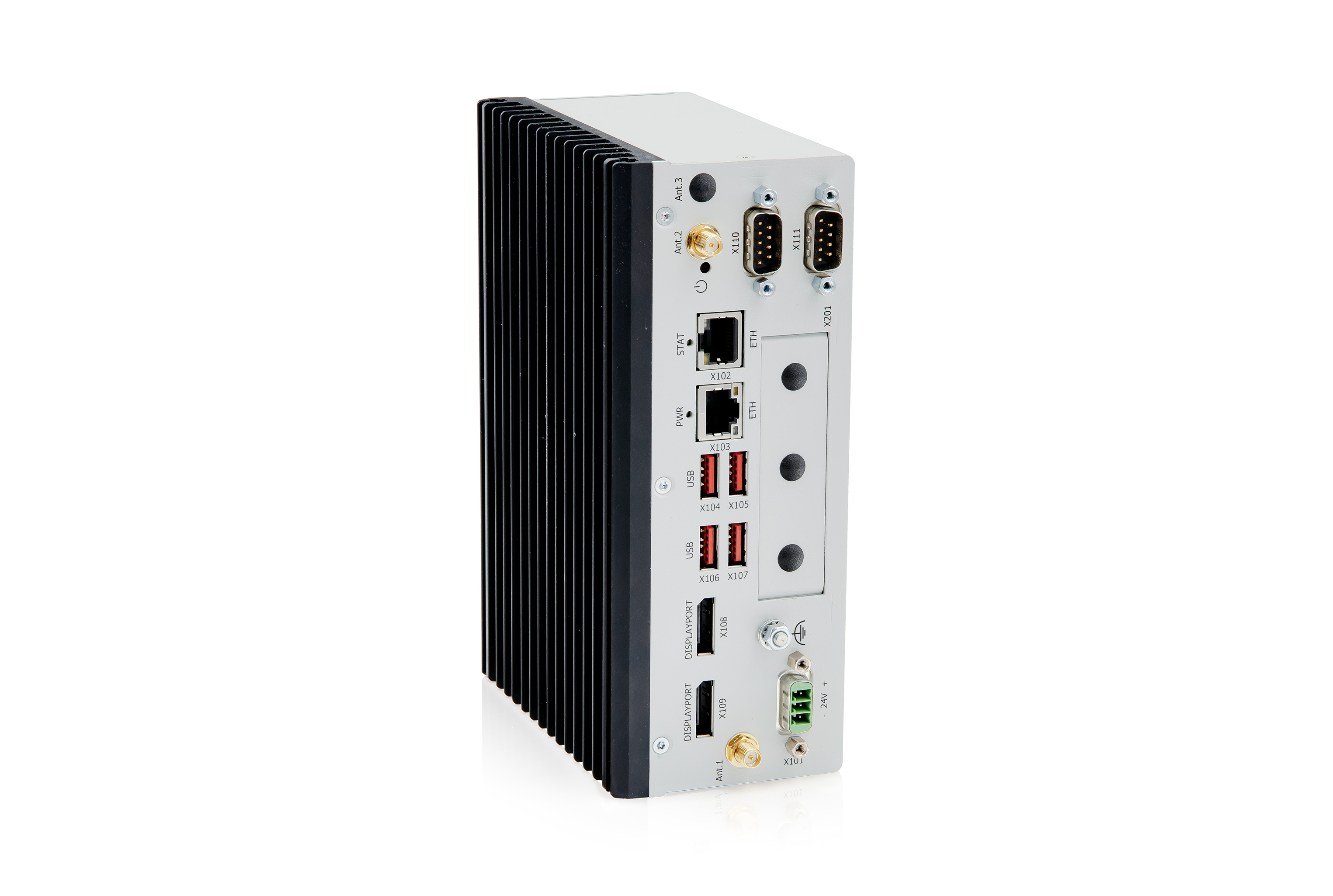

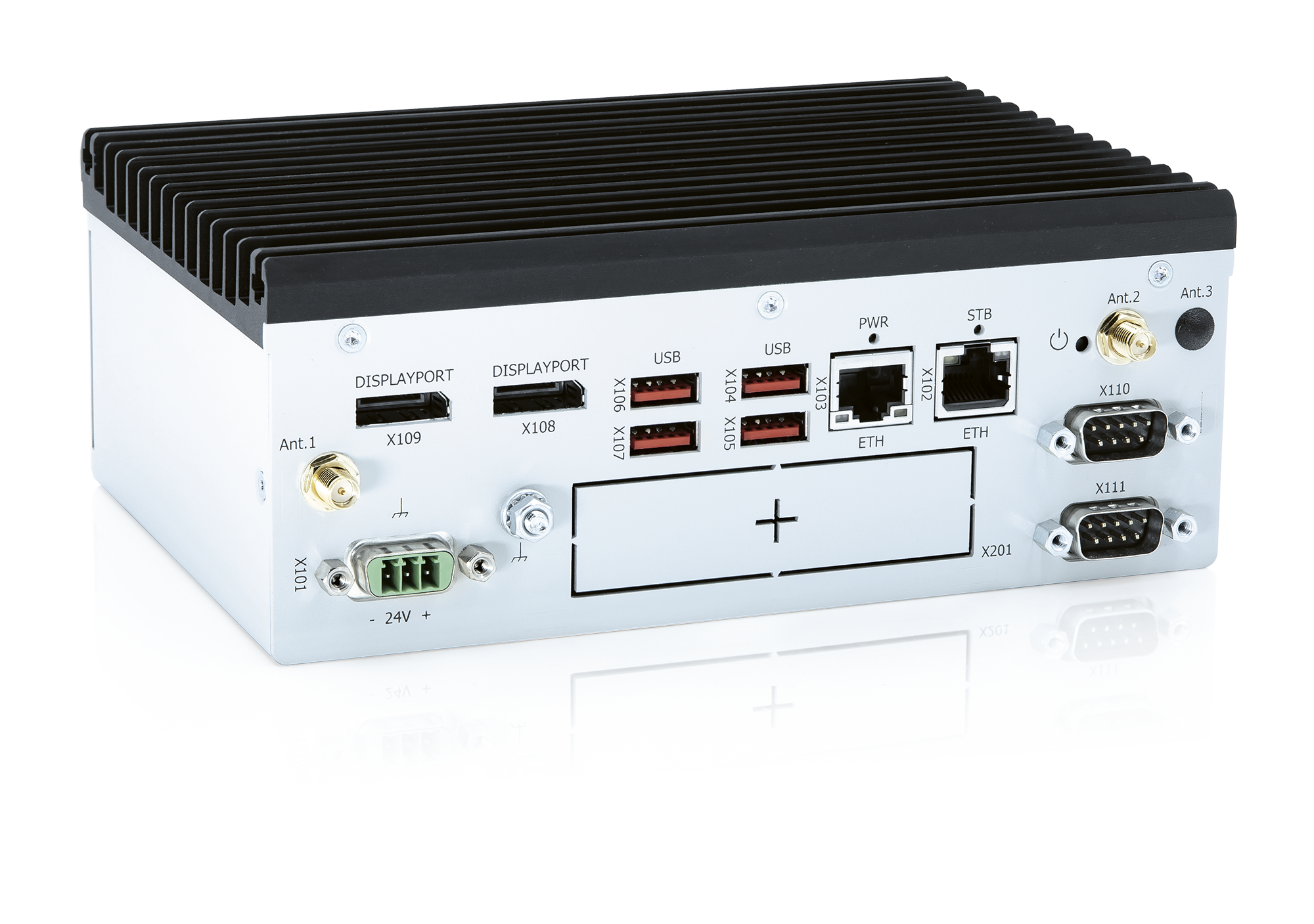

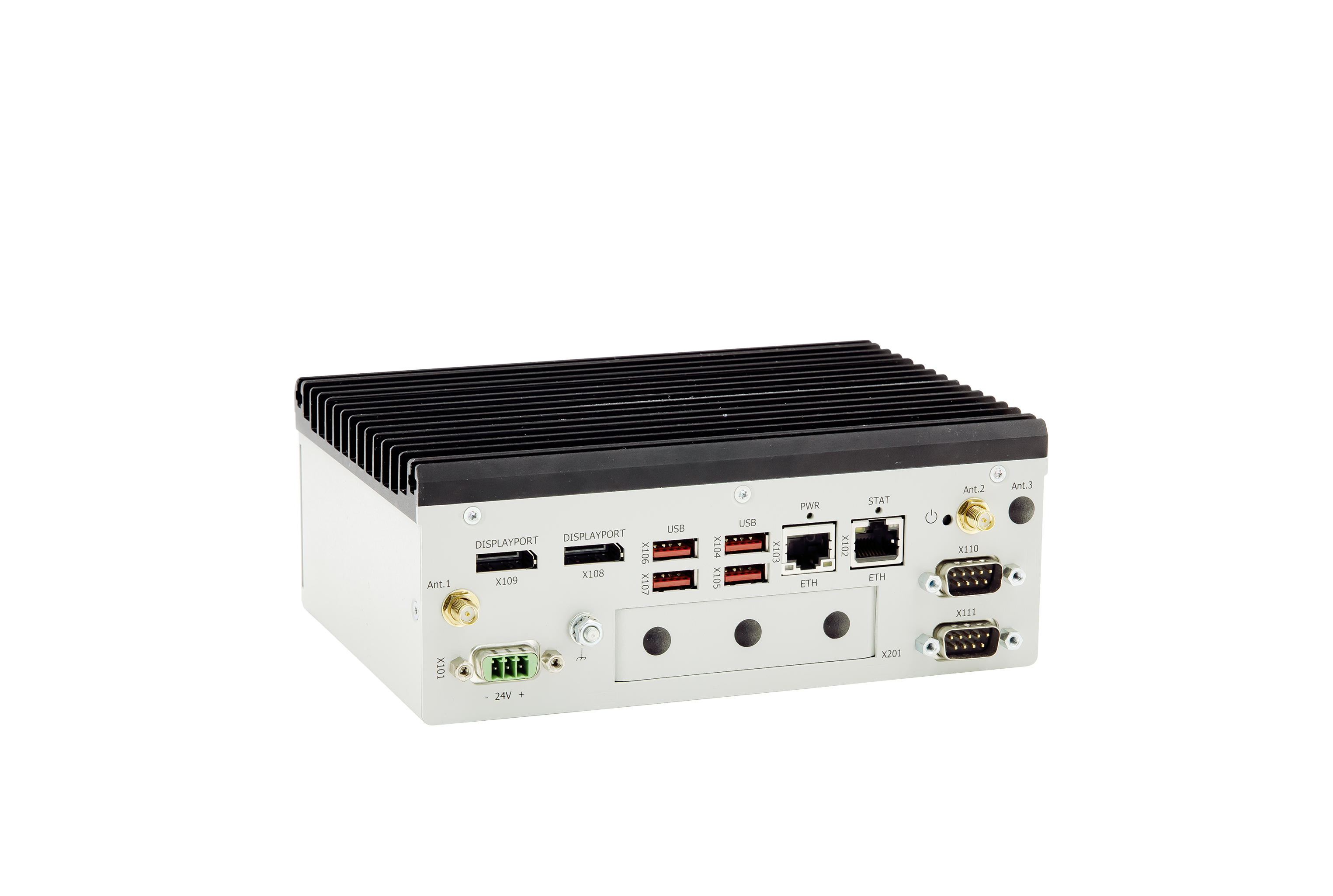

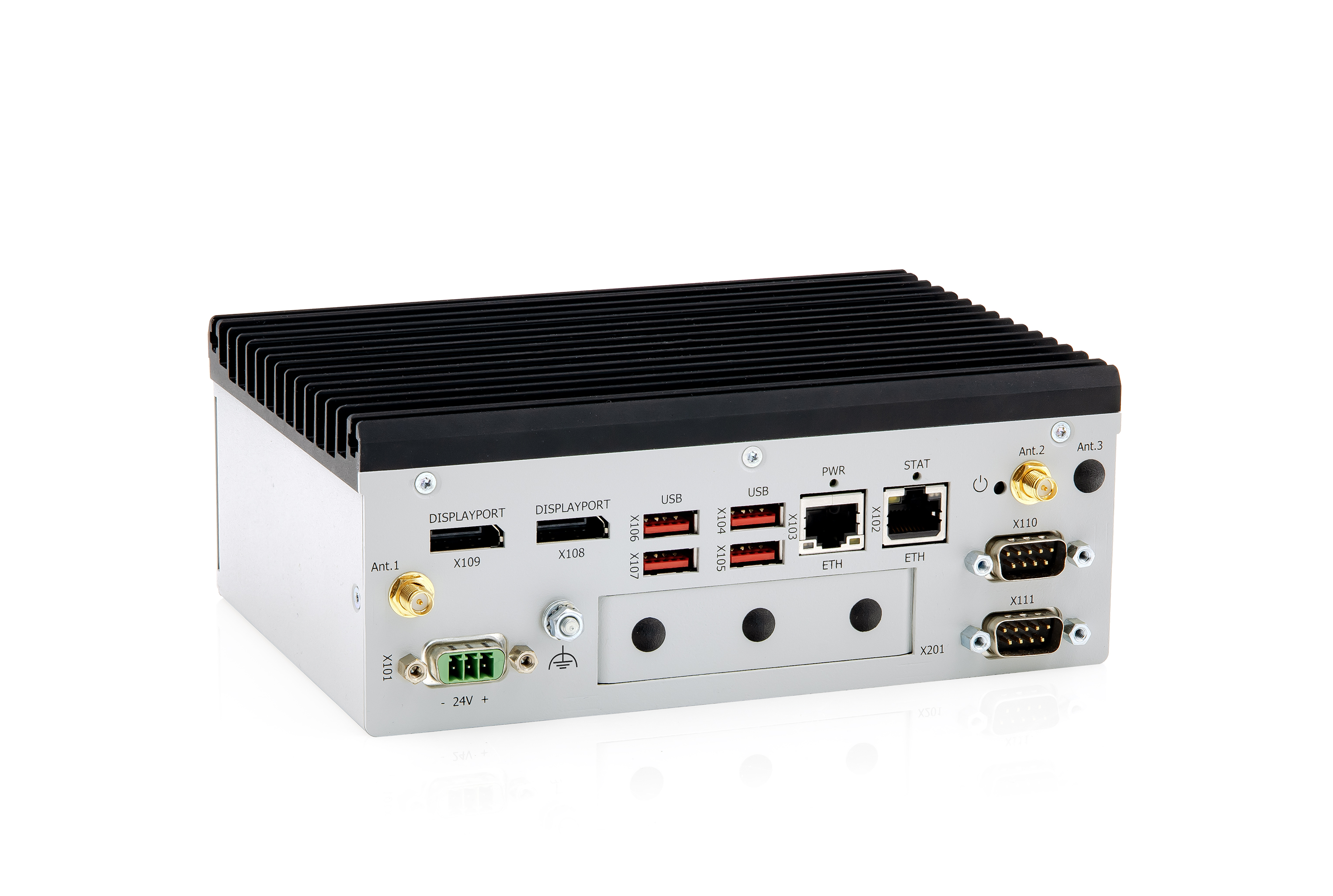

KBox A-151-TGL

Industrial computer for data-intensive IoT edge and AI applications with 11th Gen Intel® Core™ processors

Mouseover Zoom loading...

Specifications

High performance with 11th generation Intel® Core™ processors
Broad range of interfaces with WIFI and 4G/5G option
Flexible system expansion via I/O door
Passive cooling concept, option for extended temperature range
Optional: Hardened and secure Linux®-based KontronOS operating system, KontronGrid fleet management solution

Download Datasheet

The new industrial computer in Box PC format KBox A-151-TGL is based on the 11th generation Intel® Core™ or Celeron® processors and offers sufficient computing performance even for demanding IoT edge or AI applications. As a special feature, the system has an expansion slot on the front (I/O Door), which can be used to expand the KBox A-151-TGL with additional functionalities such as fieldbuses, interfaces such as graphics, serial or digital I/Os, and Ethernet interfaces. Optionally, the system can also be expanded to include 4G/5G or even WiFi 6 connectivity.

To meet the increased cyber security requirements, Kontron offers the hardened and secure Linux®-based KontronOS operating system and the KontronGrid fleet management solution for managing and simplifying the roll-out of container applications on edge devices.

The KBox A-151-TGL is specifically designed for demanding IoT gateway applications in industrial environments. Based on the 11th generation Intel® Core™ i3-1115G4E, i5-1145GRE/i5-1145G7 or also i7-1185GRE/i7-1185G7E or the Intel® Celeron® processor 6305E with up to four processing cores and 4.4 GHz (burst) each as well as a memory expansion of max. 64 GB, the new Box PC supports OEM manufacturers and system integrators in exploiting the full potential of their IoT infrastructures. Another highlight of this generation's Core™ i7 and Core™ i5 processors is the high-end Intel® Iris Xe graphics with 96 execution units, which users can leverage for demanding AI or IoT edge applications.

In addition to two display ports and two Gigabit Ethernet interfaces, including a 2.5GbE interface with TSN functionality, the new KBox A-151-TGL also features four USB3.2 and two RS232/422/485 interfaces.

A wide range of functionalities can be added to the system by means of the three M.2 expansion slots, which can be used for the integration of fieldbuses and wireless technology such as 4G/5G or even WiFi 6 connectivity, in addition to the integration of NVMe SSDs. The majority of system expansions are made accessible via the new expansion slot (I/O Door) located on the front of the system.

The fanless, robust system design guarantees an extended service life and high system availability even in harsh industrial environments. The KBox A-151-TGL can be operated in the range from 0 °C to +50 °C or optionally also in the extended temperature range between -40 °C and +65 °C. The KBox A-151-TGL can be easily integrated into a wide range of industrial environments by means of DIN rail mounting or wall mounting.

Downloads

Datasheets

KBox_A_151_TGL_datasheet
[ kbox-a-151-tgl_datasheet.pdf, 801.64 KB, Aug.06.2024 ]

Manuals

KBox A-151-TGL User Guide
Rev. 1.3 Jun. 27, 2024
[ kbox-a-151-tgl_user-guide_rev_1-3_2024-06-27.pdf, 3.76 MB, Jun.27.2024 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Tech Spec Sheet

Tech Specs K-Box
[ techspecs_embedded-box-pc_web_us_kontron.pdf, 2.79 MB, Nov.13.2018 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
