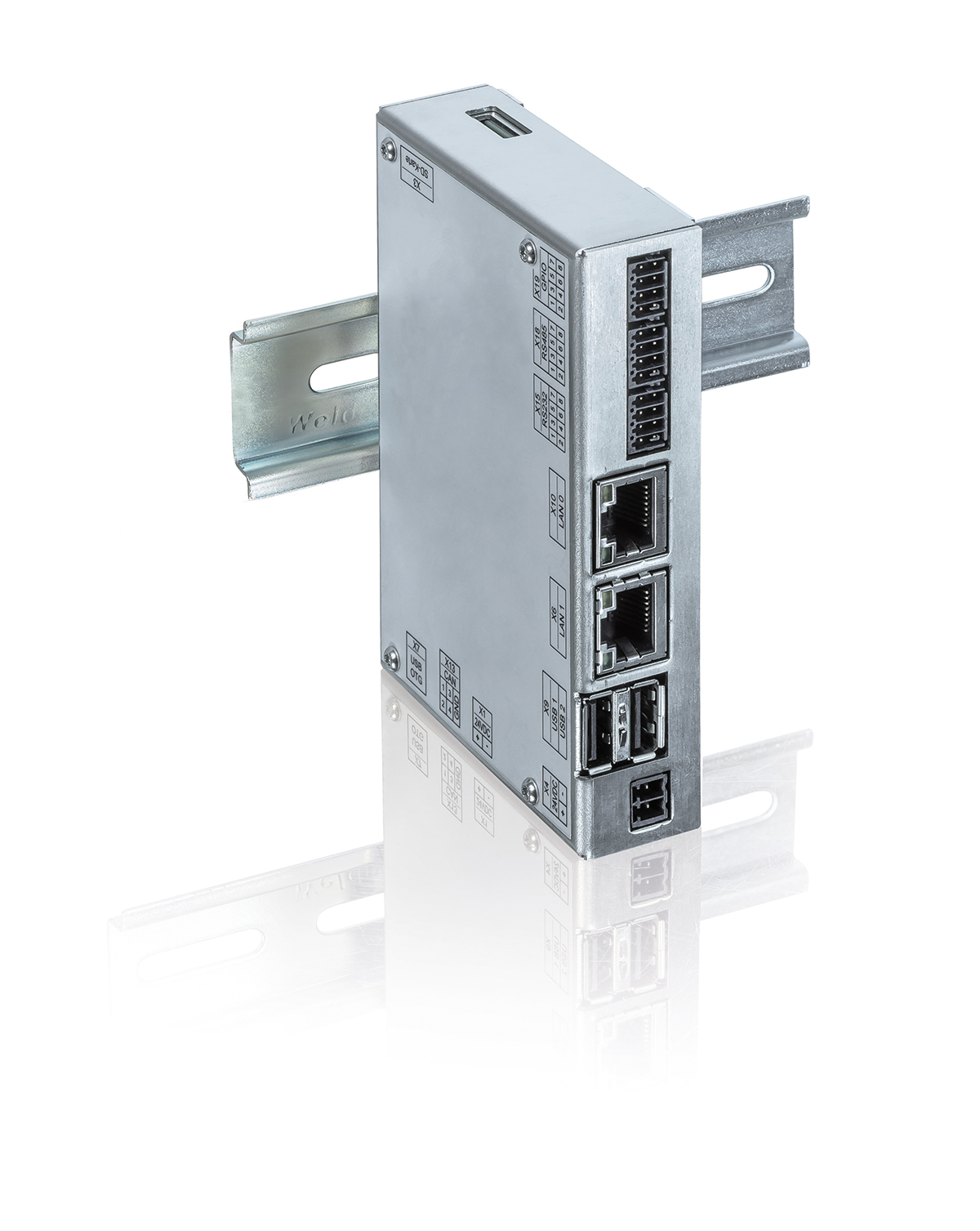

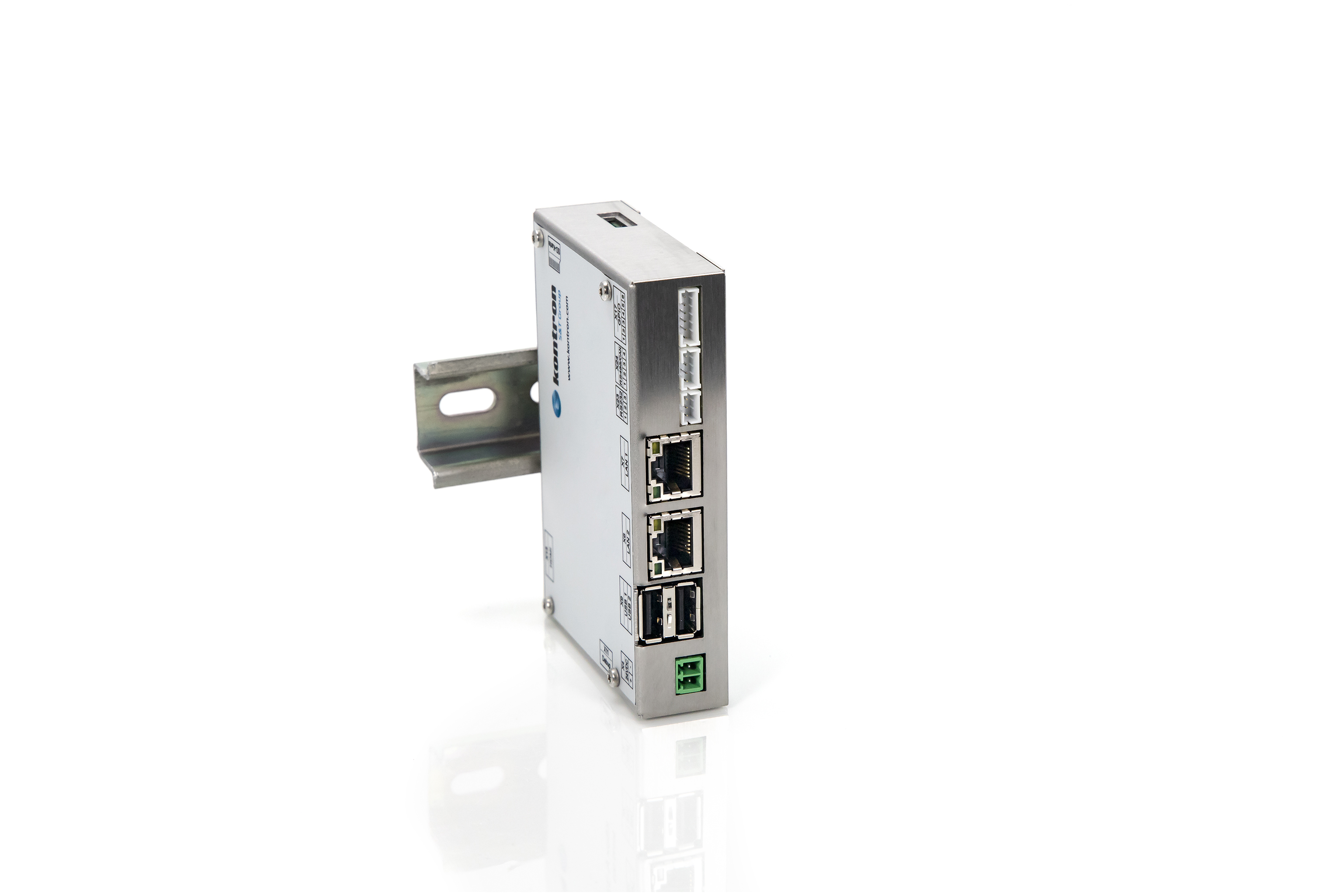

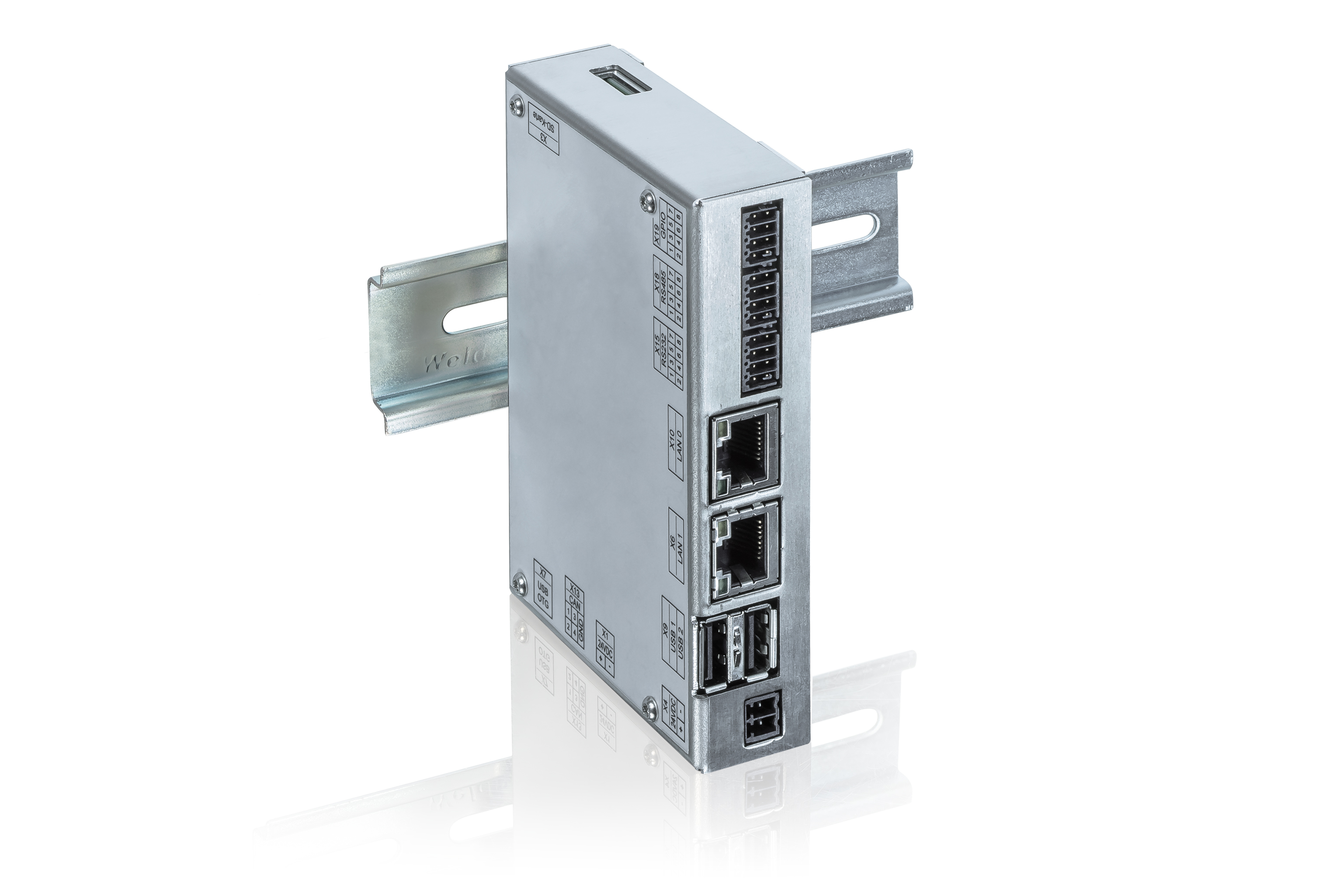

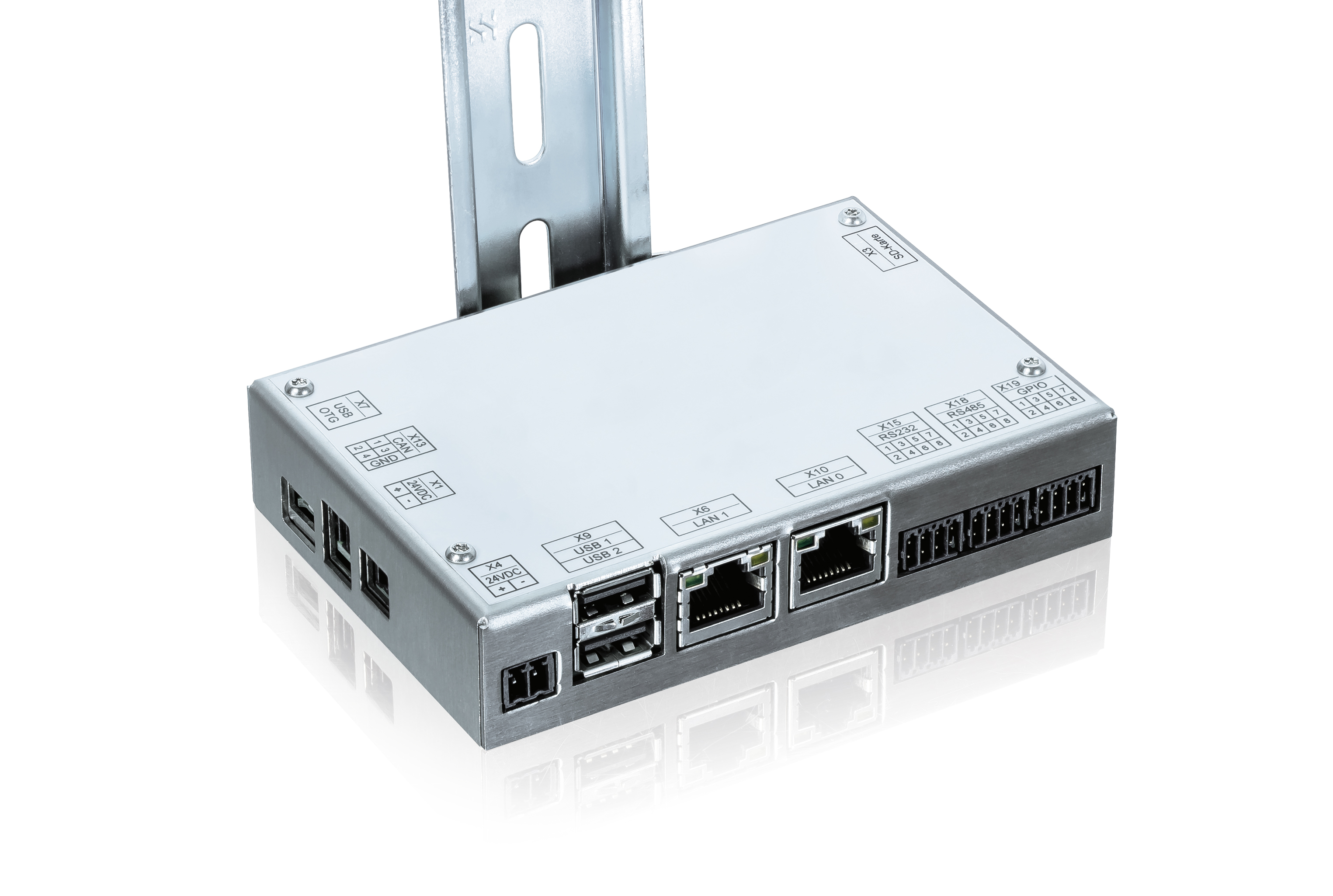

KBox A-330-RPI This product is legacy
Compact Industrial Box PC based on Raspberry Pi for the Top Hat Rail – For Control & Gateway Applications
Mouseover Zoom loading...
Specifications
- Based on BROADCOM BCM2837B0 Quad Core Arm® A53 processor / Raspberry Pi Module CM3+
- Supported by huge community based open source software pool
- Fanless compact design for DIN rail, ideal for control cabinet applications
- Industrial grade, 8+ years availability
Based on the BROADCOM BCM2837B0 Quad Core Arm® A53 processor/Raspberry Pi Compute Module CM3+ the Kontron KBox A-330-RPI was developed as a compact industrial grade Box PC for the top hat rail, ideal for cost sensitive control and gateway applications.
The KBox A-330-RPI is based on the long-term available Raspberry Pi Compute Module CM3+ and can therefore use the huge software pool of the Raspberry Pi community. Equipped with a Broadcom® BCM2837 Quad Core™ Arm® processor, the KBox A-330-RPI is compatible with the established Raspberry Pi standards and has been enhanced with industrial features. It thereby supports developers creating applications for demanding and harsh industrial environments.
On a project basis, applications are possible realizable that include advanced security features such as secure authentication and data encryption that go beyond normal security requirements.
The KBox A-330-RPI operates fanless and is designed for industrial control and gateway tasks in control cabinets due to its slim design and the possibility of DIN rail mounting. Two Fast Ethernet ports, RS232, RS485 or CAN and four IO ports are available as interfaces. A powerful user interface can be operated during commissioning or in the target application via two USB channels and an HDMI connection.
Features
| CPU | BROADCOM BCM2837B0 Quad Core Arm® A53 |
| Chipset | Integrated |
| Capacity | 1 GB, soldered |
| Graphics | VideoCore IV OpenGL-ES 1.1/2.0, Full HD 250MHz |
| USB | 2x USB 2.0 (1x confi gurable to OTG) |
| Ethernet | 2x Fast Ethernet |
| Internal Drives | 4GB eMMC |
| Cooling | Fanless |
| Dimensions (H x W x D) | 111 x 25 x76 mm |
| Weight | Approx. 0,26 kg |
| Mounting | for mounting on 35mm mounting rail acc. to EN 60715 |
| Operation Temperature | 0 °C to +55 °C (32 °F to 131 °F) |
| Humidity rel. | 93% @ 40 °C, non-condensing |
| Vibration | 5-500 Hz, 1G acc. IEC 60068-2-6 |
| Shock | half sine, 15 g, 11 ms acc. IEC 60068-2-27 |
| Altitude | 5000 m (16400 ft) |
| Input Voltage | 24 V DC (9..32V DC) / or PoE 802.3af with RPI-PoE-HAT |
| Certifications | CE |
