KBox B-201 This product is legacy Not recommended for new designs
please refer to KBox B-201-CFL
Mouseover Zoom loading...
Specifications
- High processing capability: 7th Gen Intel® Core™ i7/i5/i3
- Small form factor with mITX motherboard
- Removable 2,5” SSD
- Low noise design, max 34 dB(A)
- Various mounting options: desktop, directly behind a monitor, wall, control cabinet etc., likewise horizontal or vertical operation
For new designs please refer to KBox B-201-CFL

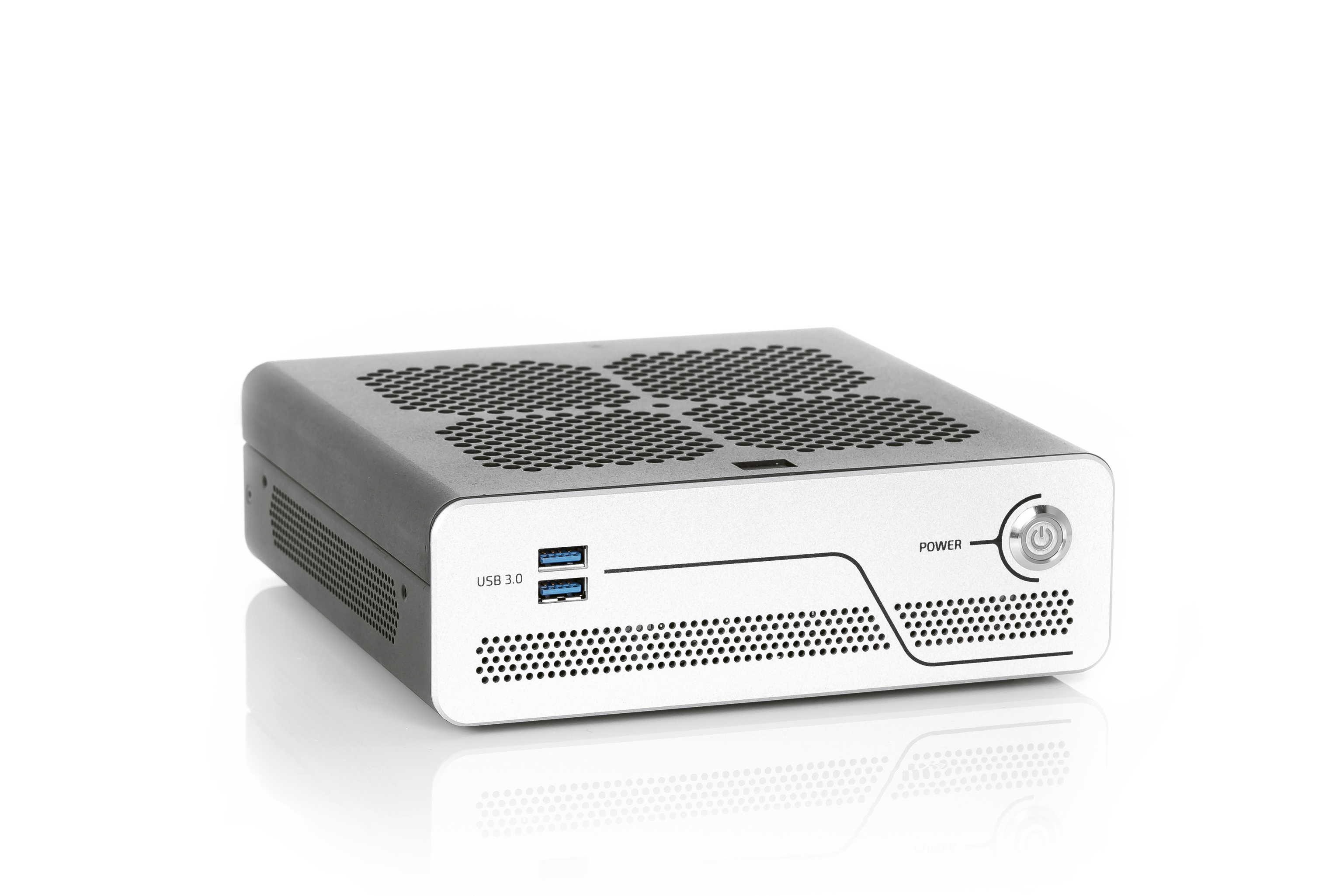

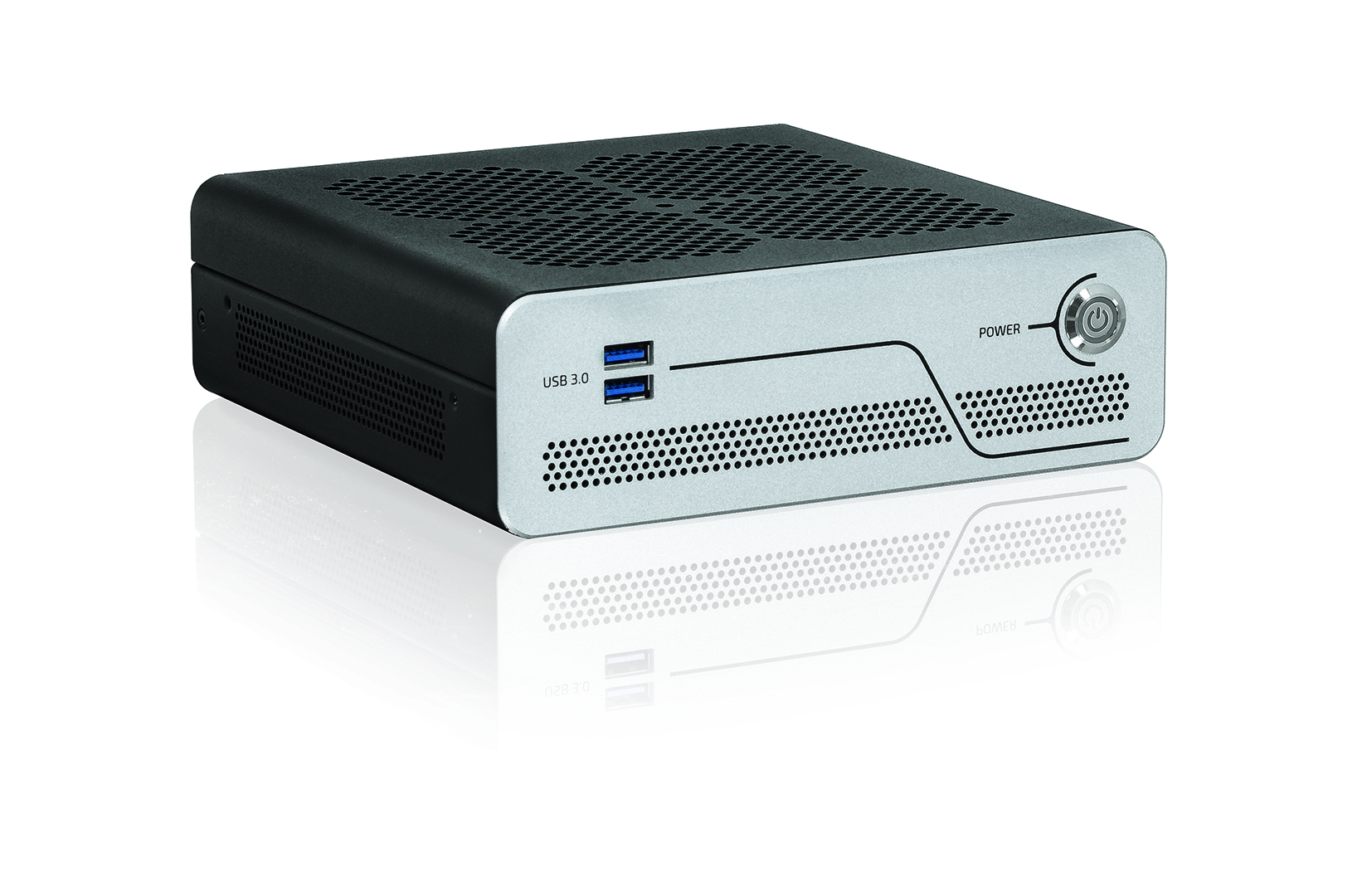

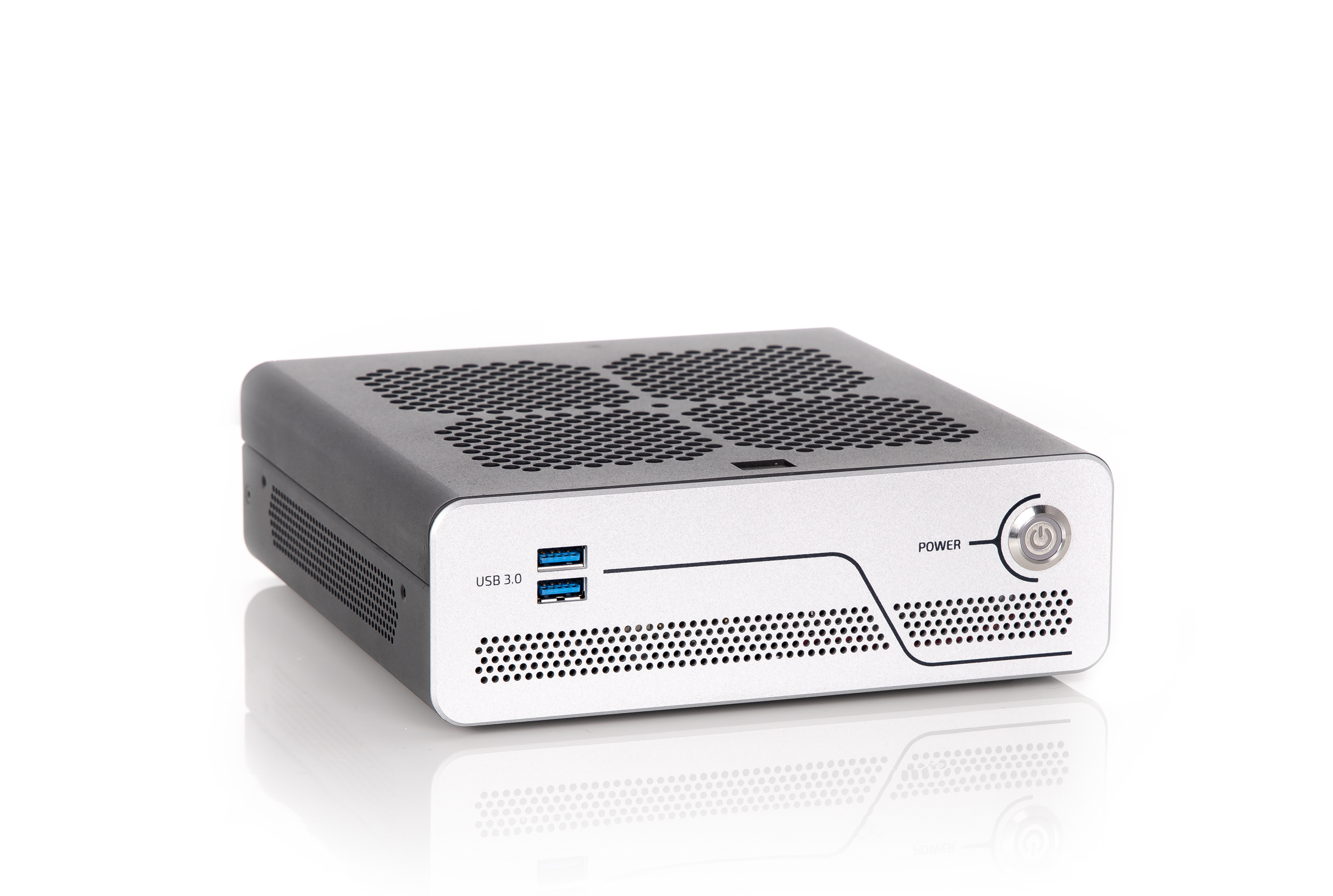

The KBox B-201 is characterized by high performance levels requiring little space. The Mini-ITX motherboard in the compact 170x170 mm form factor is equipped with two to four processor cores: optionally, users can choose between three 7th Gen Intel® Core™ processors (i3-7101E/i5-7500/i7-7700); on request, 6th Gen Intel® Core™ processors are available as well. KBox B-201’s performance further gets boosted by the Intel® Core™ Q170 Express chipset.
The KBox B-201’s housing is manufactured of continuously hot-dip zinc coated mild steel sheet (according to EN10215) and aluminium with the measurements 190x60x190mm. Five different mounting options guarantee highest flexibility. The KBox B-201 can be used horizontally or vertically as a desktop PC, or the box PC can be fixed directly behind a monitor using a VESA mounting. For mounting underneath a table, on the wall or in a control cabinet, special angle pieces are available, likewise offering horizontal or vertical operation.
The Box PC can be used in ambient temperatures ranging from 0 to 45 degrees Celsius. The KBox B-201’s typical application areas are image processing tasks, plant data collection, as well as manufacturing executive systems (MES) in the automation pyramid.
Features
| CPU | 7th Gen Intel® Core™ i3/i5/i7 Intel® i3-7101E (2x 3.9 GHz) Intel® i5-7500 (4x 3.4 GHz) Intel® i7-7700 (4x 3.6 GHz) On request 6th Gen Intel® Core™ i3/i5/i7 |
| Chipset | Intel® Q170 Express Chipset |
| Security | TPM V2.0, Kontron APPROTECT on request |
| BIOS | AMI® Aptio 5.x |
| Capacity | 8/16/32 GByte, non ECC SODIMM |
| Graphics | Internal Intel® HD Graphics, DX12 |
| USB | 2x USB 3.0 |
| Ports | 1x DVI-D, 2x DisplayPort V1.2 |
| Audio | 1x Line in, 1x Line out |
| USB | 4x USB 2.0, 4x USB 3.0 |
| Ethernet | 2x LAN (10/100/1000 MBit/s (WoL)) |
| Ports | 1x Serial (COM1, RS232) |
| Internal Drives | 1x M.2 (2242), SATA III 1x mSATA (halfsize / fullsize, SATA III 600) (optional) |
| Mini-PCI | 1x miniPCIe |
| Cooling | Internal silent fan |
| Dimensions (H x W x D) | 190 x 60 x 190 mm |
| Weight | Approx. 2 kg |
| Mounting | Desktop (horiz. & vertical). Wall mount (horiz. & vertical), VESA mount |
| Operation Temperature | 0 °C - 45 °C (32 °F to 113 °F) |
| Humidity rel. | 93 % @ 40 °C, non-condensing |
| Vibration | 5-500 Hz, 1G acc. IEC 60068-2-6 |
| Shock | half sine, 15 g, 11 ms acc. IEC 60068-2-27 |
| Altitude | 5000 m (16400 ft) |
| MTBF | 62257 h at 40 °C |
| Approvals | EMC: EN 55032:2012, class B, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010 NOTE: with external power supply provided by Kontron Savety: IEC 62368-1:2014, EN 62368-1:2014, UL 62-368-1:2014-12, CAN/CSA-C22.2 No. 62368-1:2014-12 NOTE: with external power supply provided by Kontron |
| Input Voltage | 90 to 264 VAC (external power supply) |
| Certifications | CE, UL, BIS, CCC, EAC |
| Power Supply | 1x AC power supply, 1x AC power cord (including) |
| Mounting | Desktop chassis feet (including), Desktop vertical stand, Wallmount brackets and VESA 100 mounting plate (optional) |
