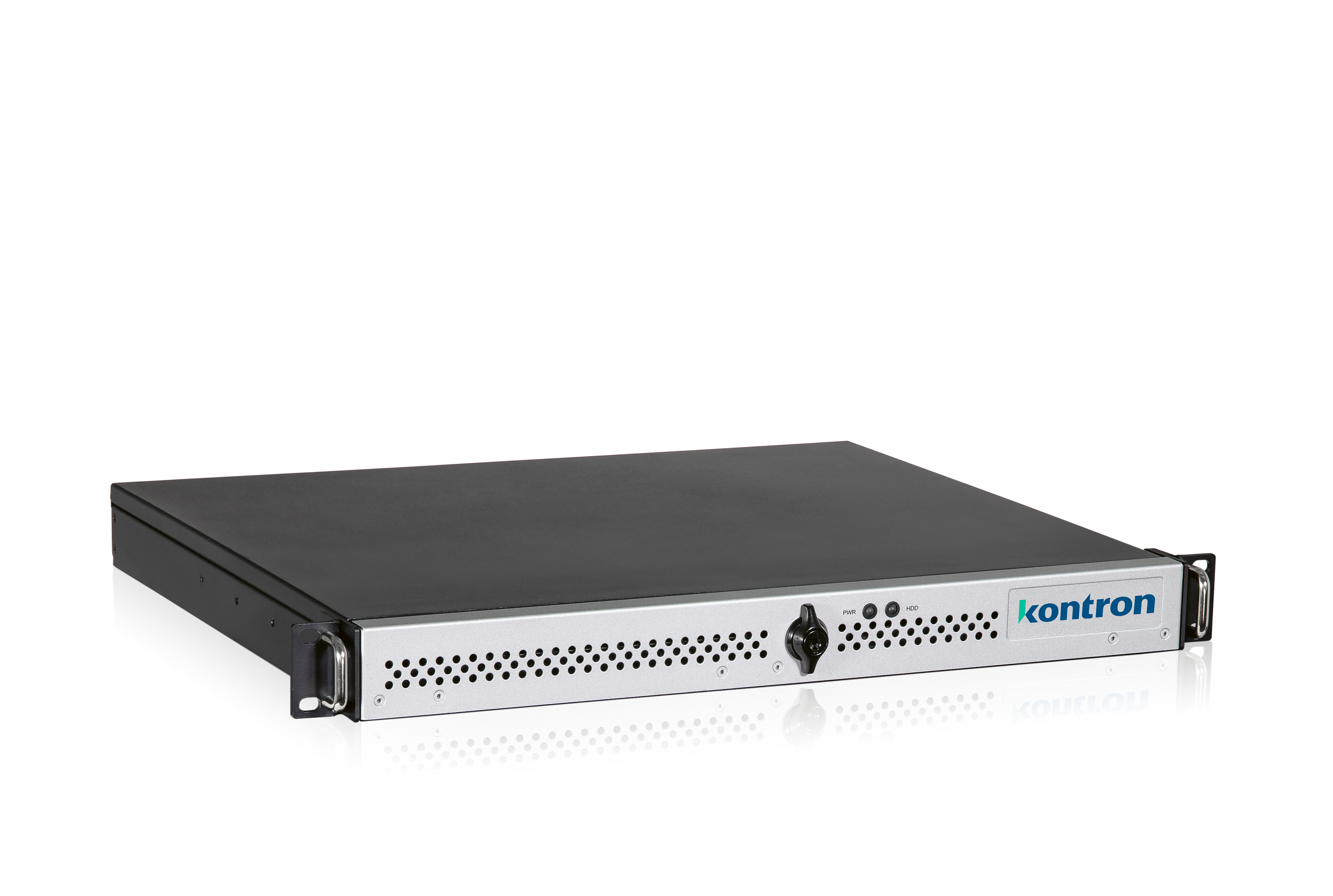

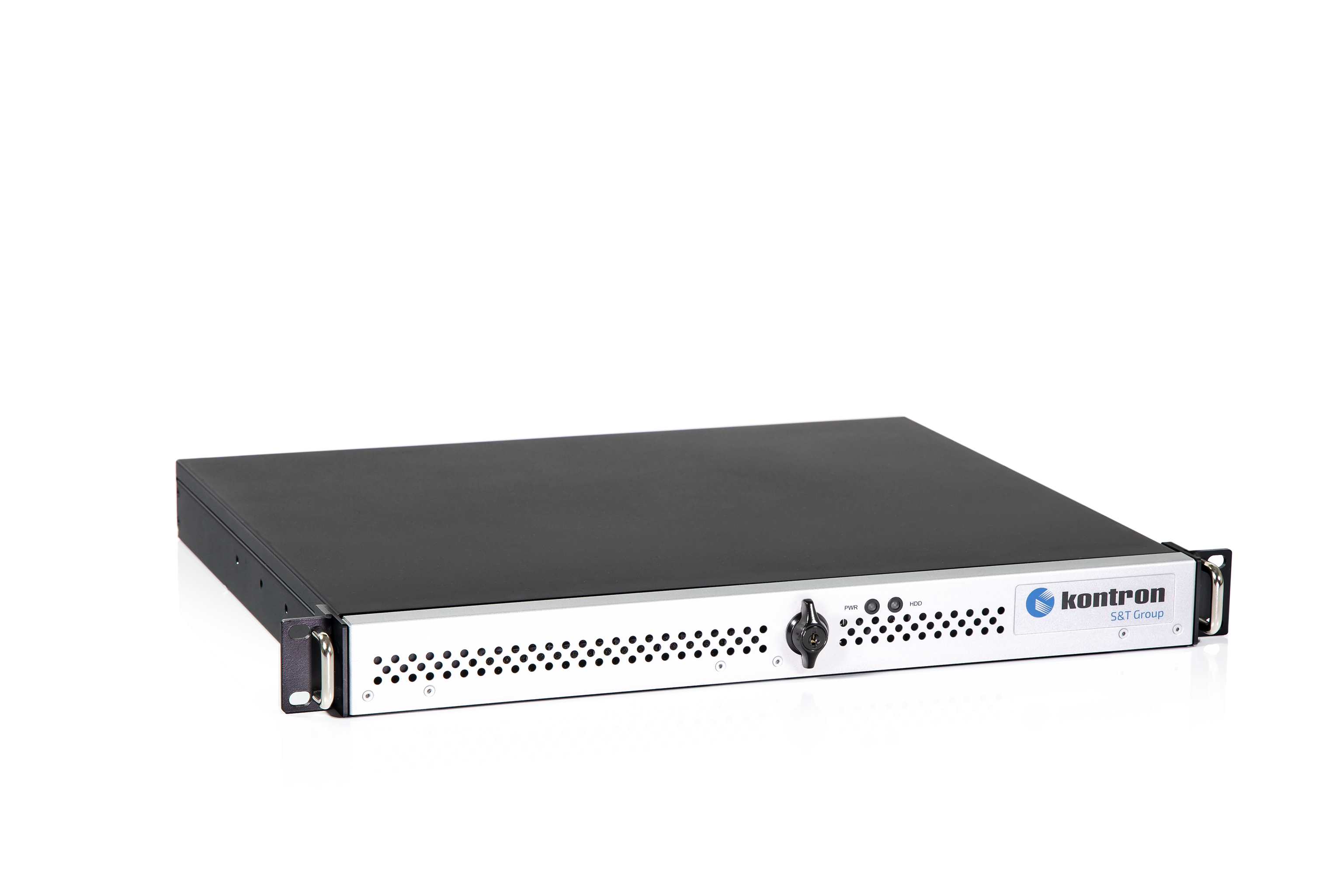

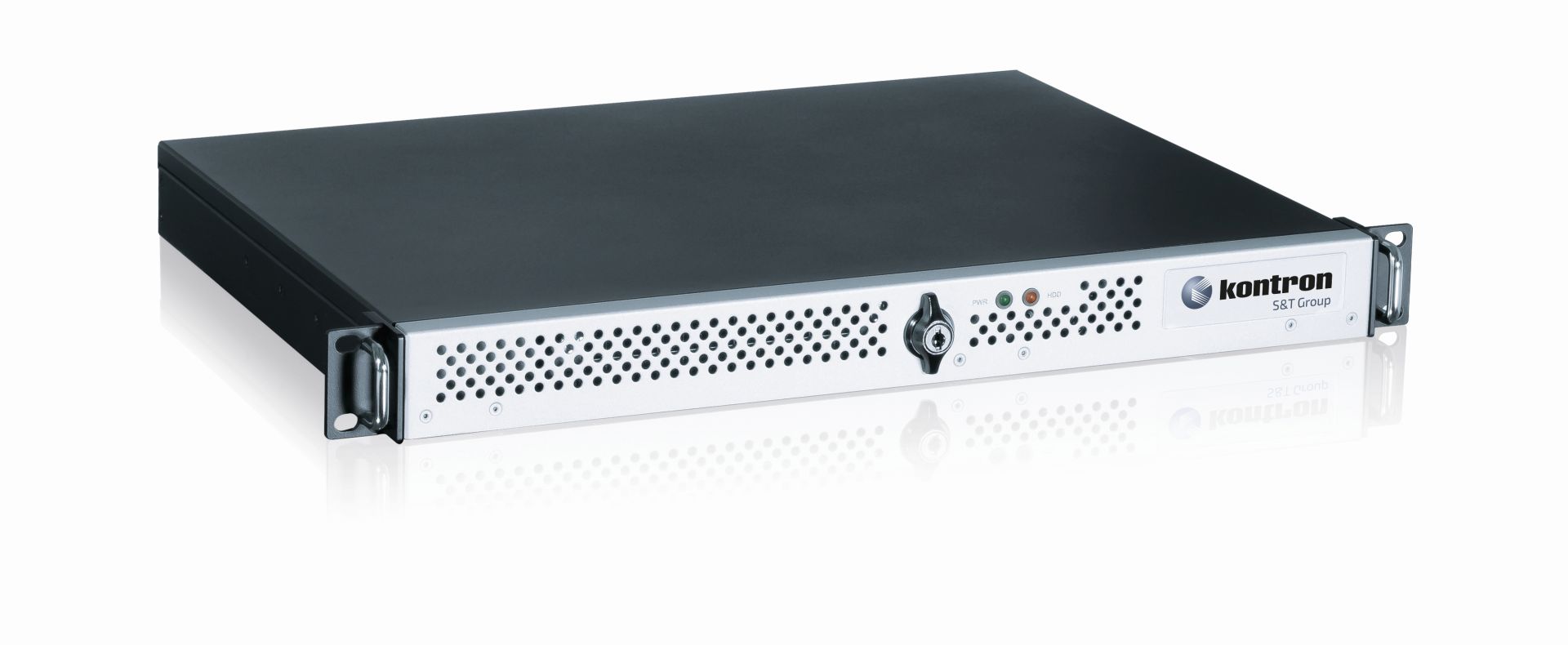

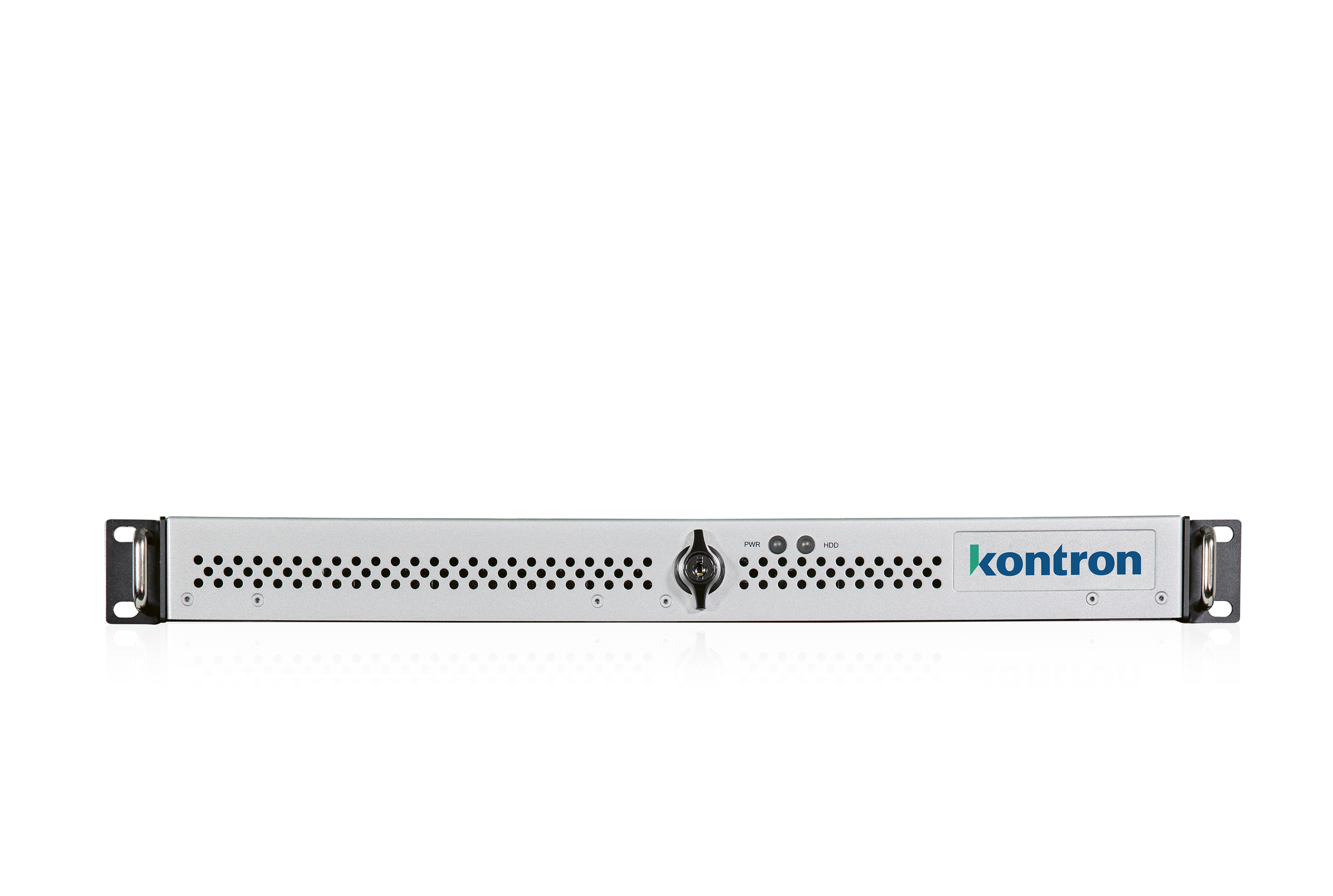

KISS 1U Short V3 CFL

Compact industrial grade and scalable Rackmount System for challenging and noise sensitive environments with 8th/9th Gen Intel® Core™ i7/i5/i3

Mouseover Zoom loading...

Specifications

Industrial grade for challenging environments: robust, reliable and sustainable
Maximum performance up to 8th and 9th Gen Intel® Core i3/5/7 processors
Compact 1U format for space-saving installation
Low noise level: <= 35dBA
Modular and flexible concept for easy customization
Long-term availability (5+ years)

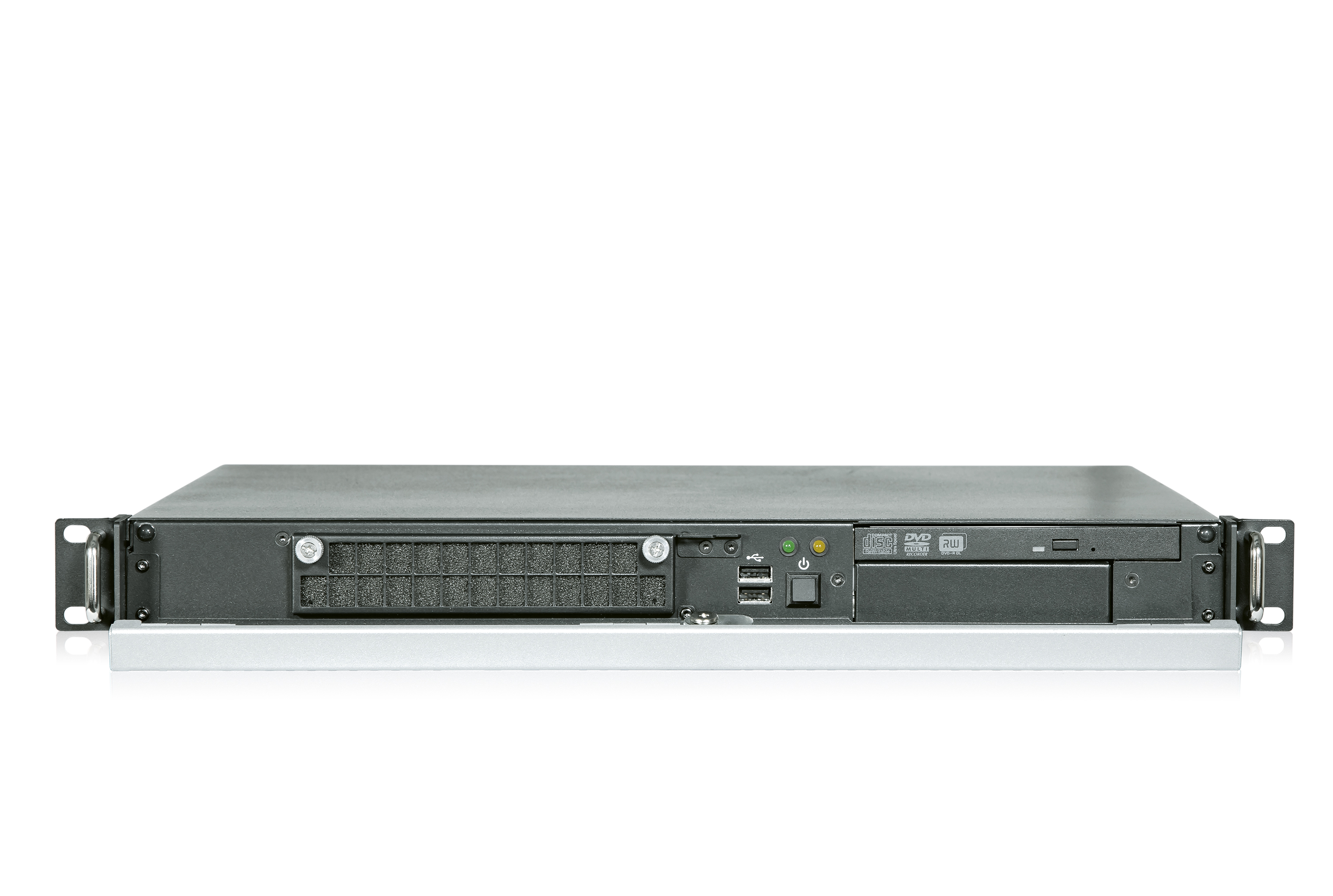

Tool-free replacement of fans, filter mats, or hard disk drives in the removable tray
Microsoft Azure certified

Kontron’s KISS rackmount systems are designed and tested for challenging environments, and are therefore the perfect fit for high temperature and mechanical stress conditions. Industrial grade design, in combination with high processing performance allows industrial applications requiring high performance and storage capabilities, e.g. high-end image processing and SCADA/MES applications.

The new KISS rackmount systems are ideally suited even for complex computing tasks such as ‘Artificial Intelligence’ (AI) and machine learning based on processing and analytics of a huge amount of data. Efficient thermal concepts, maintenance-free and customizable designs, high performance computing and graphics power enable 24/7 operation and long-term deployment.

A high degree of customization is facilitated through features like removable drives and various expansion cards.

Features

19" Rack Mounting

Altitude

5000 m operating

Approvals

CE,FCC,NRTL(UL 62368-1),CB(IEC 62368-1)

Available Extensions

1 Slot PCIe x16 (Low Profile)

Chipset

C246

Common Features

Flexible Customisation, low noise design

CPU	8th/9th Gen Intel® Core™ i7/i5/i3 series

Dimensions (H x W x D)

44 x 482 x 350 mm (1U x 19“ x 13.78“)

DRAM speed

2666 MHz

Drives

1x DVD R/W slim
1x 3.5” SATA drive bay
1x M.2 2280 PCIe drive

Humidity rel.

10 % to 93 % @40 °C, non-condensing

Main Memory

4x DIMM DDR4-2666 up to 64 GByte

MTBF	> 50.000 h

Operating System

Windows 10 64 bit LTSC
Linux Ubuntu 18.04 others on request

Operation Temperature

0 °C to +50 °C continuous operation

Power Supply

100-240 V AC 400 W (80+) others on request

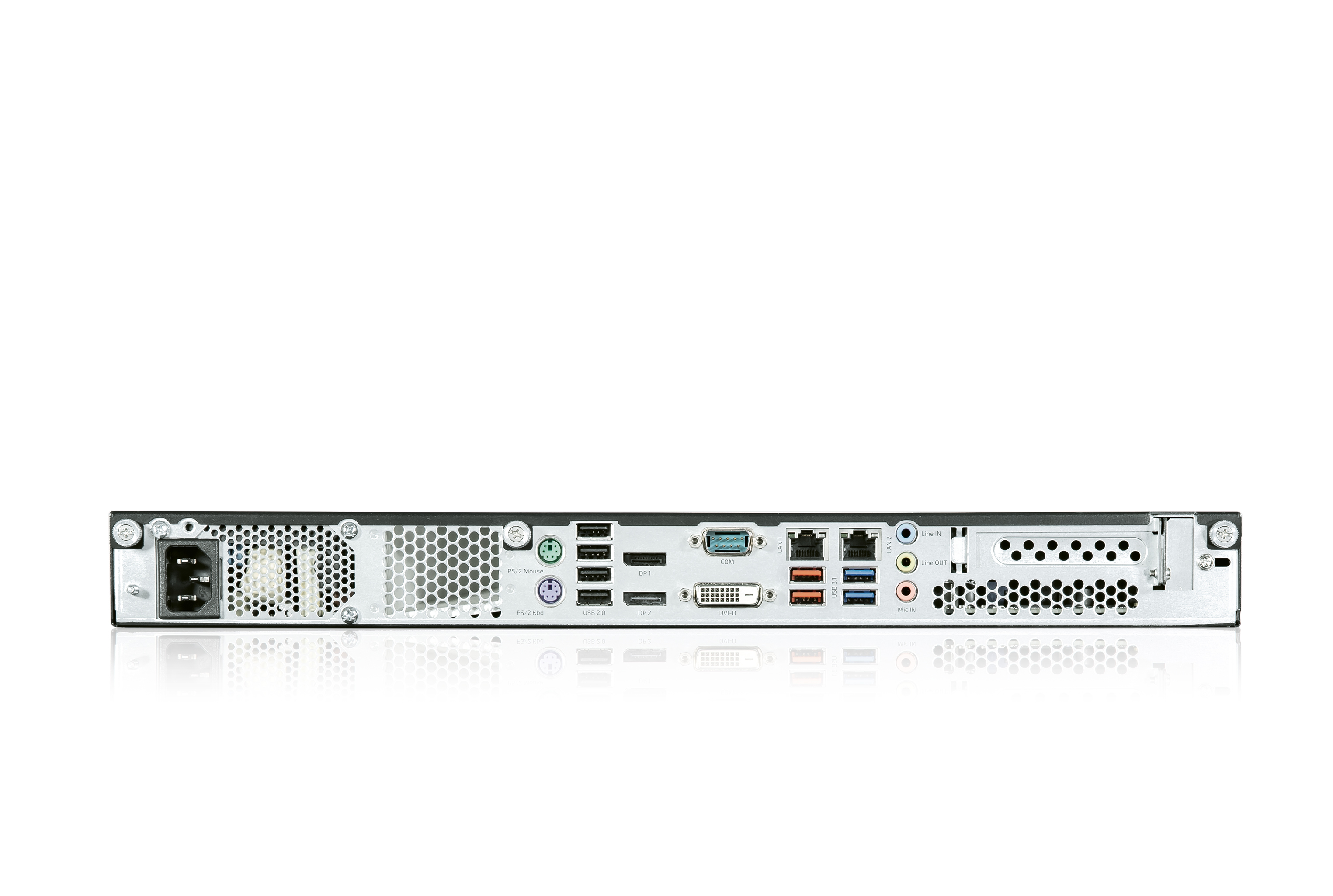

Rear I/O

4x USB 3.1, 4x USB 2.0, 2x GB LAN, 1x DVI-D, 2x DP
1x RS232, 1x Mouse, 1x Kbd, 1x Audio

Shock

Operating: 15 G 11 ms duration
Non-operating: 30 G 11 ms duration

Vibration

Operating: 10-150 Hz: 1G/3 axis
Non-operating: 10-150 Hz: 2G/3 axis

Weight

Approx. 6 kg

Downloads

Datasheets

KISS 1U Short V3 CFL_20190130_datasheet
[ kiss-1u-short-v3-cfl_datasheet.pdf, 866.47 KB, Sep.04.2023 ]

d3641-s-matx_20201217_datasheet(1)
[ d3641-suatx_en_data-sheet_kontron.pdf, 1.12 MB, Jan.12.2024 ]

Manuals

KISS 1U Short V3 User Guide
Rev 1.2 Sept. 15, 2023
[ kiss-1u-short_v3_user_guide_rev-1-2-2023-09-15.pdf, 2.66 MB, Sep.15.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Mechanical Drawings

KISS 1U SHORT V3 CFL OUTLINE DRAWING
[ kiss-1u-short-v3-cfl-outline-drawing.pdf, 642.9 KB, Jun.06.2019 ]

Tech Spec Sheet

Tech Specs Rack Mount Servers
[ rackmount-kiss_tech-specs_en_kontron.pdf, 1.15 MB, Nov.07.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
