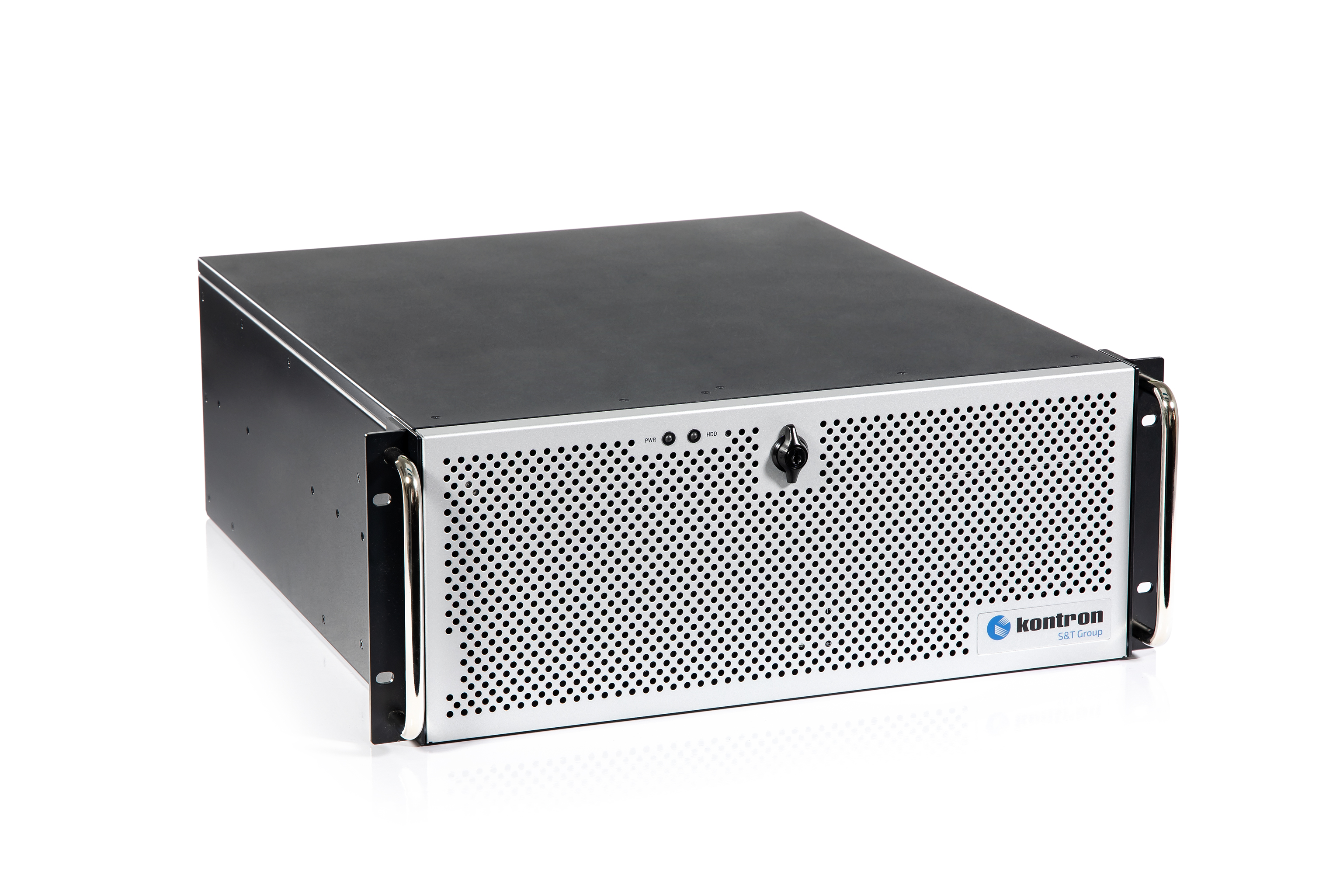

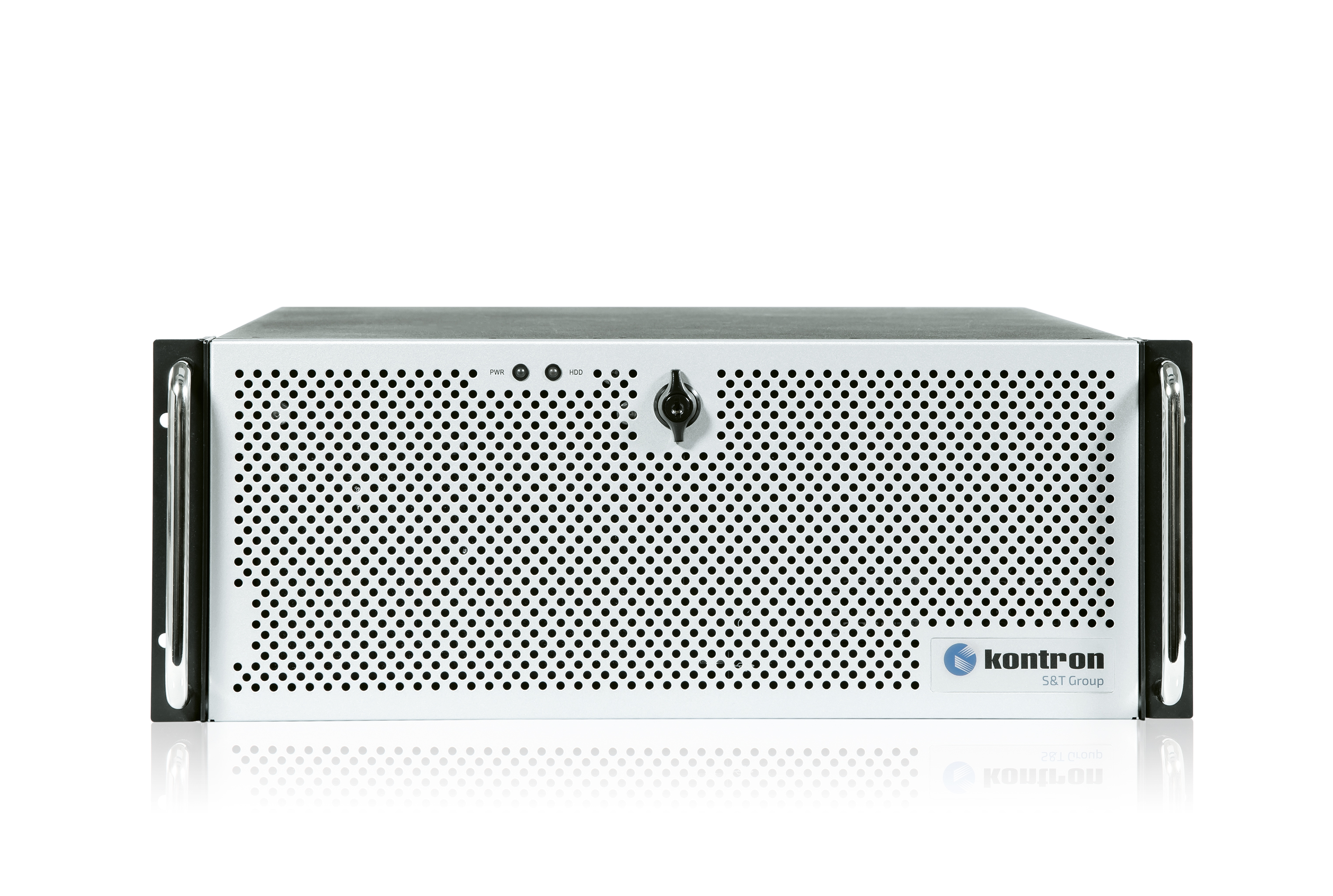

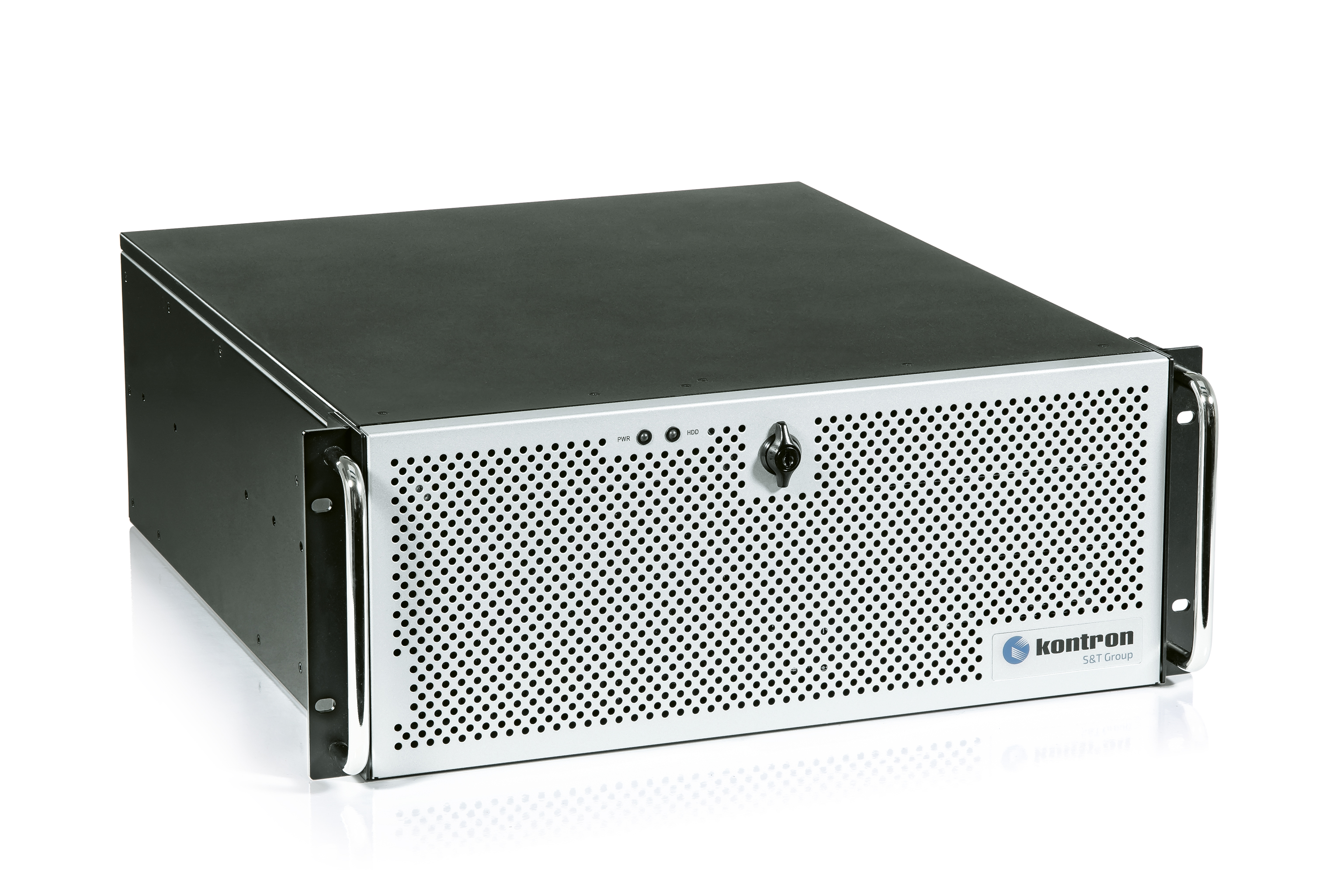

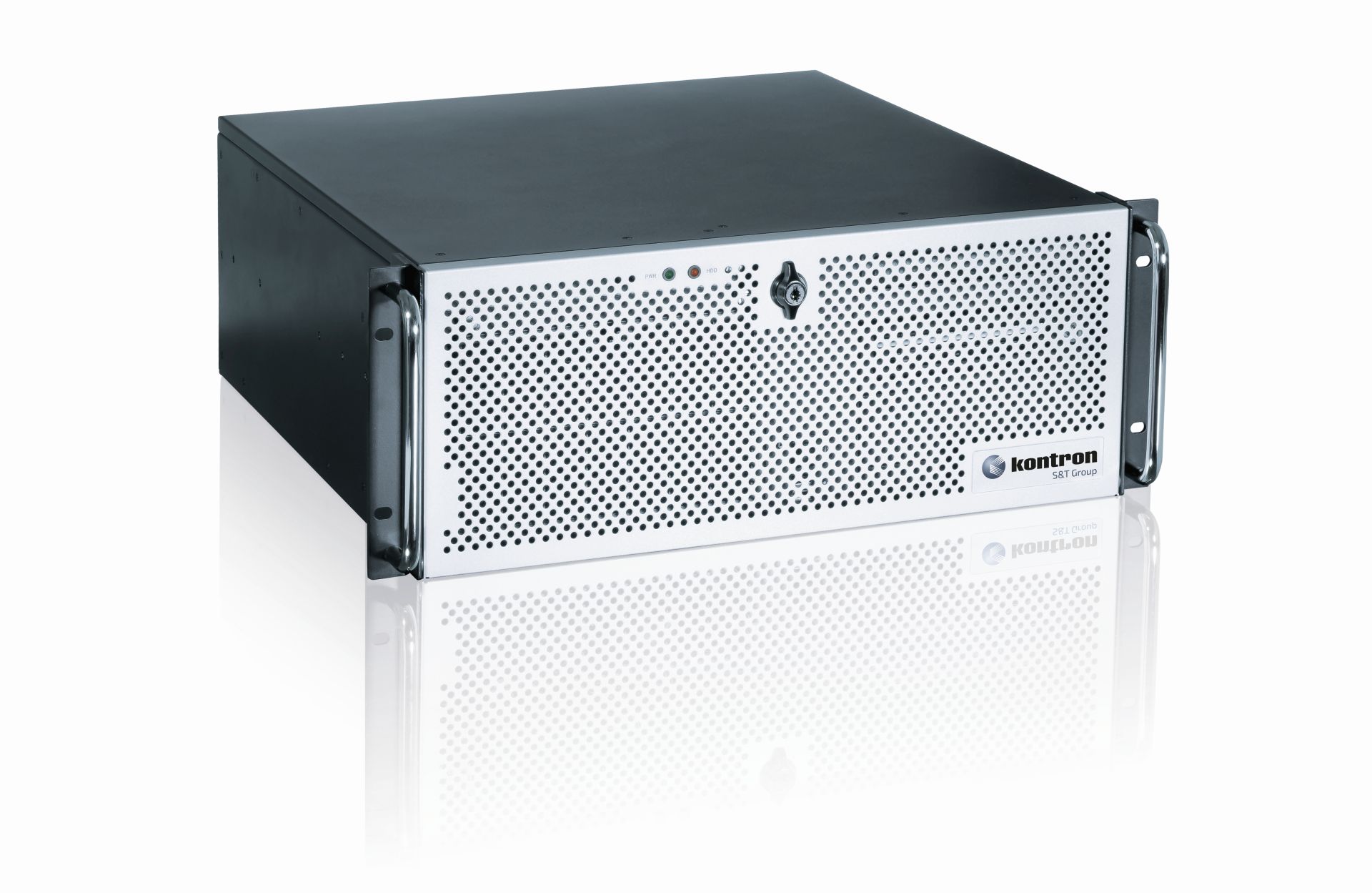

KISS 4U V3 PCI763

Scalable Rackmount System for challenging andnoise sensitive environments with PICMG motherboard

Mouseover Zoom loading...

Specifications

Industrial grade for challenging environments: robust, reliable and sustainable
High processing capability
Low noise level: <= 35dBA
Modular and flexible concept for easy customization
Long-term availability (5+ years)

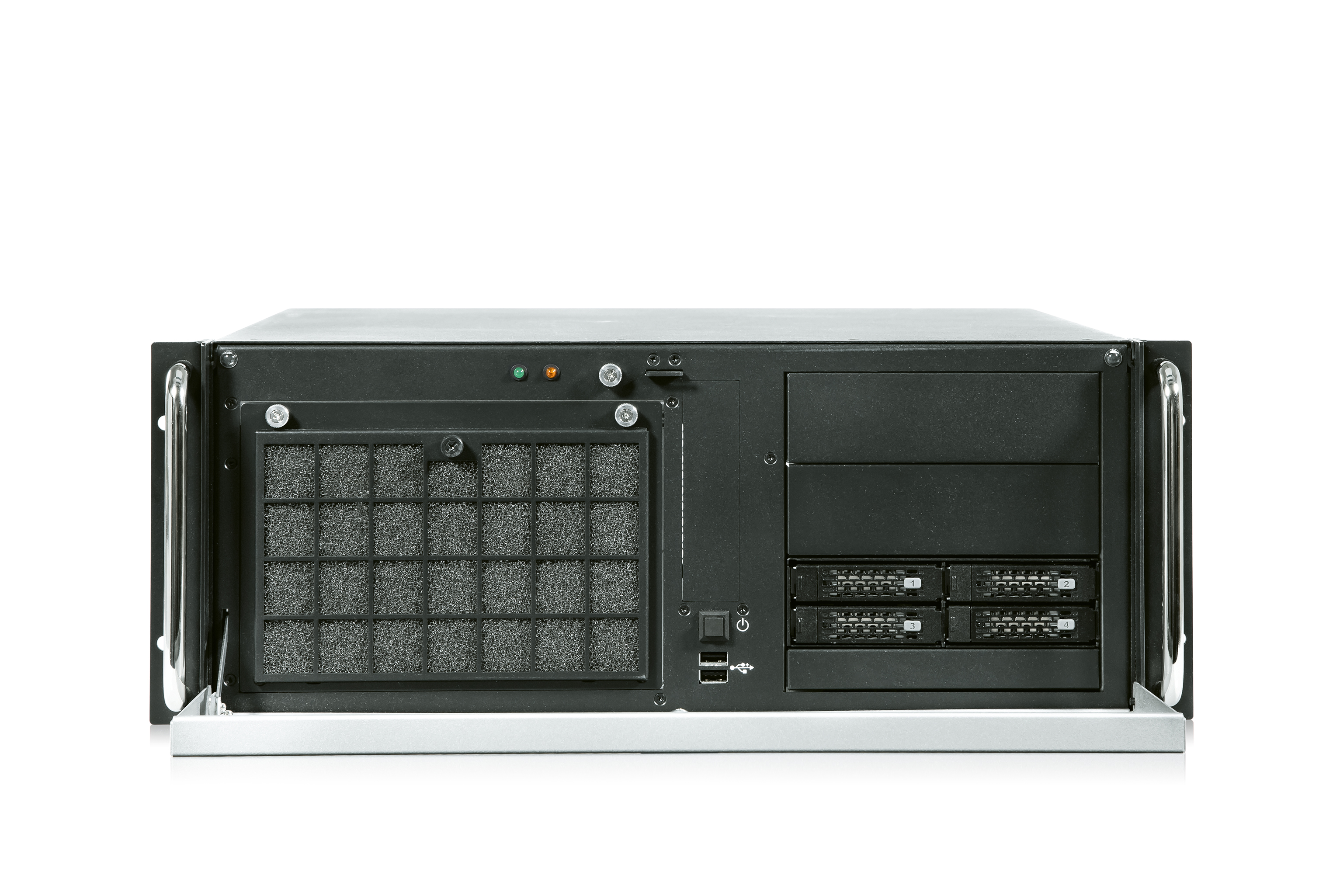

Tool-free replacement of fans, filter mats, or hard disk drives in the removable tray
Microsoft Azure certified, TSN functionality optionally

Download Datasheet

Kontron’s KISS rackmount systems are designed and tested for challenging environments, and are therefore the perfect fit for high temperature and mechanical stress conditions. Industrial grade design, in combination with high processing performance allows industrial applications requiring high performance and storage capabilities, e.g. high-end image processing and SCADA/MES applications.

The new KISS rackmount systems are ideally suited even for complex computing tasks such as ‘Artificial Intelligence’ (AI) and machine learning based on processing and analytics of a huge amount of data. Efficient thermal concepts, maintenance-free and customizable designs, high performance computing and graphics power enable 24/7 operation and long-term deployment.

A high degree of customization is facilitated through features like removable drives and various expansion options.

Features

19" Rack Mounting

Altitude

5000 m operating

Approvals

CE,FCC,NRTL(UL 62368-1),CB(IEC 62368-1)

Available Extensions

12 Slots (Full High): 5x PCIe (Gen 2), 7x PCI 32 bit

Chipset

Q170

Common Features

Flexible Customisation, low noise design, 12 free slots

CPU	Intel® 7th Gen Intel® Core™ i7/i5/i3 series

Dimensions (H x W x D)

177 x 482 x 472 mm (4U x 19” x 18.58”)

DRAM speed

2400 MHz

Drives

3x 5.25” SATA drive bays
1x 2.5”/3.5” SATA drive internal
RAID support

Humidity

10 % to 93 % @40 °C, non-condensing

Main Memory

2x DIMM DDR4-2400 up to 32 GByte

MTBF	> 50.000 h

Operating System

Windows 10 64 bit LTSC, Linux Ubuntu 18.04, others on request

Operation Temperature

0 °C to +50 °C continuous operation

Power Supply

100-240 V AC 600 W (80+), others on request

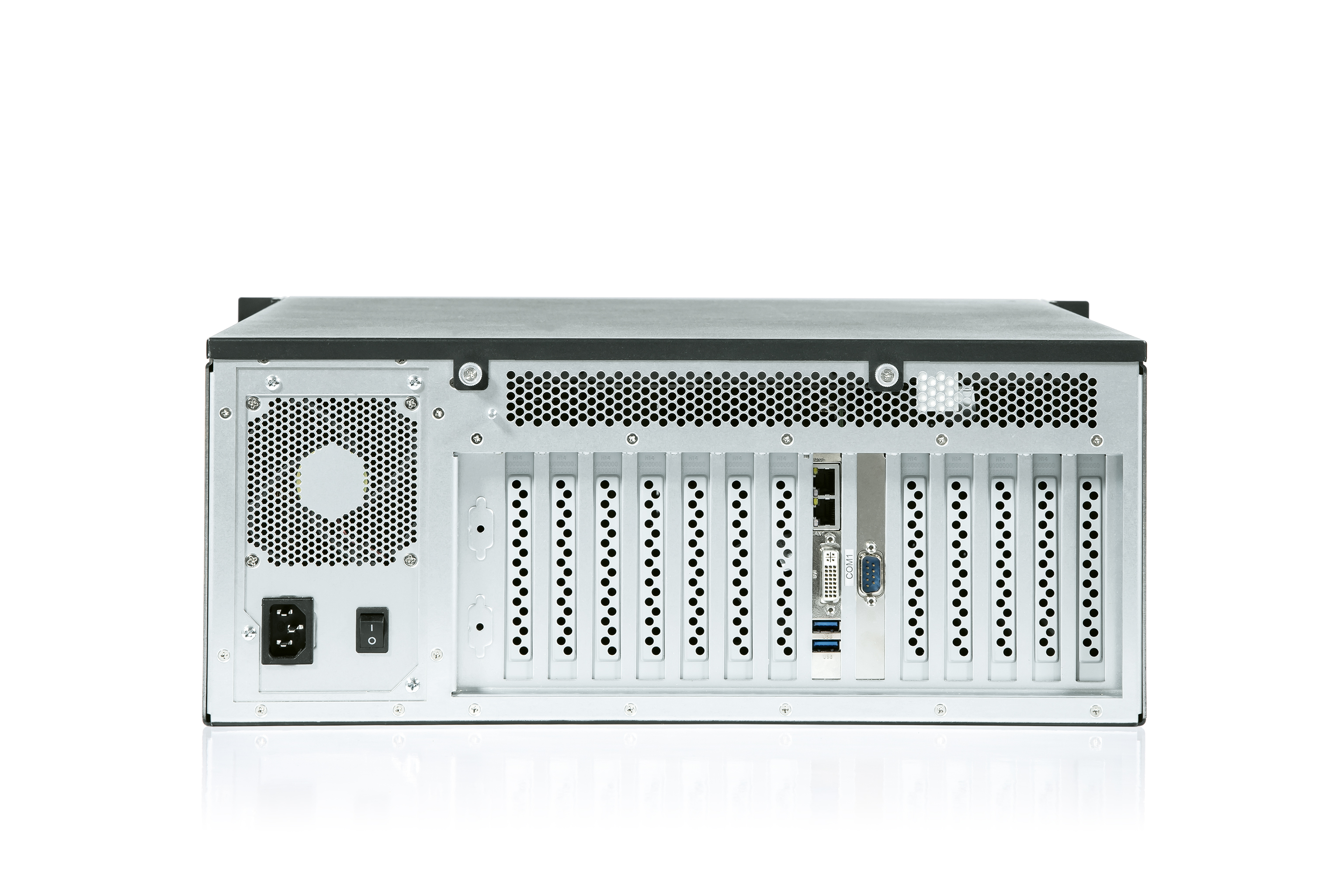

Rear I/O

2x USB 3.0, 2x GB LAN, 1x DVI-I
2x RS232 on Slotbracket

Shock

Operating: 15 G 11 ms duration
Non-operating: 30 G 11 ms duration

Vibration

Operating: 10-150 Hz: 1G/3 axis
Non-operating: 10-150 Hz: 2G/3 axis

Weight

Approx. 18 kg

RAID	By RAID controller card, BY DA 235 or DA 225 drivev bay with integrated RAID controller

Downloads

Datasheets

KISS 4U V3 PCI763_20181018_datasheet
[ kiss-4u-v3-pci763_20190506_datasheet.pdf, 1.74 MB, Sep.04.2023 ]

Manuals

KISS 4U V3 PCI763 User Guide
Rev. 1.3 Sept. 15. 2023
[ kiss-4u_v3_user-guide_rev-1-3_2023-09-15.pdf, 5.46 MB, Sep.15.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Tech Spec Sheet

Tech Specs Rack Mount Servers
[ rackmount-kiss_tech-specs_en_kontron.pdf, 1.15 MB, Nov.07.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
