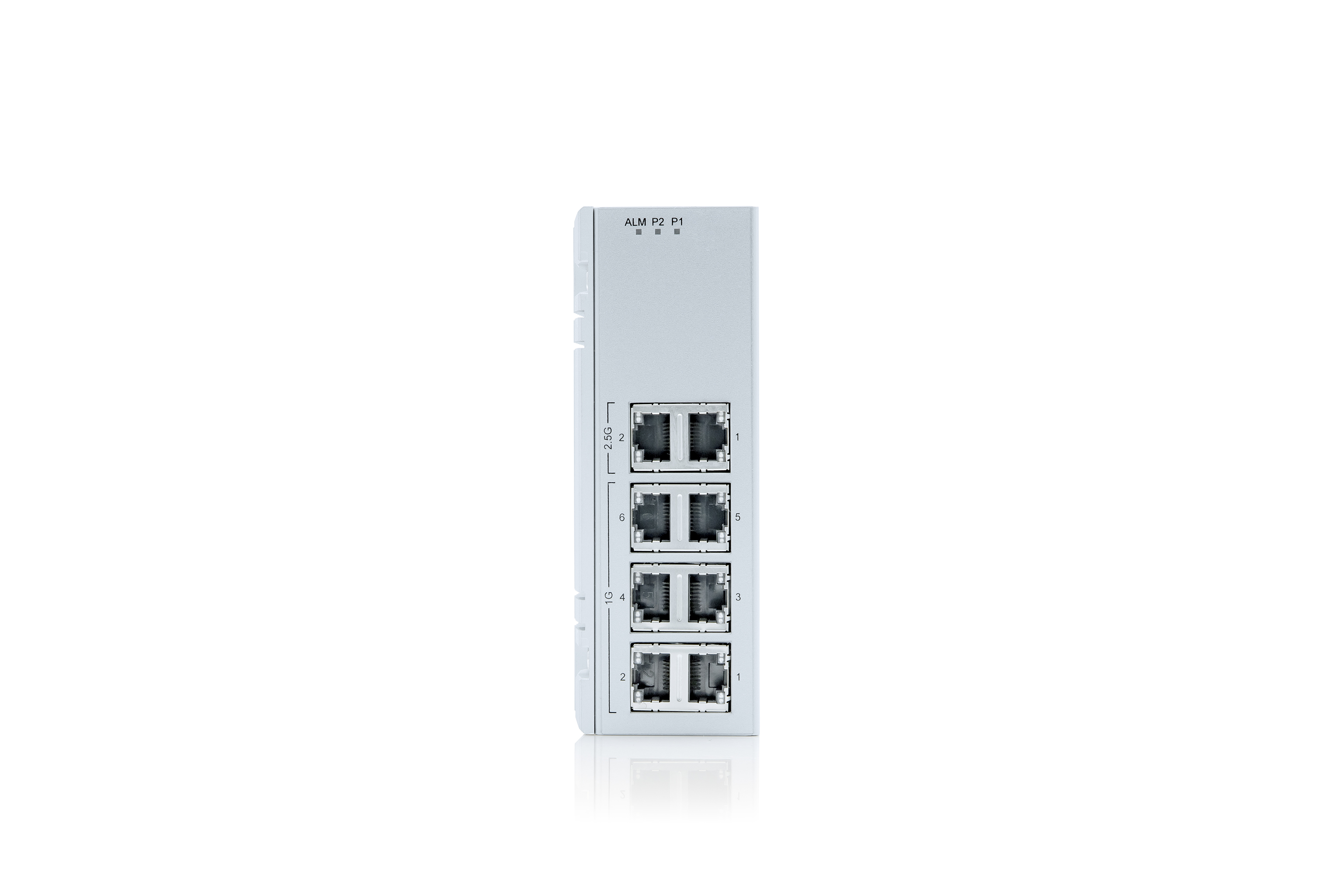

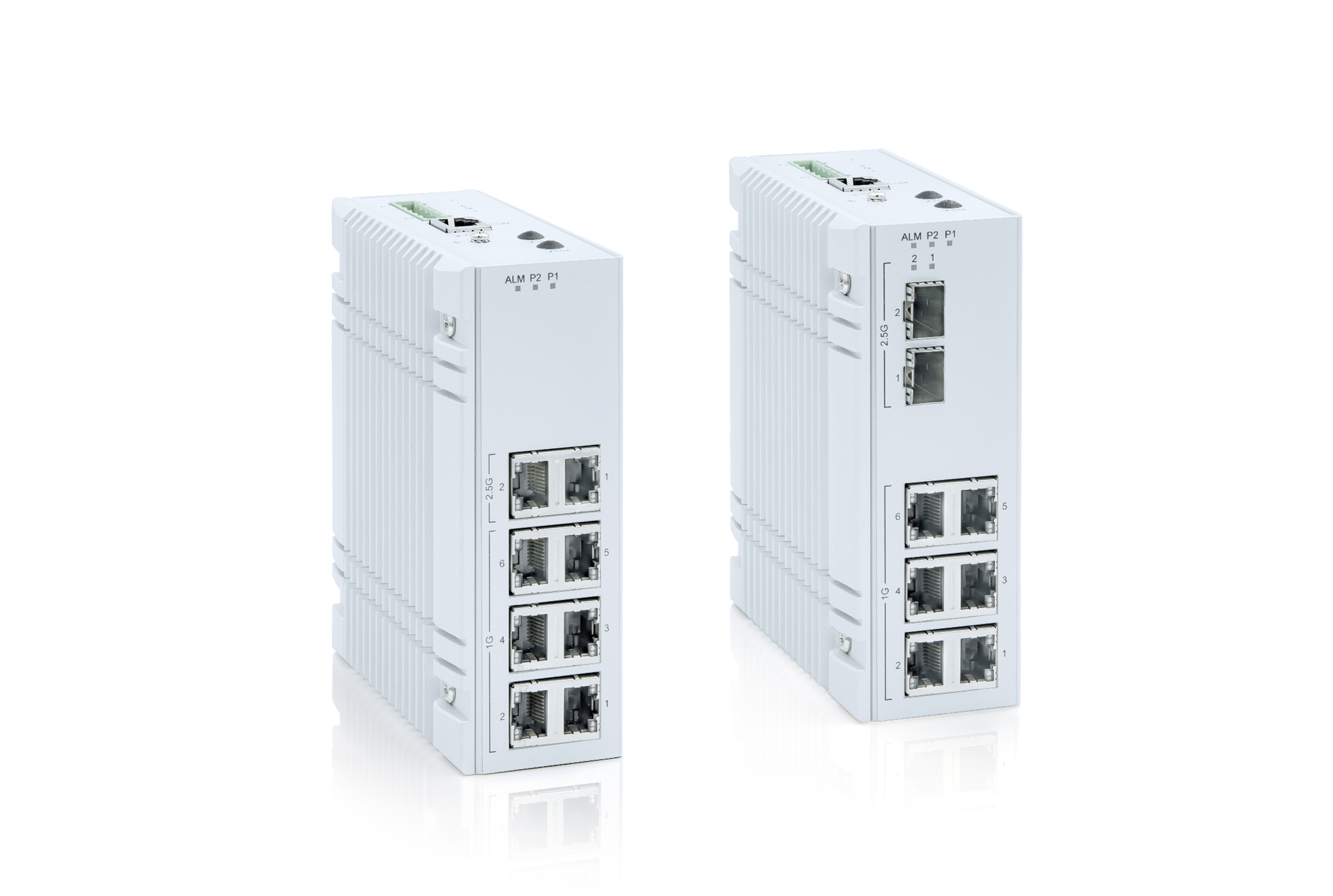

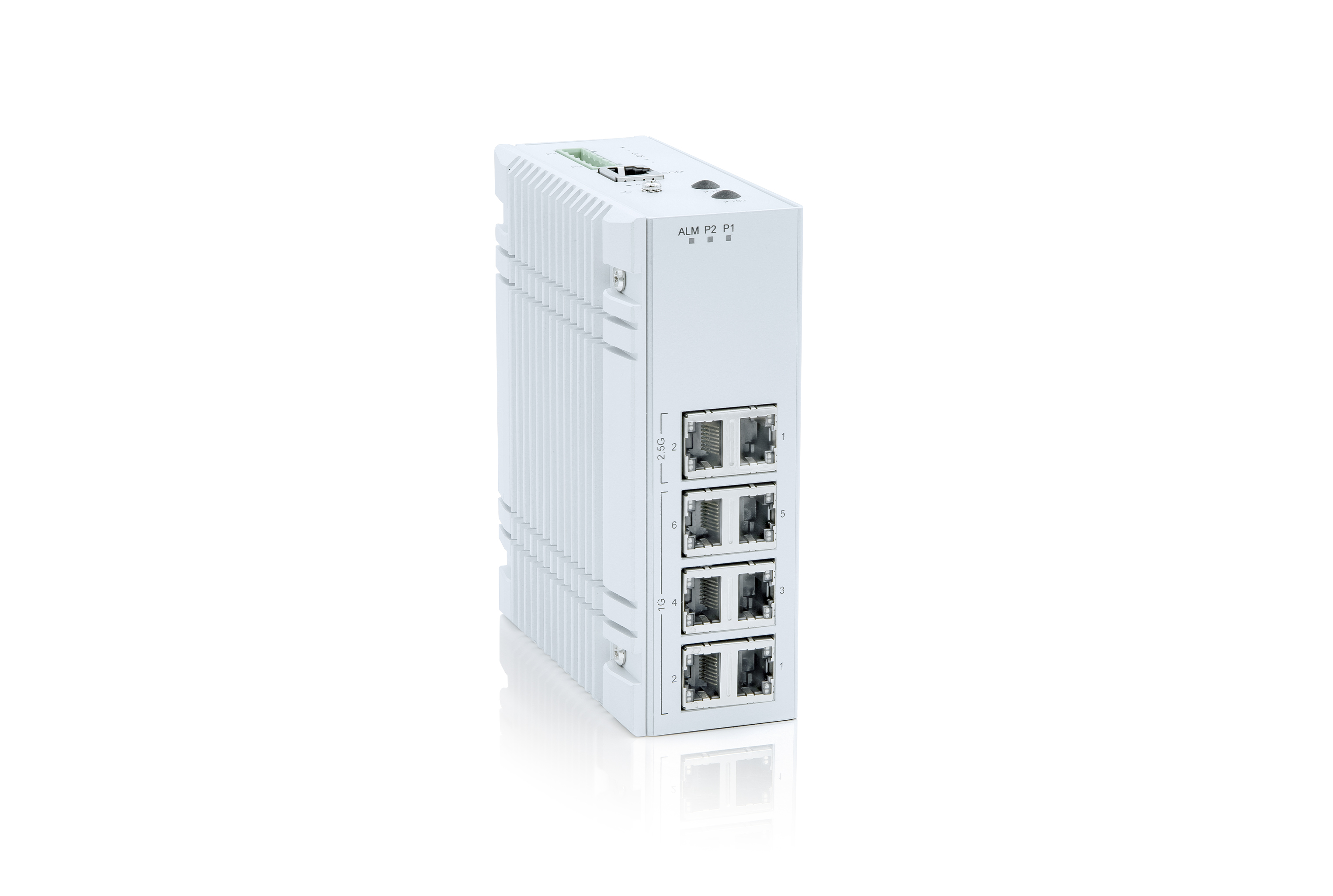

KSwitch D10 MMT Series New
8-port industrial Ethernet TSN Switches
Mouseover Zoom loading...
Specifications
- IEEE 802.1 TSN-compliant, managed Layer 2 Ethernet Switch
- 6x 1000/100/10Base-T Gigabit Ethernet

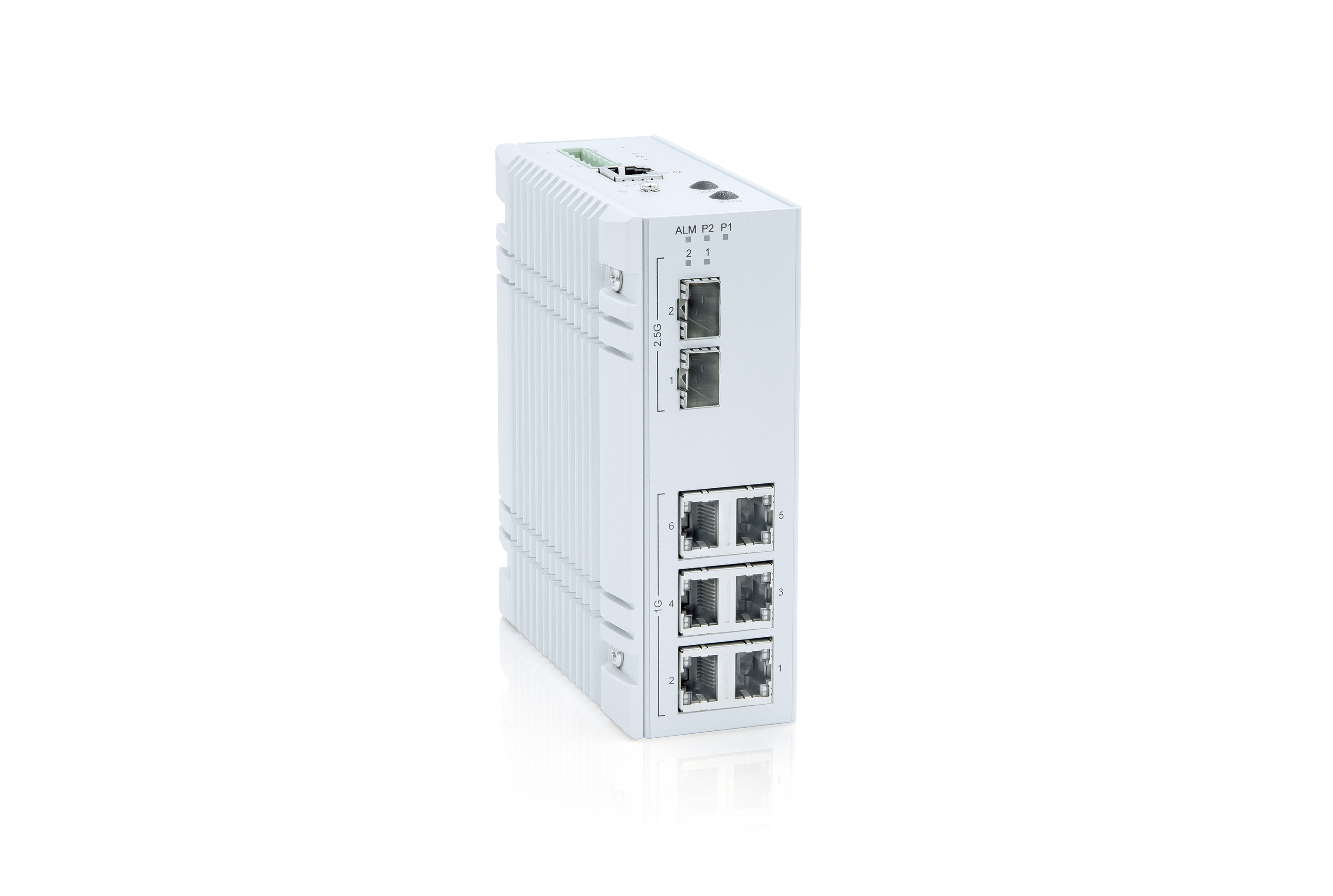

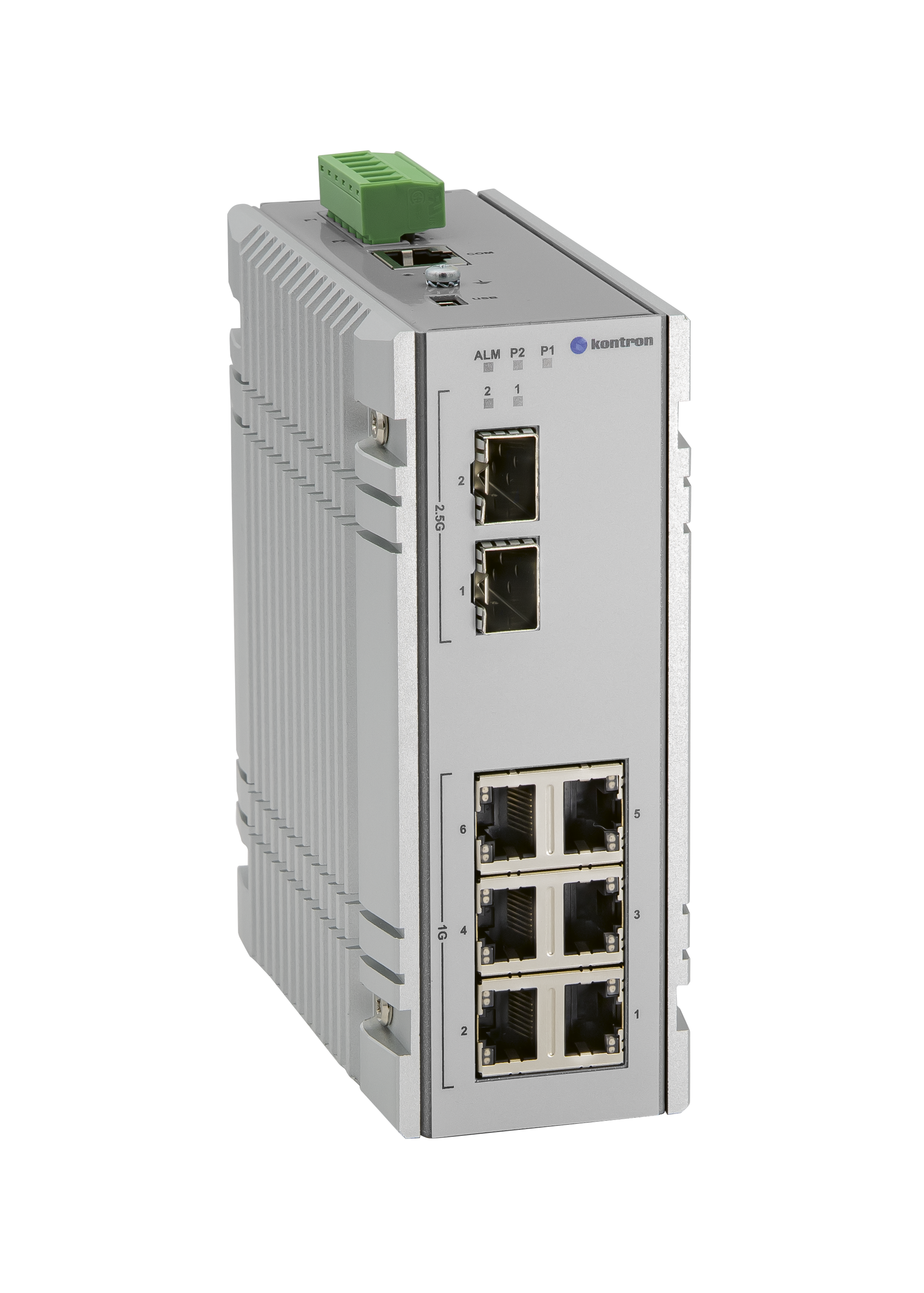

- 2x 2500/1000/100/10Base-T or 2x SFP+ ports for 2.5G fiber
- Industrial grade, highly reliable and long-term available
Modern automation solutions for successful Industry 4.0 and IoT applications require high-performance real-time communications. Kontron's new KSwitch D10 MMT family is suitable for Fast- and Gigabit networks and is specifically designed for use in industrial environments. In addition to a compact design, the switches offer the possibility to interconnect machines, controllers and other components in a future-oriented way based on Time Sensitive Network Ethernet (IEEE 802.1 TSN).
All TSN standards, such as IEEE 802.1AS, 802.1Qci, 802.1Qav, 802.1Qbv, 802.1Qbu/3br and 802.1CB, as well as IEEE1588 v2 are supported.
The implemented management allows to structure Quality of Service, VLANs and IGMP-functions in industrial networks and to program the TSN network. Optionally, a Netconf implementation for TSN network functions is available.
The system software can be updated via standardized update functions.
All variants of the KSwitch portfolio can be flexibly combined with each other, making it easy to build a future-oriented TSN or standard Ethernet automation solution. Thanks to state-of-the-art technology, the switches operate reliably and at high performance while reducing power consumption. Further cost savings result from the use of standardized RJ45 as well as optional SFP (Small Formfactor Pluggable) slots. SFPs are available as modular, optical or electrical transceivers for fiber optics or "direct attach copper" and can be used flexibly and scalably depending on the application. Due to the compact design in DIN-Rail mounting, the space requirement in the control cabinet or industrial rack is greatly reduced.
The KSwitches of the D10 MMT series have a high-quality metal housing, which predestines them for use in rugged environments. They can be deployed at temperatures from -40° C to +75° C as standard; they also support an extended supply voltage range of 12 to 56 V DC. Thanks to the robust power supply and high electrical immunity, the KSwitch D10 MMT variants operate safely and reliably even in harsh production environments with strong magnetic fields or unstable voltage supply.
Downloads
Datasheets
KSwitch D10 MMT Series_Datasheet
[ kswitchd10mmtseries_en_data-sheet_kontron.pdf, 679.28 KB, May.06.2024 ]
Manuals
KSwitch D10 MMT User Guide
Rev. 1.6
Mar. 13, 2024
[ kswitch-d10-mmt-managed-time-sensitive-industrial-8-port-user-guide_rev-1-6_2024-03-13-2.pdf, 2.09 MB, Mar.13.2024 ]
Application Note
Supported SFP modules
[ an002_kswitch_d10_mmt_sfps_v2-0.pdf, 854.7 KB, Jun.12.2024 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
