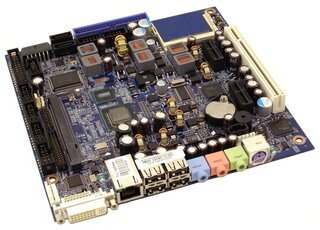

KTUS15/mITX - 1.6 Plus This product is legacy
Intel® Atom™ Z530 processor based Embedded Mini-ITX board. 1.6 GHz BGA CPU. Ultra Low Power. Only 2,3 W TDP, TPM and SDIO Onboard
Specifications
- Intel® Atom™ Z530 processor 1.6 GHz BGA CPU
- Intel® US15 Embedded Chipset
- FSB 533
- 1x DDR2 200 pins DIMM
- 2x PCI-Express 1x
- 2x SDIO
- Flat Panel Display Support by on board LVDS
- 1x PCI slot
- Up to256MB on board graphics memory
- DVI-D
- TPM (Trusted Platform Module)
- 1x Intel 10/100/1000 Mbps Ethernet
- 8x USB 2.0, 4x RS232C
- 1x ATA100 and 2x SATA150/300 IDE Controller
- Compact Flash socket on board
- High definition audio
- Size: 170 x 170 mm (6.7" x 6.7")
1x LAN, 2x SATA300/150, 4x COM, LVDS, DVI-D, TPM, 2x PCI-Express x1, 2x SDIO
The Kontron KTUS15/mITX is a new long life mITX motherboard based on the latest Intel® US15 Embedded Chipset that supports the ultra low power Intel® Atom™ Processors.
Features
| Form Factor | Mini-ITX |
| Dimensions (H x W x D) | "6.7" x "6.7" (170 mm x 170 mm) |
| CPU | Intel® Atom™ Z530, 1,6GHz |
| Chipset | Intel® US15W |
| Main Memory | up to 2 GByte DDR2 200pins SO-DIMM (max 1x 2GB) |
| Front Side Bus | 533MHz |
| Graphics Controller | Intel® GMA 500 Controller with 2D/3D Graphics Engine Dual Pipe for dual independent displays (incl. 2x LCD) HW assisted DVD/MPEG2 Decoding |
| Graphics | 1x Single Channel LVDS up to 1366x768 1x DVI |
| Ethernet Controller | Intel ® 82574L |
| Ethernet | 1x 10/100/1000 Mbps |
| Hard Disk | 2x SATAII 150/300 w. RAID 0,1 support |
| Parallel Port | 1x Bi-directional Centronics (internal pin connector) Thru LPT |
| Flash Onboard | CompactFlash Type II PATA |
| PCI | 1x PCI |
| PCI Express / PCI support | 2x PCIe x1 |
| Mini-PCI | n/a |
| USB | 8x USB 2.0 (4x internal and 4x external) |
| IEEE 1394 Firewire | n/a |
| Serial | 4x RS232C |
| Rear I/O | 1x DVI 1x LAN 4x USB Line-In, Mic-In, Line-Out KBD/MSE |
| Audio Controller | Realtek ALC888 HD Audio and AC97 |
| Keyboard | Standard PS/2 mouse and keyboard (Split cable) |
| Special Features | Software interface to monitor hardware values including HDD S.M.A.R.T. TPM Watchdog Wide Range power supply 5-25V |
| BIOS | AMI |
| Power Management | ACPI 3.0 |
| Operation Temperature | 0 - 60°C |
| Operating System |
| Compliance | UL609501-1:2003, First edition CSA C22.2 No. 60950-1-03, First edition, April 1. 2003 RoHS and Lead-free |
