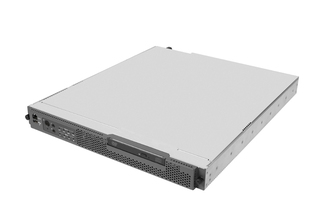

Carrier Grade Server TIGW1U This product is legacy
1U Carrier Grade Server for Telecom and Data Center Applications
Specifications
- NEBS-3 / ETSI compliant
- Long life support (3-5 years)
- Short depth, ruggedized 1U chassis
- Dual, redundant AC or DC power option
- Telco alarm management
- Hardware RAID option
Performance and Energy Efficiency in a Rugged, Carrier-Grade Design
The Carrier Grade Server TIGW1U is a NEBS-3 and ETSI-compliant carrier-grade rack server. It supports the Intel® Xeon® processor L5410, as well as 64-bit Intel® Xeon® processors LV 5148 and LV 5128.
This server is an excellent choice for the demanding environment and limited space of the central office and highly available data centers. It is also ideal for Services over IP (SoIP) for next-generation telecom solutions and communications networks. Offered as a standard building block, the Intel Carrier Grade Server TIGW1U enables OEMs and TEMs to create their own value-added solutions for a variety of telecom applications including unified messaging, SoIP, call control, media and signaling gateways, and operational system support. In addition, the TIGW1U raises the bar for telecom solutions with support for Intel® I/O Acceleration Technology (Intel® I/OAT)◊, Intel® 64 Technology (Intel® 64)◊ and dual-channel Fully Buffered DIMM (FB-DIMM) technology at either 533 or 667 MHz for maximized bandwidth.
This server is an excellent choice for the demanding environment and limited space of the central office and highly available data centers. It is also ideal for Services over IP (SoIP) for next-generation telecom solutions and communications networks. Offered as a standard building block, the Intel Carrier Grade Server TIGW1U enables OEMs and TEMs to create their own value-added solutions for a variety of telecom applications including unified messaging, SoIP, call control, media and signaling gateways, and operational system support. In addition, the TIGW1U raises the bar for telecom solutions with support for Intel® I/O Acceleration Technology (Intel® I/OAT)◊, Intel® 64 Technology (Intel® 64)◊ and dual-channel Fully Buffered DIMM (FB-DIMM) technology at either 533 or 667 MHz for maximized bandwidth.
Features
| CPU | Dual socket support for Intel® Xeon® processors L5410 (45nm) OR for Intel® Xeon® processors LV 5148 or LV 5128 (65nm) |
| Alarm Card | Telco Alarm Management - front-panel feature supports central office alarm systems |
| Dimensions (H x W x D) | 1.70 inches (43.25 mm) x 16.93 inches (430 mm) x 20 inches (508 mm) |
| Drive bays internal | Drive trays for up to three hot-swap 2.5-in. SAS hard disk drives. DVD-CDR installed. |
| RAID | Software RAID 0,1 supported (std); Hardware RAID 5 supported as optional module |
| Flash | Flash storage capability supports specified solid state drives (purchased separately) |
| Front Bezel | Standard gray bezel; customizable bezel available (optional) |
| Main Memory | Six DIMM slots supporting FBDIMM memory; 240-pin DDR2-533 and DDR2-667 FBDIMMs can be used; Maximum 32GB memory |
| Management | Telco Alarm Management (std); Remote Management Module (optional) |
| PCI Express / PCI support | One PCI Super slot supporting either PCI-X 133MHz or optional PCI-Express x8 |
| Power Supply | Dual, redundant 450W AC or DC Hot Swap Power Supply (2nd power supply optional) |
| Rear I/O | Four rear-panel GbE NIC (Cu) ports standard |
| Chipset | Intel® 5000P Memory Controller and ESB2-E I/O Controller chipset; supports front side bus speeds of 1066 MHz and 1333 MHz |
| Hot Swap | Hot-swap, redundant power supplies; hot-swap hard drives |
Downloads
Datasheets
TIGW1U Datasheet
[ datasheet_tigw1u.pdf, 454.83 KB, Aug.31.2017 ]
Manuals
Guide to CRMS Rack Mount Kits
This guide provides an overview of rack mounting options that are offered by Kontron for its Communication Rack Mount Servers on 2-post or 4-post, 19-inch or 23-inch racks.
[ crms-rack-mount-kits_1_0.pdf, 403.9 KB, Sep.11.2017 ]
TIGW1U Product Guide - Revision 1.3
Description of hardware set-up and replacement
[ tigw1u_pg_revision_1-3.pdf, 4.76 MB, Apr.20.2023 ]
Telco Alarm Manager User Guide - Rev. 1.7
[ tam_user_guide.pdf, 149.86 KB, Sep.11.2017 ]
TMLREK01 Installation Guide
This guide provides installation instructions for the TMLREK01 kit that enables the use of Intel rail kits AXXBASRAIL13 and AXXHERAIL2 with a Kontron Communications Rackmount Server.
[ k000032-001-tmlrek01-instructions.pdf, 660.5 KB, Sep.11.2017 ]
Frequently Asked Questions (FAQ)
High Level and Technical FAQ for CRMS
[ faq.htm, 76 B, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
BIOS
BMC 28 update package
INSTALLATION PROCEDURES (found in HarbisonReleaseNotes.txt) If a BMC is installed and functional: 1) Update the BMC firmware using UpFW.bat. 2) Update the SDR & FRUs with the FRU/SDR package. To recover non-functional BMC (possible if M28W flash part has v00.27 or earlier applied): 1) Copy the update files from this release package to the media (Hard Drive, USB Disk-on-Key, Floppy...) that you wish to perform the update from. 2) Update the BMC flash by running UpPFlash.bat. You must then A/C power cycle with power off for at least 30 seconds. 3) Update the SDR & FRUs with the FRU/SDR package. 4) Subsequent updates of the BMC FW should use UpFW.bat.
[ hb_bmc28.zip, 1.37 MB, Nov.27.2013 ]
Firmware Update Package for the Kontron Deployment Assistant, OFU, and DOS
System Update Package (SUP) 40:
BIOS 101, BMC 28, FRUSDR 19, HSC 2.11
[ tigw1u_nsw1u_sup_40.zip, 2.61 MB, Nov.27.2013 ]
BIOS 96.11 update package
To update server to BIOS 96.11 follow the instructions in ReleaseNotes_R0096_11.txt.
[ tigw1u_nsw1u_bios_r0096_11.zip, 1.48 MB, Nov.27.2013 ]
SAS Software RAID Firmware and OpROM Update Package Version 1.25.01
[ crms_sas_firmware_1-25-01.zip, 18.78 MB, Apr.20.2023 ]
Firmware Update Package for the Kontron Deployment Assistant, OFU, and DOS
System Update Package (SUP) 38:
BIOS 99, BMC 27a, FRUSDR 19, HSC 2.11
[ tigw1u_nsw1u_sup_38.zip, 2.61 MB, Nov.27.2013 ]
BMC 27a update package
INSTALLATION PROCEDURES (found in HarbisonReleaseNotes.txt)
If a BMC is installed and functional:
1) Update the BMC firmware using UpFW.bat.
2) Update the SDR & FRUs with the FRU/SDR package.
To recover non-functional BMC (possible if M28W flash part has v00.27 or earlier applied):
1) Copy the update files from this release package to the media (Hard Drive,
USB Disk-on-Key, Floppy...) that you wish to perform the update from.
2) Update the BMC flash by running UpPFlash.bat. You must then A/C power cycle with power off for at least 30 seconds.
3) Update the SDR & FRUs with the FRU/SDR package.
4) Subsequent updates of the BMC FW should use UpFW.bat.
[ tigw1u_nsw1u_bmc27a.zip, 1.37 MB, Nov.27.2013 ]
SAS Software RAID Firmware and OpROM Update Package Version 1.29.00
Refer to 'ESRT2_IR_readme.txt' for change log and installation instructions
[ crms_sas_firmware_1-29-00.zip, 27.42 MB, Apr.20.2023 ]
Drivers
Technical Advisory for ESB2/Gilgal NICs and BMC LAN
Includes upgrade instructions for BMC firmware and NIC drivers to fix the specified issues.
[ 403647_esb2_letter_v3_final.pdf, 30.6 KB, Jun.18.2020 ]
Intel® On-Board NIC Driver for Windows Version 14.0*
[ intel-lan_msft_v14-0_whql.zip, 67.53 MB, Apr.20.2023 ]
Intel® On-Board NIC Driver for Linux Version 14.0*
[ intel-lan_linux_v14-0.zip, 2.96 MB, Apr.20.2023 ]
ESG-SHV Backplane Driver for Windows*
[ crms_hsbp_windows_5-00-6262-1.zip, 10.58 KB, Apr.20.2023 ]
Intel® Chipset Driver for Windows*
[ crms_inf_windows_8-6-0-1008.zip, 2.16 MB, Apr.20.2023 ]
SAS HW RAID Driver For SuSE* Linux*
[ crms_hwraid_sles_00-00-03-18-2.zip, 5.22 MB, Apr.20.2023 ]
SAS HW RAID Driver for RedHat* Linux*
[ crms_hwraid_rhel_00-00-03-18-2.zip, 6.66 MB, Apr.20.2023 ]
SAS SW RAID megasr-13.21 Driver for Linux*
[ crms_swraid_megasr-13-21_linux.zip, 51.2 MB, Apr.20.2023 ]
SAS HW RAID Driver for 64-bit Windows*
[ crms_hwraid_windows_2-20-0-64.zip, 111.19 KB, Apr.20.2023 ]
SAS HW RAID Driver for 32-bit Windows*
[ crms_hwraid_windows_2-20-0-32.zip, 205.01 KB, Apr.20.2023 ]
SAS SW RAID megasr-13.16 Driver for Windows*
[ crms_swraid_megasr-13-16_windows_v-13-16-0308-2010.zip, 1.48 MB, Apr.20.2023 ]
Intel imb IPMI driver source for Linux (GPL)
For latest version, refer to:
http://downloadcenter.intel.com/Product_Search.aspx?Prod_nm=imbsrc
[ imbsrc-28-tar.gz, 140.96 KB, Apr.20.2023 ]
SAS Storage Driver for Windows*
[ crms_sas_windows_1-24-28-00.zip, 3.33 MB, Apr.20.2023 ]
SAS Driver for Linux*
[ crms_sas_linux_3-02-83-20.zip, 25.3 MB, Apr.20.2023 ]
OpenIPMI+imb driver source for Linux (GPL)
[ openimb-391e-tar.gz, 136.63 KB, Apr.20.2023 ]
Software
HWRAID Firmware Flash Update
Latest version of HWRAID firmware. Refer to the 'ir3_1068TIGW1U_Firmware_v1.12.280-0826_readme.txt' for change log and installation instructions.
[ ir3_1068tigw1u_firmware_v1-12-280-0826_pkg-v7-0-1-0075.zip, 13.28 MB, Apr.20.2023 ]
RMM2 firmware update file
Firmware version 6912 .bin file and release notes. Login to the RMM2 GUI and update via maintenance, update firmware button.
[ rmm2_6912_fw.zip, 4.39 MB, Nov.27.2013 ]
Tools
Deployment Assistant CD Image
This download contains the Deployment CD ISO image for the Kontron IP Network Server NSW1U and Kontron Carrier Grade Server TIGW1U. Use a CD burning utility to extract the content of the ISO image to CD or DVD Media.
Note: You must use a DVD or Extended Length CD (700MB) for this image.
[ nsw1u_tigw1u_deploymentcd_r008.zip, 573.45 MB, Nov.27.2013 ]
PCT - Platform Confidence Test for DOS (TIGW1U / NSW1U)
Platform Confidence Test [PCT] is a functional diagnostic test of the motherboard. It is not a stress-test, nor does it test the functionality of add-in adapters.
[ s5000phb_dos.iso, 8.76 MB, Sep.22.2015 ]
PDK - Provisioning Development Kit
A set of scriptable command-line utilities to flash and configure all server platform components (BIOS, BMC, RAID, NIC, RMM2, OS, etc.) from bootable media (e.g. USB, CDROM, PXE, etc.). Applies to TIGH2U, NSC2U, TIGW1U, and NSW1U servers.
[ intel_pdk-1-2.zip, 60.78 MB, Apr.20.2023 ]
Power Budget Tool for Intel® Carrier Grade Server TIGW1U
[ tigw1u_power-budget_tool_rev01.exe, 156.95 KB, Nov.27.2013 ]
RAID Web Console 2 for Linux*
[ crms_webconsole2_linux_2-34-00.zip-3, 44.24 MB, Apr.20.2023 ]
RAID Web Console 2 for Windows*
[ crms_webconsole2_windows_2-34-00.zip-3, 34.87 MB, Apr.20.2023 ]
AutoGrab Event Log Collection Utility
1) Download the grab .iso file from the link provided in the autograb.htm file.
2) Follow the instructions to make the USB stick bootable.
3) Boot the server to the USB stick. If boot priority is enabled in the BIOS it should boot to the USB stick. If it doesn't boot to the USB stick then go to the BIOS and set the boot order to boot from your USB device first.
4) A script will automatically run after the system has booted into SLAX Linux and gather the event logs to the /capture directory. Note: Do not remove the USB stick until the system shuts down. It is during these last few seconds that the logs are copied to the USB stick. These logs can be submitted to technical support to help diagnose system issues remotely. The email address for technical support is included in the autograb.txt file.
[ autograb.htm, 1.47 KB, Nov.27.2013 ]
IPMImisc-1.2.6 rpm package for Linux
The ipmimisc package contains these utilities:
tamutil tamled iboot icmd iresetbmc getsmbios getplatform seltime diskevents immconfig getadvipmi
[ ipmimisc-1-2-6rpms-tar.gz, 4.38 MB, Apr.20.2023 ]
White Papers
Maintaining High Performance and Reliability: Innovative Vibration Suppression Technology for Communication Rack Mount Servers
The Communication Rack Mount Server
(CRMS) division at Kontron has an ongoing practice of
analyzing potential issues that could jeopardize how its
servers adhere to NEBS requirements or the overall quality
and reliability of the system itself. The experts at Kontron
are committed to testing and reviewing all components to
make sure each is up to the company’s high standards. As
part of this continual analysis process, the design team has
revealed some significant concerns associated with system
vibration that needs to be given serious consideration when
choosing a reliable server.
[ 1601_whitepaper-vibrationsupression_en.pdf, 1.11 MB, Nov.26.2020 ]
IPMI and Open Source Tools: Sorting Out the Confusion
Improving Server Management with the Right IPMI Tools for Your Implementation. The aim of server management is to help service systems via controls and information retrieved from sensors so that problems can be diagnosed early, quickly and, before they become overly critical. IPMI (Intelligent Platform Management Interface) is a standard interface used by many vendors to support all of these server management functions, either locally or remotely. IPMI-based management activities take place in the management controller firmware, instead of using the extra bandwidth from the main processor, which would reduce its production capacity. Using IPMI for server management enables the management of any large numbers of servers without spending the extra time and cost of on-site visits, and administrators can manage many different vendors’ systems with the same software, thereby reducing each server’s total cost of ownership.
[ kontron_wp_ipmi.pdf, 1.33 MB, Nov.27.2013 ]
Technical Info
TIGW1U System Technical Product Specification - Revision 1.4
Detailed description of System functionality
[ tigw1u_tps_rev1-4.pdf, 3.76 MB, Jul.03.2018 ]
North American power cord specifications
[ northamericanpowercord.pdf, 27.49 KB, Nov.27.2013 ]
Intel RAID Smart Battery AXXRSBBU3 Technical Product Specification - Rev. 1.3
[ d84273_003_axxrsbbu3_tps_r1_3.pdf, 156.02 KB, Nov.27.2013 ]
Intel® Remote Management Module 2 - User guide
[ e27084_001_intel_rmm2_user_guide.pdf, 4.13 MB, Nov.27.2013 ]
Server Board Family Datasheet - Rev 1.3
[ d38960006_s5000datasheet.pdf, 2.66 MB, Nov.27.2013 ]
Intel® RAID Software User's Guide
[ d29305008_raid_swg.pdf, 6.39 MB, Nov.27.2013 ]
TIGW1U / NSW1U Baseboard Technical Product Specification - Revision 1.2
Detailed description of Board functionality
[ s5000phb_tps_1_2.pdf, 974.88 KB, Nov.27.2013 ]
CRMS WEEE Statement
Kontron’s position on compliance to the WEEE Directive for its Communication Rackmount Servers (CRMS)
[ kontron-crms-weee-statement.pdf, 29.48 KB, Jul.03.2018 ]
Compatibility Matrix
TIGW1U / NSW1U Tested Hardware and Operating System List (THOL) - Rev. 3.4
List of tested hardware and operating systems
[ tigw1u_nsw1u_thol_3_4.pdf, 846.9 KB, Dec.17.2021 ]
TIGW1U / NSW1U Tested Memory List - Rev. 2.3
List of tested memory
[ s5000phb_memlist_rev_2_3.pdf, 404.66 KB, Nov.27.2013 ]
Ordering Guide
TIGW1U Configuration Guide - Rev. 2.6
Guidance on what to order, and SKU definition
[ tigw1u_configguide_2_6.pdf, 974.88 KB, Nov.27.2013 ]
Quick Reference Guide
TIGW1U Hardware Reference Guide - Page 1 Front View
Graphic view of hardware assembly and replacement
[ d76676-005-tigw1u-front-ol.pdf, 2.47 MB, Nov.27.2013 ]
TIGW1U Hardware Reference Guide - Page 2 Back View
Graphic view of hardware assembly and replacement
[ d76676-005-tigw1u-back-ol.pdf, 1.49 MB, Nov.27.2013 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
